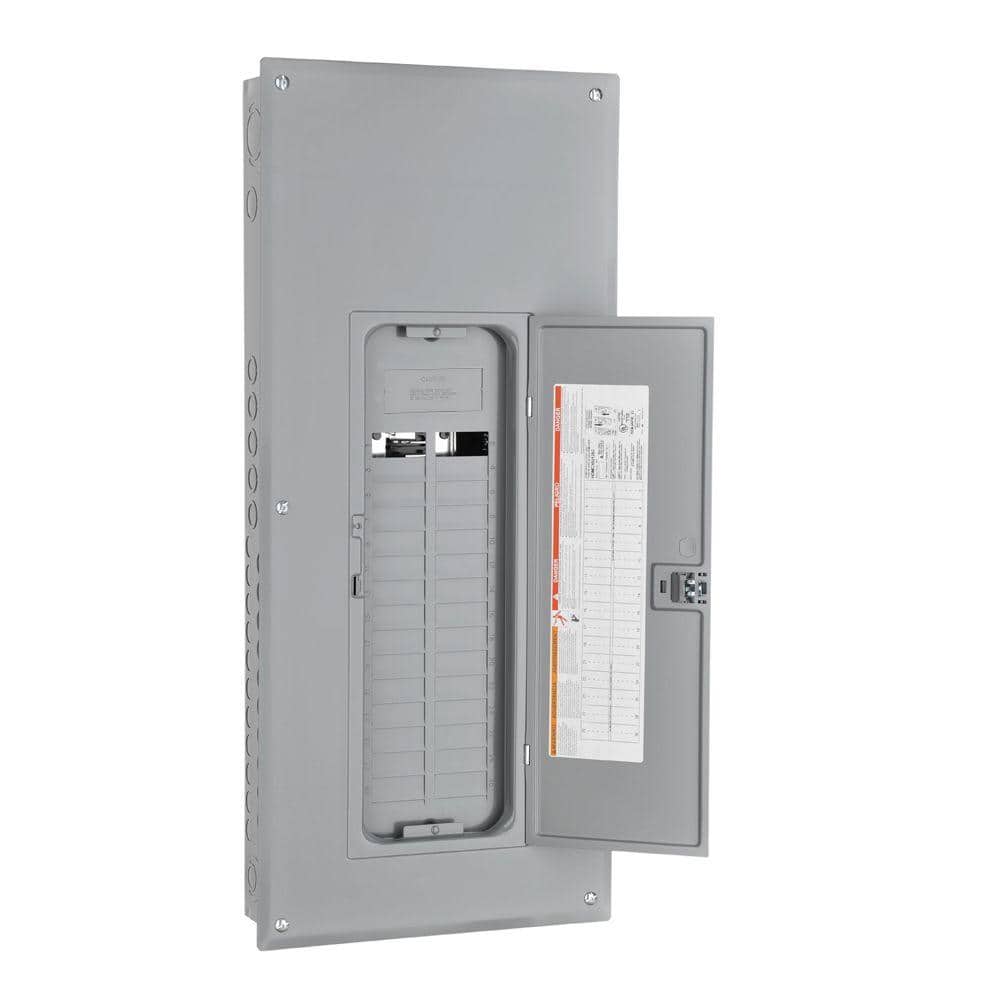

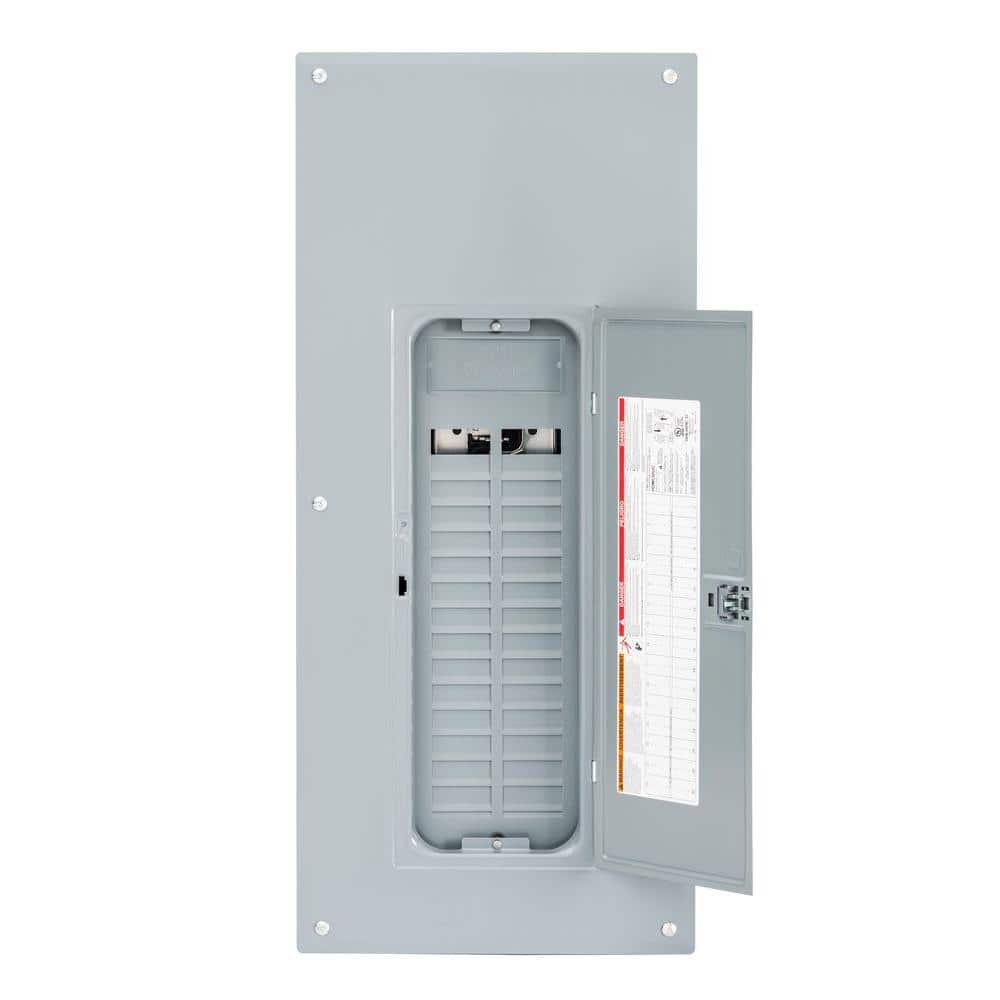

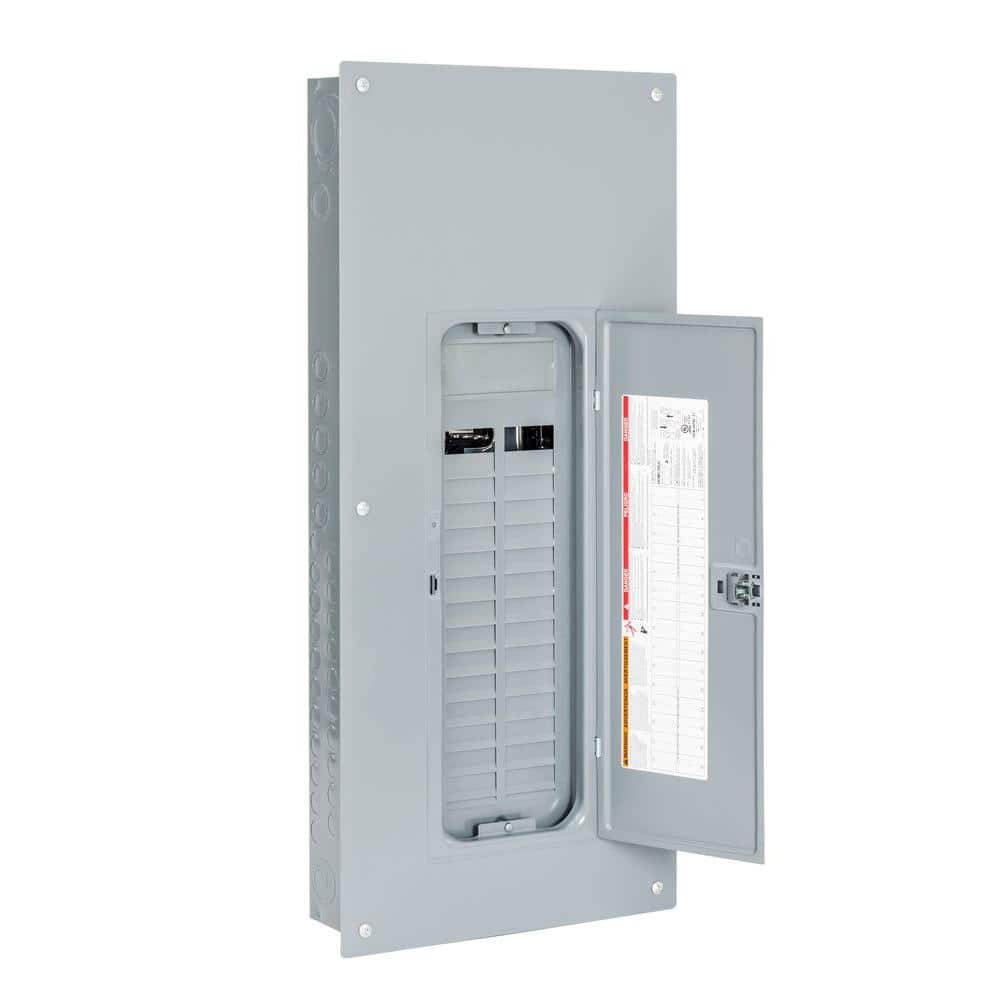

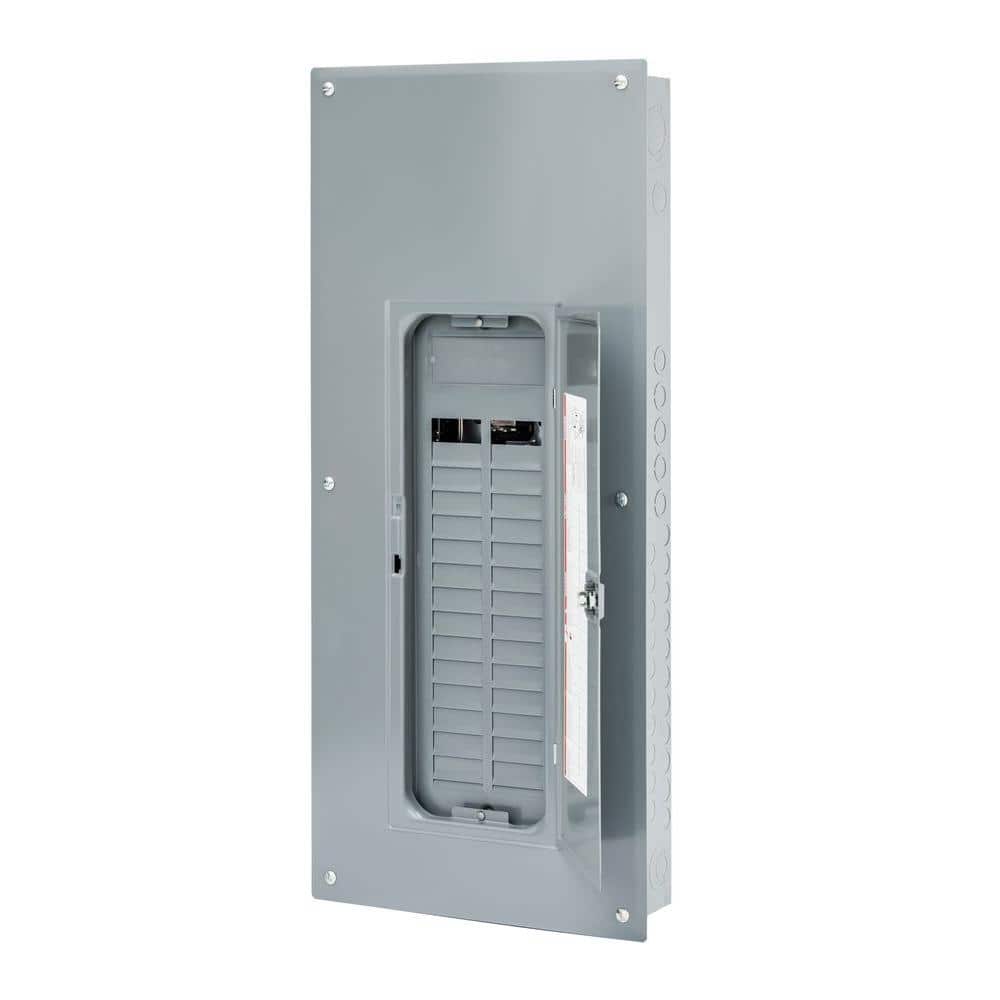

Square D 225 Amp Homeline Load Center

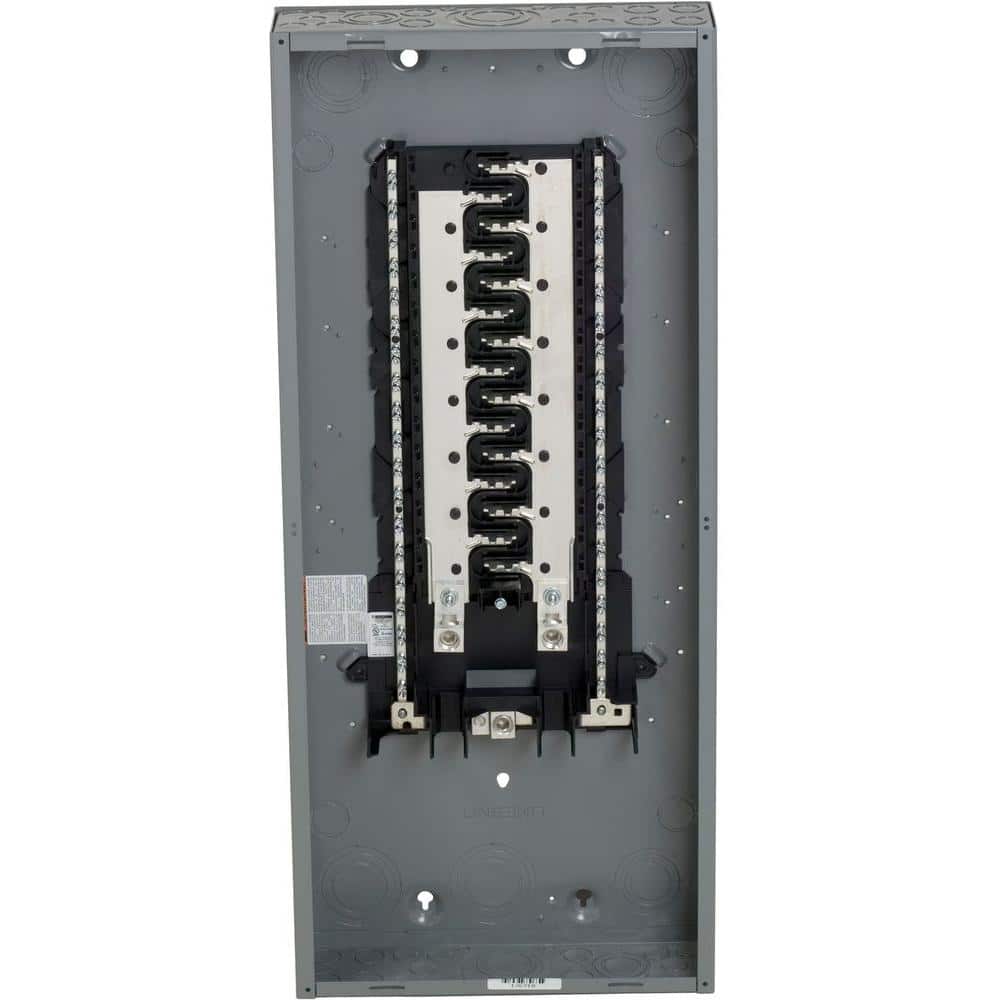

The Square D Homeline 225 Amp Load Center is designed for both residential and commercial applications, offering a robust solution for your power distribution needs. With 30 spaces and 60 circuits, this load center simplifies installation with its plug-on neutral system, saving both time and wiring costs. Built with a durable plated aluminum bus bar, it ensures long-lasting performance and reliability.

---

Key Features:

• Compact Design: 30 spaces and 60 circuits offer substantial capacity in a compact form.
• Plug-On Neutral: Supports combination arc fault breakers on any space, ensuring easy and efficient wiring.
• Versatile Installation: Convertible main lugs with options for flush or surface mounting, suitable for various settings.
• Durable Construction: Features a thermoplastic interior assembly for enhanced ruggedness.
• Safety and Compliance: UL Listed with a short circuit current rating of 65,000 AIR.

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Neutral
Indoor/Outdoor	Indoor
Maximum Amperage (A)	225 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	60
Number of Spaces	30
Product Weight (lb.)	29.93 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	10 Years

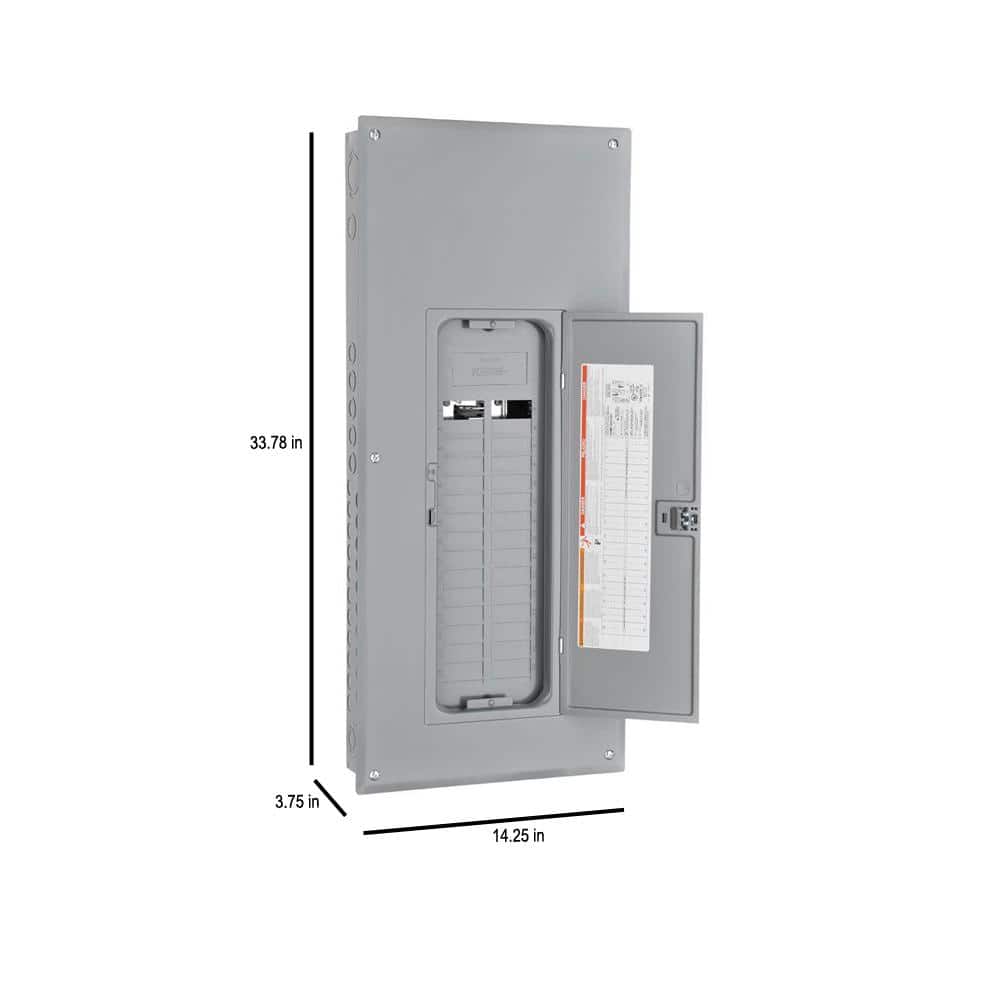

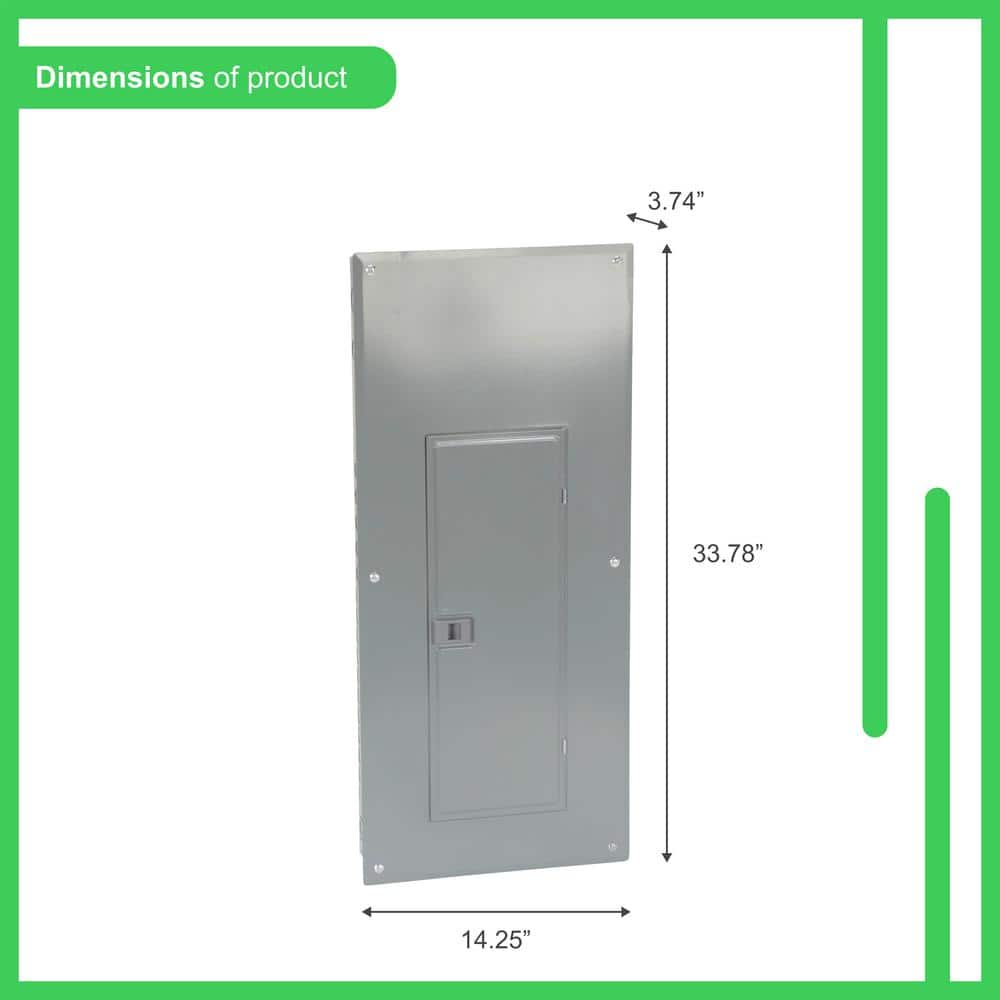

Product Depth (in.)	3.75 in
Product Height (in.)	33.78 in
Product Width (in.)	14.25 in

---

Frequently Asked Questions (FAQ):

Q: Can this load center be used for outdoor installations?
A: No, this particular model is designed for indoor use only, complying with NEMA 1 standards.

---

Q: Does this load center include a main breaker?
A: It comes with convertible main lugs but can be upgraded to a main breaker with a separately sold QOM2 main breaker.

---

Q: What types of breakers are compatible with this load center?
A: It is specifically tested and listed for use with Square D Homeline circuit breakers.

---

Q: Is this load center suitable for both overhead and underground feeds?
A: Yes, the load center is designed to accommodate either overhead or underground feeds by easily rotating the unit during installation.

---

Q: How does this product simplify the wiring process?
A: This load center features a fully distributed neutral bar and multiple terminal spots, saving up to 50% installation time compared to competing models.

---

A Masterstroke of Power Distribution Efficiency

Transform your home's utility space with the Square D Homeline Load Center—an embodiment of functionality and sleek design. Its discrete, compact form blends effortlessly into garages or utility rooms, providing unmatched performance for all your electrical demands. Style it seamlessly within minimalist environments, forming a harmonious balance between practicality and aesthetics. Elevate your abode's foundation with this indispensable fixture in modern electricity management, marrying necessity with innovation at every turn.

---

Experience seamless power distribution with the Square D Homeline Load Center—purchase today to enhance your home's electrical system effortlessly.
