Square D Homeline 200 Amp Main Breaker Load Center

The Square D Homeline 200 Amp Main Breaker Load Center is perfect for outdoor settings, providing reliable power distribution with its 30-space, 60-circuit capacity. This UL-listed load center includes specific Homeline breakers for enhanced value and convenience, featuring a durable aluminum bus bar and a rainproof cover designed for safety and efficiency.

---

Key Features:

• Quick Installation: Features plug-on neutral capabilities for faster setup and wiring.
• Durability: Includes a thermoplastic interior assembly for rugged outdoor conditions.
• Safety: Rainproof cover with stainless steel hasp for secure, padlock-ready protection.
• Compatibility: Designed to work seamlessly with any Square D Homeline circuit breakers.
• Flexibility: Split branch neutral with extra terminals simplifies wiring arrangements.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Main Breaker Panel
Connection Type	Neutral
Electrical Product Type	Load Center and Breaker Kit
Included	Circuit Breaker,Cover
Indoor/Outdoor	Outdoor
Maximum Amperage (A)	200 A
Mounting Type	Surface
NEMA Configuration	NEMA 3R
Number of Circuits	60
Number of Pieces	6
Number of Spaces	30
Phase Type	1 Phase
Product Weight (lb.)	41.77 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Product Depth (in.)	4.52 in
Product Height (in.)	33.78 in
Product Width (in.)	14.75 in

---

Frequently Asked Questions (FAQ):

Q: Is this load center suitable for both residential and commercial use?
A: Yes, the Square D Homeline 200 Amp Load Center is UL listed and designed for both residential and commercial power distribution.

---

Q: Does this load center include circuit breakers?

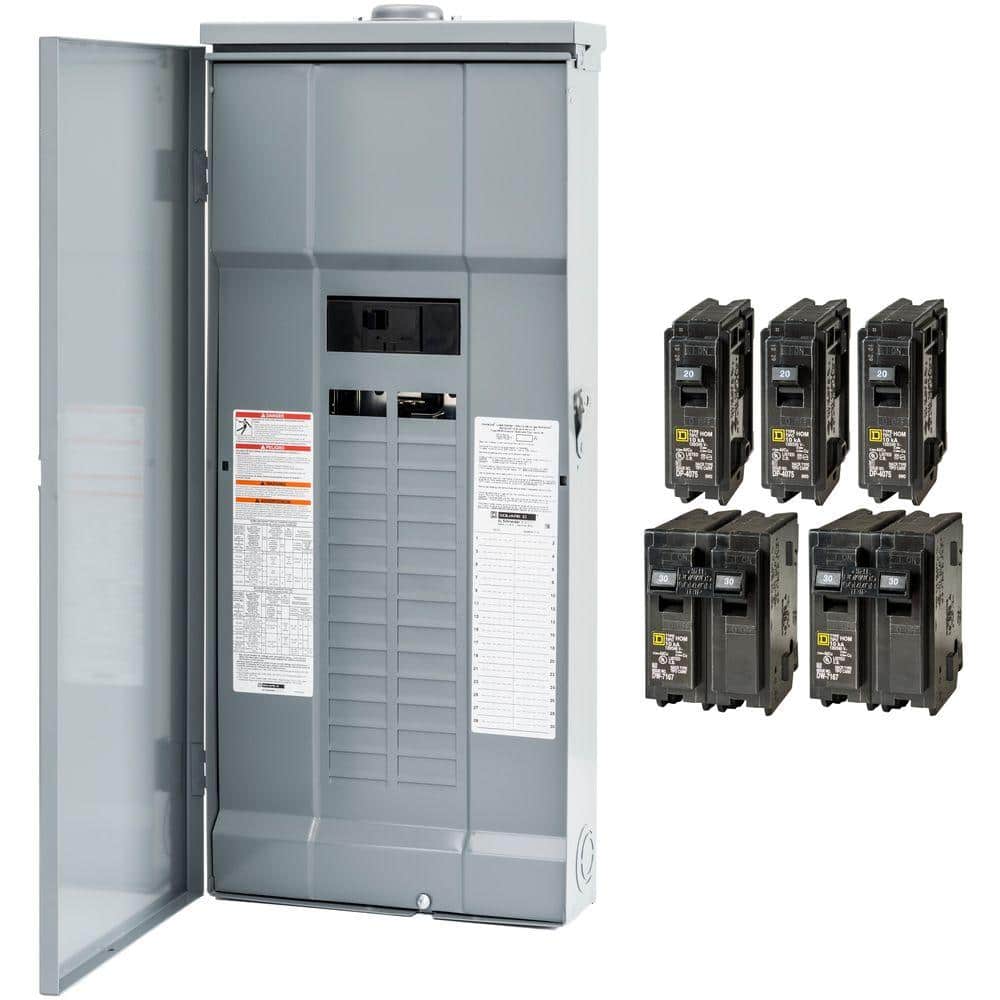

A: Yes, it includes three HOM120 20 Amp single-pole and two HOM230 30 Amp double-pole circuit breakers.

---

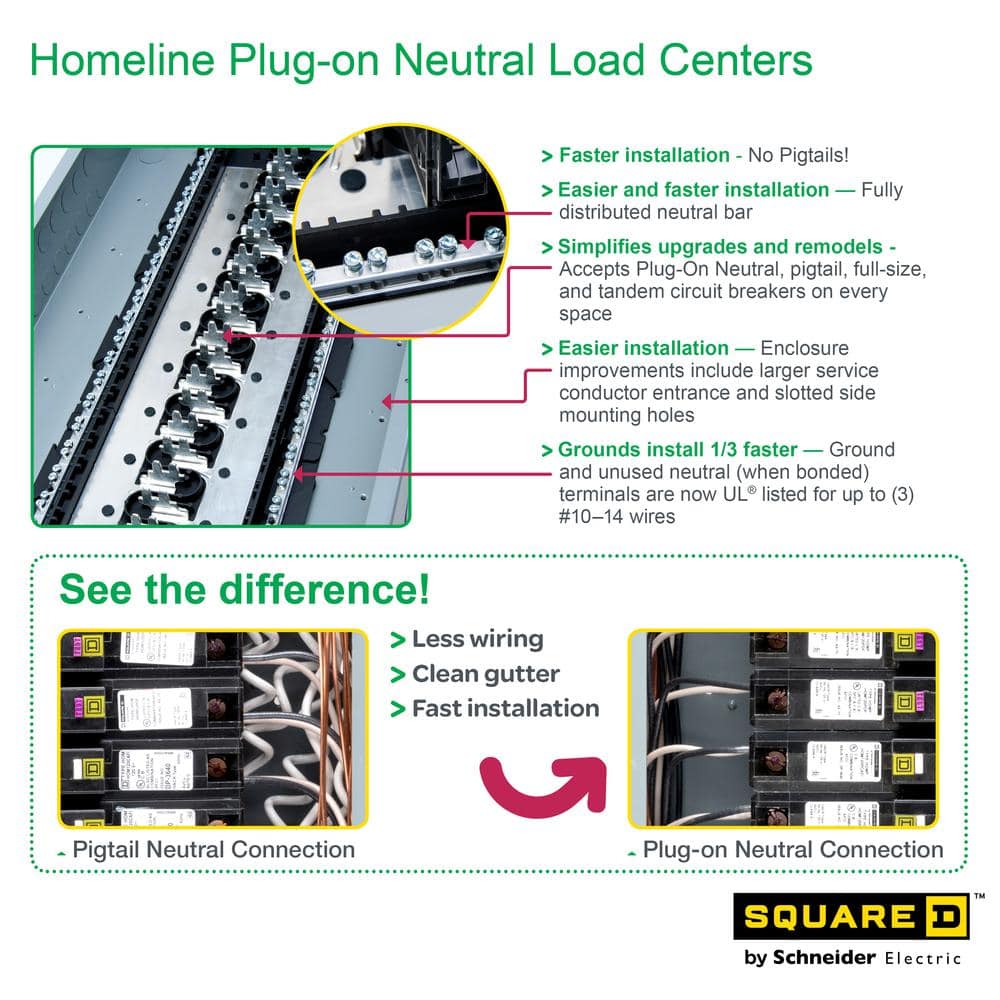

Q: What is the benefit of the plug-on neutral feature?
A: The plug-on neutral feature reduces wiring complexity and installation time, providing a cleaner gutter and less clutter within the panel.

---

Q: Can I install this load center myself?
A: While designed for straightforward installation, it is recommended to have a professional electrician handle the setup to ensure safety and compliance with local codes.

---

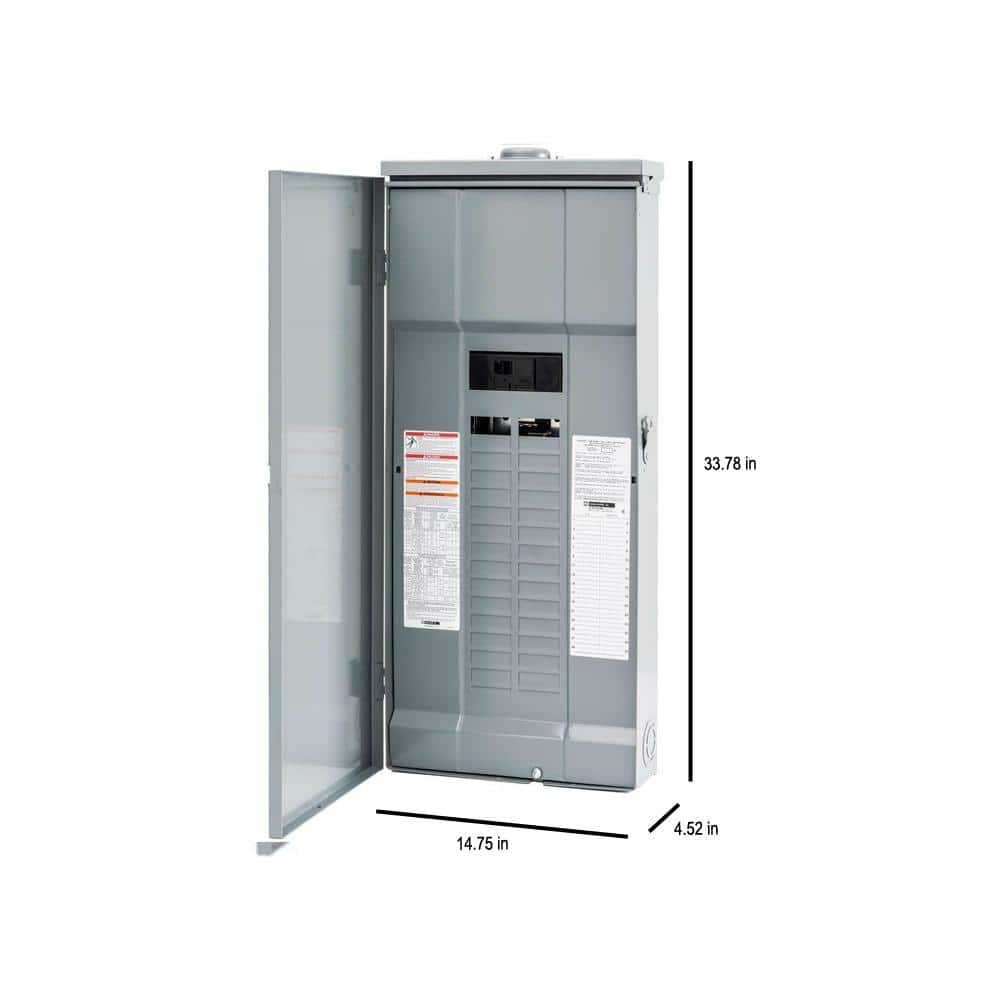

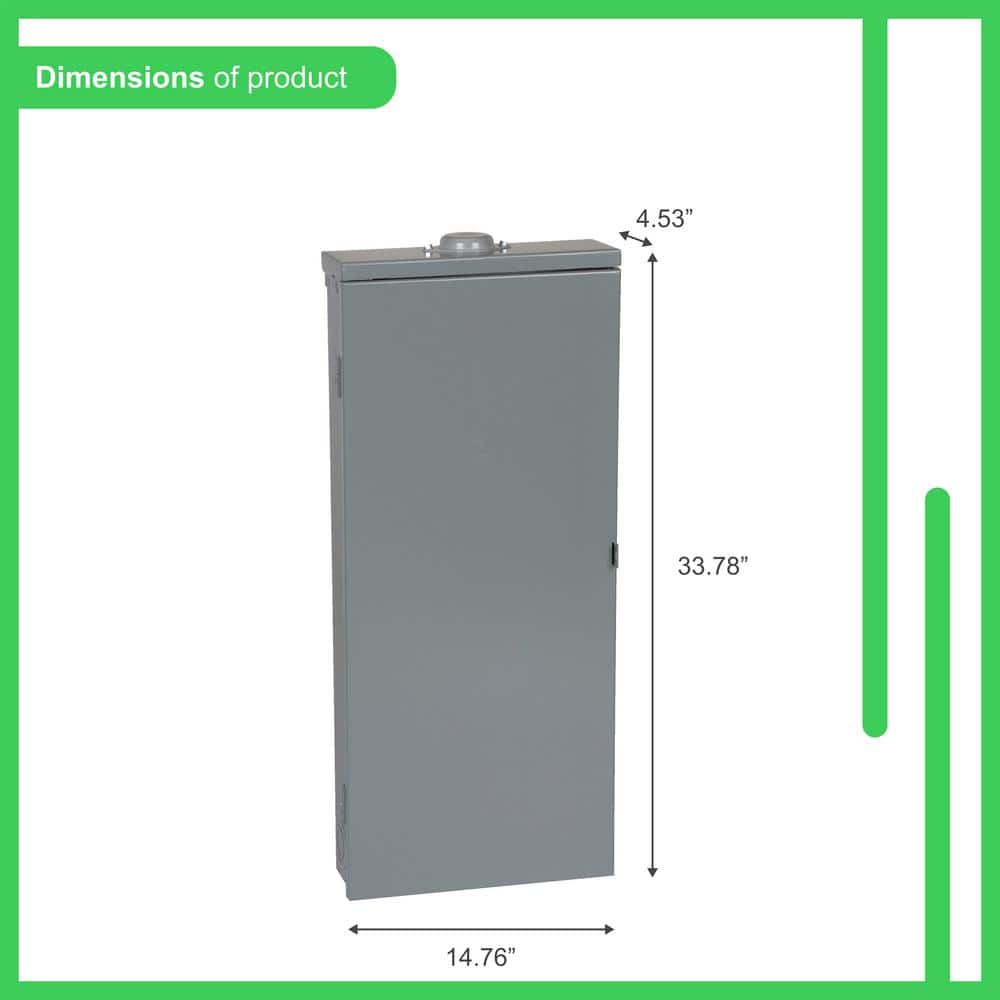

Q: What are the dimensions of this load center?
A: The load center measures 33.78 inches in height, 14.75 inches in width, and 4.52 inches in depth.

---

Transform Your Exterior with Functional Elegance

Imagine a space where utility meets elegance, blending seamlessly into your outdoor design narrative. This Square D Homeline Load Center stands out with its streamlined form and robust features, ensuring that your exteriors are not just about aesthetics but also about impeccable functionality. Style it, perhaps, with a modern yet industrial outdoor setup, ensuring your power needs are met without compromising on design. This load center is a testament to how luxury and practicality can coexist harmoniously.

---

Upgrade your power distribution with the Square D Homeline Load Center and experience the perfect blend of efficiency and security for your outdoor installations.
