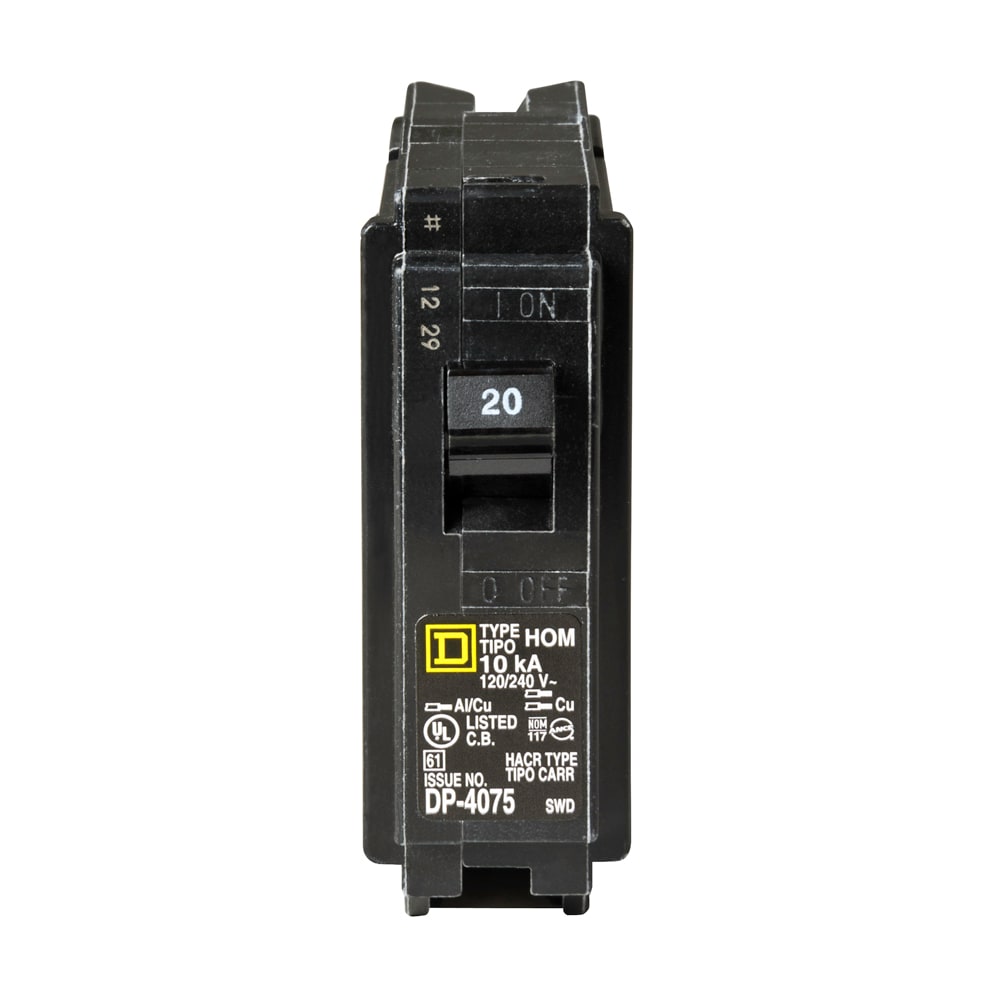

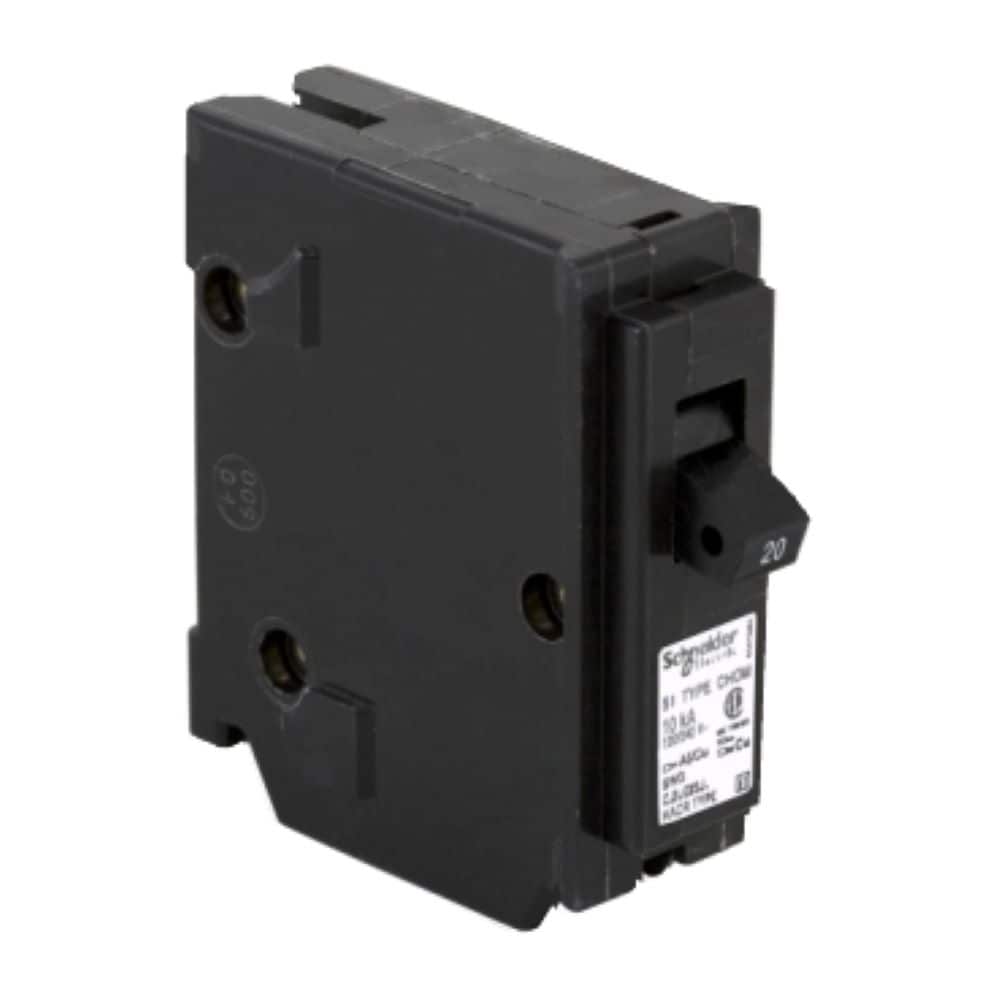

Homeline 20A Single-Pole Circuit Breaker

Protect branch circuits with this Square D Homeline 20-amp standard trip breaker. Built for Homeline load centers and CSEDs, it offers thermal-magnetic protection against overloads and short-circuits and is rated 120/240V with a 10,000 AIR interrupting capacity.

---

Key Features:

• Reliable Protection: Thermal-magnetic standard trip safeguards circuits from overloads and short-circuits
• Homeline Compatibility: Designed for Homeline load centers and CSEDs; fits 1-space panels

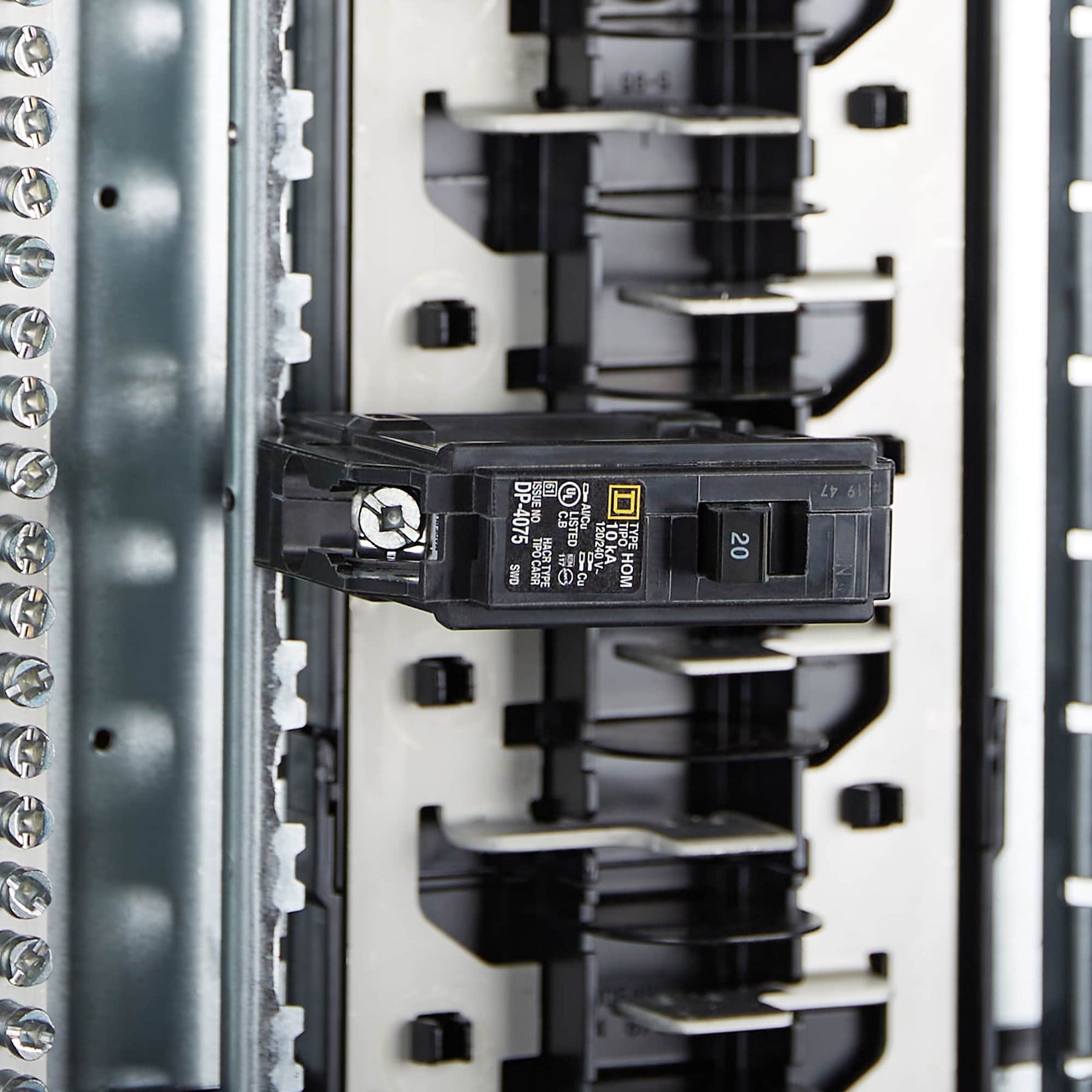

• Easy Installation: Plug-in design for quick, straightforward panel mounting
• Residential/Commercial Use: Suitable for whole branch circuit protection in homes and light commercial settings
• SWD Rated: Switching duty rating for 20A single-pole applications

---

Specifications Table:

Specification	Details
Series Name	Homeline
Type	Standard trip, thermal-magnetic
Power Capacity	20 amp
Number of Poles	1
Circuit Breaker Voltage	120/240 VAC
Interrupting Rating	10,000 AIR
Phase	Single phase (120/240)
Plug-On Neutral	No
Surge Protection	No
Ground Fault Protection	No self test (not GFCI)
Safety Listing	UL listed; ANSI certified
Warranty	1-year limited
Width Measurement	1 in

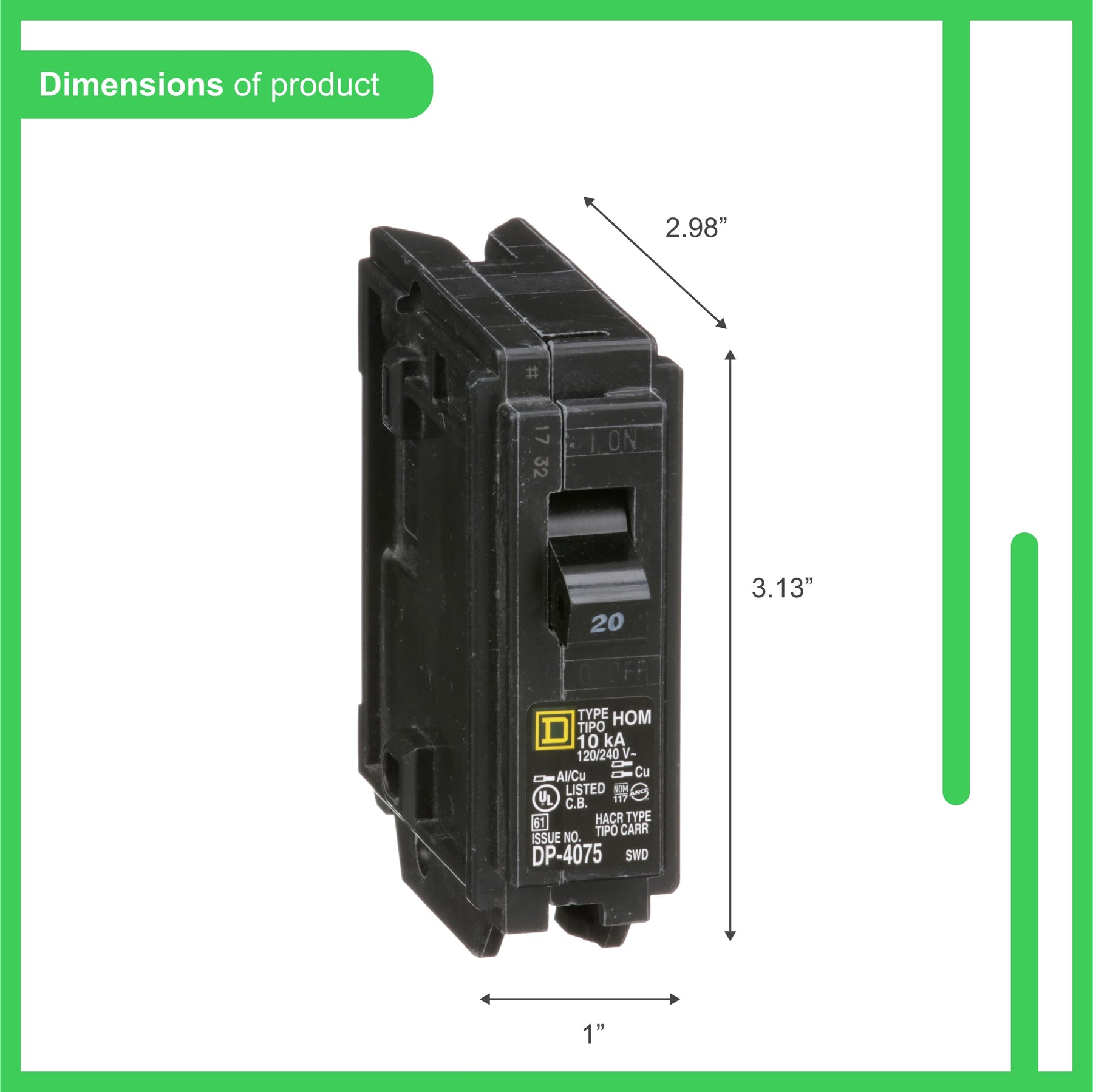

Dimensions	3.13 in H x 2.98 in D x 1 in W
Mounting	Plug-in design
SWD Rating	Switching Duty (20A single-pole)

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my Homeline panel?
A: Yes, it is designed for Square D Homeline load centers and CSED devices and fits panels with one space.

---

Q: What voltage and interrupt rating does it support?
A: It is rated for 120/240 VAC with a 10,000 AIR (interrupting capacity).

---

Q: Does it provide ground fault or surge protection?
A: No. This is a standard trip breaker without built-in GFCI or surge protection.

---

Q: Can it be used as a light switch?
A: It carries an SWD (Switching Duty) rating for 20A single-pole breakers, allowing switching of fluorescent lighting loads per listing.

---

Q: What certifications does it have?
A: UL safety listed and ANSI certified per the product listing.

---

Streamlined Safety with a Minimalist Profile

This compact breaker brings clean, purposeful design to your electrical panel, marrying form and function with quiet confidence. Its crisp single-pole silhouette and intuitive lever keep the look orderly while delivering dependable protection. Pair it with a well-labeled panel for a tidy, professional finish that elevates utility into design. For a polished home infrastructure, this reliable component is an understated essential.

---

Upgrade your panel with dependable Homeline protection—add this 20A breaker to your cart today.
