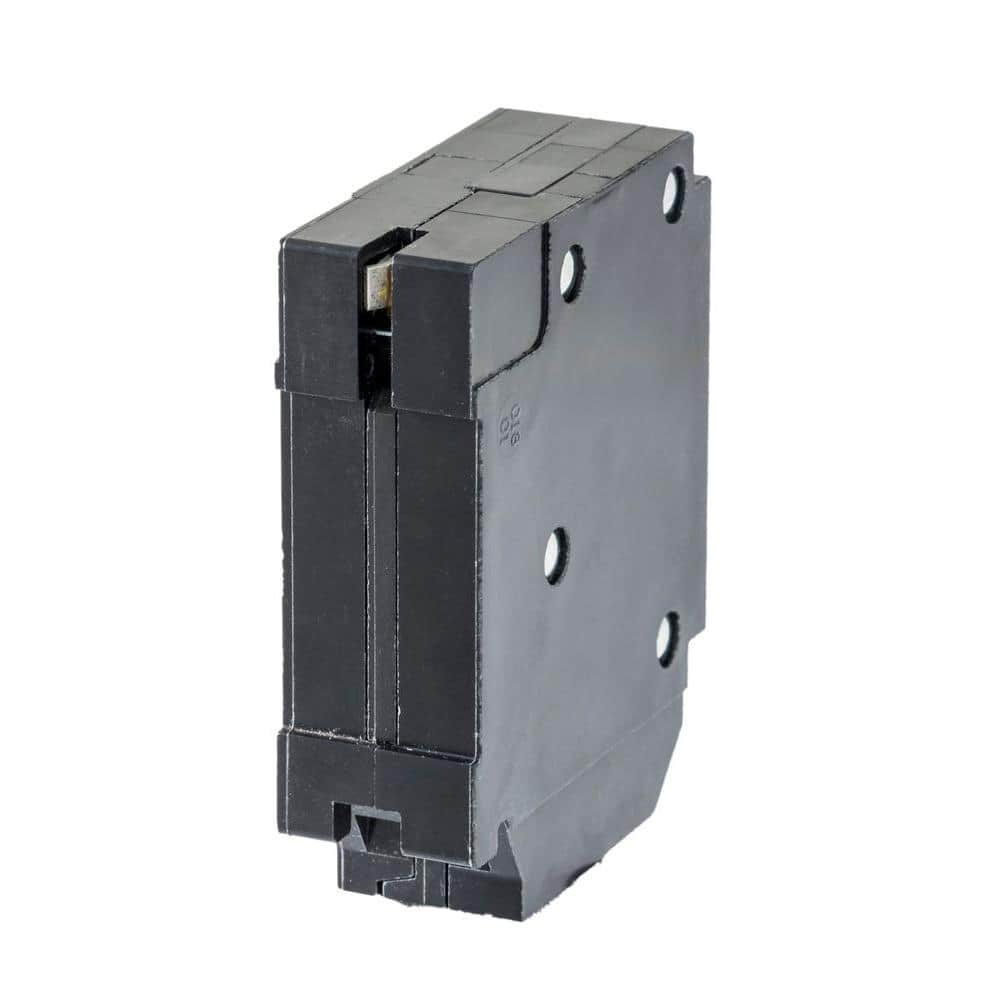

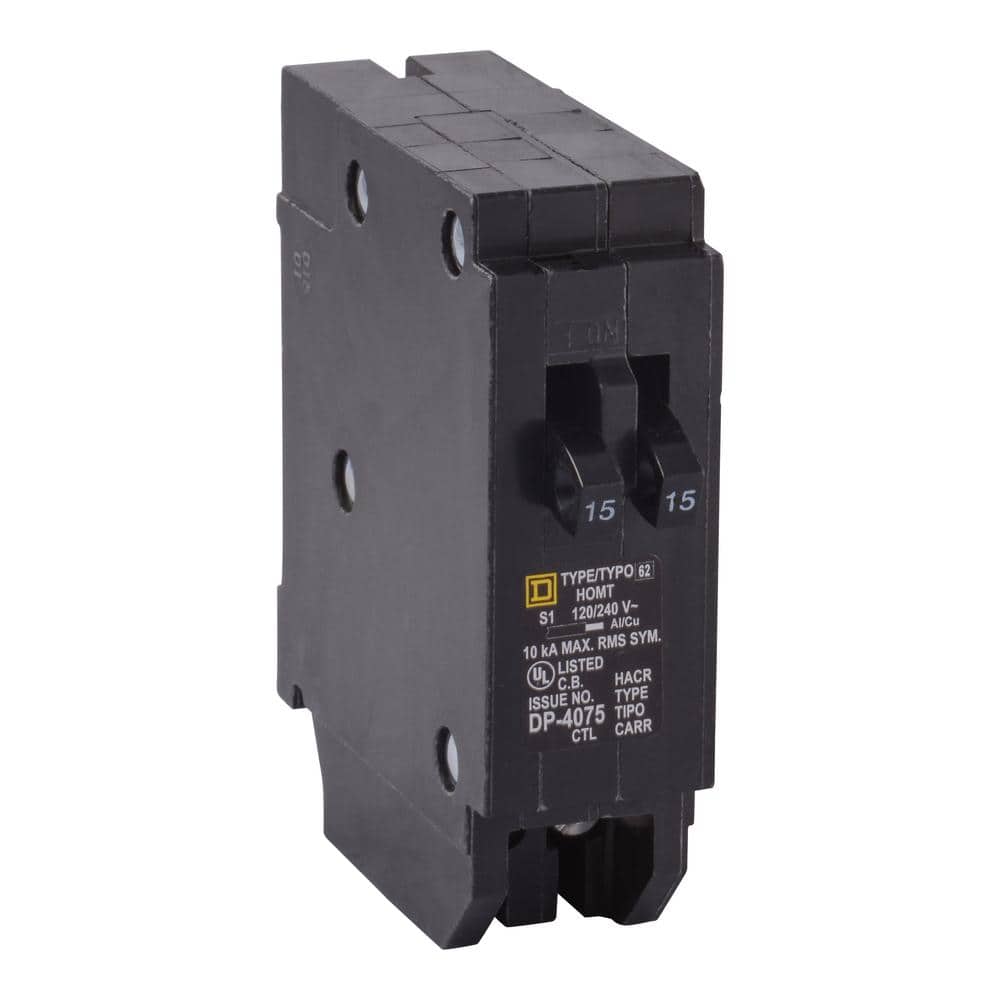

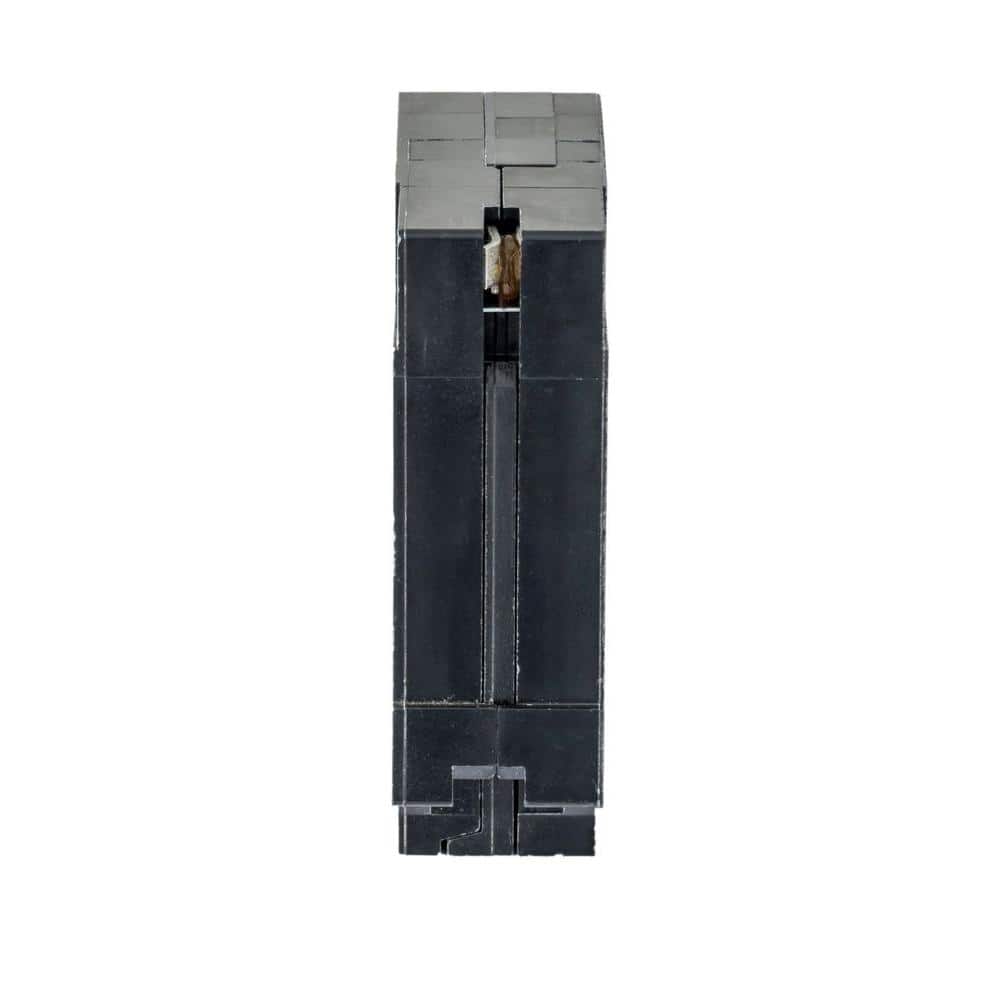

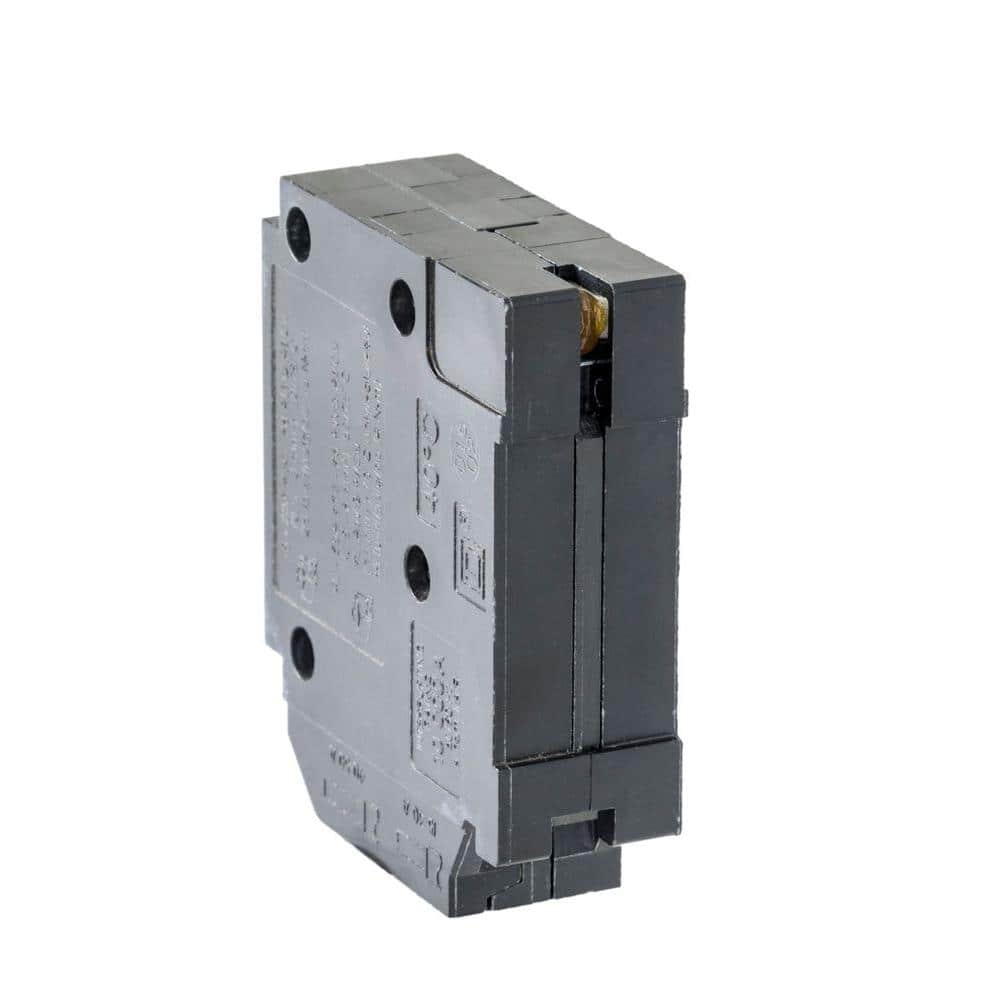

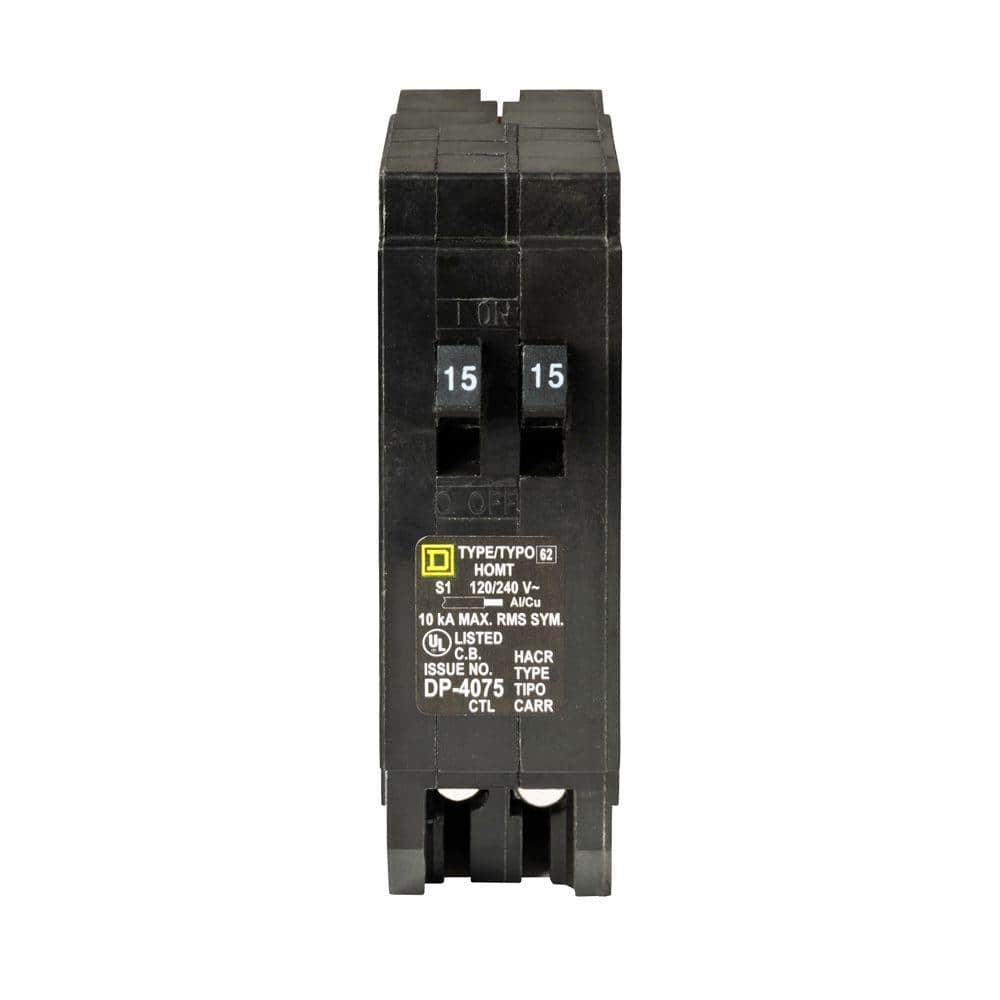

Homeline 15A Tandem Single-Pole Breaker

This Square D Homeline tandem circuit breaker fits one panel space while providing two 15A single-pole circuits. Built with thermal-magnetic trip technology, it protects branch circuits from overloads and short-circuits and is rated 120/240 VAC with 10,000 AIR.

---

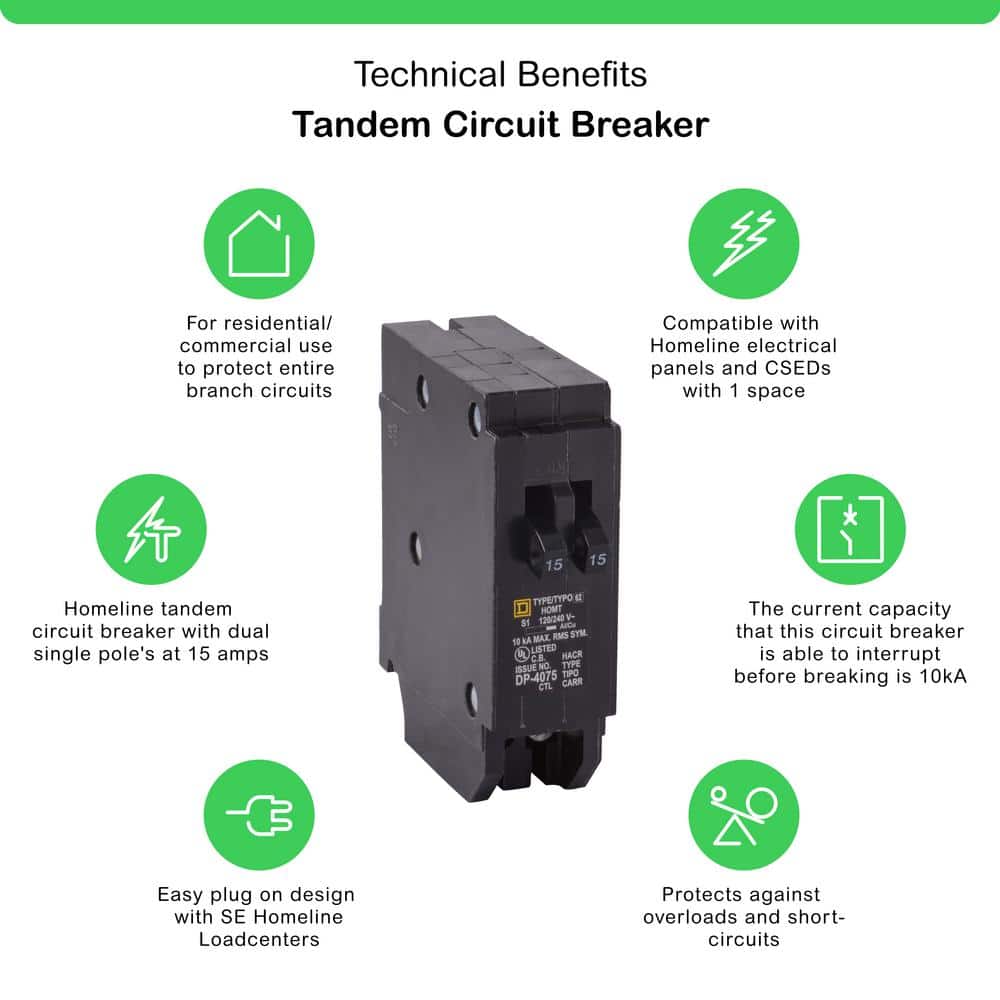

Key Features:

• Space-Saving Tandem Design: Two 15A single-pole circuits in one breaker space
• Reliable Protection: Thermal-magnetic trip guards against overloads and short-circuits
• Homeline Compatibility: Plug-on installation for Homeline load centers and CSEDs
• Durable Performance: 10,000 AIC rating with UL Listing for residential use
• Compact Dimensions: 3.13 in H x 1 in W x 2.98 in D for easy panel fit

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Type	Tandem
Amperage	15 A (each pole)
Number of Poles	Single (tandem—two 1-pole)
Number of Spaces	1
Voltage	120/240 V AC
AIC Rating	10,000 AIR
Interruption Type	Standard Trip
Trip Unit	Thermal Magnetic
Mounting Type	Plug-On
Connection Type	Non-Neutral
Pack Size	1
Certifications	UL Listed, ANSI
Product Height	3.13 in
Product Width	1 in
Product Depth	2.98 in
Product Weight	0.38 lb

---

Frequently Asked Questions (FAQ):

Q: Will this fit my panel?
A: It is compatible with Square D Homeline load centers and CSED devices that accept tandem breakers and have one available space.

---

Q: What voltage is it rated for?
A: 120/240 VAC.

---

Q: What is the interrupt rating?
A: 10,000 AIR (AIC).

---

Q: Is it a double-pole breaker?
A: No—it's a tandem breaker providing two single-pole 15A circuits in one space.

---

Q: How does it install?
A: Plug-on design; install per Homeline panel instructions and local electrical codes.

---

Streamlined Power, Minimal Footprint

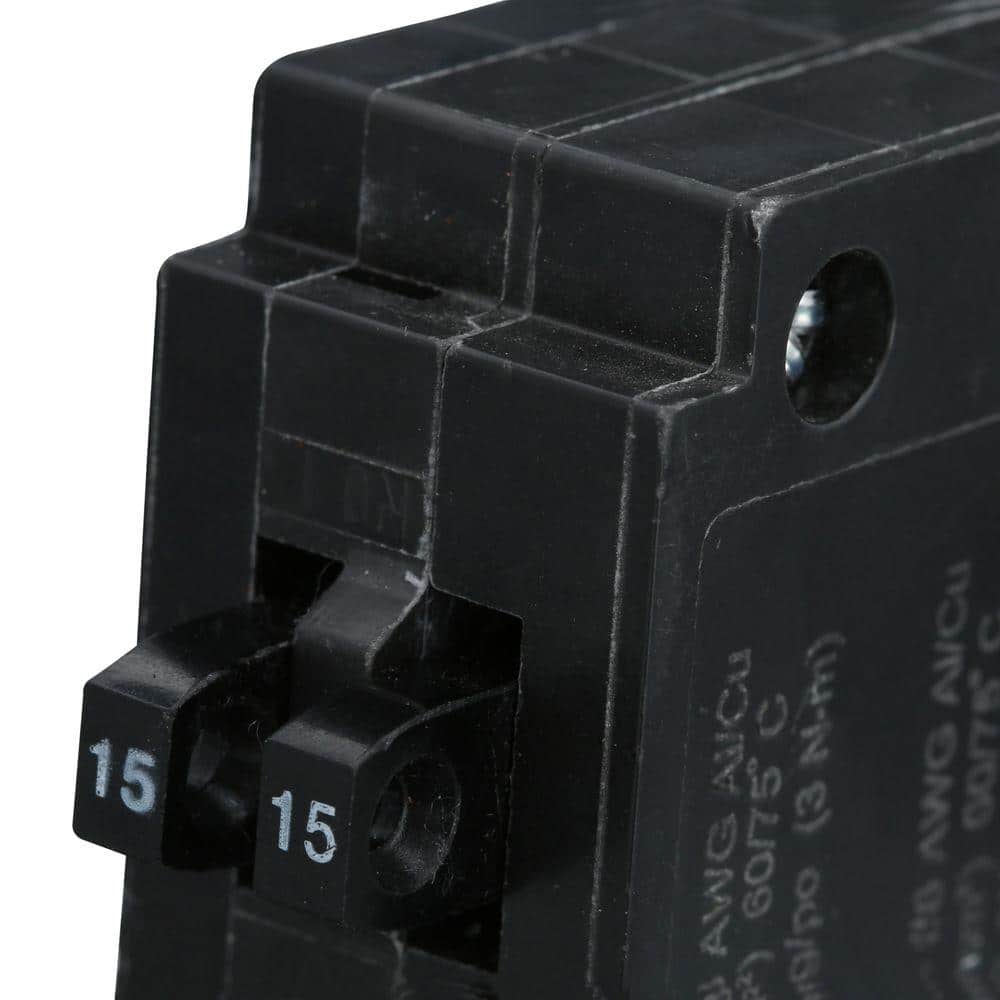

This compact tandem breaker quietly optimizes your electrical layout, freeing valuable panel space while keeping the home protected. The sleek Homeline form factor and dual 15-amp toggles deliver crisp functionality without clutter. Use it to elegantly expand circuits in renovations where panel capacity is tight. A smart, unobtrusive essential for polished, high-performance living.

---

Expand your panel capacity with trusted Square D protection—add this Homeline 15A tandem breaker to your cart today.
