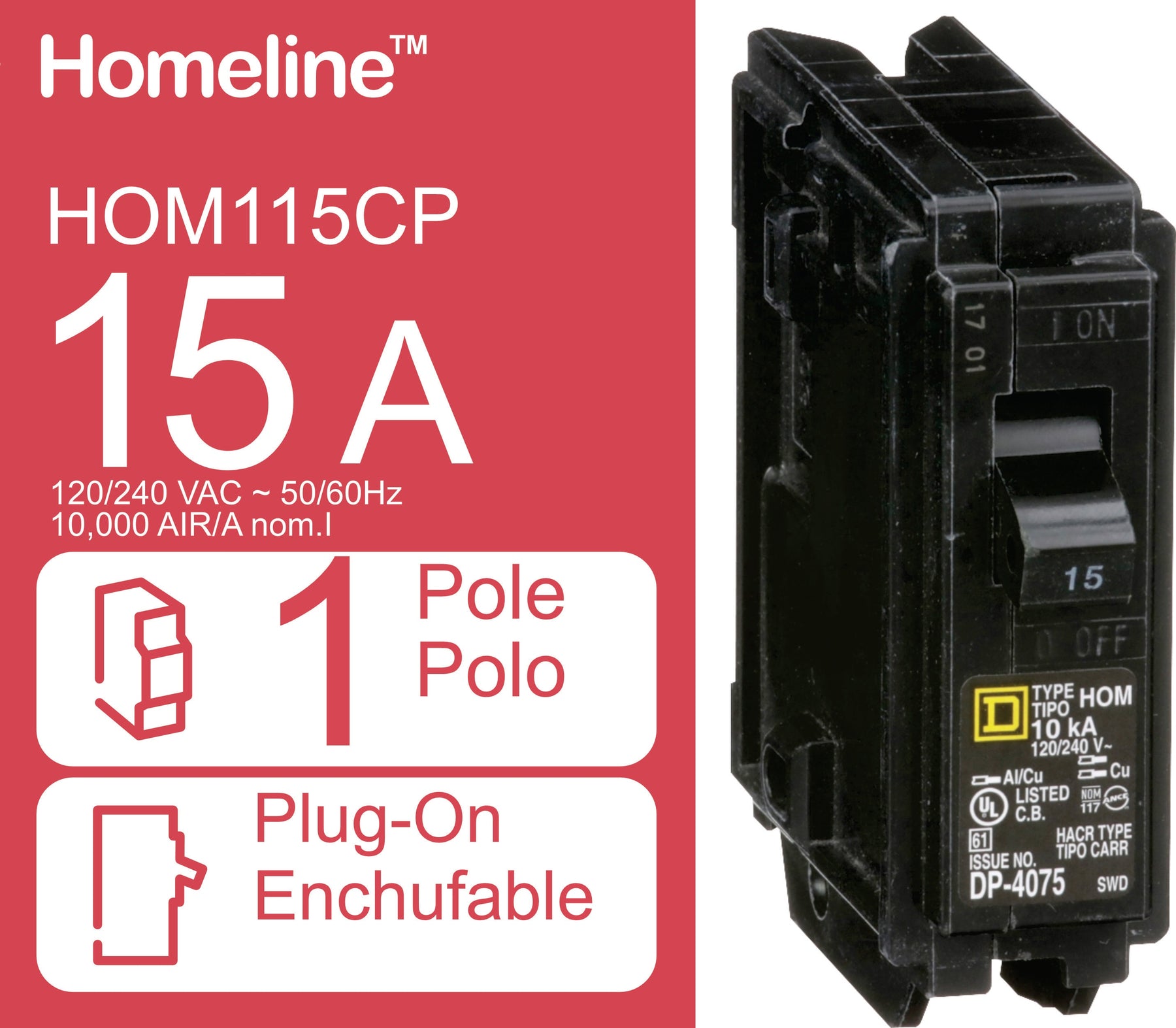

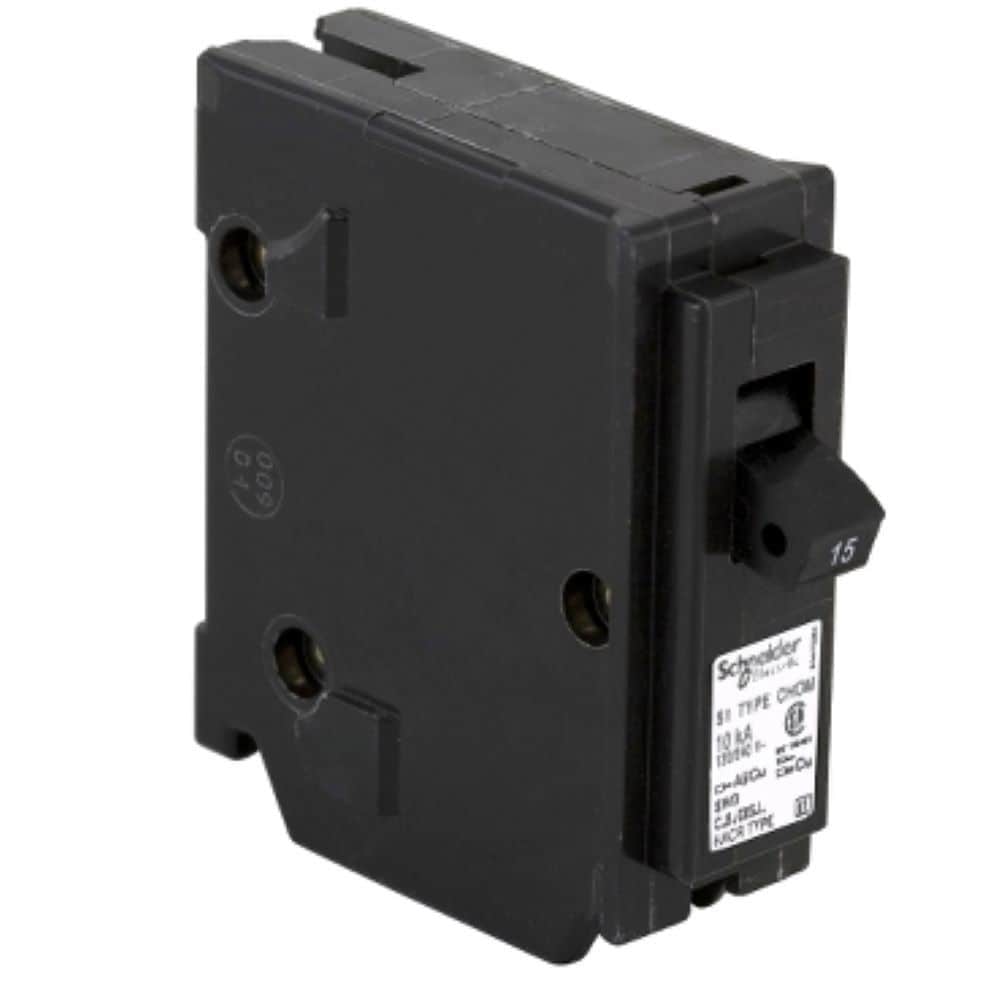

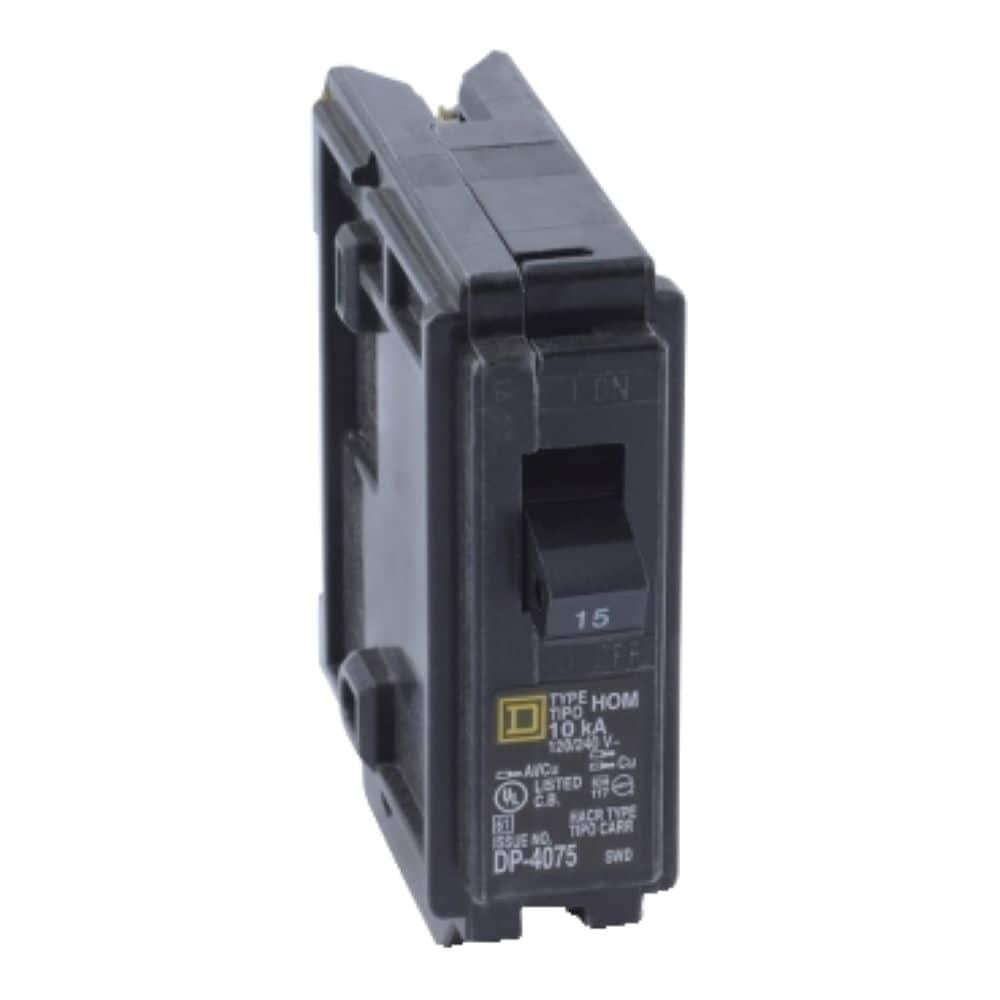

Homeline 15A Single-Pole Circuit Breaker

This Square D Homeline 15-amp, 1-pole standard trip breaker provides reliable overload and short-circuit protection for residential branch circuits. The plug-in design installs easily in Homeline load centers and CSEDs, and it’s rated 120/240 VAC with a 10,000 AIR interrupt rating.

---

Key Features:

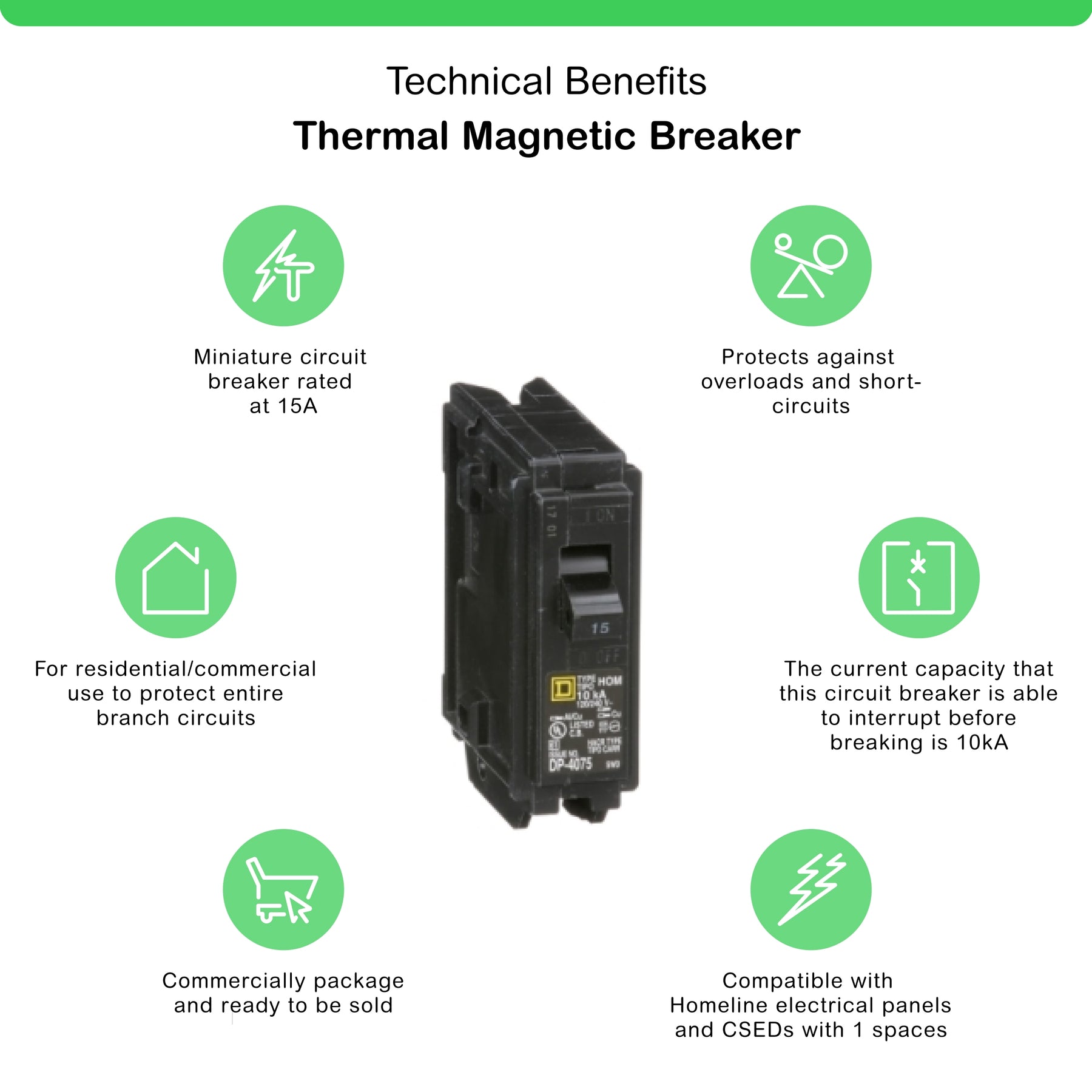

• Reliable Protection: Standard trip thermal-magnetic breaker guards branch circuits from overloads and short-circuits

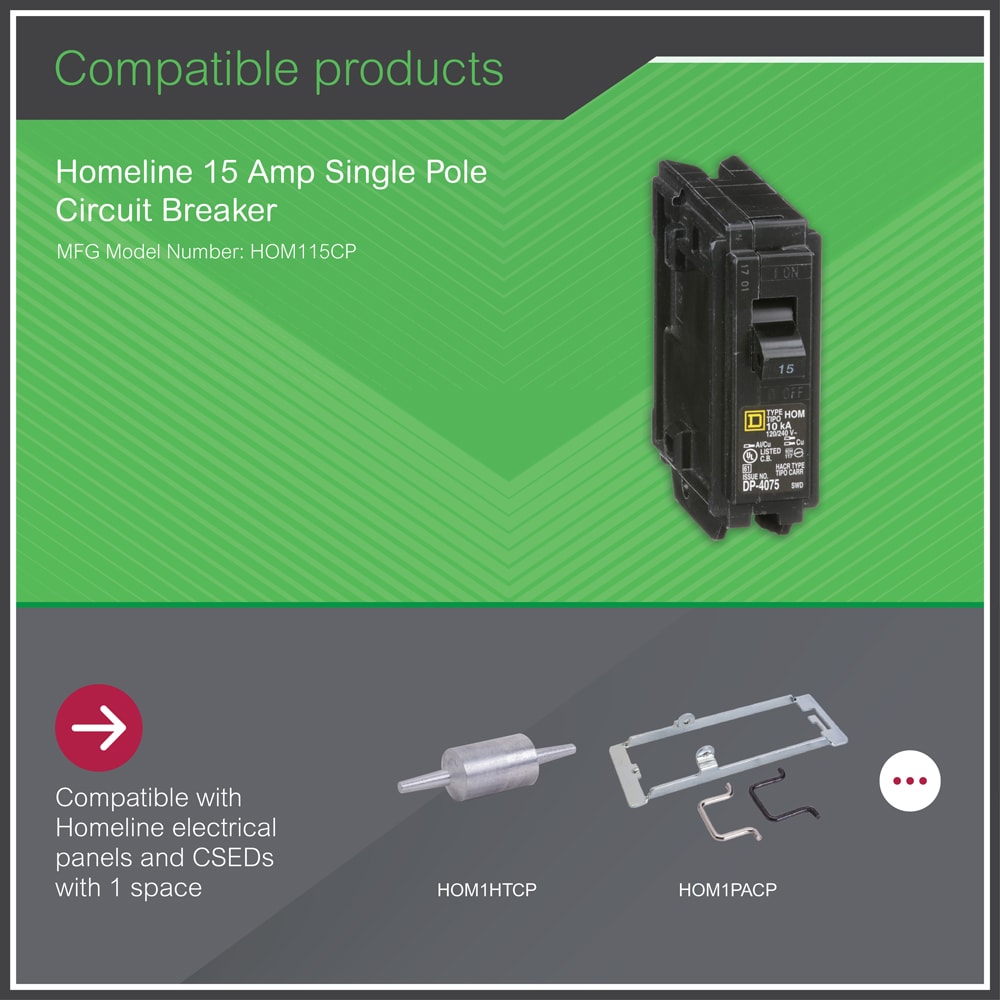

• Easy Plug-On Install: Fits Homeline load centers and CSED devices using one space
• Residential-Ready Performance: 15A, 1-pole, 120/240 VAC rated with 10,000 AIR interrupt capacity
• UL Listed Quality: UL safety listing with SWD rating for 15A one-pole switching duty
• Compact Size: Slim 1-in width for straightforward panel compatibility

---

Specifications Table:

Specification	Details
Series Name	Homeline
Type	Standard trip, thermal-magnetic
Amperage	15 A
Number of Poles	1
Voltage Rating	120/240 VAC
Interrupting Rating (AIR)	10,000 A
Phase	Single phase (120/240)

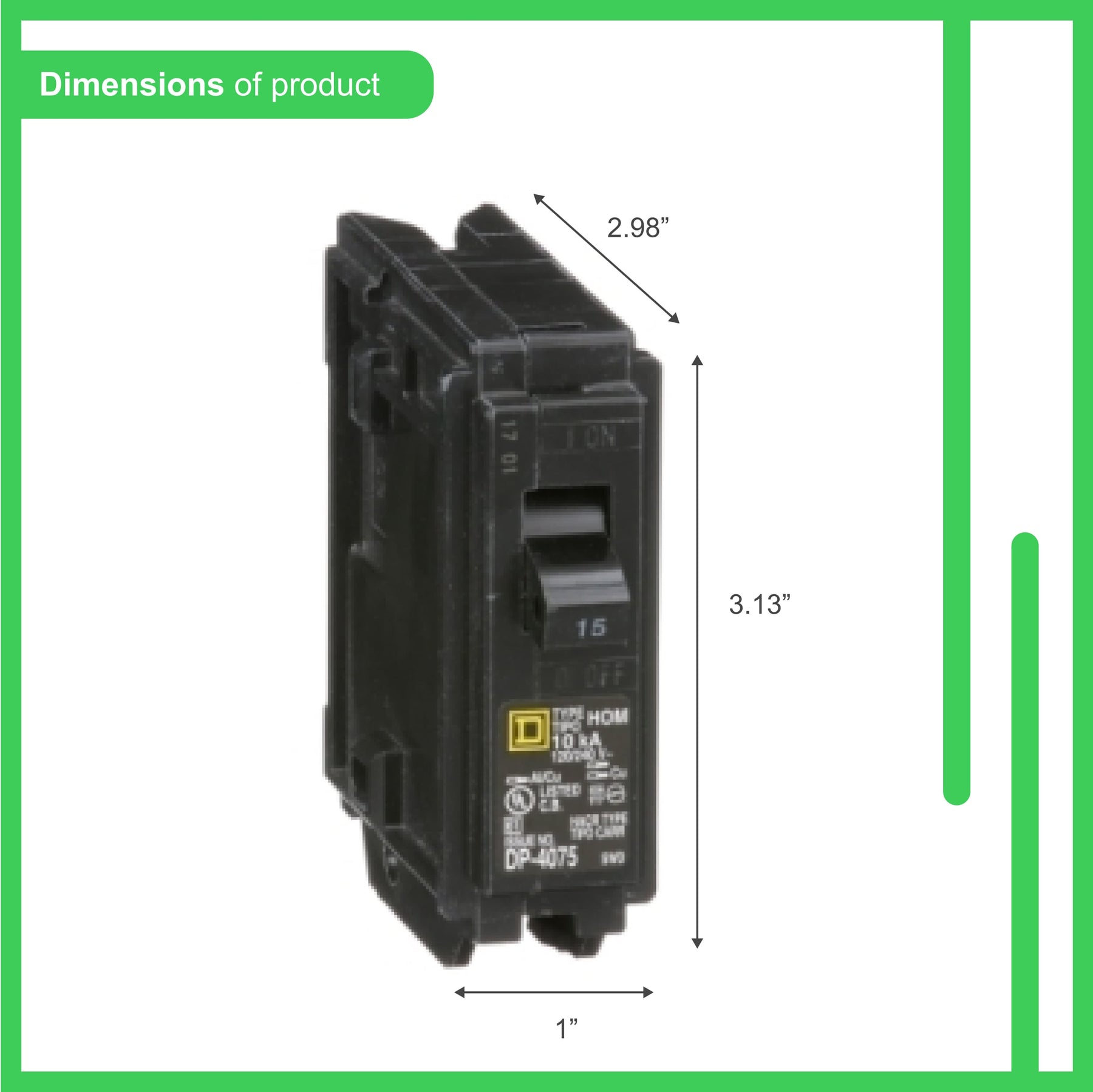

Width	1 in
Height	3.13 in
Depth	2.98 in
Plug-On Neutral	No
Surge Protection	No
Ground Fault Protection	No self test (not GFCI)
Safety Listing	UL Listed
Warranty	1-year limited
Switching Duty Rating (SWD)	Yes, for 15A 1-pole
Category	Circuit Breakers

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my panel?
A: It is designed for Square D Homeline load centers and CSED devices only; it will not fit QO or other brands.

---

Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.

---

Q: Can it be used for lighting circuits?
A: Yes—this 15A 1-pole breaker carries an SWD rating suitable for switching fluorescent lighting loads.

---

Q: Does it require tools to install?
A: It is a plug-on design; follow panel instructions and local codes—installation should be done by a qualified person.

---

Q: Does it provide GFCI or AFCI protection?
A: No, this is a standard trip breaker without GFCI or AFCI functions.

---

Streamlined Power With a Minimal Footprint

Clean lines and a compact 1-inch profile make this Homeline breaker a quiet hero behind the scenes. The matte black housing and crisp actuator feel purposeful—utility with poise. Specify it to keep panels tidy and accessible; pair with labeled directories for a polished, professional finish. It’s the discreet foundation of dependable, modern living.

---

Choose this Homeline 15A breaker for fast, dependable branch-circuit protection that installs in minutes.
