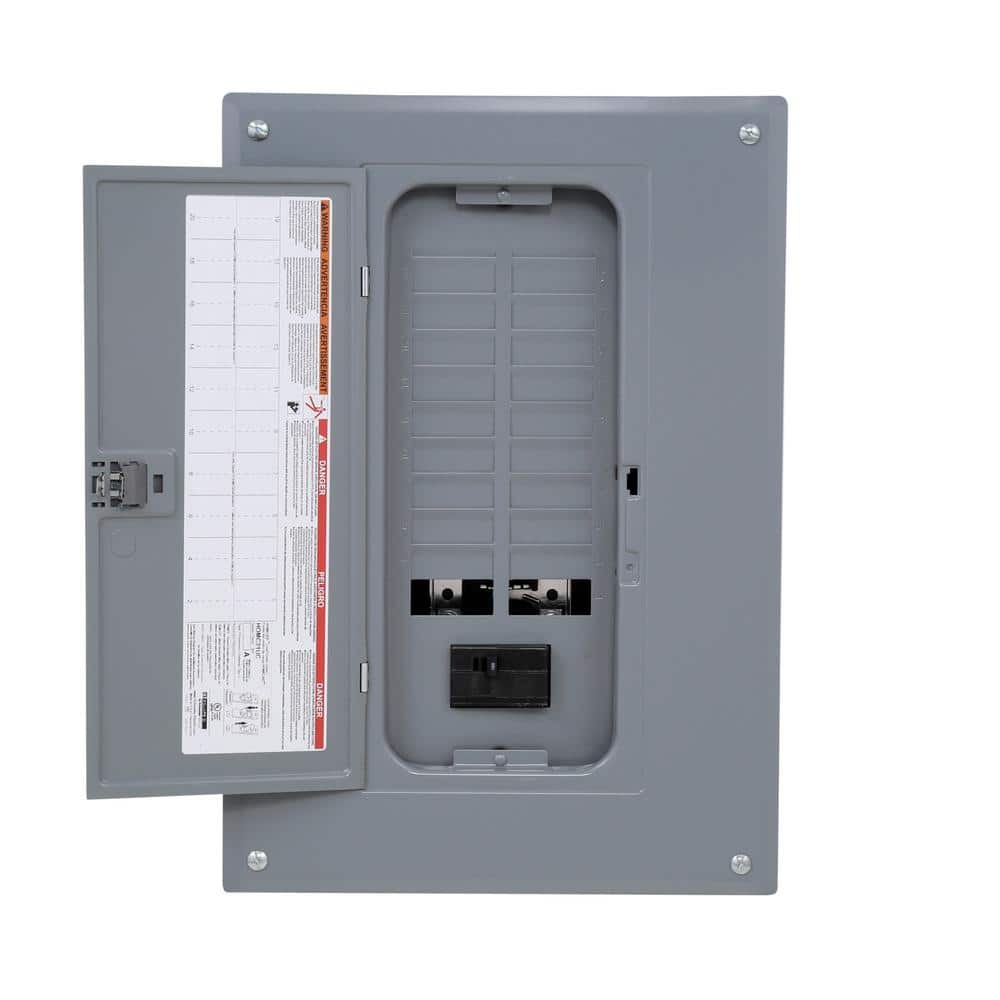

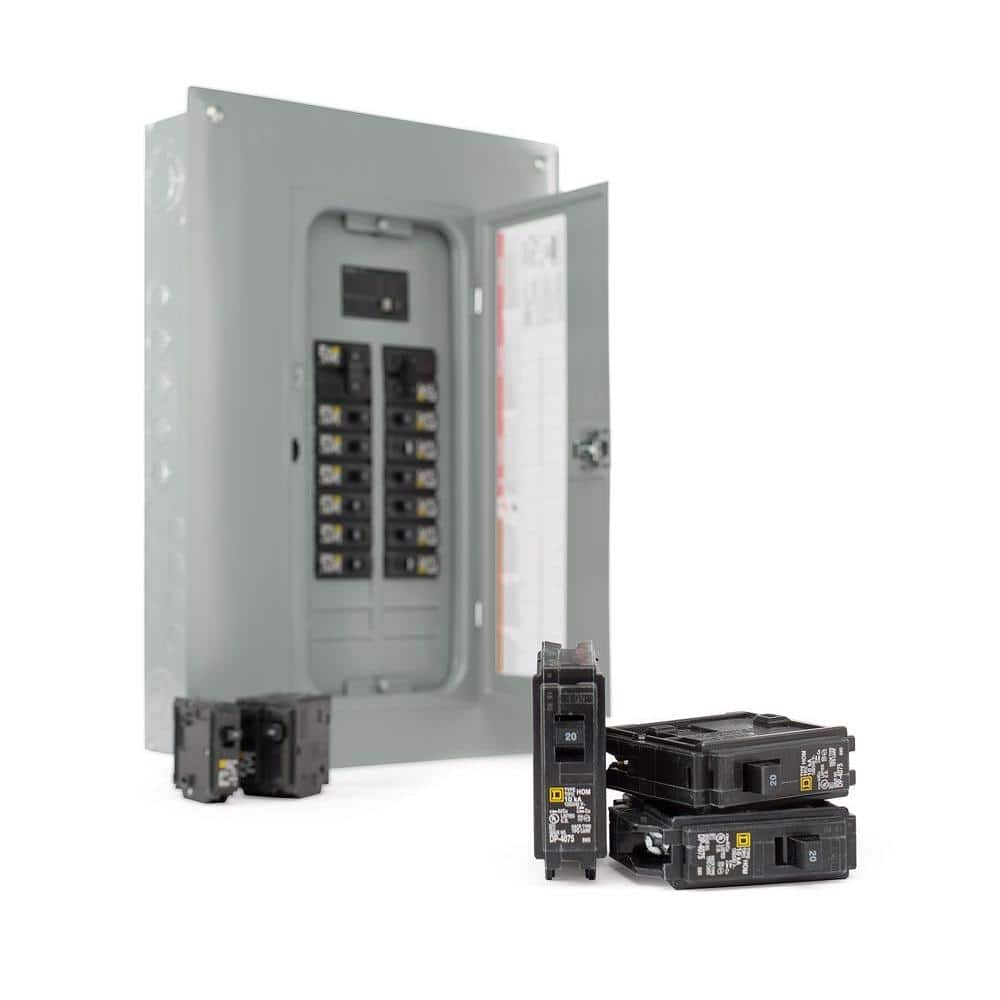

Square D Homeline 100 Amp Main Breaker Load Center

Square D's Homeline 100 Amp Main Breaker Load Center is the ultimate solution for efficient power distribution in residential or commercial settings. Featuring a plug-on neutral design, it reduces installation time and offers ample wiring flexibility with its advanced aluminum bus bar and distributed split branch neutral. This UL-listed panel is perfect for contractors and remodelers seeking reliability and convenience.

---

Key Features:

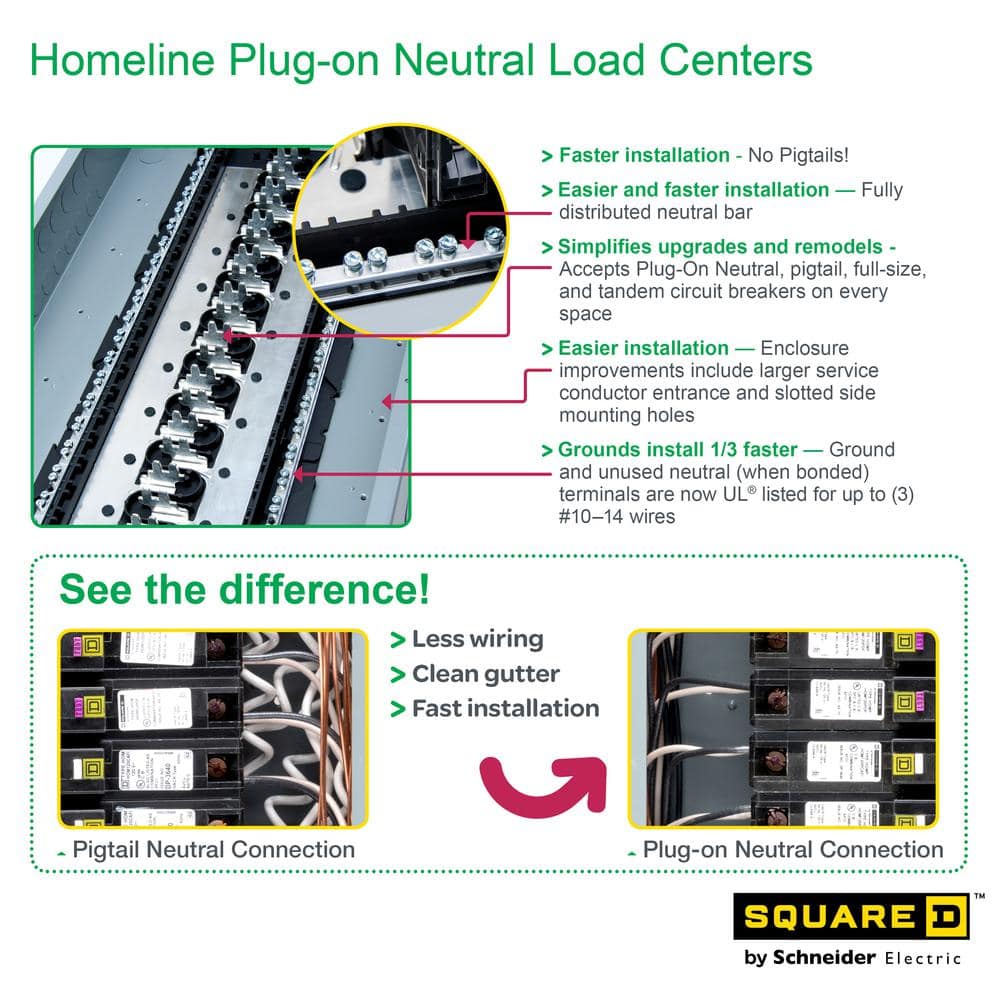

• Plug-On Neutral: Faster installation with reduced wiring hassle, offering clean and organized panel management.
• Aluminum Bus Bar: Durable, corrosion-resistant material ensures reliable performance for years to come.
• Versatile Compatibility: Supports full-size, tandem, or quad Square D Homeline breakers, enhancing flexibility.
• Convenient Design: Features an automatic flush adjusting cover to minimize installation time and effort.
• High Capacity: Accommodates up to 40 circuits, handling complex power distribution needs with ease.

Please check the Product Data Sheet Here

---

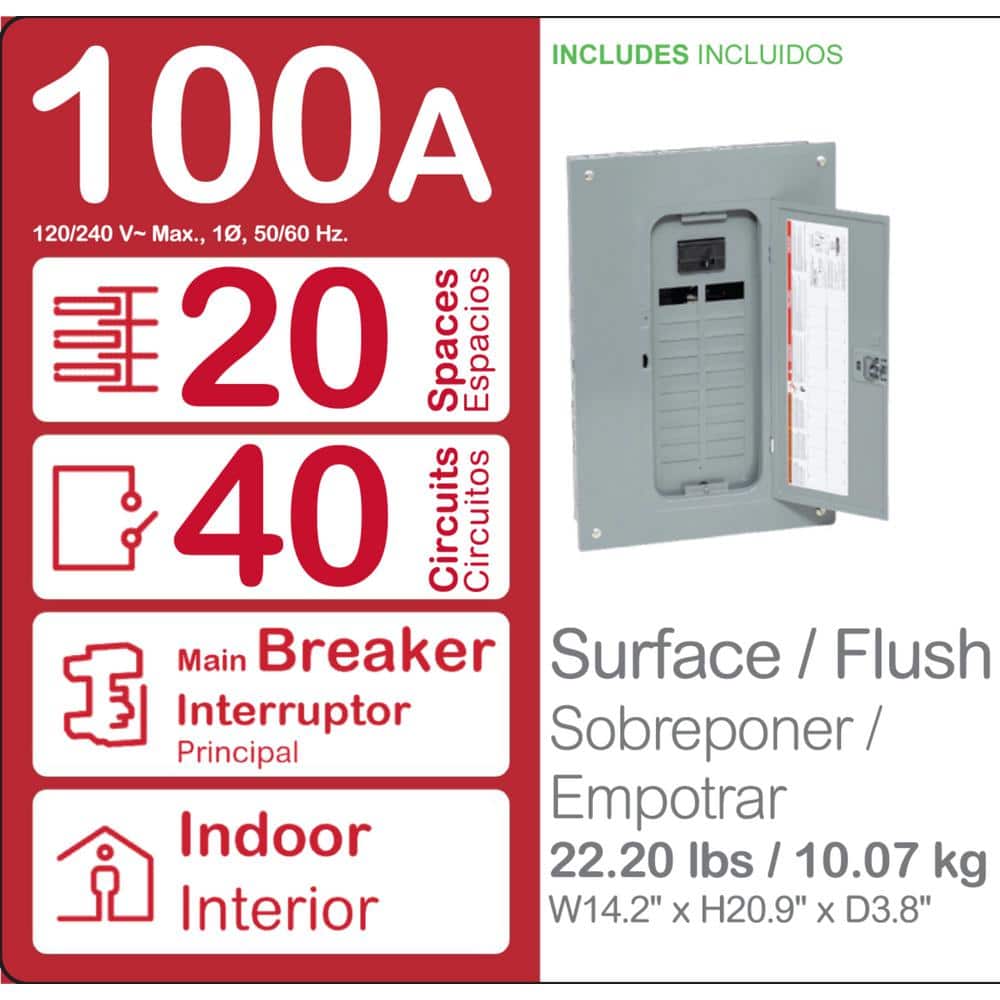

Specifications Table:

Specification	Details
Breaker Box Type	Main Breaker Panel
Connection Type	Neutral
Electrical Product Type	Load Center and Breaker Kit
Included	Circuit Breaker,Cover
Indoor/Outdoor	Indoor
Maximum Amperage (A)	100 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	40
Number of Pieces	4
Number of Spaces	20
Phase Type	1 Phase
Product Weight (lb.)	22.36 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

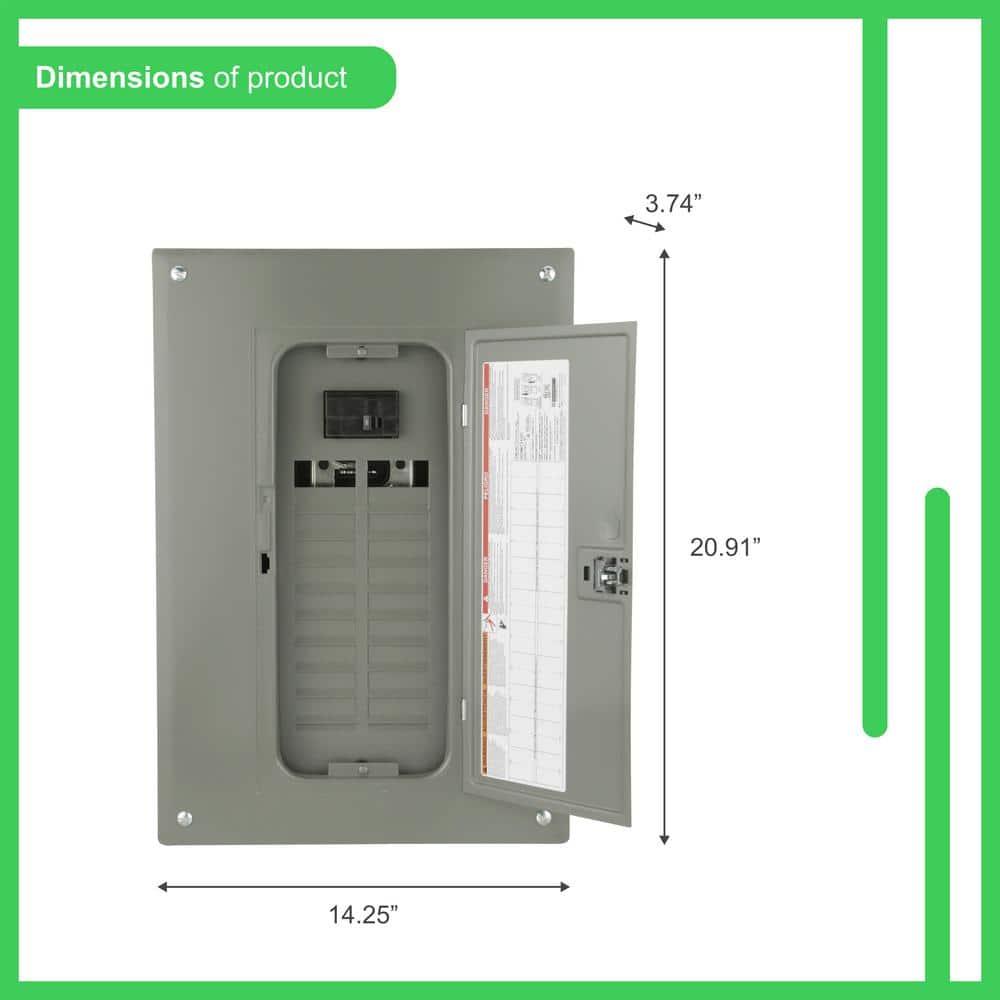

Product Depth (in.)	3.75 in
Product Height (in.)	20.92 in
Product Width (in.)	14.25 in

---

Frequently Asked Questions (FAQ):

Q: What is included with the purchase of this load center?

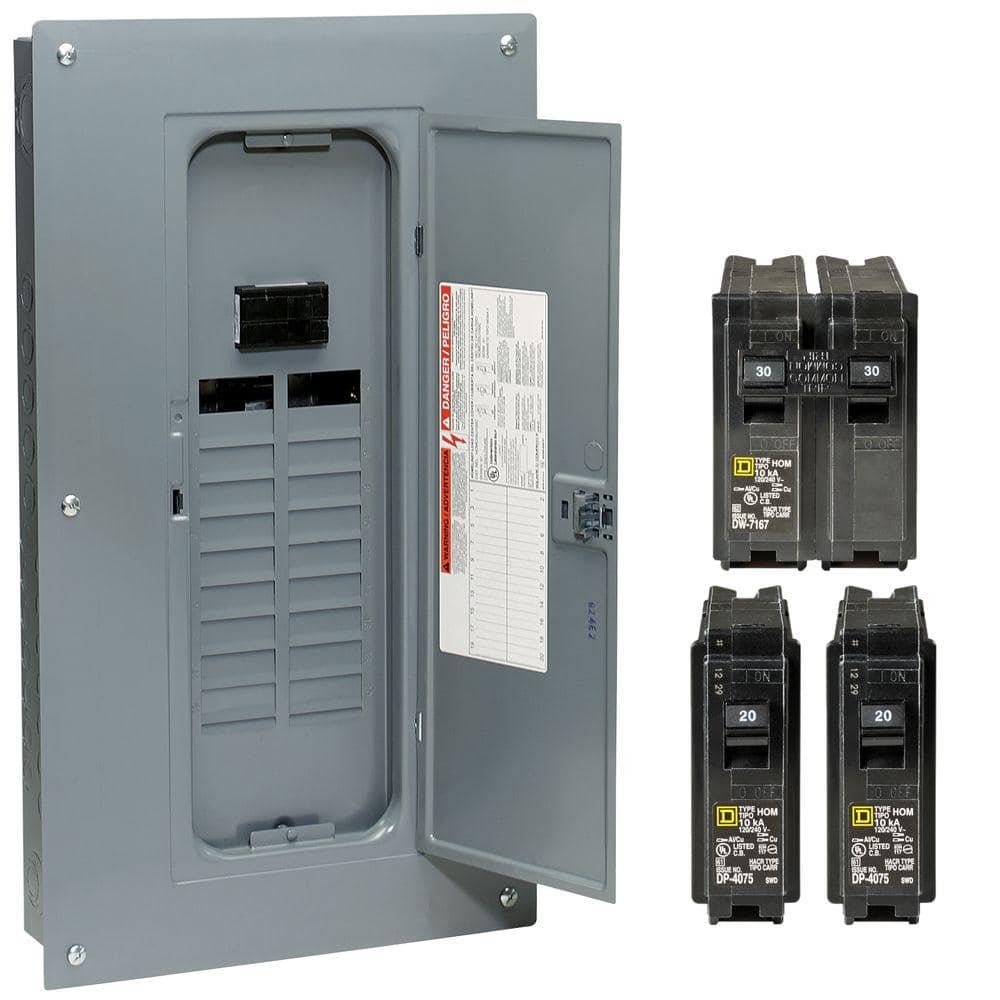

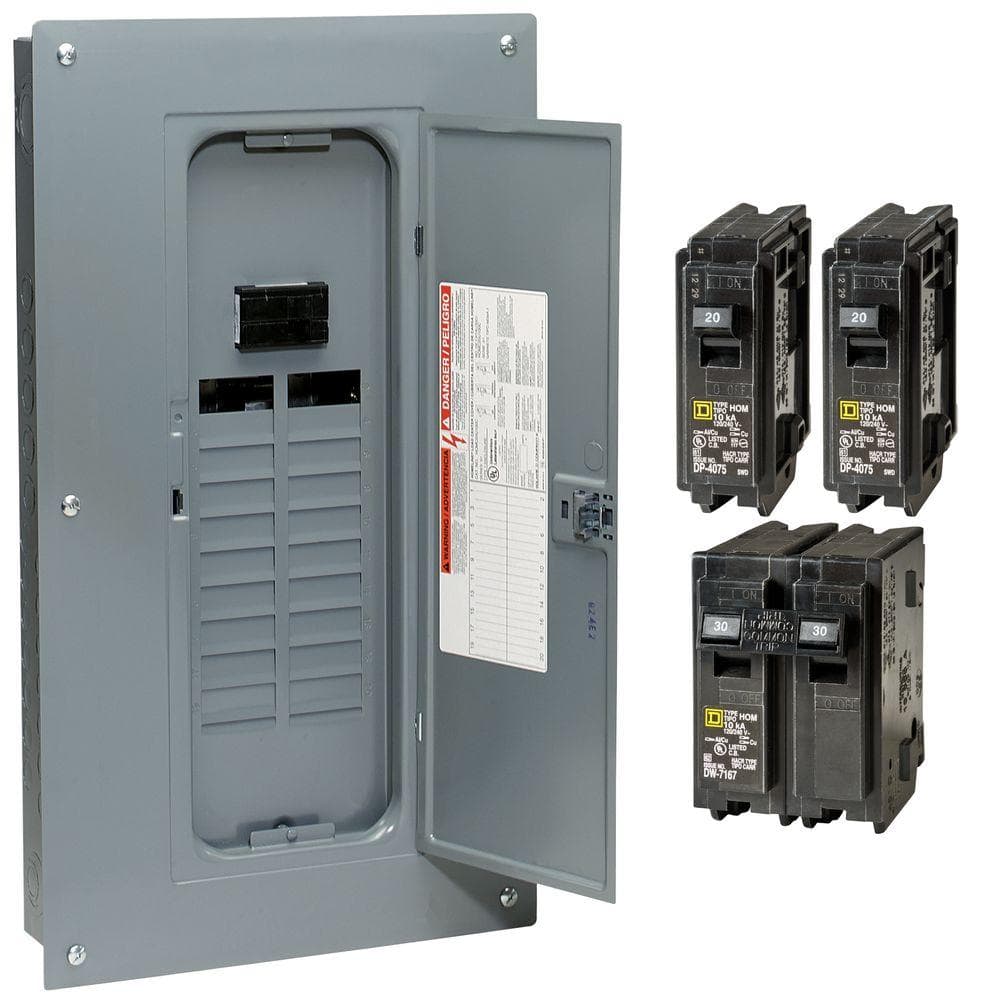

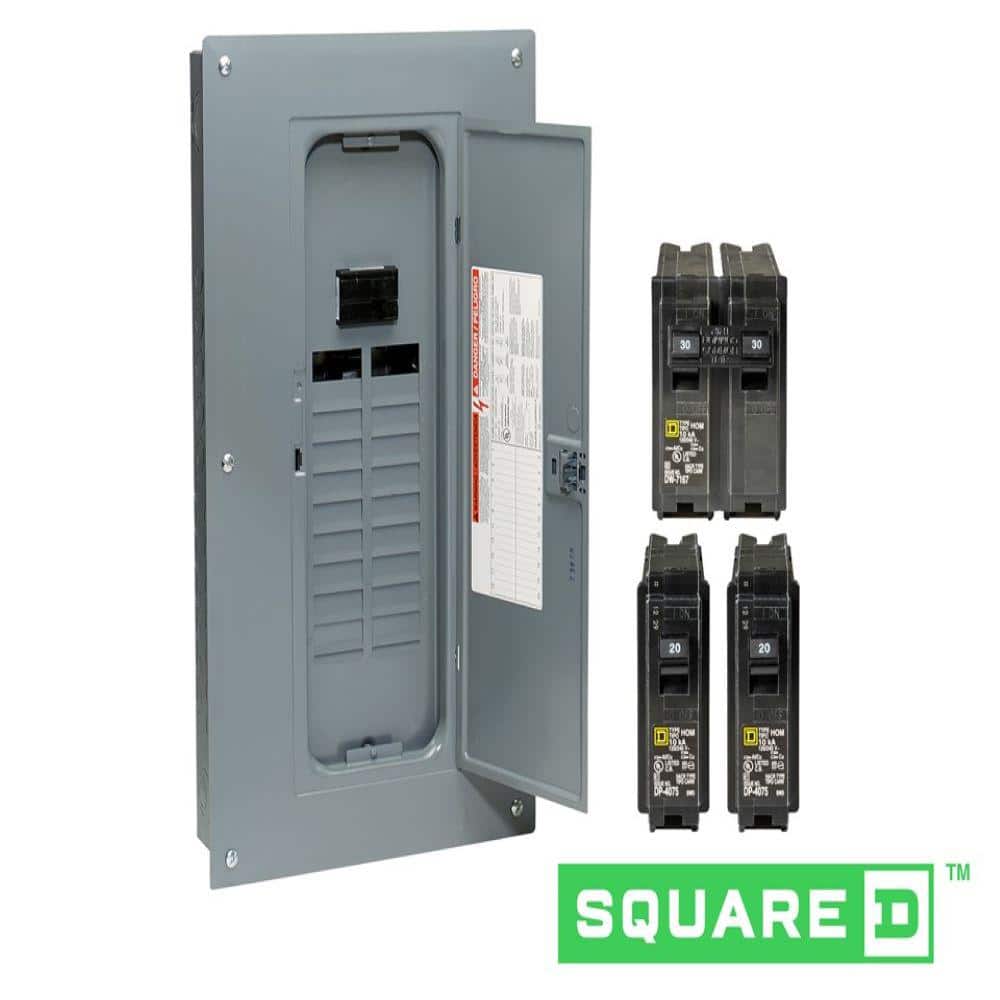

A: The Square D Homeline 100 Amp Main Breaker Load Center comes with two HOM120 20 Amp single-pole circuit breakers, one HOM230 30 Amp double-pole circuit breaker, and a combination flush/surface cover.

---

Q: Can this load center be used for both indoor and outdoor installations?
A: This model is designed specifically for indoor installations, adhering to NEMA 1 standards.

---

Q: Is the load center compatible with arc fault breakers?
A: Yes, it includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers.

---

Q: What is the warranty on this product?
A: Square D provides a 10-year warranty for this load center when used in residential applications with Homeline branch circuit breakers.

---

Q: How easy is it to install this load center?
A: The design includes features like slot/square drive screws for ease of use, and a straight-in main that simplifies the installation process, saving time and cable costs.

---

Empower Your Space with Unmatched Elegance and Function

Envision a seamless blend of power and sophistication with the Square D Homeline Load Center. Its sleek design not only enhances the functional integrity of your home but also adds a subtle touch of refinement. With an easily adjustable flush cover, installation merges intuitively into your living environment, emphasizing clean lines and efficient use of space. Let this panel pave the way to a more structured and elegant electrical system, essential for any modern, luxury dwelling.

---

Upgrade your electrical system with the Square D Homeline Load Center today for a smoother, safer power distribution experience.
