Birdview Self-Flashing Double Dome Skylight, Acrylic Double Dome, Multiple Sizes
Regular price $855.00Orders start at $399 — combine any items to reach the minimum. Learn more
Birdview Self-Flashing Double Dome Skylight, Acrylic Double Dome, Multiple Sizes

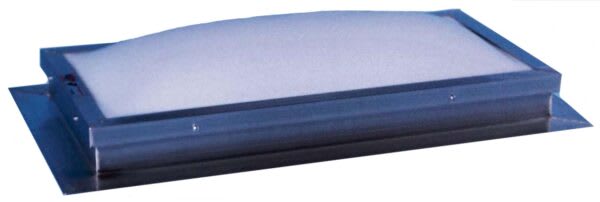

The Birdview self-flashing double dome skylight is a factory-assembled unit with an acrylic double dome on a .078 extruded aluminum frame, rated to support 40 PSF live load. Available in 22-1/2 in. x 22-1/2 in., 24 in. x 48 in. and 46-1/2 in. x 46-1/2 in., each unit has a 3 in. mounting flange ready for roof deck installation. Sold as one skylight.
Key Features:
- Double dome: Two acrylic dome layers create an insulating double-glazed unit.
- Self-flashing flange: A 3 in. mounting flange is ready for installation directly to the roof deck.
- 40 PSF load rating: Tint-over-tint glazing is made to support 40 PSF live load.
- Condensate gutter: An integral 10-degree sloping condensate gutter with drainage slots carries moisture to the outside.
- Aluminum frame: .078 extruded aluminum frame with .070 extruded aluminum glazing retaining angle.
- Factory assembled: Each unit is factory assembled, so the skylight arrives ready to set and flash.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Birdview Skylights |
| Sell unit | 1 skylight |
| Product line | Birdview Self-Flashing Double Dome Skylight (SF series) |
| Available sizes | ['22-1/2 in. x 22-1/2 in.', '24 in. x 48 in.', '46-1/2 in. x 46-1/2 in.'] |
| Glazing | Acrylic double dome, tint over tint |
| Frame | .078 extruded aluminum |
| Glazing retaining angle | .070 extruded aluminum |
| Load rating | Supports 40 PSF live load |
| Flange | 3 in. mounting flange |
| Condensate control | Integral 10-degree sloping condensate gutter with drainage slots |
| Assembly | Factory assembled unit |
| Model series | SF (4 in.) and 6SF (6 in.) families |
| Intended use | Self-flashed skylight for roof deck installation |
Fit and Compatibility:
Self-flashing units are designed for direct installation to the roof deck with the integral 3 in. flange; curb-mounted and 6 in. 6SF variants exist in the Birdview line. Flashing materials and sealant are supplied separately. Glazing materials are not designed to support the weight of a person.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: This line offers 22-1/2 in. x 22-1/2 in., 24 in. x 48 in., and 46-1/2 in. x 46-1/2 in. double dome units.
Q: What is included?
A: One factory-assembled skylight with acrylic double dome, aluminum frame, and 3 in. mounting flange.
Q: How is it installed?
A: The self-flashing design mounts to the roof deck through the 3 in. flange; site flashing and sealant are supplied separately.
Q: What load can the dome support?
A: The tint-over-tint glazing is made to support 40 PSF live load.
Q: How is condensation handled?
A: An integral 10-degree sloping condensate gutter with drainage slots carries moisture to the outside.
Q: Can I walk on the skylight?
A: No. The glazing is not designed to support the weight of a person.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Match the rough opening to the listed outside dimensions and verify the deck is square before setting the unit. Self-flashing skylights suit shingle roof applications; keep the 3 in. flange integrated into the shingle courses with compatible sealant and step flashing per Birdview instructions. For slopes or exposures with higher water load, consider curb-mounted models instead.
Glazing is not designed to support the weight of a person; never step on the dome and follow fall-protection practice during roof installation.
Bring daylight in with a Birdview self-flashing double dome skylight sized to your opening.
