Siemens 225 Amp Generator Ready Load Center

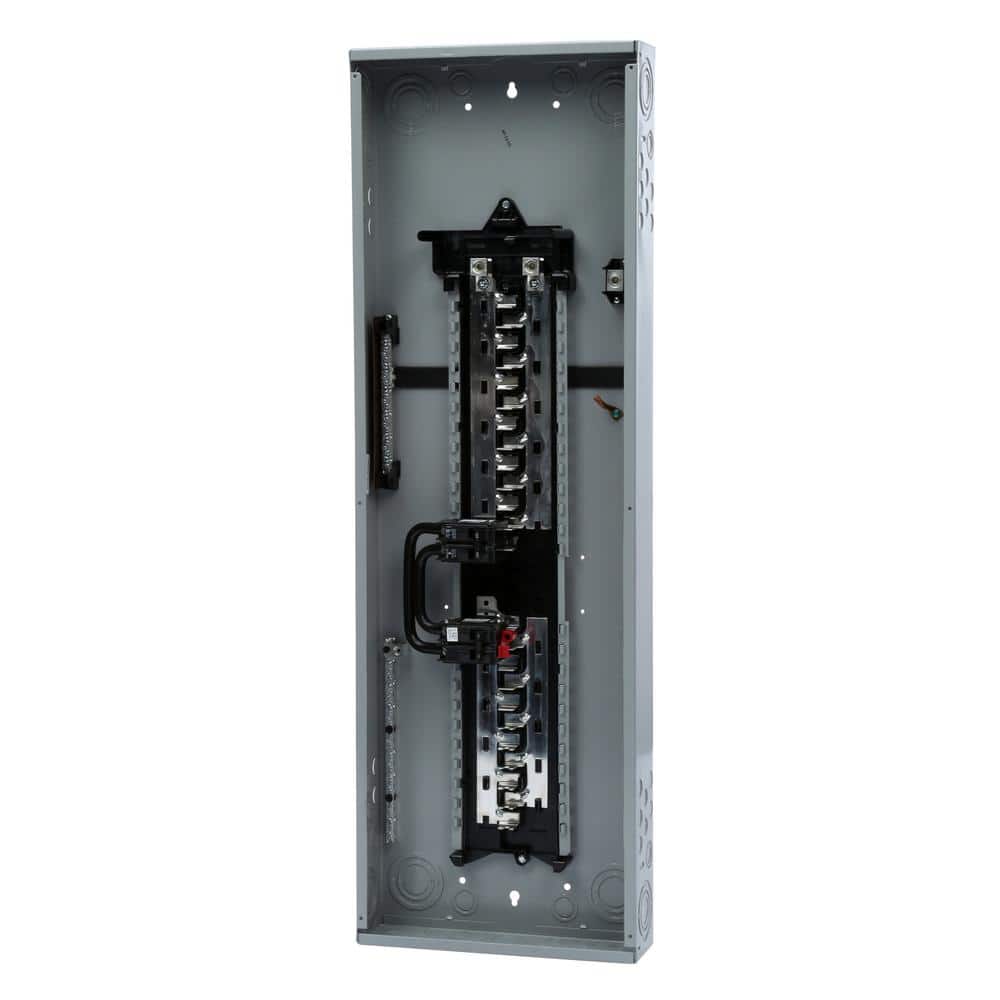

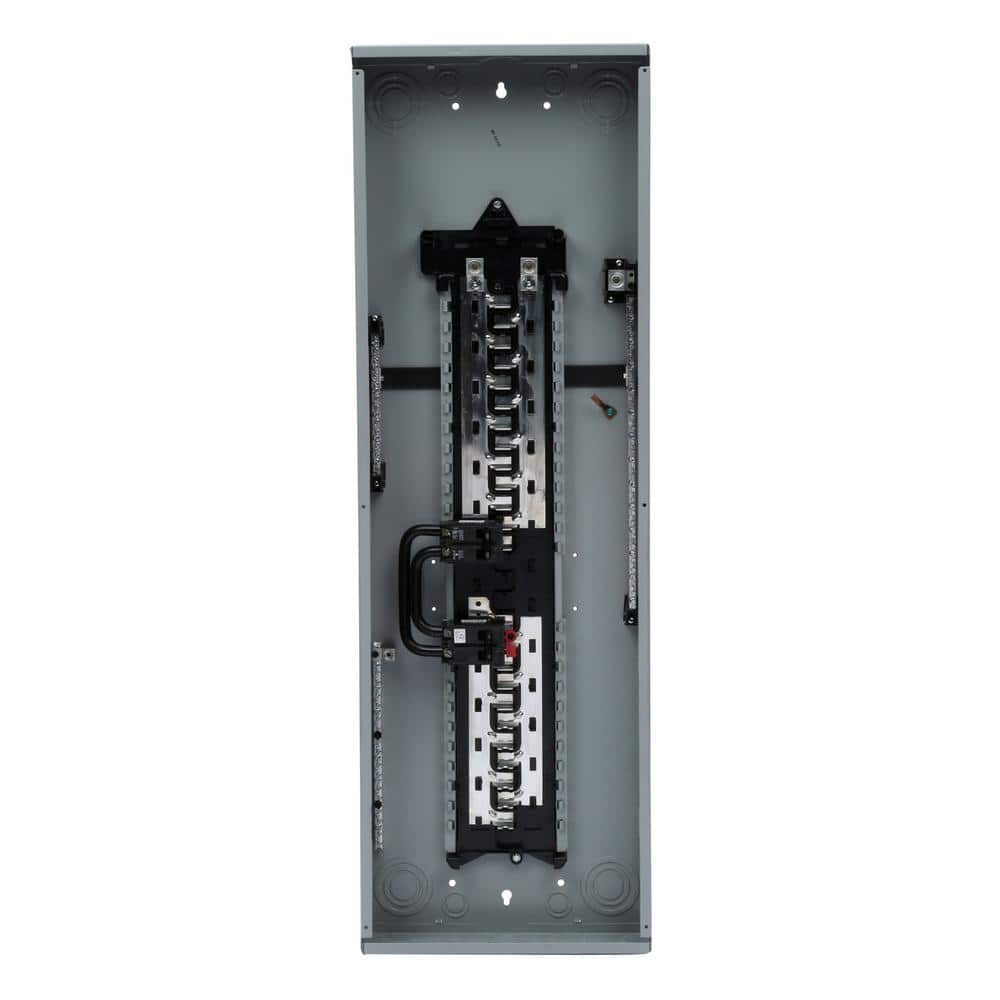

Efficiently prepare for future power outages with the Siemens 225 Amp Generator Ready Load Center. This innovative electrical panel minimizes future generator installation costs by integrating generator-ready capabilities, providing two separate interiors for standard and generator backup operation.

---

Key Features:

• Compatibility: Works with both automatic standby and portable generators, up to 30 kW and 125A respectively.
• Material: Features durable, tin-plated copper bus bars for enhanced conductivity and corrosion resistance.
• Installation Flexibility: Can be flush or surface mounted to suit space requirements.

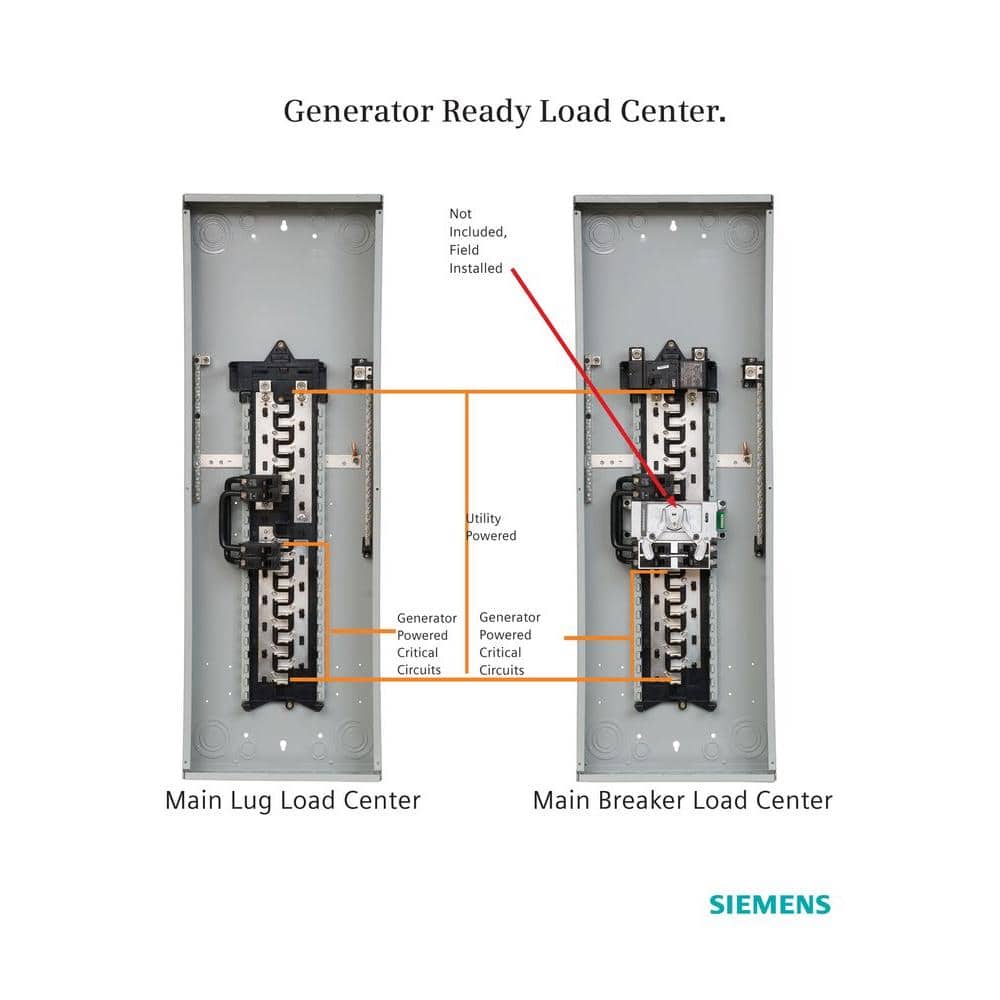

• Utility: Separate interiors for normal and generator backup modes, optimizing power distribution.

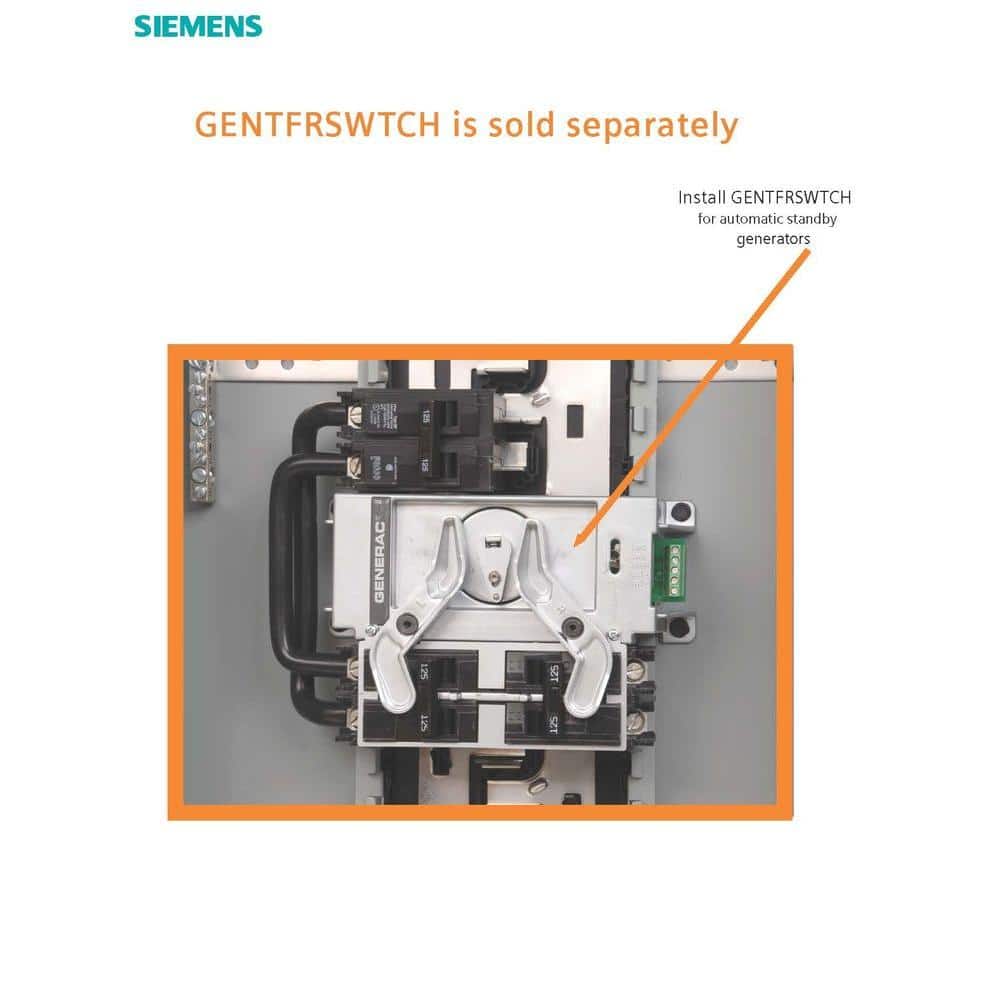

• Transfer Switch: Requires separate purchase (Part# GENTFRSWTCH) for seamless generator integration.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Non-Neutral
Indoor/Outdoor	Indoor
Maximum Amperage (A)	225 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	54
Number of Spaces	42
Product Weight (lb.)	23.64 lb
Series Type	Not Specified
Voltage (V)	120/240 V
Certifications and Listings	ANSI Certified,UL Listed
Manufacturer Warranty	Standard
Product Depth (in.)	117 in
Product Height (in.)	13 in
Product Width (in.)	39.99 in

---

Frequently Asked Questions (FAQ):

Q: Can this load center be used outdoors?
A: No, this load center is designed for indoor use only.

---

Q: Is the transfer switch included with the load center?
A: No, the generator automatic transfer switch is sold separately. You will need Part# GENTFRSWTCH.

---

Q: What types of generators are compatible with this load center?
A: It is compatible with Siemens, Generac, Guardian, and Centurion type standby generators up to 30 kW, and any portable generator up to 125A output.

---

Q: What are the installation requirements for a generator-ready load center?
A: During home construction, this load center can be installed with pre-planning for future generator connections and gas line placement.

---

Q: How does the generator-ready load center save on future costs?
A: By installing this system during construction, it eliminates the need for costly rewiring and reduces the complexity of integrating a generator later on.

---

A Seamless Fusion of Form and Function

Envision a home where power continuity seamlessly aligns with sophisticated design, courtesy of the Siemens Generator Ready Load Center. Its understated yet essential presence ensures that your home's electrical core remains reliable and prepared for whatever storms may come. With its sleek tin-plated copper construction, this load center harmonizes strength with style. Consider integrating this discreet powerhouse in utility rooms or garages, blending utility into your home's tapestry. It stands as a pillar of modern luxury, turning preparedness into an art form.

---

Ensure your home is equipped with the Siemens 225 Amp Generator Ready Load Center and be prepared for seamless power transitions.
