Delta Trinsic Stainless Shower Bar System with Valve

Complete Trinsic shower bar system in stainless finish delivers a luxurious multi-function experience with included valve and 3-way diverter. Features Delta H2Okinetic technology, Touch-Clean spray holes, adjustable slide bar, and metal showerhead and hand shower for lasting performance.

---

Key Features:

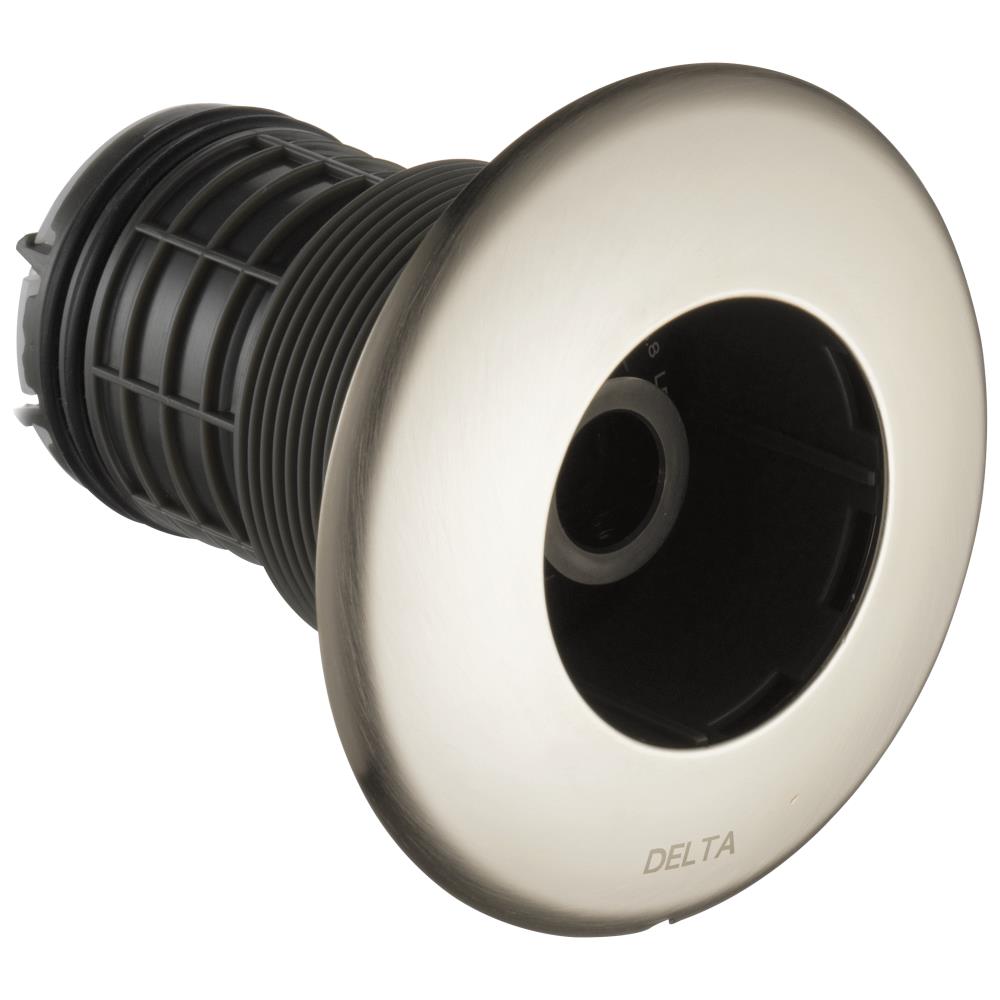

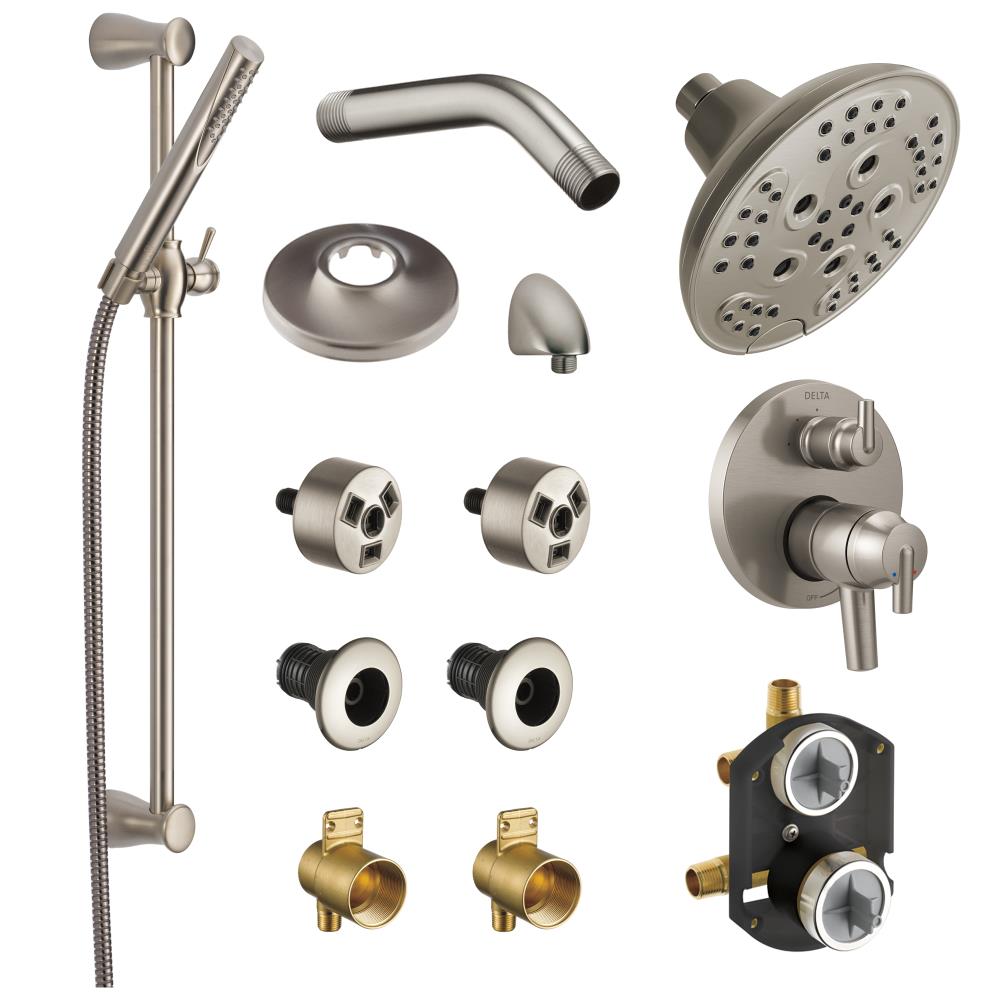

• All-in-One Kit: Includes showerhead, handshower with slide bar, 3-way diverter, valve trim, rough-in valves, body sprays, hose, and accessories
• H2Okinetic Technology: Sculpts water into a powerful, drenching spray while maintaining 1.75 GPM for water savings
• Touch-Clean Nozzles: Soft rubber spray holes wipe clean of calcium and lime for easy maintenance
• Adjustable Comfort: Slide bar with 60–82 in stretchable metal hose and body sprays that adjust up to 50°
• Durable Metal Construction: Stainless finish with lever handles and limited lifetime warranty

---

Specifications Table:

Specification	Details
Collection Name	Trinsic
Series Name	Trinsic
Type	Shower bar system
Fixture Color Family	Stainless steel
Manufacturer Color/Finish	Stainless
Actual Depth (Inches)	19.125
Actual Height (Inches)	42
Actual Width (Inches)	14.125
Shower Head Diameter (Inches)	6.0
Handheld Shower Head Diameter (Inches)	1.0
Hose Length (Inches)	82.0
Total Bar/Panel Length (Inches)	24.0
Total Bar/Panel Width (Inches)	6.5
Water Source to Valve Length (Inches)	24.0
Integrated Adjustable Height Slide Bar	Yes
Adjustable Head	No
Antimicrobial	No
Body Jets Included	No
Commercial/Residential	Commercial/Residential
Control Panel Included	No
Detachable Head	Yes
Diverter Type	3-way
Dual Head	No
Easy-Cleaning Nozzles	Yes
Handheld Pause/Trickle Control	No
Handheld Shower Head Material	Metal
Handle Type	Lever
High Pressure	No
Hose Material	Metal
Low Flow	Yes
Max Flow Rate (Handheld)	1.75 GPM (6.6 LPM)
Max Flow Rate (Showerhead)	1.75 GPM (6.6 LPM)
Number of Body Spray Jet Patterns	1
Number of Hand Showers Included	1
Number of Handheld Spray Patterns	1
Number of Jets	2
Number of Shower Head Spray Patterns	5
Number of Shower Heads Included	1
Number of Spray Settings	5
Projection from Wall (Inches)	19.125
Shower Head Material	Metal
Shower Head Pause/Trickle Control	No
Spray Technology	H2Okinetic
Steam Feature	No
Thread Tape Included	No
Valve Included	Yes
Warranty	Limited lifetime
Waterfall	No
WaterSense Labeled	Yes
CA Residents: Prop 65 Warning(s)	Yes
UNSPSC	30181500

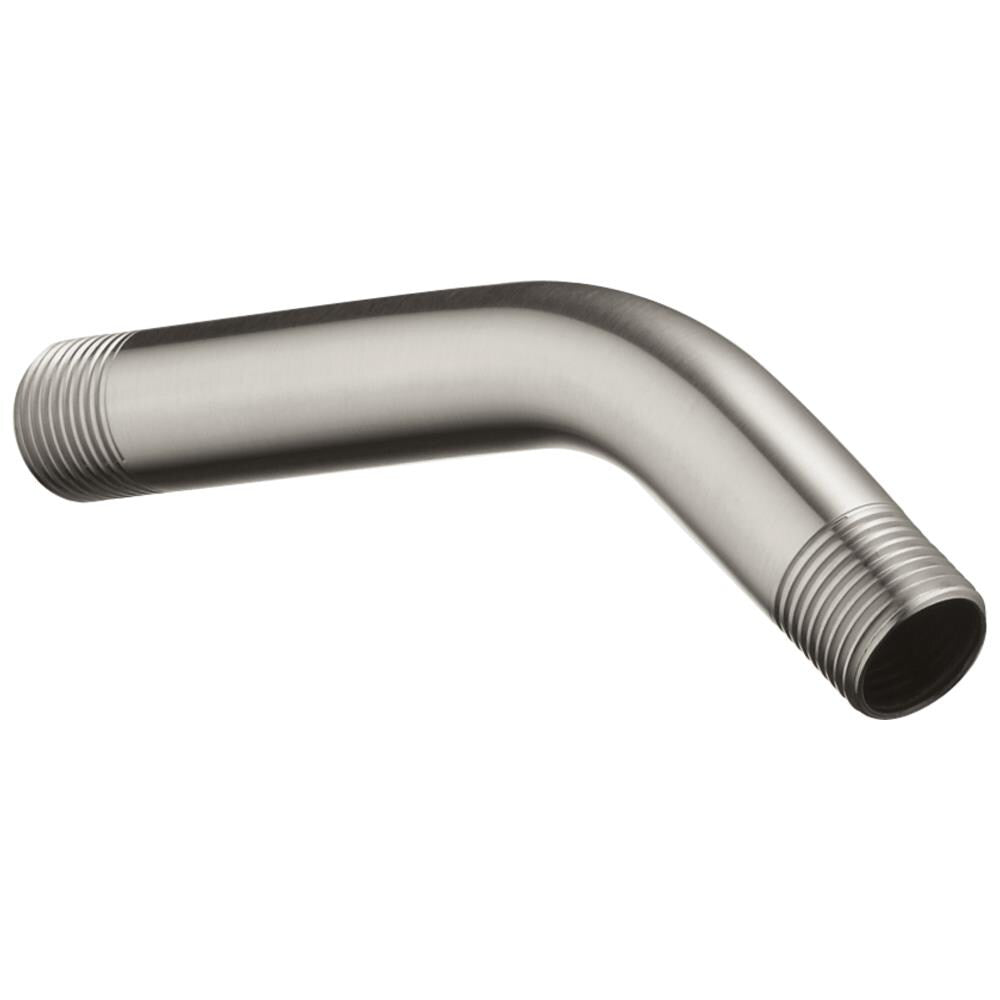

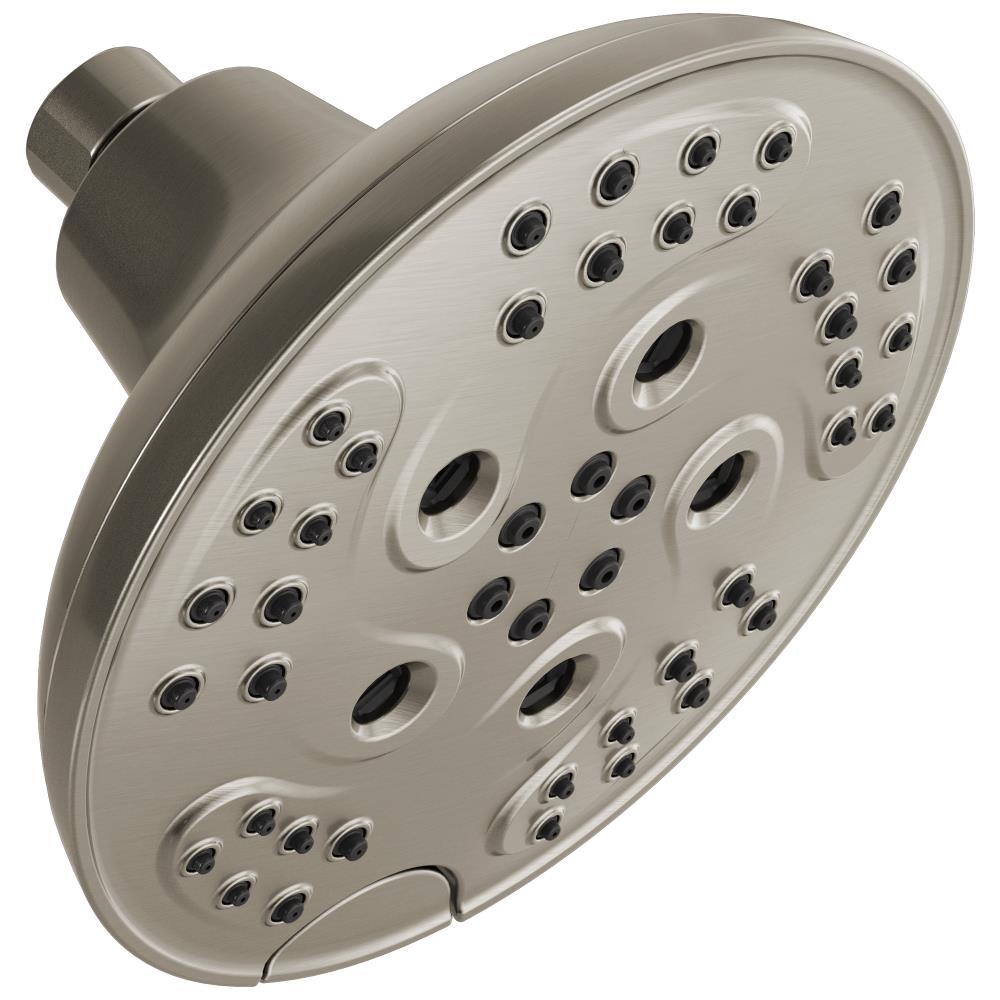

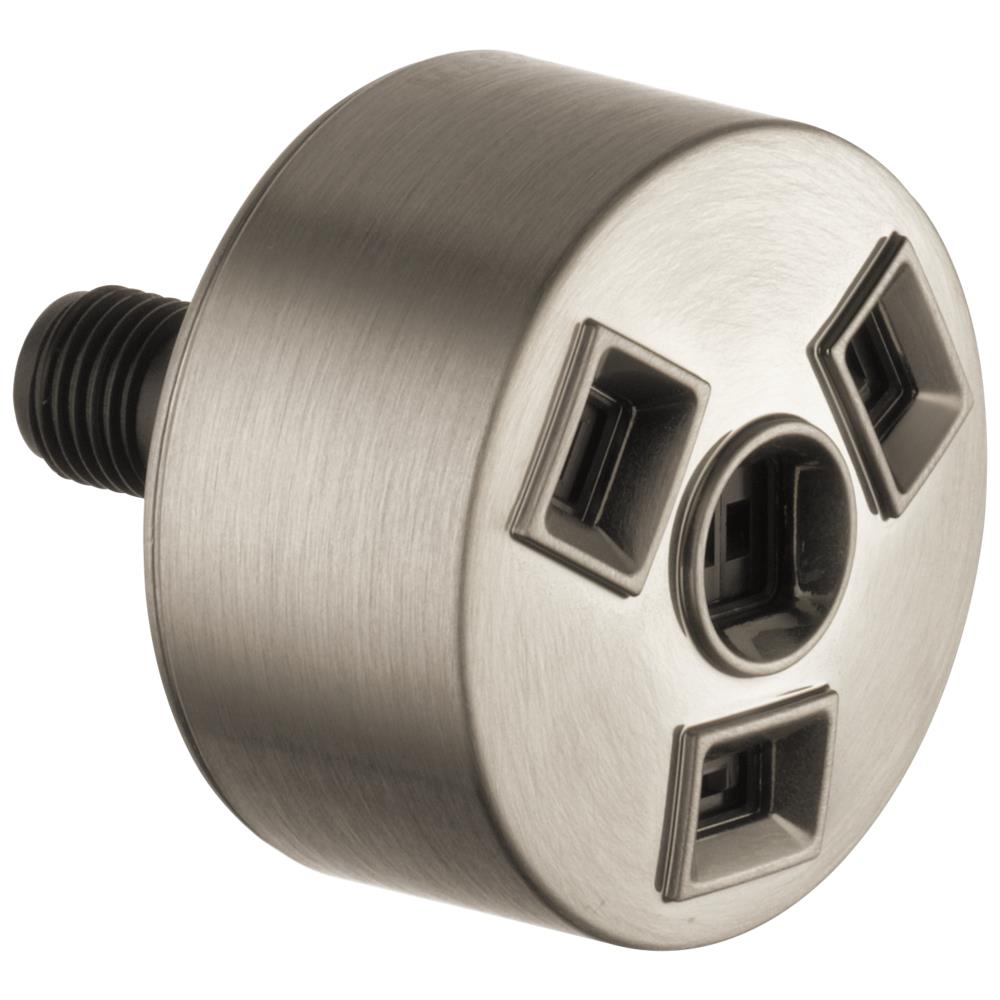

Included Components	Handshower with slide bar, wall elbow, showerhead and trim, 2 body sprays with trims and rough-in bodies, valve trim, shower diverter, rough-in valves, 60–82 in metal hose

---

Frequently Asked Questions (FAQ):

Q: Is the mixing valve included?
A: Yes, the valve and trim are included along with the 3-way diverter.

---

Q: What is the flow rate?
A: Both the showerhead and handheld are rated at 1.75 GPM (6.6 LPM).

---

Q: Does the slide bar adjust for different heights?
A: Yes, the wall bar includes an adjustable slide for tall or short bathers.

---

Q: Are the spray nozzles easy to clean?
A: Yes, Delta Touch-Clean spray holes allow mineral buildup to be wiped away with a finger.

---

Q: Is it WaterSense labeled?
A: Yes, the system is WaterSense labeled.

---

Sculptural Stainless Luxury for the Modern Bath

This Trinsic shower system is a symphony of sleek lines and satin stainless—elevating a bath from everyday to spa-worthy. The slender handshower and round multi-function head create a refined geometry, while the slide bar adds a tailored, architectural note. Pair it with matte porcelain or warm walnut accents to let the stainless finish glow. Consider this the essential statement piece for a polished, modern sanctuary.

---

Upgrade to the Trinsic system today for a water-saving, spa-level shower with everything included out of the box.
