Homeline 200A 40-Space Indoor Main Breaker Load Center w/ Surge SPD

This Square D Homeline load center delivers 200A service with 40 spaces/80 circuits in a compact NEMA 1 indoor cabinet. Featuring Plug-On Neutral and Qwik-Grip wire entry for faster, cleaner installs, it includes a 50kA whole-home surge protective device and a selection of Homeline breakers.

---

Key Features:

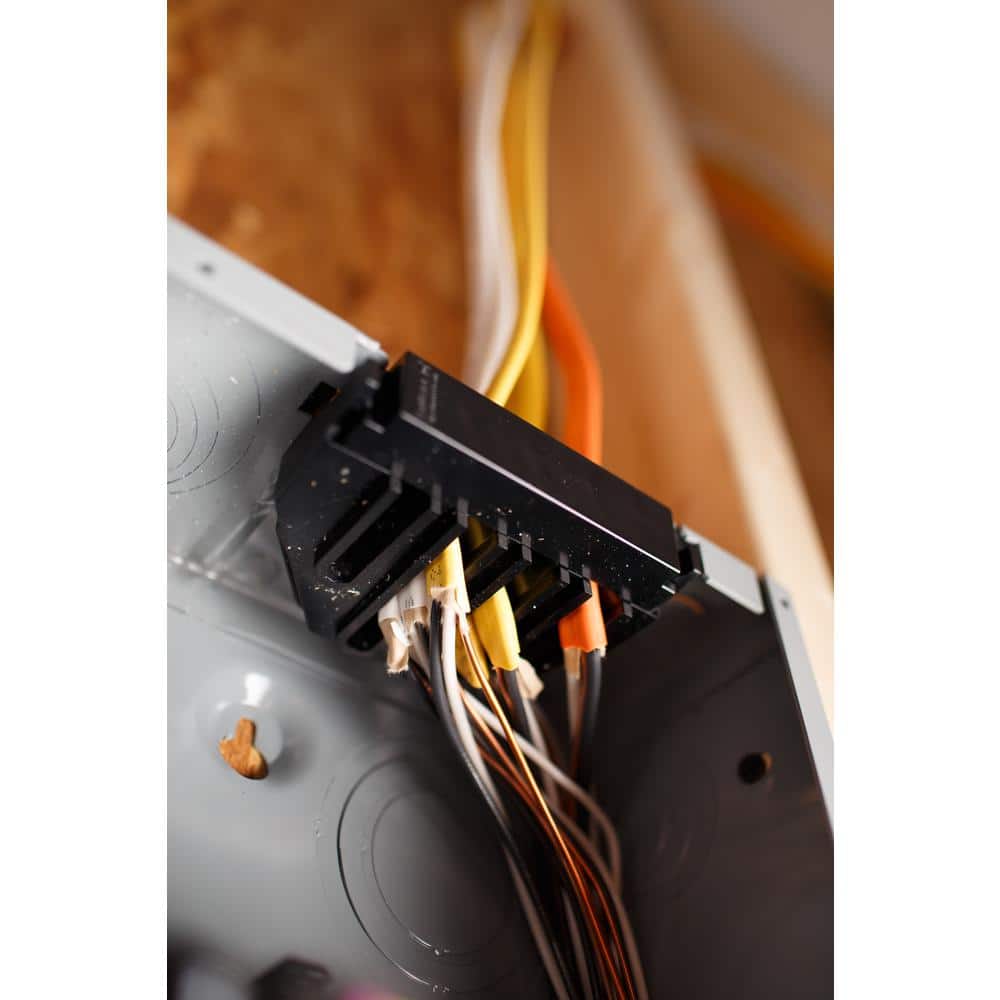

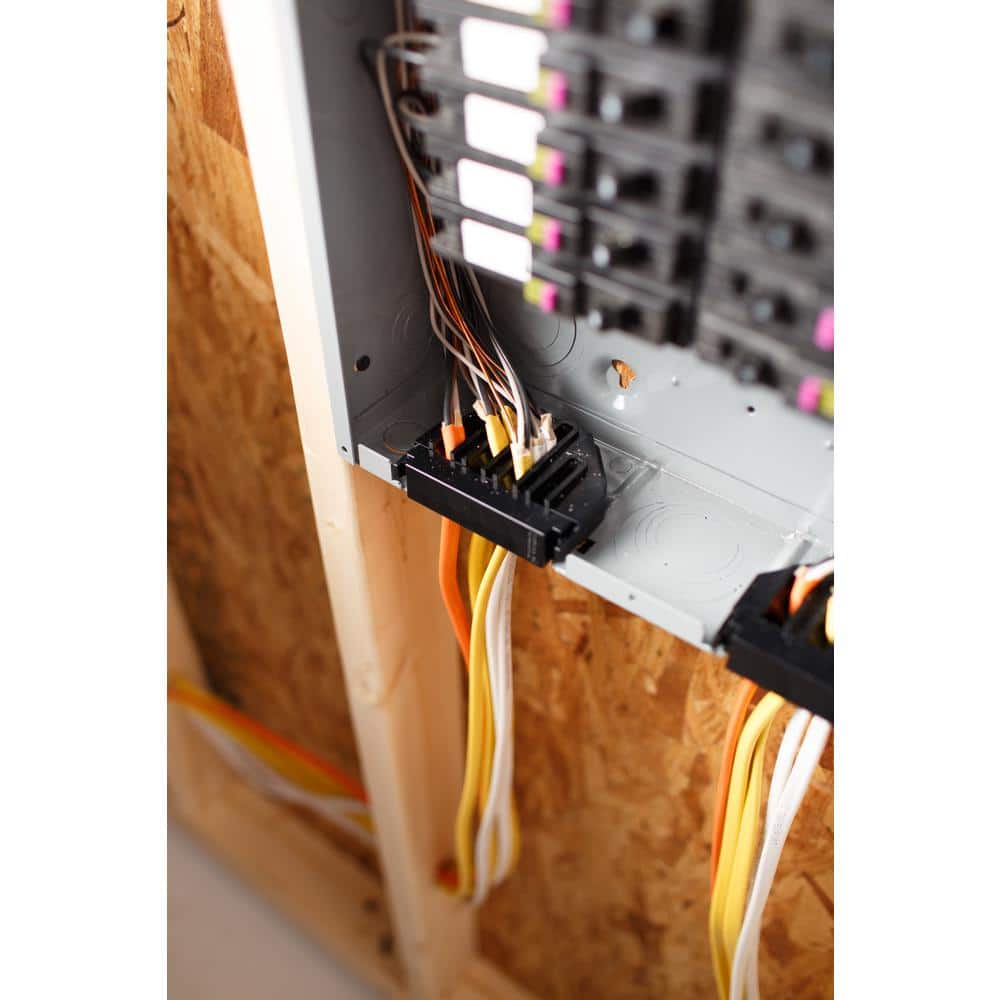

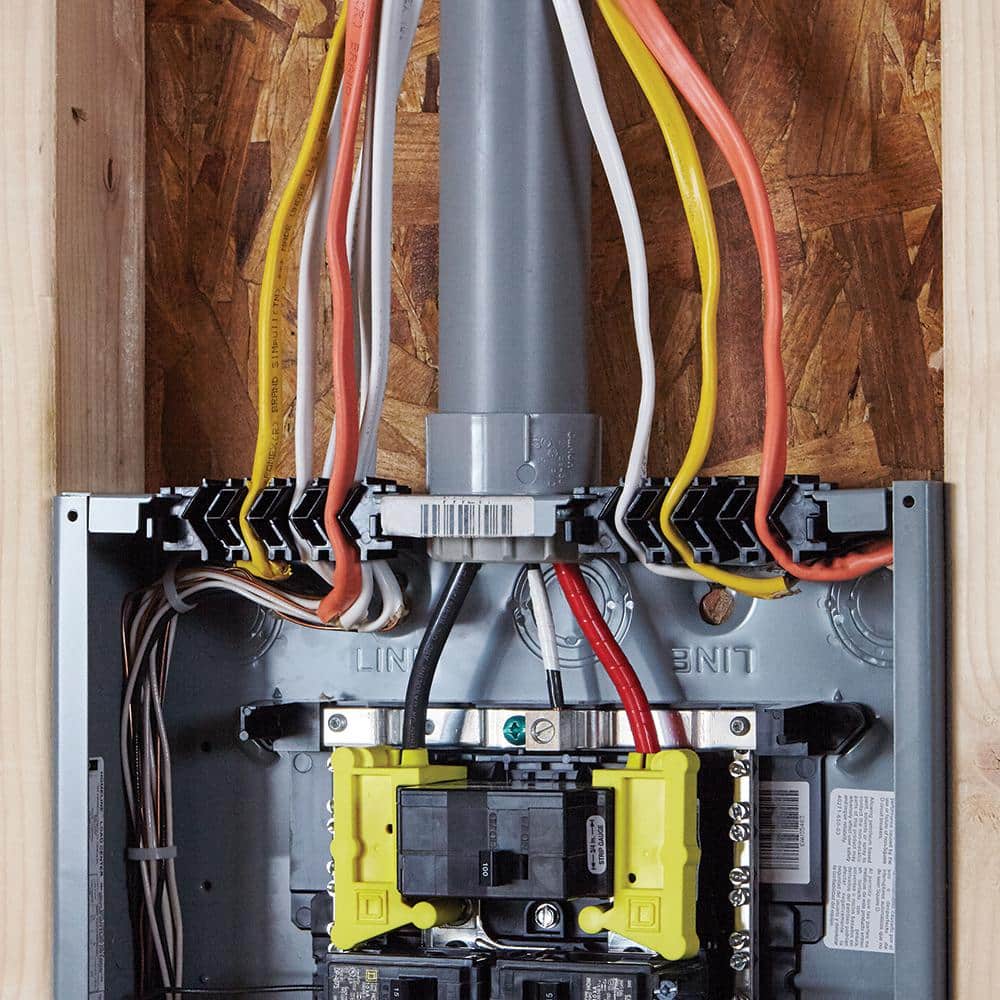

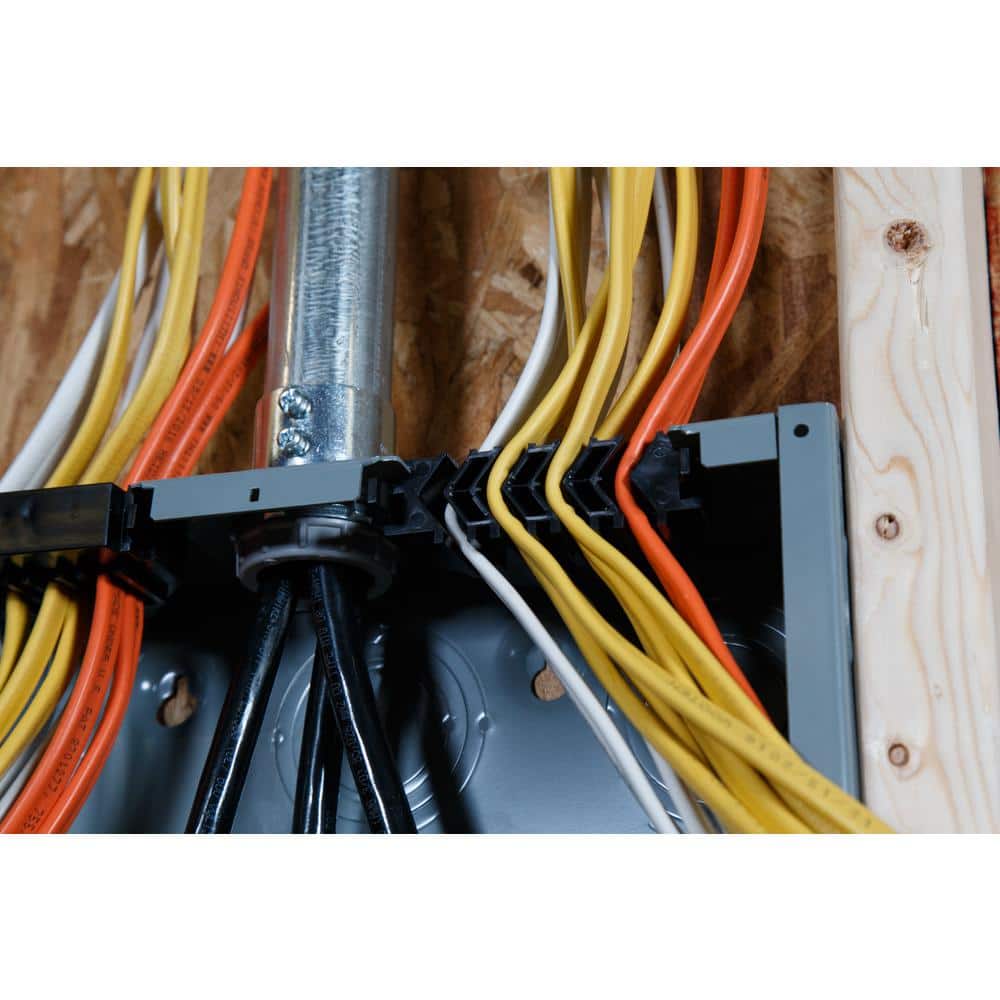

• Fast Installation: Plug-On Neutral and Qwik-Grip eliminate pigtails and reduce wiring time

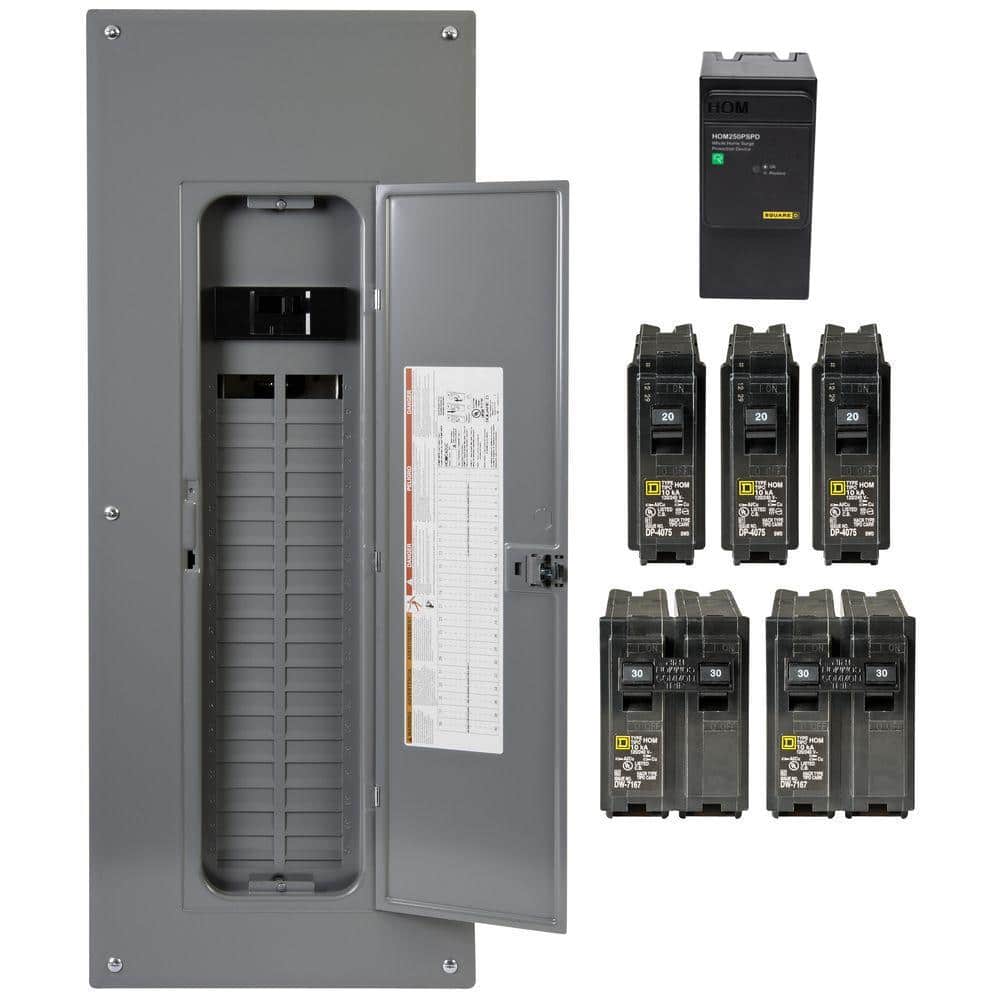

• Complete Value Pack: Includes cover, HOM250PSPD surge device, (3) HOM120 and (2) HOM230 breakers
• High Capacity & Flexibility: 40 spaces/80 circuits; accepts full-size, tandem, or quad breakers
• Durable Build: Thermoplastic interior with plated aluminum bus bar; UL Listed
• Versatile Mounting: Flush or surface mount; overhead or underground feed

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Box Type	Main Breaker Panel
Maximum Amperage	200 A
Number of Spaces	40
Number of Circuits	80
Voltage	120/240 V AC
Indoor/Outdoor	Indoor
NEMA Rating	NEMA 1
Mounting Type	Flush or Surface
Connection Type	Plug-On Neutral
Included Components	Cover, HOM250PSPD surge device, (3) HOM120 20A single-pole breakers, (2) HOM230 30A double-pole breakers
Bus Bar Material	Aluminum (plated)
Short Circuit Current Rating	22,000 AIR
Surge Protection	50,000 A/phase max; 5-year warranty; $50,000 downstream equipment protection
Feed Type	Overhead/Underground (by rotating device)
Ground/Neutral Bars	Accept up to (3) #10–14 equipment grounds; multiple ground bar mounting locations
Certifications	UL Listed

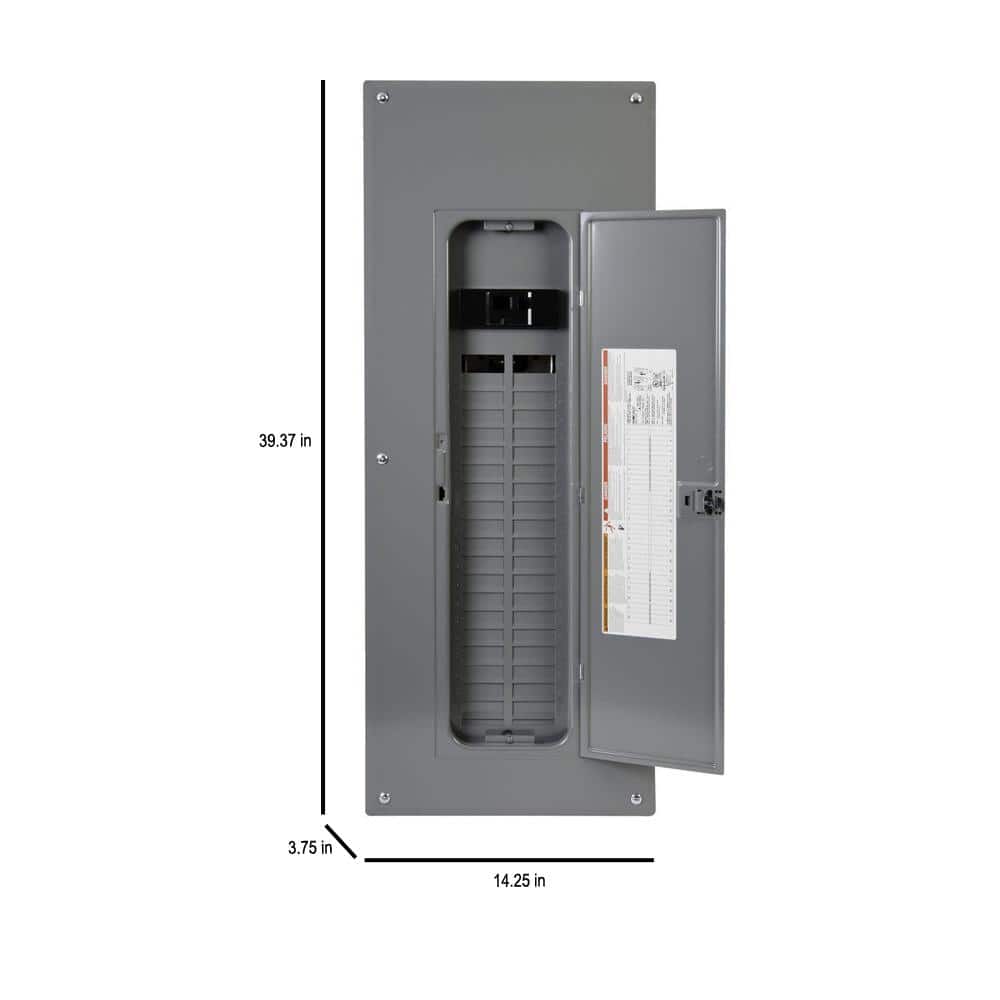

Product Height	39.37 in
Product Width	14.25 in
Product Depth	3.75 in
Product Weight	40.11 lb
Phase	Single phase

---

Frequently Asked Questions (FAQ):

Q: What breakers are compatible?
A: It is listed only for Square D Homeline branch circuit breakers, including Plug-On Neutral AF/GF devices.

---

Q: Is this panel for indoor use?
A: Yes, it is NEMA 1 rated for indoor installations.

---

Q: What surge protection is included?
A: A HOM250PSPD Plug-On Neutral whole-home SPD rated 50,000A per phase with 5-year warranty and $50,000 downstream equipment protection.

---

Q: How many circuits can it support?
A: Up to 80 circuits across 40 spaces; each space can accept full-size, tandem, or quad breakers as permitted.

---

Q: What are the panel dimensions?
A: Approximately 39.37 in H x 14.25 in W x 3.75 in D.

---

Streamlined Power, Subtle Presence

This Homeline panel tucks neatly into a wall with a satin-steel presence that feels purposeful and refined. The plug-on neutral architecture keeps the interior visually clean—no messy pigtails—so your mechanical room feels as curated as the rest of the home. Pair it with a tidy wire management layout and labeled circuits for an architecturally crisp utility space. Reliable surge protection and a sleek cover make it an essential cornerstone of modern, luxury living.

---

Upgrade to fast, clean power distribution with built‑in whole‑home surge protection—add this Homeline value pack to your project today.
