Homeline 200 Amp 30-Space 60-Circuit Outdoor Main Breaker Plug-On Neutral Load Center with Surge SPD - Value Pack
Regular price $448.83Homeline 200A Outdoor Main Breaker Load Center Value Pack
Outdoor-rated Square D Homeline load center with Plug-On Neutral technology, main breaker, and included surge protection device. Provides 30 spaces/60 circuits with fast, clean installation and rugged thermoplastic interior for reliable residential power distribution.
Key Features:
- Plug-On Neutral Technology: Faster, cleaner installs with less wiring and expanded neutral terminals
- Outdoor Durability: NEMA 3R rainproof enclosure with stainless steel hasp for secure padlocking

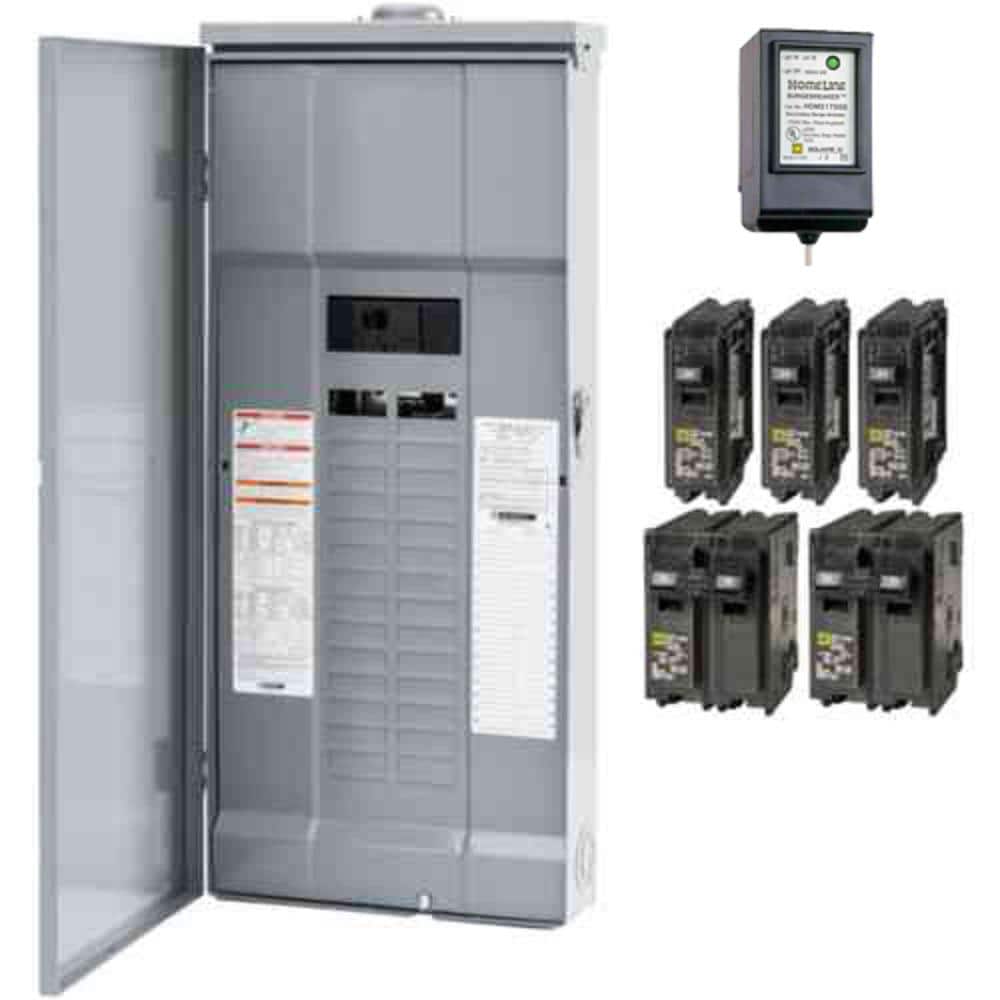

- Complete Value Pack: Includes SPD, (3) 20A single-pole and (2) 30A double-pole Homeline breakers, and cover
- High Capacity & Compatibility: 200A main, 30 spaces/60 circuits; accepts full-size, tandem, or quad Homeline breakers
- Straight-In Mains Design: Saves cable and time; flexible top termination and multi-point ground bar mounting
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Box Type | Main Breaker Panel |
| Indoor/Outdoor | Outdoor |
| NEMA Rating | NEMA 3R |
| Maximum Amperage | 200 A |
| Voltage | 120/240 VAC |
| Phase | Single phase |
| Number of Spaces | 30 |
| Number of Circuits | 60 |
| Mounting Type | Flush or Surface |
| Included Components | Circuit breakers, cover, surge protective device |
| Included Breakers | (3) HOM120 20A single-pole; (2) HOM230 30A double-pole |
| Surge Protective Device | Homeline SPD; requires 2-pole spaces; 22,500A max surge capacity; 150 VAC L-G max |
| Bus Bar Material | Plated aluminum (Homeline only) |

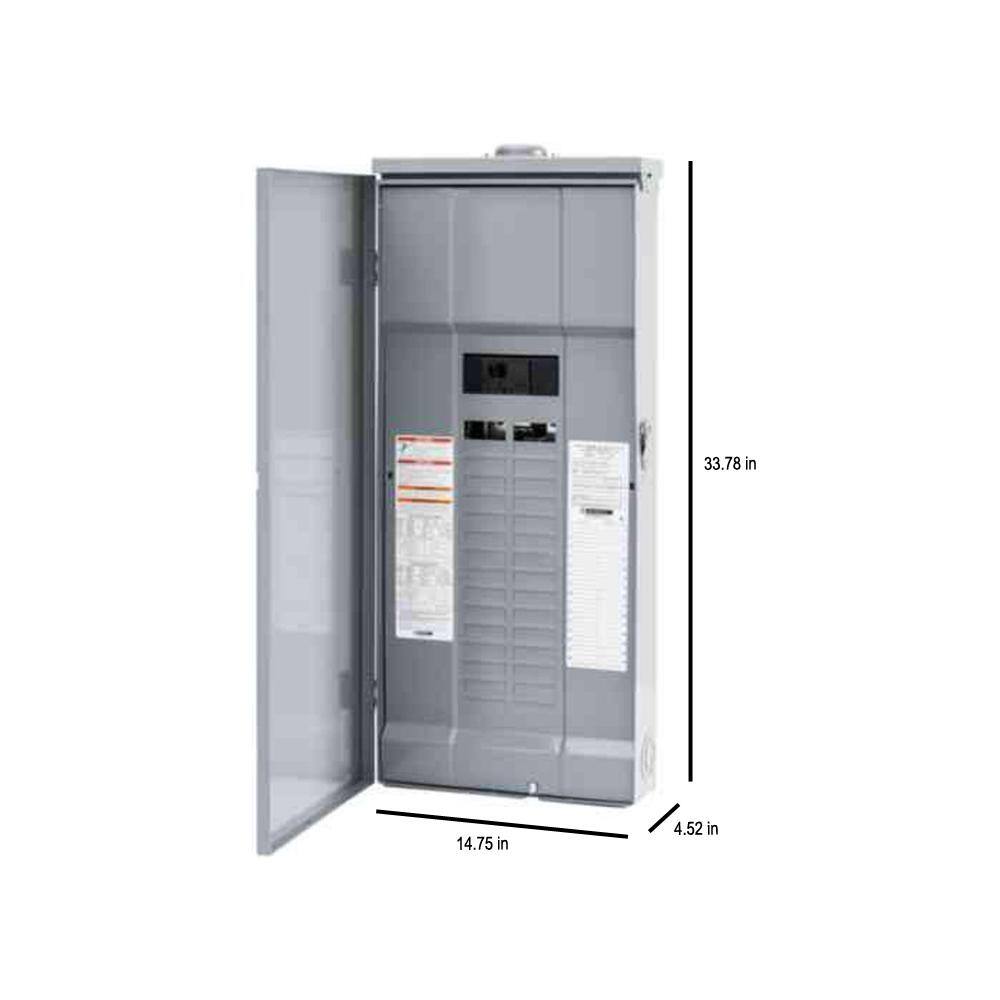

| Product Dimensions (H x W x D) | 33.78 in x 14.75 in x 4.52 in |
| Product Weight | 41.77 lb |
| Certifications | UL Listed |
| Short Circuit Current Rating | 22,000 AIR |
| Ground/Neutral Bars | Accept up to (3) #10–14 equipment grounds; distributed split branch neutral with backed-out screws |
| Features | Plug-On Neutral; straight-in mains; slot/square drive screws; removable interior with captive screw; multiple ground bar mounting locations; LED indicator on SPD |
| Compatibility | Homeline circuit breakers only |
| Country of Origin | USA |
Frequently Asked Questions (FAQ):
Q: Is this panel rated for outdoor installation?
A: Yes, it is NEMA 3R rainproof and designed for outdoor use.
Q: What breakers are included in the value pack?
A: (3) HOM120 20A single-pole and (2) HOM230 30A double-pole Homeline breakers, plus the surge protective device and panel cover.
Q: What is the maximum amperage and voltage rating?
A: 200A main breaker; 120/240 VAC single-phase.
Q: Does it support tandem or quad breakers?
A: Yes, each pole space accepts full-size, tandem, or quad Homeline breakers.
Q: What are the panel dimensions?
A: Approximately 33.78 in H x 14.75 in W x 4.52 in D.
Power Meets Poise: A Sleek, Outdoor-Ready Panel
This Homeline load center brings a refined, architectural simplicity to a utility essential. Its clean, rainproof silhouette and crisp lines feel intentional, elevating the functional heart of a home. I love the integrated surge protection—it’s a quiet luxury that safeguards your technology with elegance. Pair it with a discreet exterior placement and thoughtful conduit routing for a polished, professional finish—an indispensable foundation for modern, luxurious living.
Protect and power your home with quick Plug-On Neutral installation—upgrade to this Homeline value pack today.
