QO 200 Amp 30-Space 40-Circuit Indoor Main Breaker Load Center with Cover - Value Pack
Regular price $173.00200A QO Indoor Main Breaker Load Center Value Pack
A 200-amp, 30-space/40-circuit Square D QO indoor load center with a factory-installed main breaker and combination flush/surface cover. Value pack includes QO breakers for quick setup, delivering reliable copper bus performance for residential or light commercial applications.
Key Features:
- Time-Tested Reliability: QO interiors and components with rugged thermoplastic design and shielded copper bus

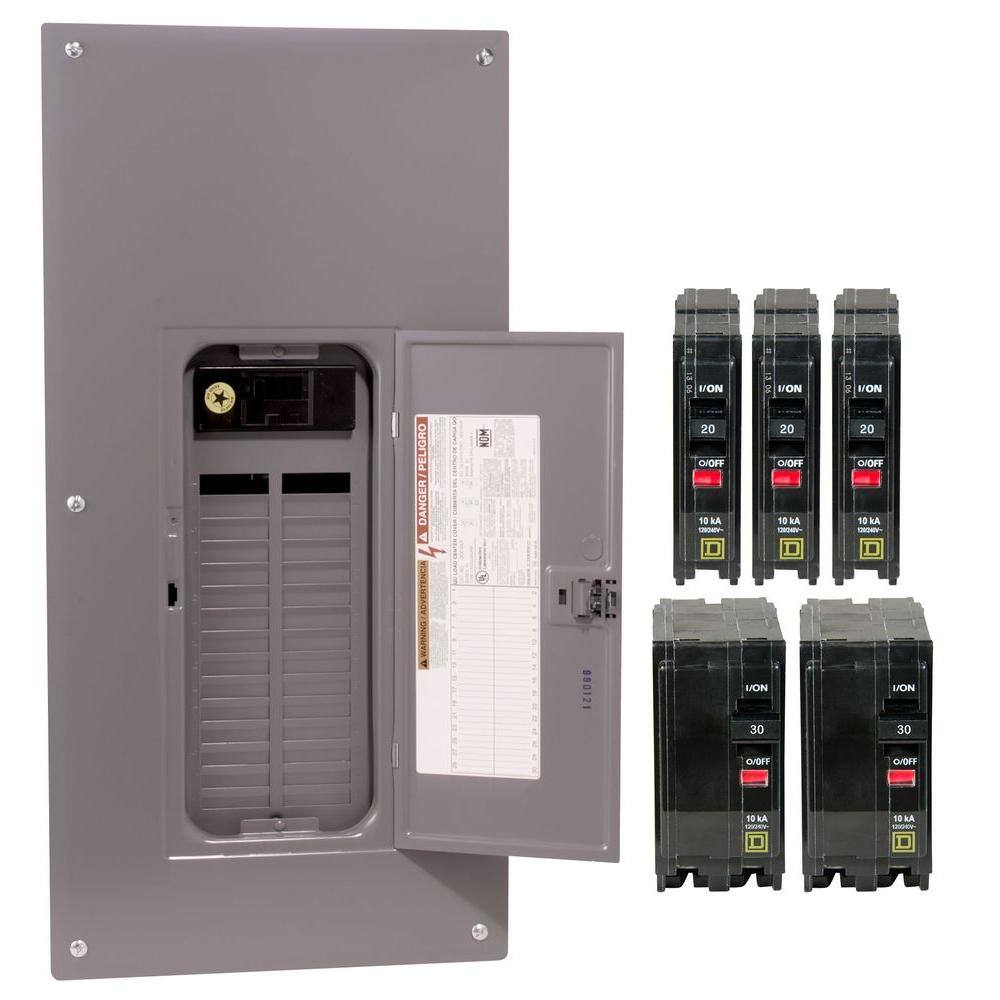

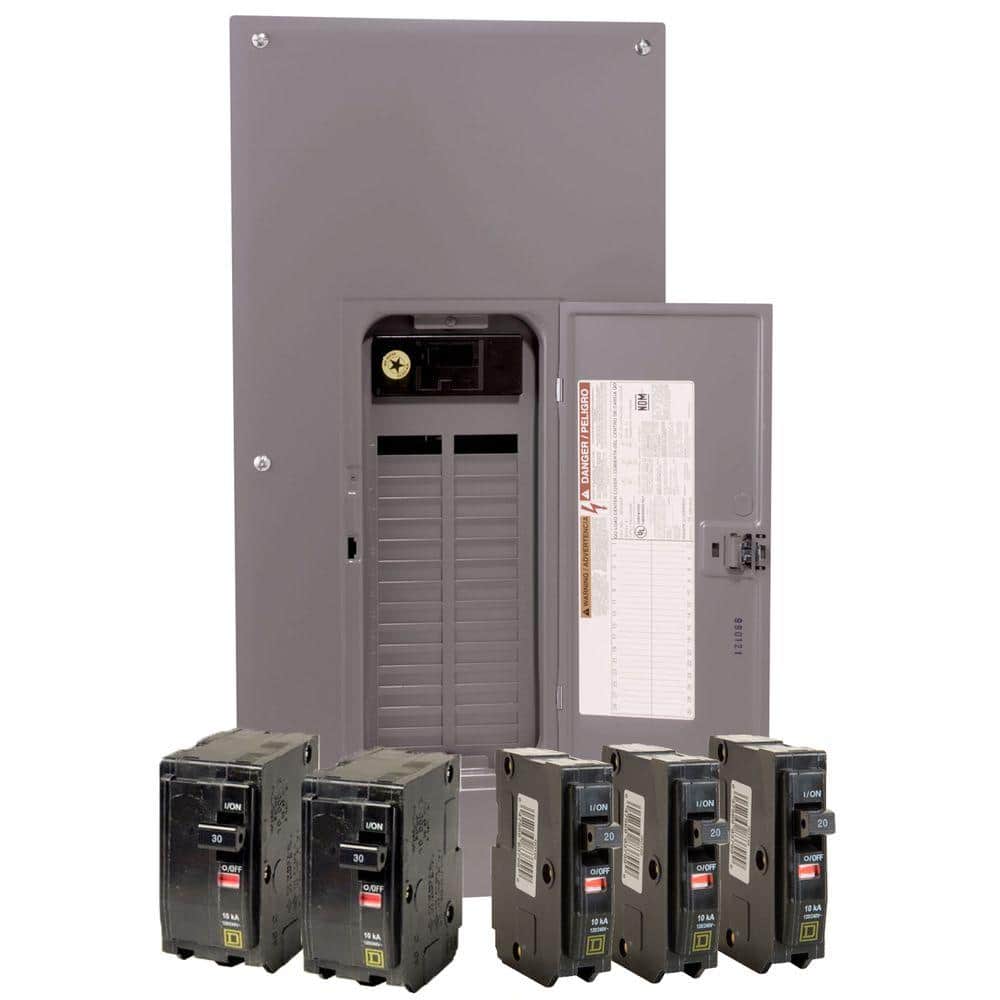

- Complete Value Pack: Includes main breaker, cover, (3) QO120 20A single‑pole and (2) QO230 30A double‑pole breakers
- Flexible Installation: Convertible mains, flush or surface mount, overhead/underground feed by rotating the device
- Wiring Efficiency: Split branch neutral with backed‑out screws and up to 50% more terminals than UL requires
- Safety & Ratings: UL Listed, single phase, 120/240 VAC with 22k AIR short‑circuit rating
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Breaker Box Type | Main Breaker Panel |
| Indoor/Outdoor | Indoor |
| NEMA Rating | NEMA 1 |
| Maximum Amperage | 200 A |
| Voltage | 120/240 VAC |
| Phase | Single phase |
| Short Circuit Current Rating | 22,000 AIR |
| Number of Spaces | 30 |
| Number of Circuits | 40 |
| Mounting Type | Flush or Surface |
| Connection Type | Non-Neutral |
| Included | Circuit breakers and cover |
| Included Breakers | (3) QO120 20A single‑pole, (2) QO230 30A double‑pole; factory-installed QOM2200VH main |

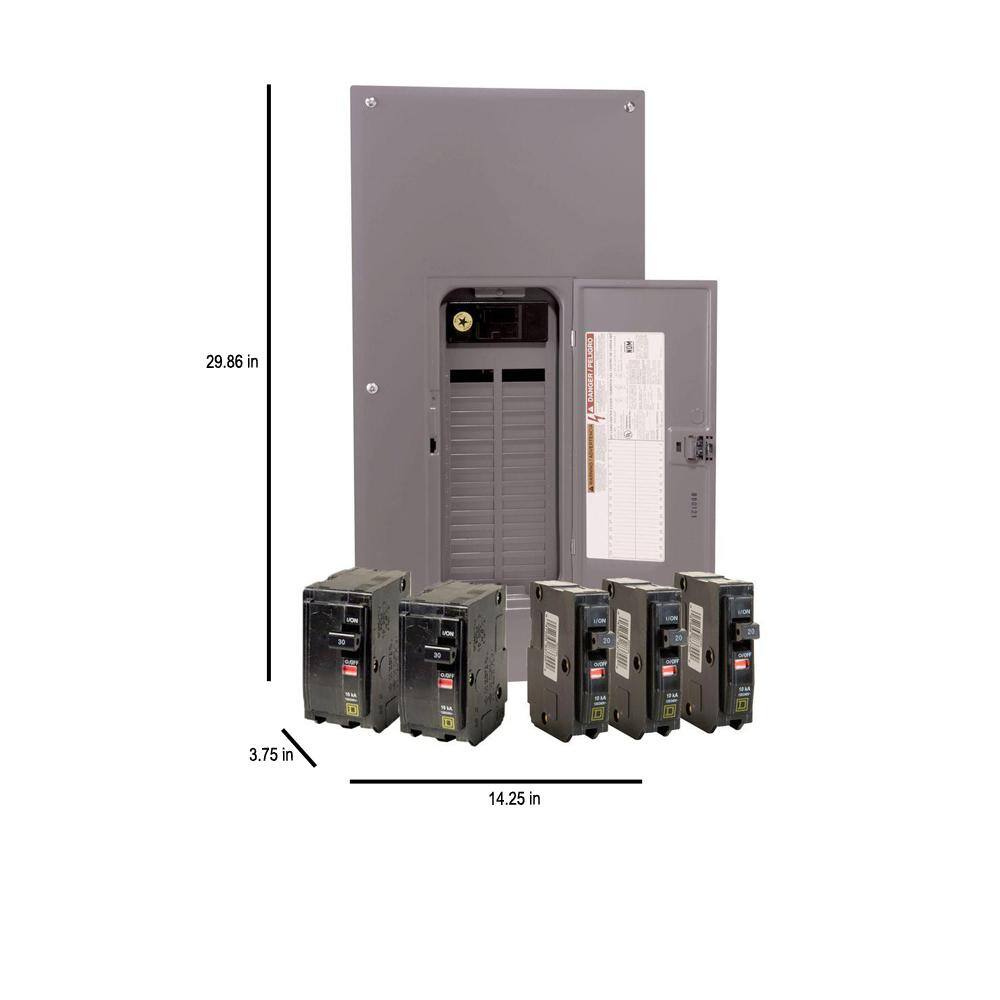

| Product Height | 29.86 in |
| Product Width | 14.25 in |
| Product Depth | 3.75 in |
| Product Weight | 31.73 lb |
| Certifications | UL Listed |
| Convertible Mains | Field convertible between main breaker and main lugs |
| Surge Compatibility | Accommodates plug-on secondary surge arrestor (sold separately) |
| Country of Manufacture | USA |
Frequently Asked Questions (FAQ):
Q: What breakers are included in this value pack?
A: Three QO120 20A single‑pole breakers and two QO230 30A double‑pole breakers, plus the factory‑installed QOM2200VH main breaker.
Q: Is this panel for indoor use only?
A: Yes. It is NEMA 1 rated for indoor installations.
Q: What is the maximum amperage and circuit capacity?
A: 200A main, 30 spaces supporting up to 40 circuits.
Q: Can it be flush or surface mounted?
A: Yes. The combination cover supports both flush and surface mounting.
Q: Is it compatible with Square D QO breakers only?
A: Yes, QO load centers are tested and listed only for Square D QO circuit breakers.
A Sleek, Orderly Heart for Your Home’s Power
This refined gray panel delivers a polished, architectural presence while organizing the lifeblood of your home’s energy. The crisp QO design with a clean, flush cover brings clarity and confidence to utility spaces. Style it within a streamlined equipment wall with labeled circuits for a gallery‑like utility zone. Consider it the quiet essential—premium, efficient, and impeccably built for modern living.
Power your project with the dependable QO 200A value pack—add it to your cart and simplify installation today.
