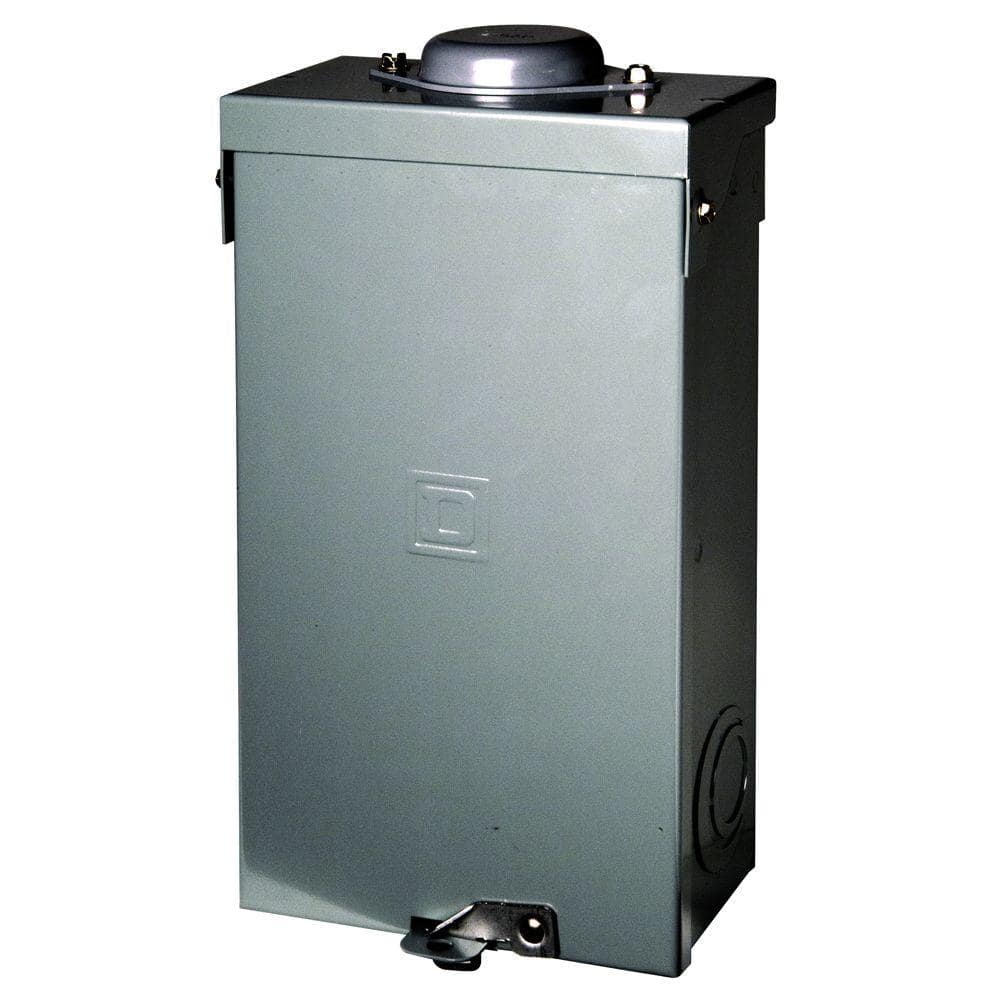

Square D QO 100 Amp 2-Pole Outdoor Circuit Breaker Enclosure
Regular price $85.76QO 100A 2-Pole Outdoor Breaker Enclosure
Outdoor-rated Type 3R enclosure for Square D QO two-pole breakers up to 225A. Built for reliable service entrance applications with copper bus and durable surface-mount design.
Key Features:
- Outdoor Reliability: Type 3R rainproof enclosure designed for harsh environments
- QO Compatibility: Accepts Square D QO two‑pole breakers (100–225A) including GFI/AFI/EPD/PL
- Service Entrance Ready: Suitable for use as entrance device up to 2017 NEC compliance
- Easy Installation: Surface mount with top B‑hub acceptance and bottom knockouts
- Safety Certified: UL Listed and ANSI certified with 22kA max short circuit rating
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Non-Neutral |
| Indoor/Outdoor | Outdoor |
| Maximum Amperage | 100 A |
| Mounting Type | Surface |
| NEMA Rating | NEMA 3R |
| Number of Circuits | 2 |
| Number of Spaces | 2 |
| Voltage | 120/240 V AC, single-phase |

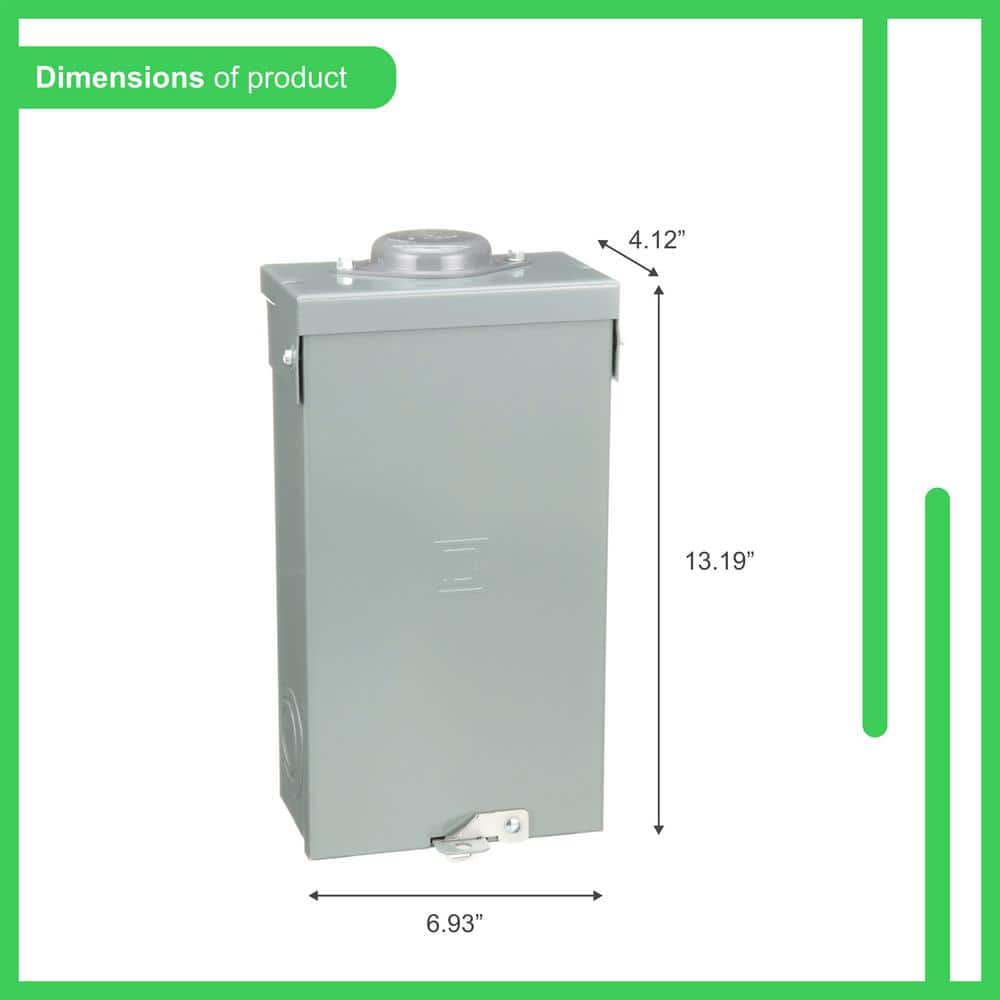

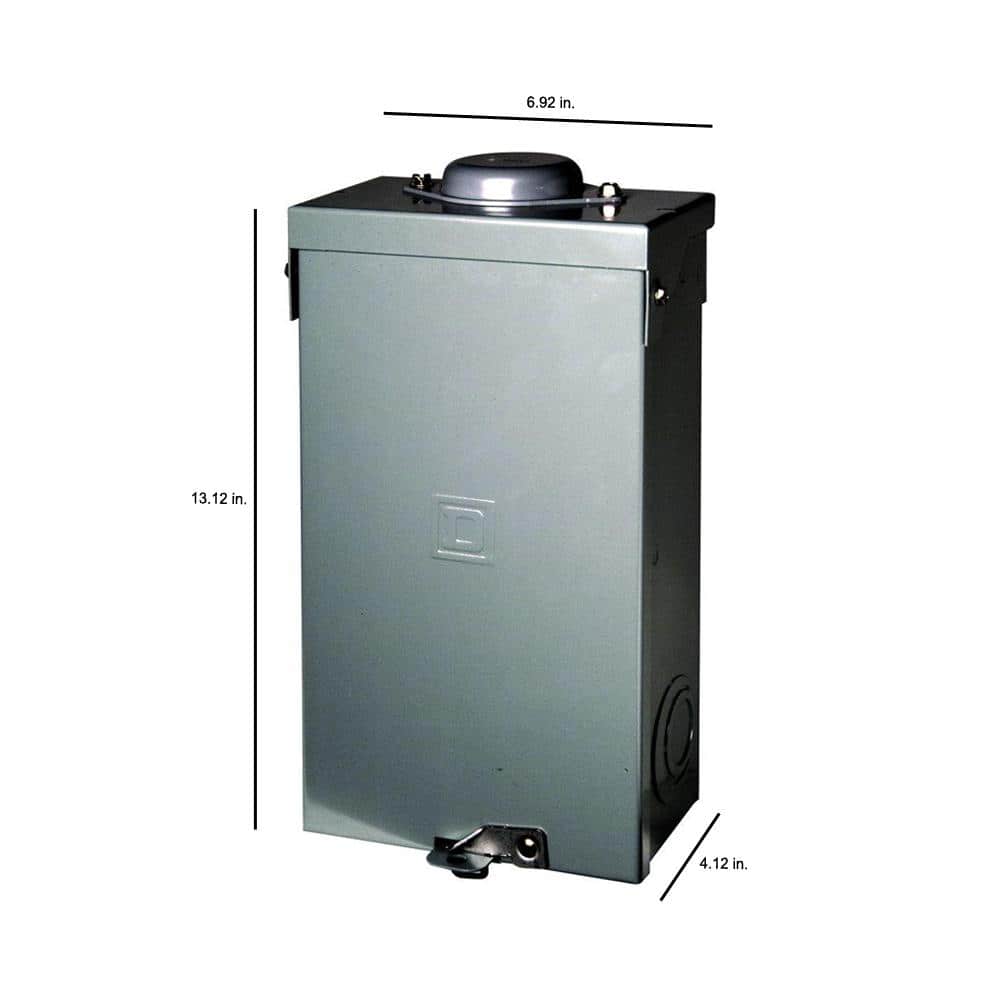

| Product Height | 13.12 in |
| Product Width | 6.92 in |
| Product Depth | 4.12 in |
| Certifications and Listings | UL Listed, ANSI certified |
| Short Circuit Current Rating | 22 kA Max |
| Top Hub | 2-1/2 in. type-B hub (accepts B-Hub) |
| Bottom Knockout | 1-1/2 in. maximum knockout |
| Compatibility | Square D QO two‑pole breakers (QO, QO‑GFI, QO‑AFI, QO‑EPD, QO‑PL), 100–225A |
| Service Entrance Use | Suitable for entrance device up to 2017 NEC code |
| Ground Bar Option | PKOGTA-2 ground bar kit (sold separately) |
Frequently Asked Questions (FAQ):
Q: Does this include the circuit breaker?
A: No. Two-pole QO breakers are sold separately.
Q: Can it be used outdoors?
A: Yes, it is a Type 3R rainproof enclosure rated for outdoor use.
Q: What voltage and amperage is it rated for?
A: Single-phase, 120/240 VAC, 100A service entrance rating; compatible with QO breakers up to 225A.
Q: What mounting options are supported?
A: Surface mounting; accepts a B-hub on top and has a 1-1/2 in. maximum knockout on the bottom.
Q: Is a ground bar included?
A: No. For non-service entrance applications, use PKOGTA-2 ground bar kit (sold separately).
A Clean, Weather-Ready Power Statement
This streamlined enclosure brings order and resilience to exterior power setups, its crisp silhouette and monochrome finish blending seamlessly with modern facades. The discreet Square D emblem and rainproof construction elevate utility to design. Pair it with structured conduit runs and a neatly planned service wall for an understated, professional look. A dependable essential that keeps outdoor living luxurious and worry-free.
Equip your exterior with the trusted QO enclosure for safe, code-compliant power—add it to your project today.
