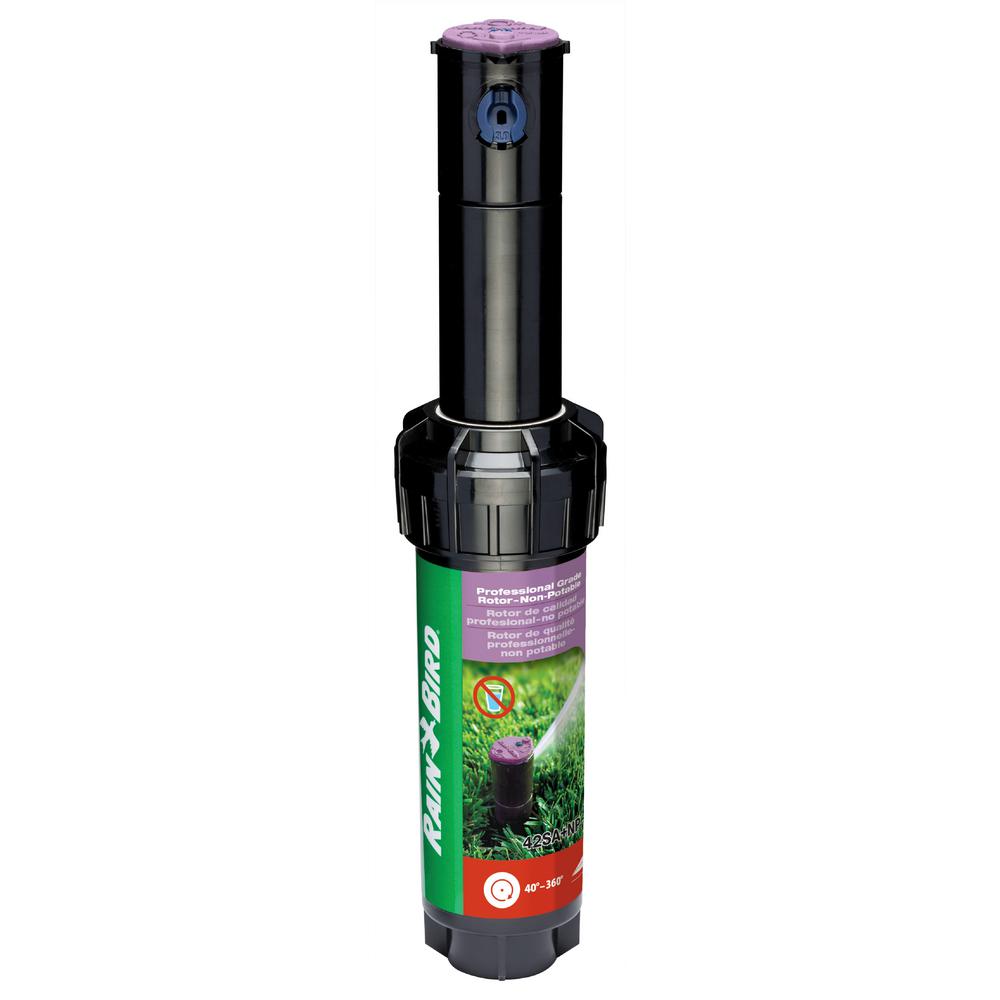

CP 5000 Non-Potable water Sprinkler, Heavy-Duty Gear Drive Rotor for Reclaimed water
Regular price $15.24/
Shipping calculated at checkout.

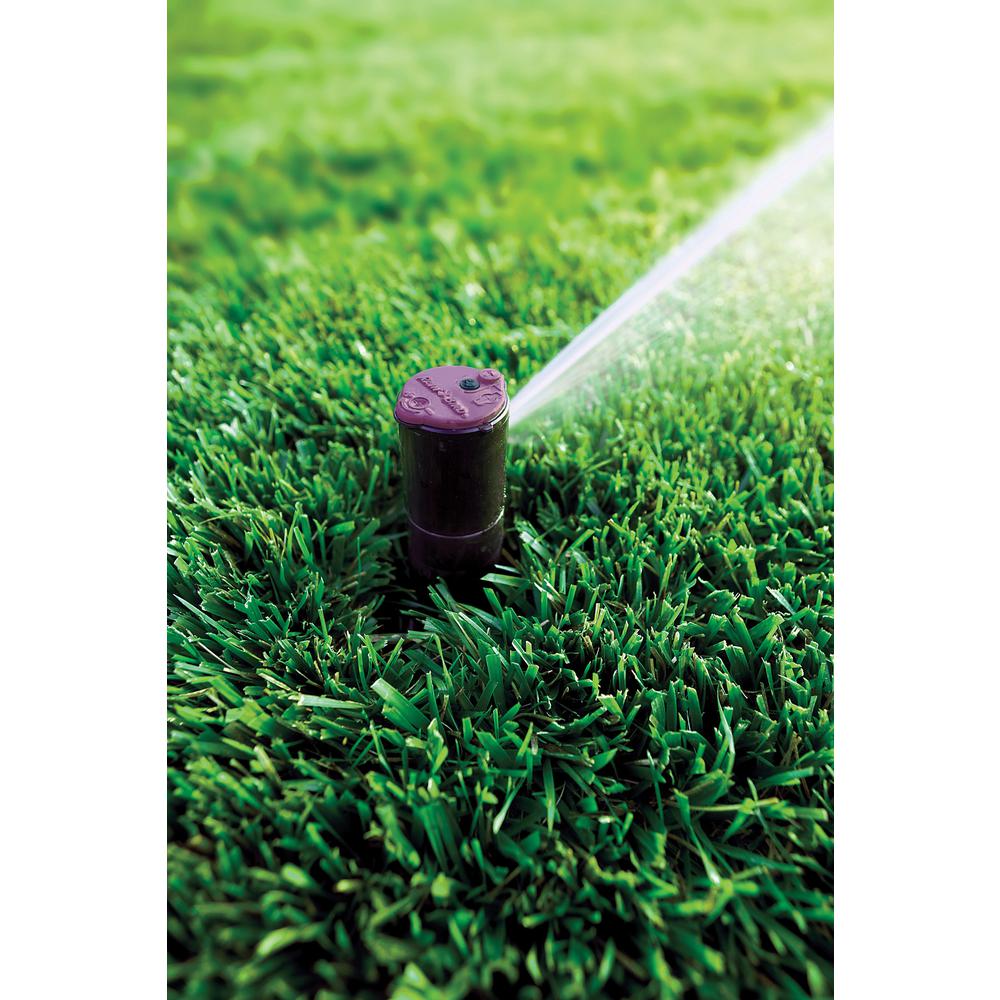

This professional grade Rain Bird CP 5000 NP Rotor rotor sprinkler features superior durability plus exceptional watering uniformity of patented Rain Curtain nozzle technology, resulting in a greener and more even lawn with reduced watering time. The rotor distributes larger water droplets that cover evenly throughout the pattern, also reducing wind-blown overspray. Nozzle micro ramps direct a portion of the spray near the head, adding gentle close-in coverage with reduced watering velocity that won't wash out new seed. Simple top adjustments for arc and distance help you keep water on the grass, not spraying on the house, sidewalk or driveway. The rotor also features a rugged dual-action, positive stop wiper seal that protects internals from debris and, together with a heavy-duty stainless steel spring, assures positive retraction for leak-free performance. It installs on a standard 3/4 in. riser for simple replacement of older rotors.
Features
This rotor utilizes rain curtain nozzle technology, providing consistent coverage and shorter cycle times. Its gear-driven design, lubricated by water, ensures quiet performance and self-flushing capabilities to maintain optimal spray efficiency. With a 40-360 degree arc and the ability to rotate in both directions, this rotor is suitable for a wide range of applications. The 4 inch pop-up allows for clearance of tall grass, while the 3/4 inch female threaded bottom inlet makes installation simple. Operating at a pressure range of 25-65 psi and a flow rate of 2.3-3.8 GPM, this rotor is perfect for non-potable water sources, easily identifiable by its purple spray cap.
Features
| Item Weight | 0.7 |
| Sprinkler Head Material | ABS Plastic |
| Sprinkler Type | Pop-Up |
| Minimum Spray Distance (ft.) | 26 |
| Sprinkler Location | Below ground |
| Irrigation System Component | Sprinkler |
| Color Family | Blacks |
| Features | Adjustable,Retraction Spring,Rotating |
| Pressure Rating | 70 |
| Sprinkler Angle Maximum (Degrees) | 25 |
| Maximum Coverage Area (sq ft.) | 4534 |
| Sprinkler Angle Minimum (Degrees) | 10 |
| Pack Size | 1 |
| Maximum Rotation (Degrees) | 360 |
| Mounting | In-Ground Install |
| Maximum Spray Distance (ft.) | 38 |
| Sprinkler Head Type | Rotating |
| Inlet Type | Female |
| Sprinkler Head Spray Pattern | Adjustable |
| Material | ABS Plastic |
| Riser | Riser Not Required |
| Returnable | 180-Day |
| Nozzle Material | ABS Plastic |
| Maximum Gallons Per Minute | 3 |
| Head Material | Plastic |
| Thread Type | 3/4" Female Pipe Thread |
| Package Quantity | 1 |
| Product Depth (in.) | 3 in |
| Product Diameter (in.) | 3 in |
| Product Height (in.) | 7.2 in |
| Retracted Height (in.) | 4 |
| Product Width (in.) | 3 in |
| Manufacturer Warranty | If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
