M12 FUEL ProPEX Expander Kit with RAPID SEAL Heads & PVC Shear

This Milwaukee M12 FUEL ProPEX Expander kit speeds up PEX-A installations with auto-rotating RAPID SEAL heads for faster, more consistent connections. The compact right‑angle design fits tight spaces, and the all‑metal gear case with magnesium frame delivers jobsite durability, while the included M12 PVC pipe shear and case add cut-to-install efficiency.

---

Key Features:

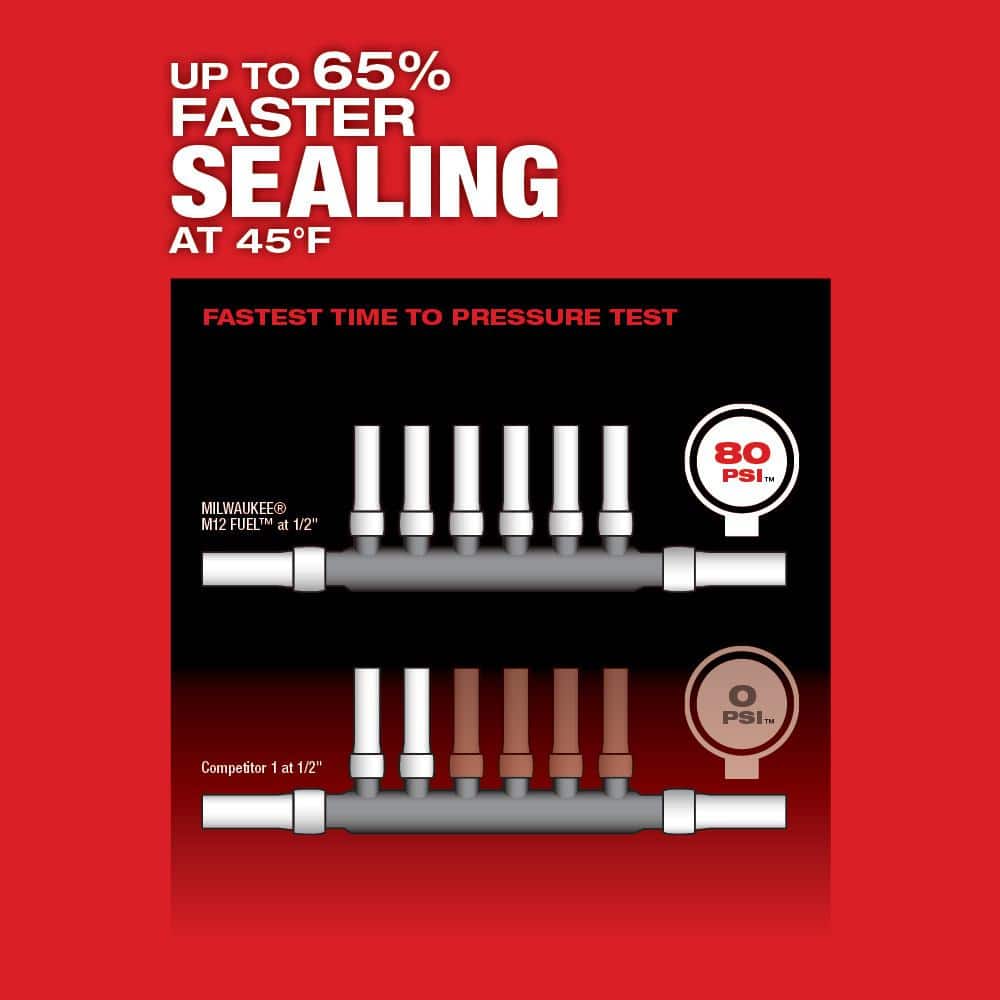

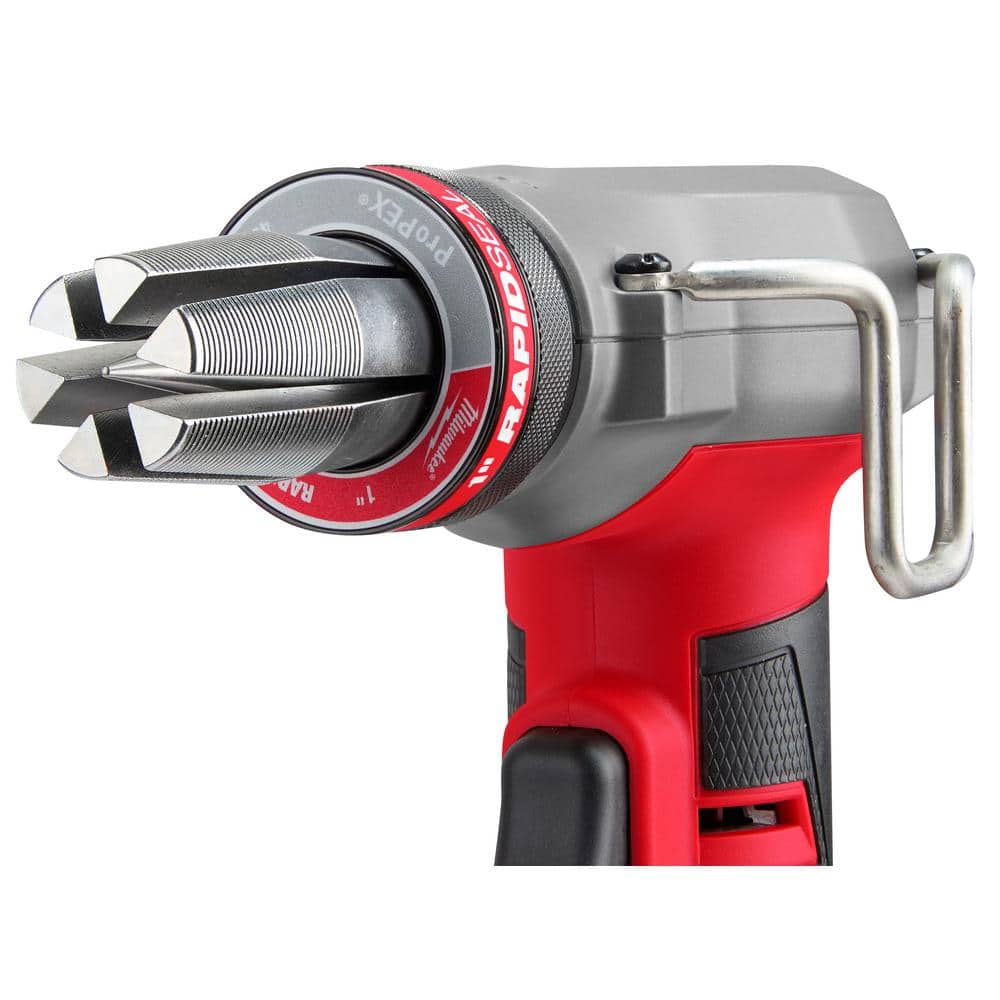

• Rapid Sealing Performance: RAPID SEAL expander heads deliver up to 65% faster sealing for quicker pressure testing

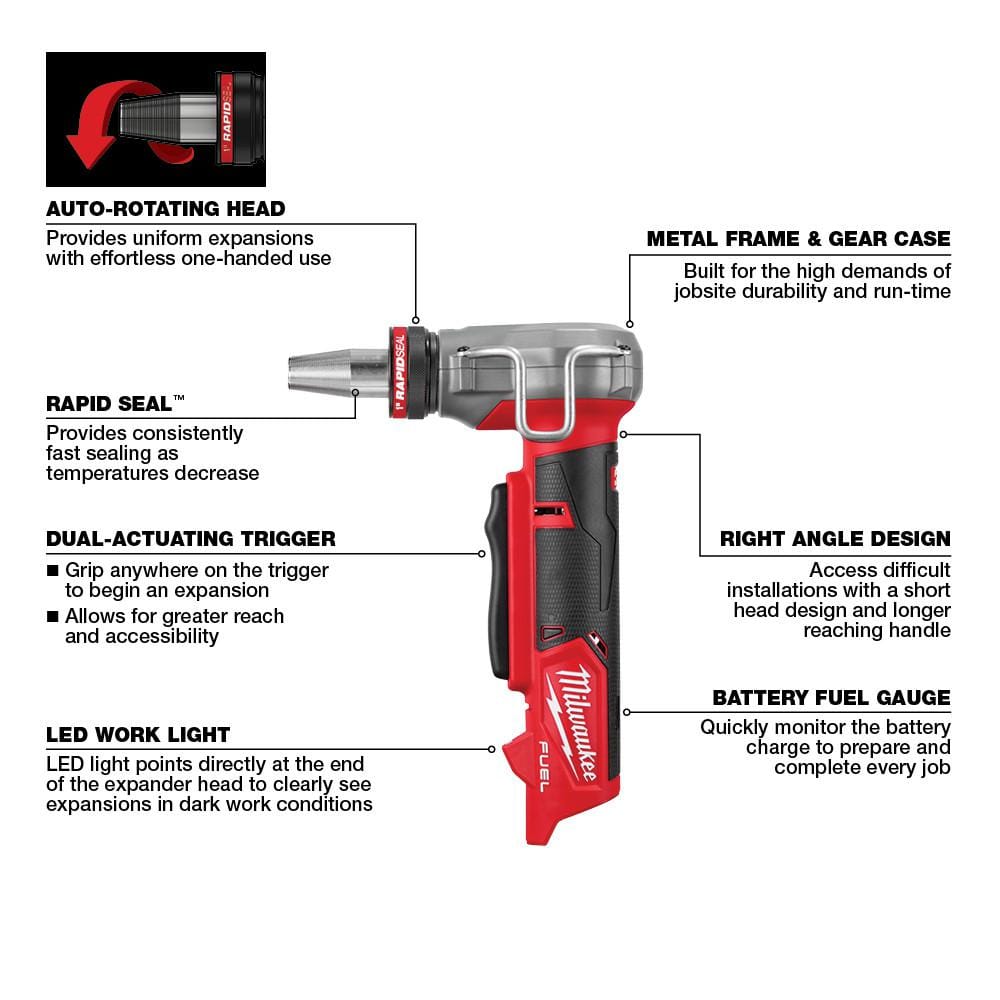

• Tight-Space Access: Right‑angle, compact design and dual‑actuating trigger improve reach and control
• Durable Build: All‑metal gears and integrated magnesium frame withstand demanding jobsite use

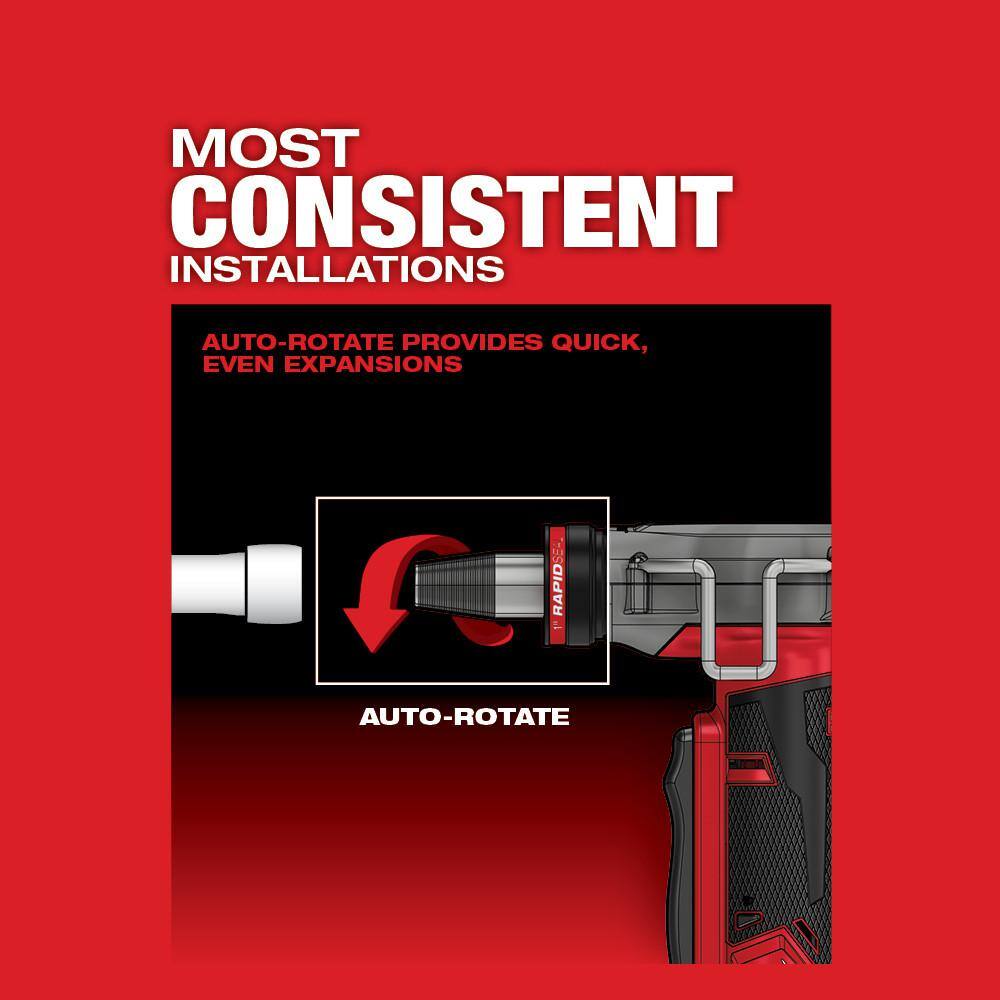

• One‑Handed Operation: Auto‑rotate mechanism creates uniform expansions with less effort; LED work light improves visibility
• Cordless Convenience: M12 lithium‑ion system with onboard battery fuel gauge; includes PVC pipe shear and carrying case

---

Specifications Table:

Specification	Details
Amperage (A)	2.0 A
Battery Power Type	Lithium Ion
Battery Size	12-volt, Lithium Ion, M12
Compatible Pipe Material	PEX
Features	Ratcheted; Auto-rotate; LED work light; Battery fuel gauge; Right-angle design

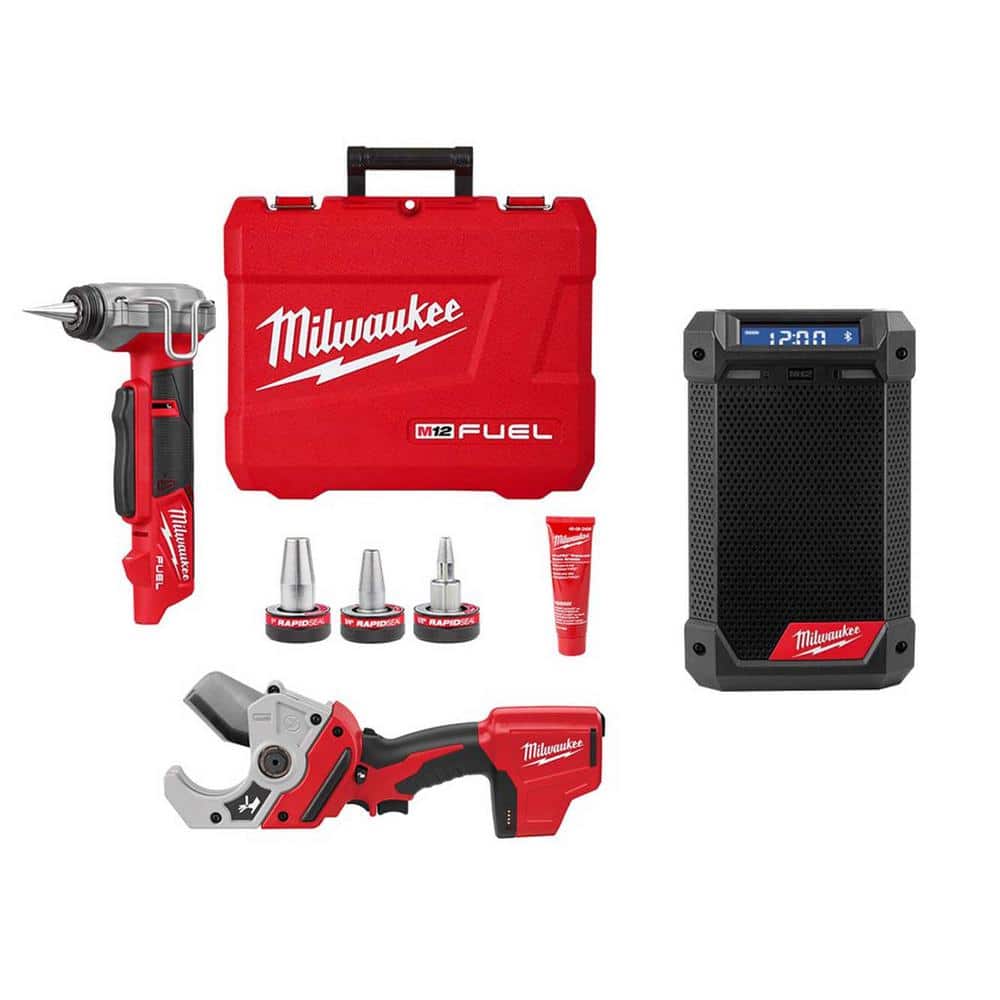

Included	Batteries, Charger, 1/2 in., 3/4 in., 1 in. RAPID SEAL heads, cone grease, carrying case, M12 PVC pipe shear
Power Type	Cordless
Product Weight (lb.)	4.50 lb
Tools Product Type	Power Tool / Expander Tool
Voltage	12V
Certifications and Listings	UL Listed
Manufacturer Warranty	5-Year Tool, 2-Year Battery
Compatible Pipe Size (in.)	1/2 in., 5/8 in., 3/4 in., 1 in.
Maximum Pipe Diameter (in.)	1 in.
Product Depth (in.)	3.75 in
Product Height (in.)	11.73 in
Product Width (in.)	7.28 in

---

Frequently Asked Questions (FAQ):

Q: How does the auto-rotating head help?
A: It automatically rotates during expansion to create even, consistent expansions, speeding up reliable connections.

---

Q: Can it be used in tight spaces?
A: Yes. The compact right‑angle head and long handle improve access in confined areas.

---

Q: What is RAPID SEAL?
A: Milwaukee’s expander head design that reduces wait time before pressure testing—up to 65% faster sealing in cooler temps.

---

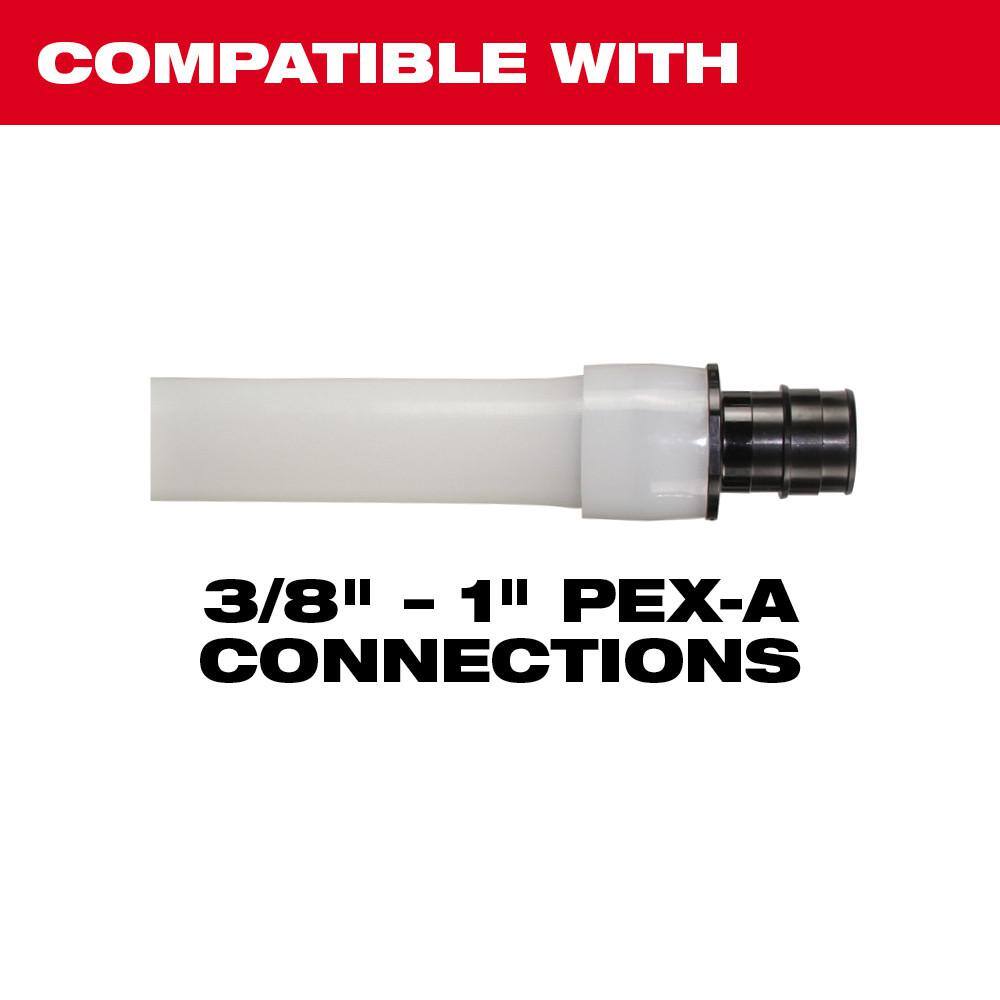

Q: What pipe types and sizes are supported?

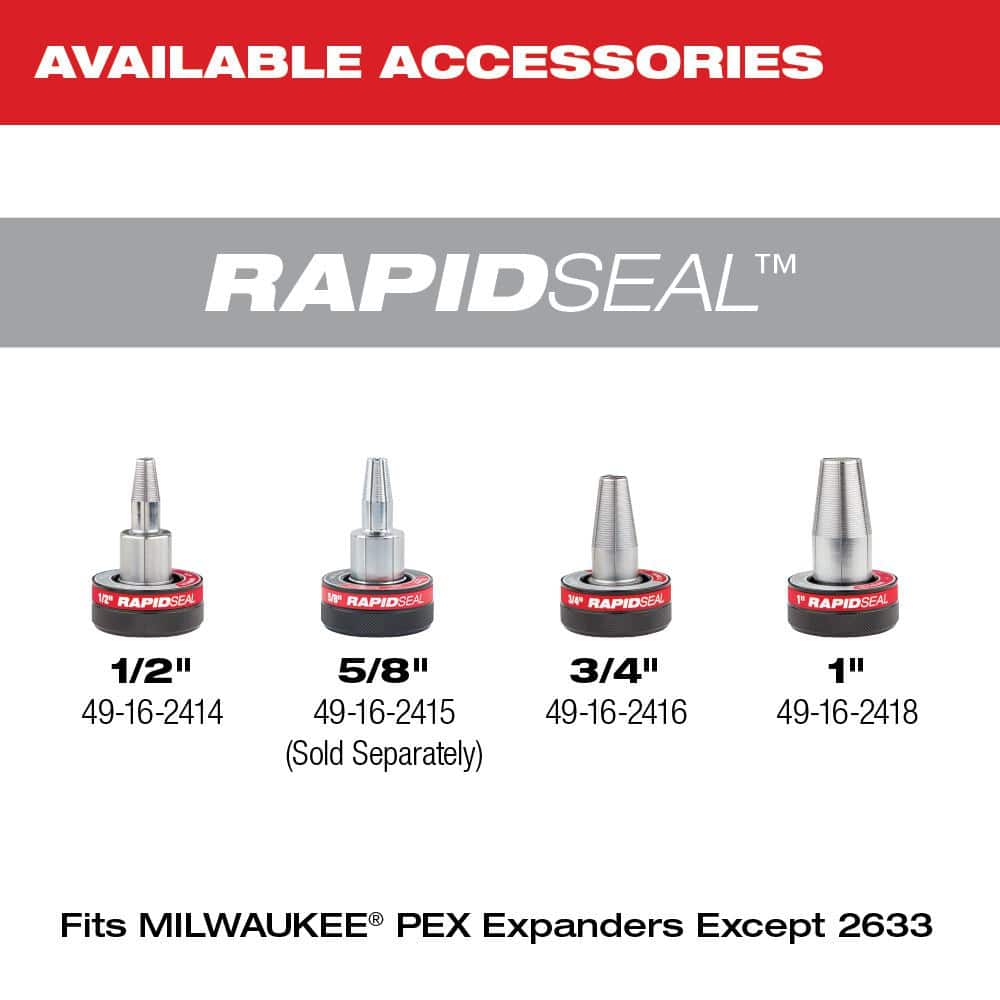

A: Designed for PEX‑A, compatible from 1/2 in. to 1 in. with included heads (5/8 in. head available separately).

---

Q: What is the warranty?
A: 5-year tool warranty and 2-year battery warranty.

---

Precision Plumbing, Elevated

Sculpted for tight cavities and clean lines, this expander kit turns rough-ins into refined, efficient installations. The right‑angle silhouette and RAPID SEAL heads are the quiet heroes—sleek, purposeful, and relentlessly fast. Style it with a crimson Milwaukee kit on the van shelf; on site, the LED-lit head becomes a beacon of order. It’s the luxe essential for trades who prize speed, accuracy, and a beautifully finished system.

---

Upgrade to the M12 FUEL ProPEX Expander Kit and make faster, cleaner PEX connections on every job.
