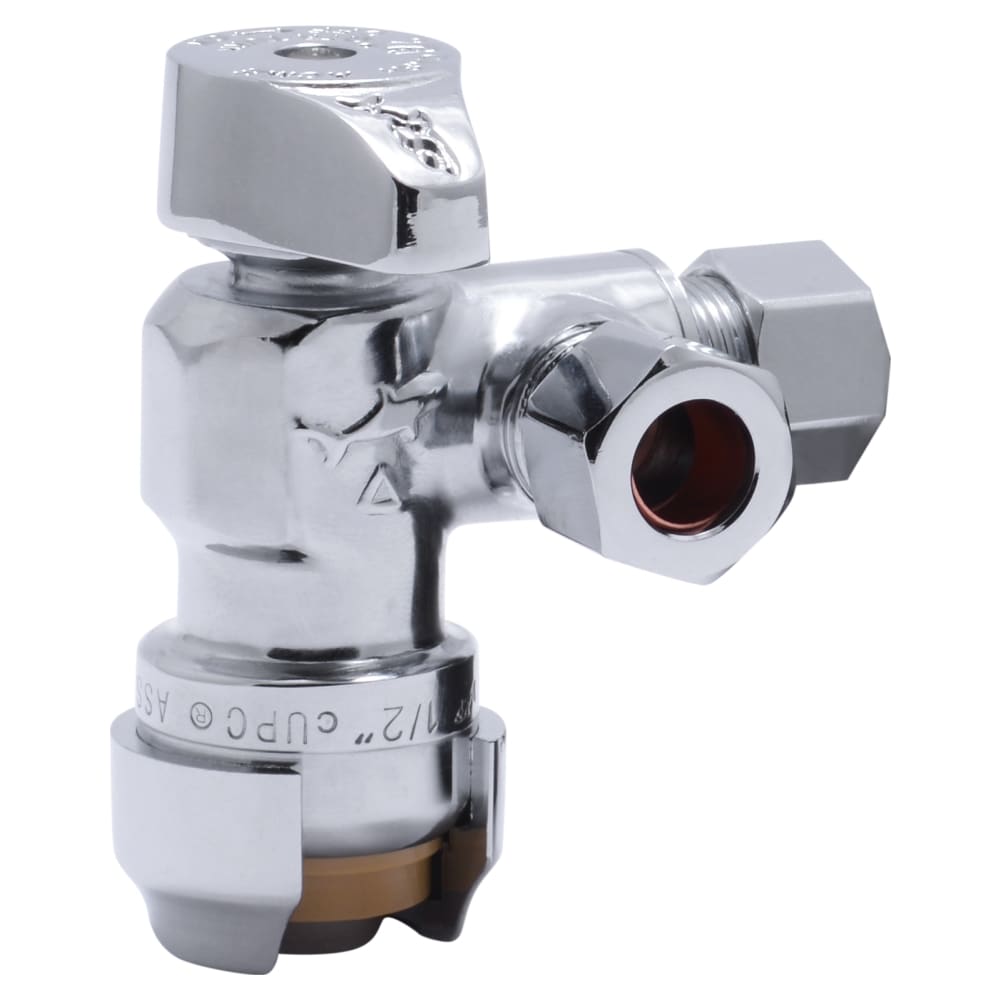

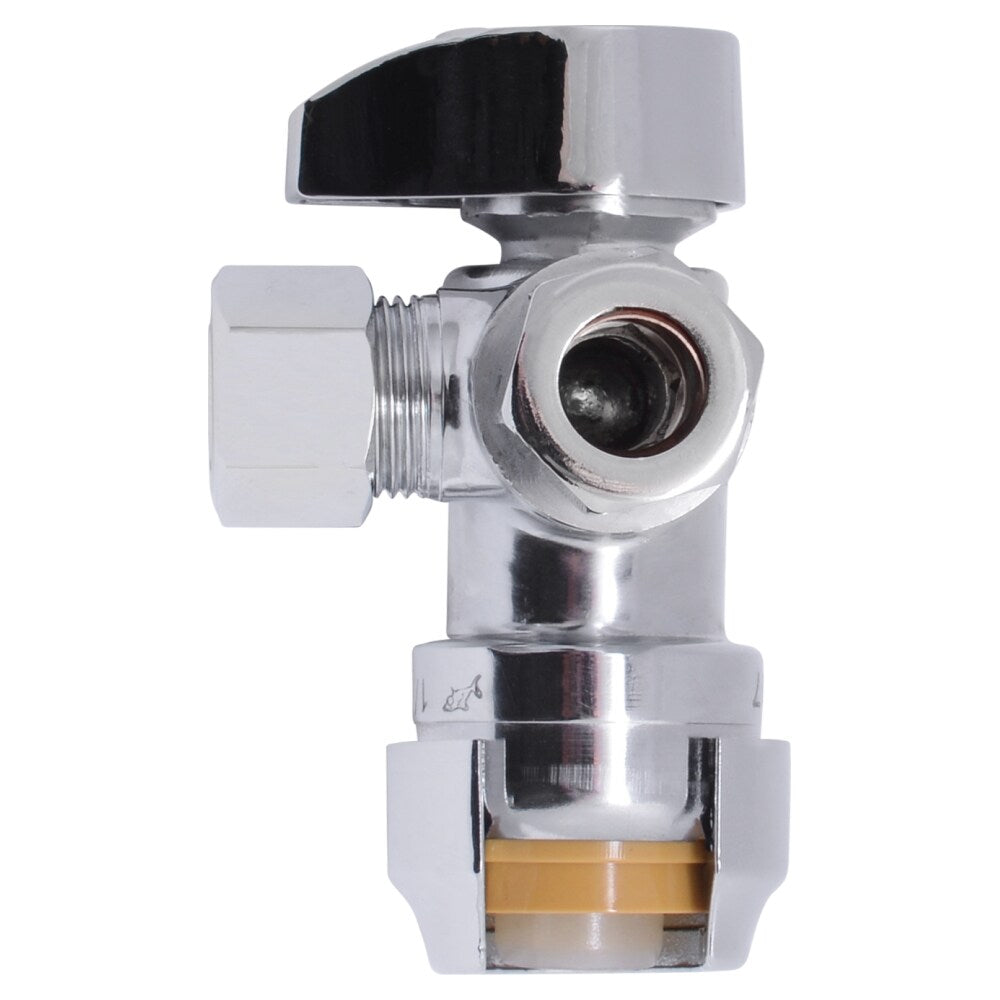

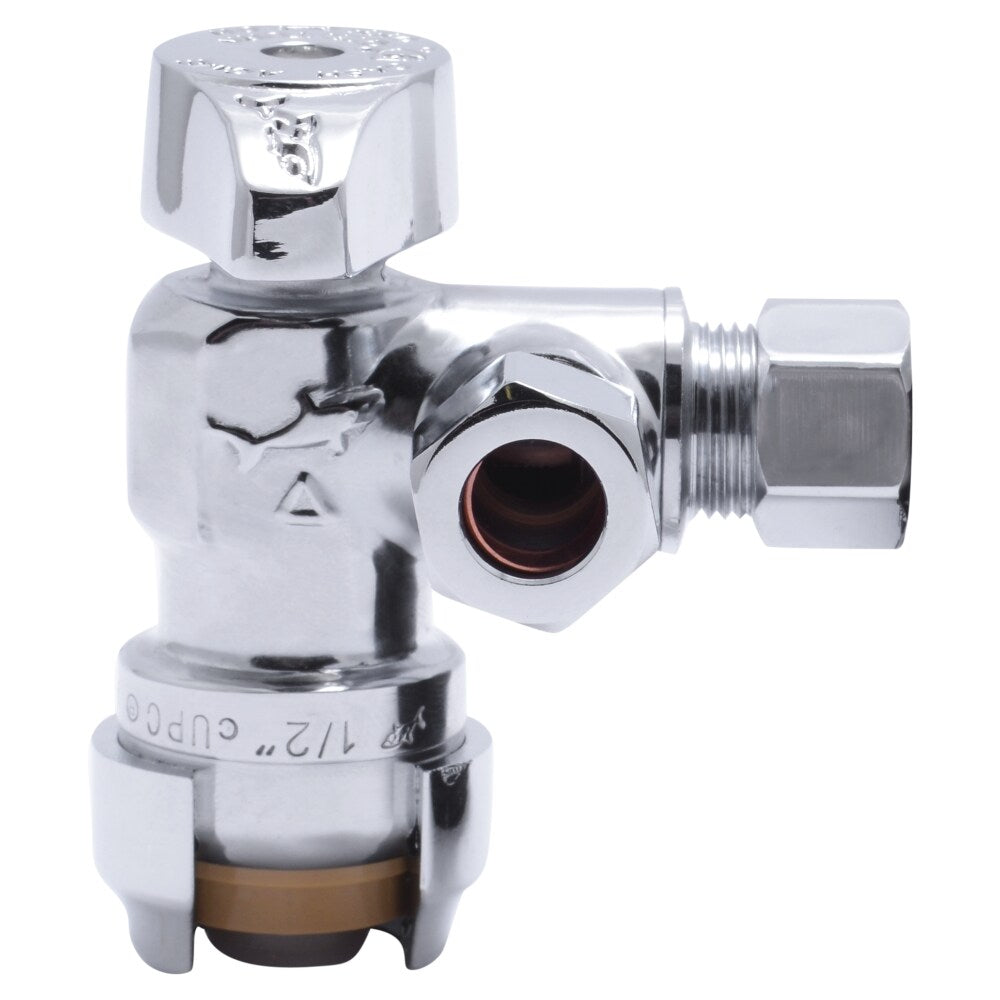

1/2-in Push-to-Connect x 3/8-in OD Compression Angle Stop Valve

This SharkBite quarter-turn angle stop valve provides a fast, tool-free way to control water flow to fixtures. The chrome-plated, lead-free brass body uses push-to-connect technology on the inlet and a 3/8-in OD compression outlet for reliable, watertight performance.

---

Key Features:

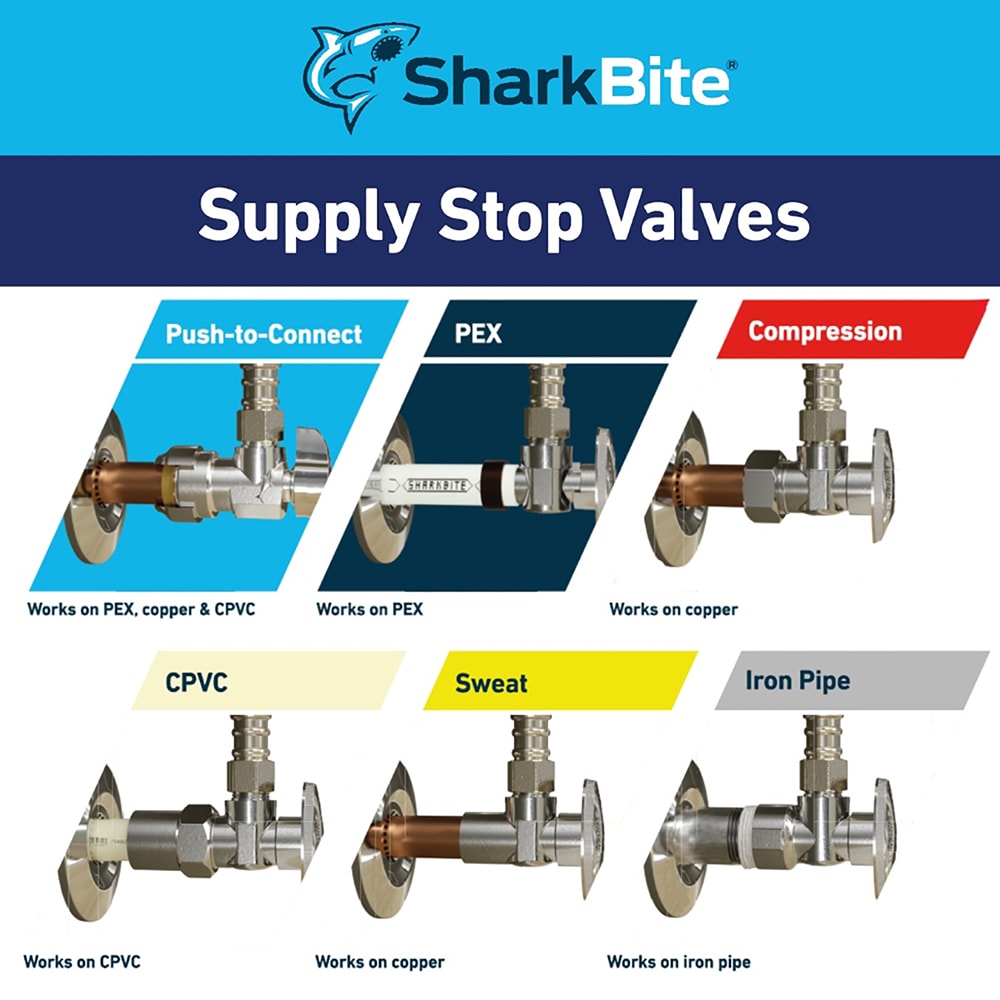

• Tool-Free Installation: Push-to-connect inlet attaches to PEX, copper, CPVC, or PE-RT without solder, clamps, or glue.
• Quarter-Turn Control: Smooth on/off operation for fixtures like faucets and toilets.
• Durable Construction: Chrome-plated, low-lead DZR brass with stainless steel teeth and chlorine-resistant O-ring.
• Works in Tight or Wet Spaces: Can be installed on wet lines, rotated after install, and removed with a disconnect tool.
• Rated Performance: Suitable up to 160°F and 125 PSI for residential plumbing applications.

---

Specifications Table:

Specification	Details
Type	Angle valve
Inlet Diameter	1/2-in
Outlet Diameter	3/8-in
Inlet Thread Type	Push-to-connect
Outlet Thread Type	OD Compression
Material	Brass (chrome-plated, low-lead DZR)
Turn	Quarter turn
Maximum Pressure	125 PSI
Maximum Temperature	160°F
Package Quantity	1
Complies with Federal Lead Guidelines	Yes
Certification/Listing	IAPMO listed
Prop 65 Warning	Yes
Warranty	2-year limited
UNSPSC	40141600

---

Frequently Asked Questions (FAQ):

Q: What pipe types does the inlet connect to?
A: The push-to-connect inlet works with PEX, copper, CPVC, and PE-RT.

---

Q: Do I need special tools to install it?
A: No. Simply push the pipe into the fitting; no soldering or specialized tools are required.

---

Q: Can it be installed on a live (wet) line?
A: Yes, it can be installed on wet or dry lines and pressure tested immediately.

---

Q: What are the temperature and pressure ratings?
A: Rated up to 160°F and 125 PSI.

---

Q: What is the warranty?
A: 2-year limited warranty.

---

Sleek Utility with a Polished Edge

This compact angle stop slips into view with a crisp, chrome sheen that elevates even the most utilitarian corner. The quarter-turn handle and clean geometry feel modern and intentional, not merely mechanical. Pair it with streamlined fixtures and exposed supply lines for an industrial-chic touch that still reads refined. It’s the kind of quiet detail that makes everyday luxury feel effortless.

---

Upgrade your fixture shutoff with this quick-install SharkBite angle valve for a clean, reliable seal in minutes.
