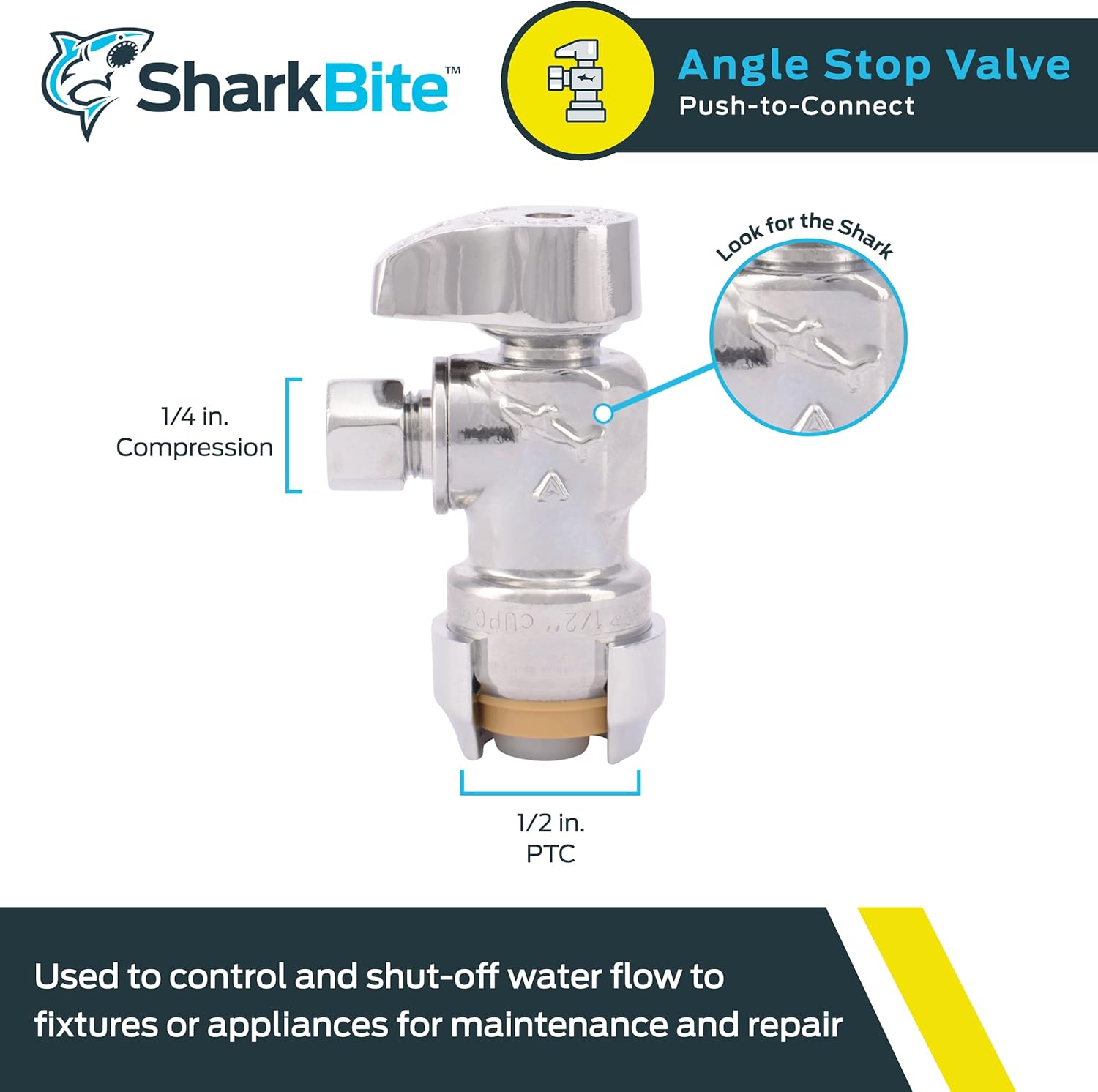

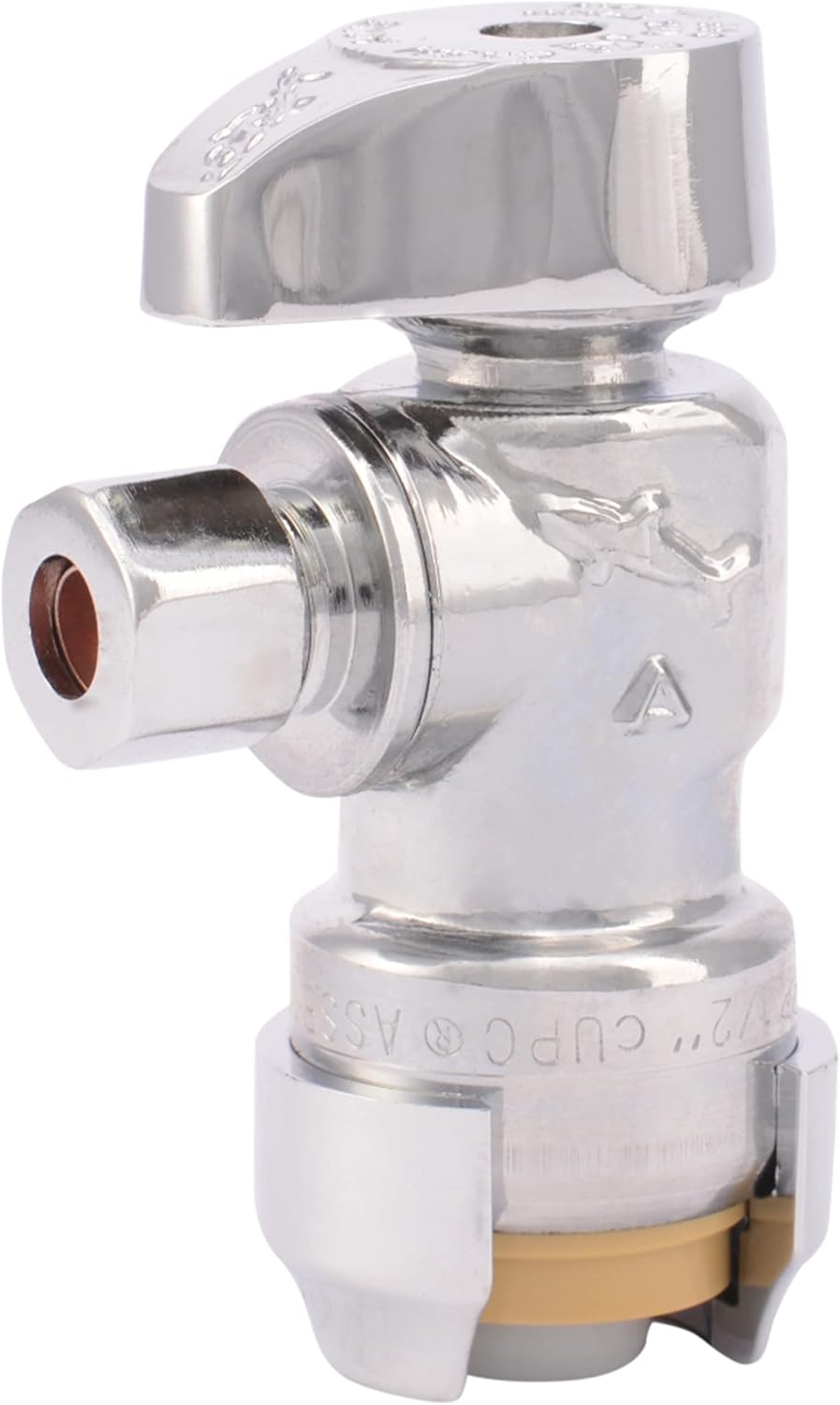

SharkBite Brass 1/2-in Push-to-Connect x 1/4-in OD Compression Quarter Turn Angle Valve
Regular price $19.24Brass Push-to-Connect Angle Stop Valve, 1/2 in PTC x 1/4 in Compression
Quarter-turn angle stop valve with 1/2 in push-to-connect inlet and 1/4 in compression outlet for fast, tool-free shutoff. Brass construction with sleek chrome finish; compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipes.

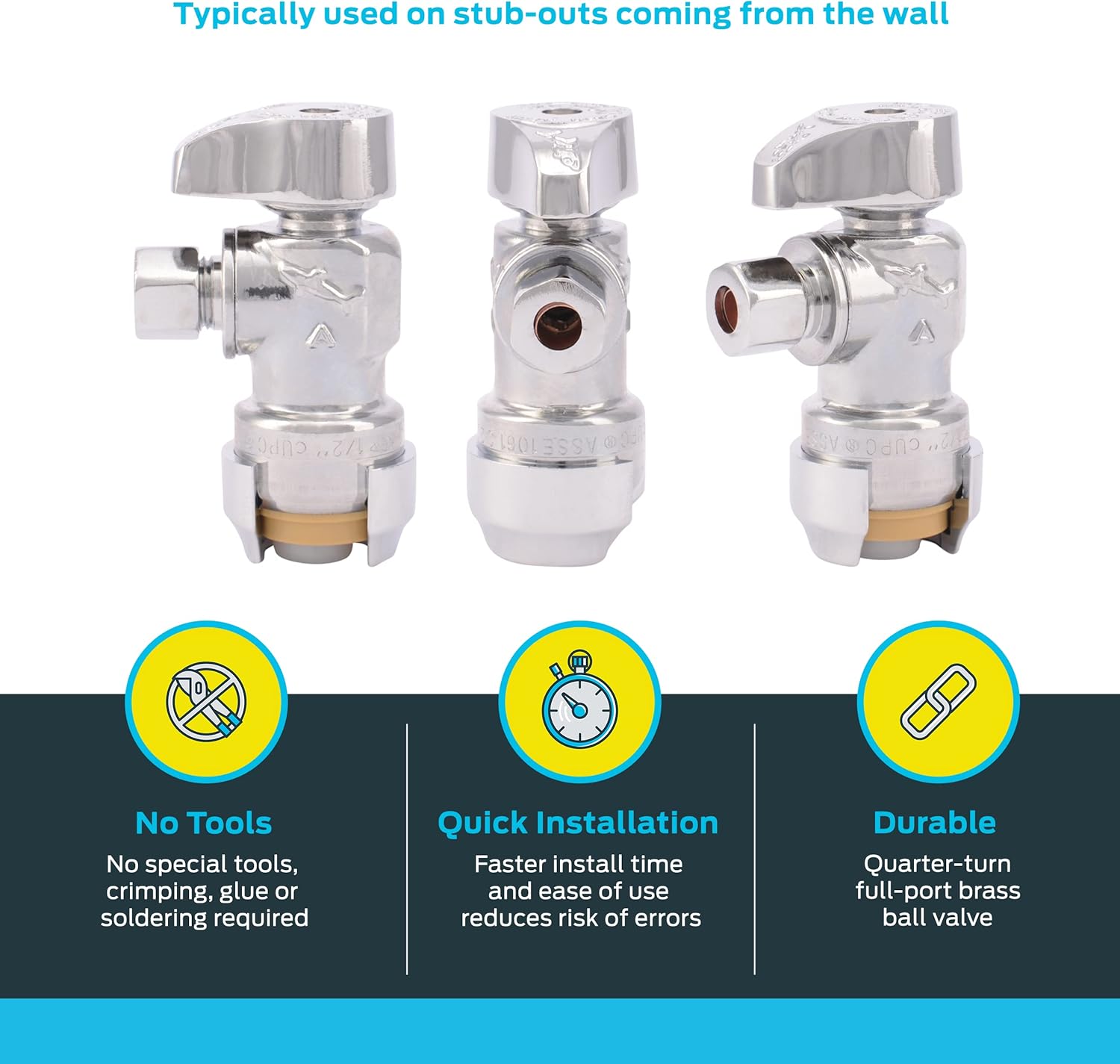

Key Features:

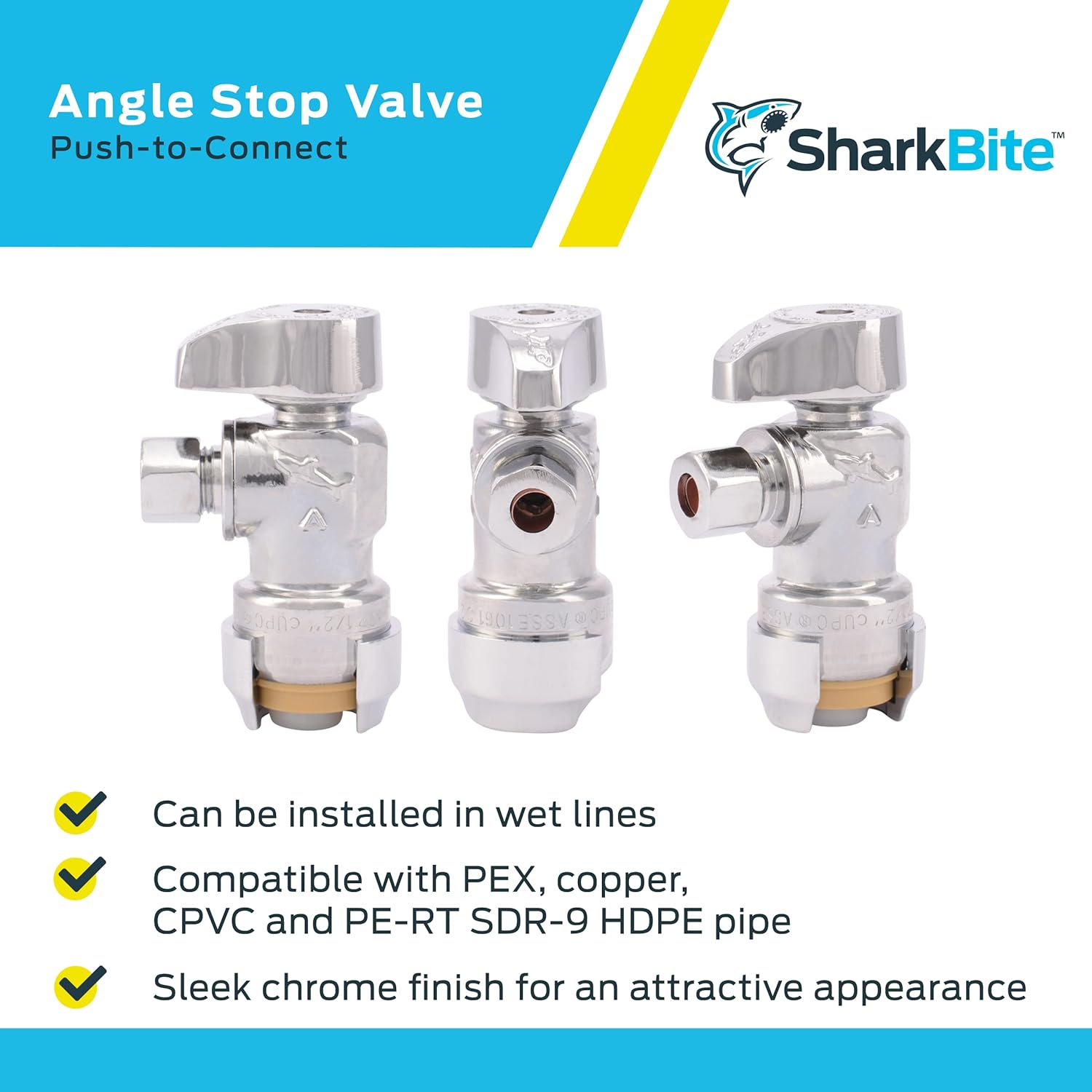

- Tool-Free Installation: Push-to-connect inlet installs on wet lines without special tools, solder, glue, or crimping
- Universal Compatibility: Works with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE piping
- Reliable Shutoff: Quarter-turn full-port brass ball valve delivers smooth operation and dependable water control
- Durable Build: Lead-free DZR brass body with chrome finish; certified to ASSE 1061/NSF 61
- Compact Angle Design: Ideal for tight spaces and fixture/appliance maintenance
Specifications Table:
| Specification | Details |
|---|---|
| Inlet Connection | 1/2 in push-to-connect (PTC) |
| Outlet Connection | 1/4 in OD compression |
| Valve Type | Quarter-turn full-port brass ball valve |
| Material | Brass (lead-free DZR) |
| Finish | Chrome |
| Compatibility | PEX, copper, CPVC, PE-RT, SDR-9 HDPE |
| Thread Size | 1/2 inch |
| Thread Type | NPT |
| Connector Type | Quick-Connect |

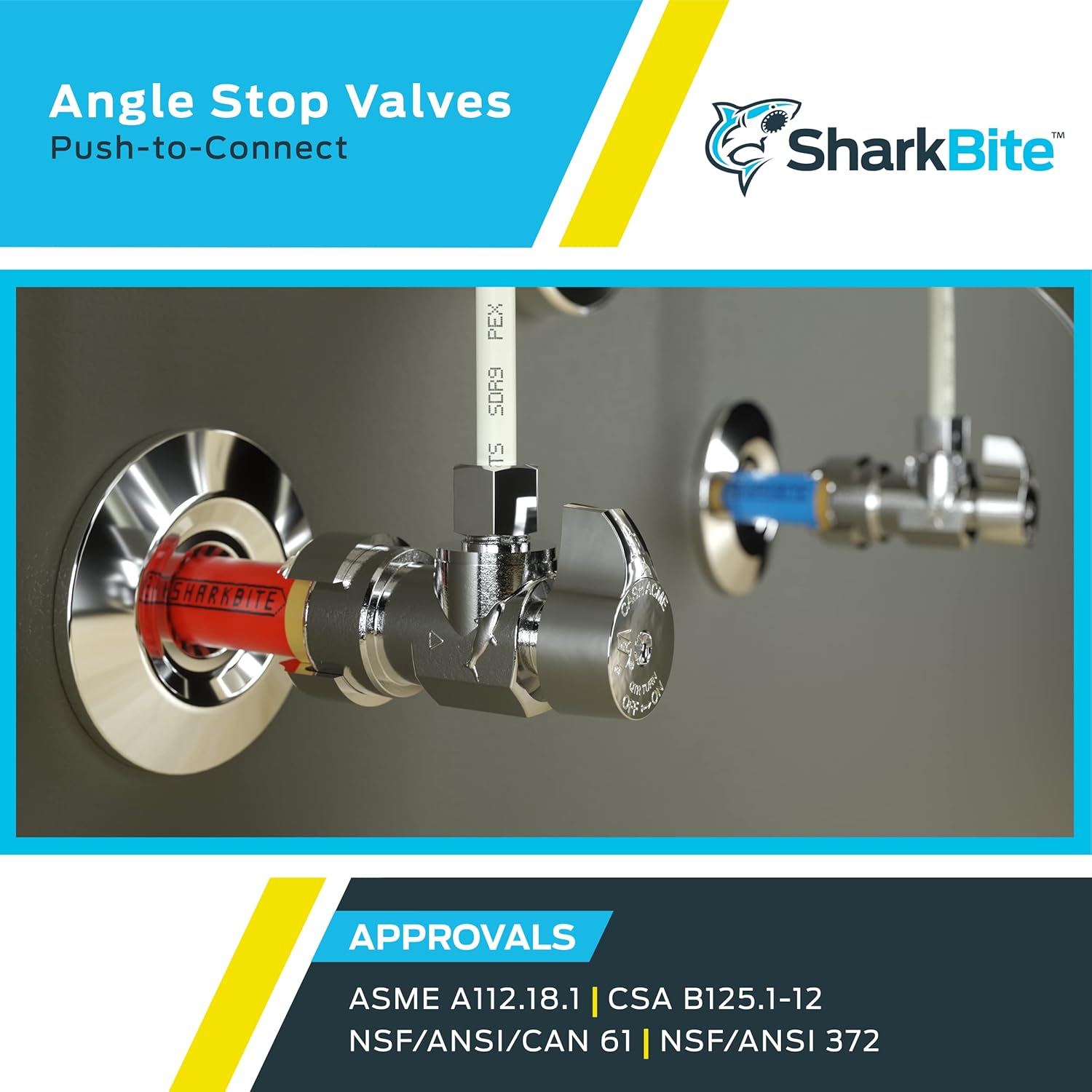

| Certifications | ASSE 1061 / NSF 61; NSF/ANSI 372 (lead-free) approvals shown |
| Item Weight | 0.1 lb (approx. 1.6 oz) |
| Product Dimensions | 3.25 x 1.35 x 4.5 in |
| Included Components | Stop Valve |
| Model | 23336-0000LF |
| UPC | 069728560678; 697285606784 |
| GTIN | 00697285606784 |
| Brand | SharkBite |
Frequently Asked Questions (FAQ):
Q: What pipe types can this valve connect to?
A: The 1/2 in push-to-connect inlet is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE.
Q: Do I need tools to install it?
A: No. It installs by simply pushing onto the pipe; no soldering, glue, or crimping required.
Q: Can it be installed on a wet line?
A: Yes, it is designed to be installed on wet lines.
Q: What is the outlet size?
A: 1/4 in OD compression outlet for connecting supply lines to fixtures.
Q: Is it lead-free and certified?
A: Yes, constructed of lead-free brass and certified to ASSE 1061/NSF 61 (per manufacturer info).
A Sleek, Polished Upgrade for Everyday Utility
This compact angle stop valve brings a refined, chrome-bright accent to the practical heart of kitchens and baths. The streamlined lever and crisp detailing feel intentional, elevating even the hidden moments of your plumbing. Pair it with modern fixtures and clean-lined escutcheons for a cohesive, tailored look. Consider it the quiet luxury—effortless performance with polished presence.
AI Review Summary:
Overall sentiment is highly positive. Customers consistently praise the quick, tool-free installation and leak-free performance, noting it attaches securely to various pipe types and is ideal for tight spaces and repairs. Many commend the quality and consider it worth the price. A minority raise durability concerns or isolated failures over time. Representative quotes: “Slides right on—no tools—and sealed perfectly,” “Fixed a pinhole leak in old copper and saved me hours,” and “Works great on mobile home plastic tubing.”
Choose this SharkBite angle stop for fast, reliable shutoff and a clean, professional finish—install in minutes.
