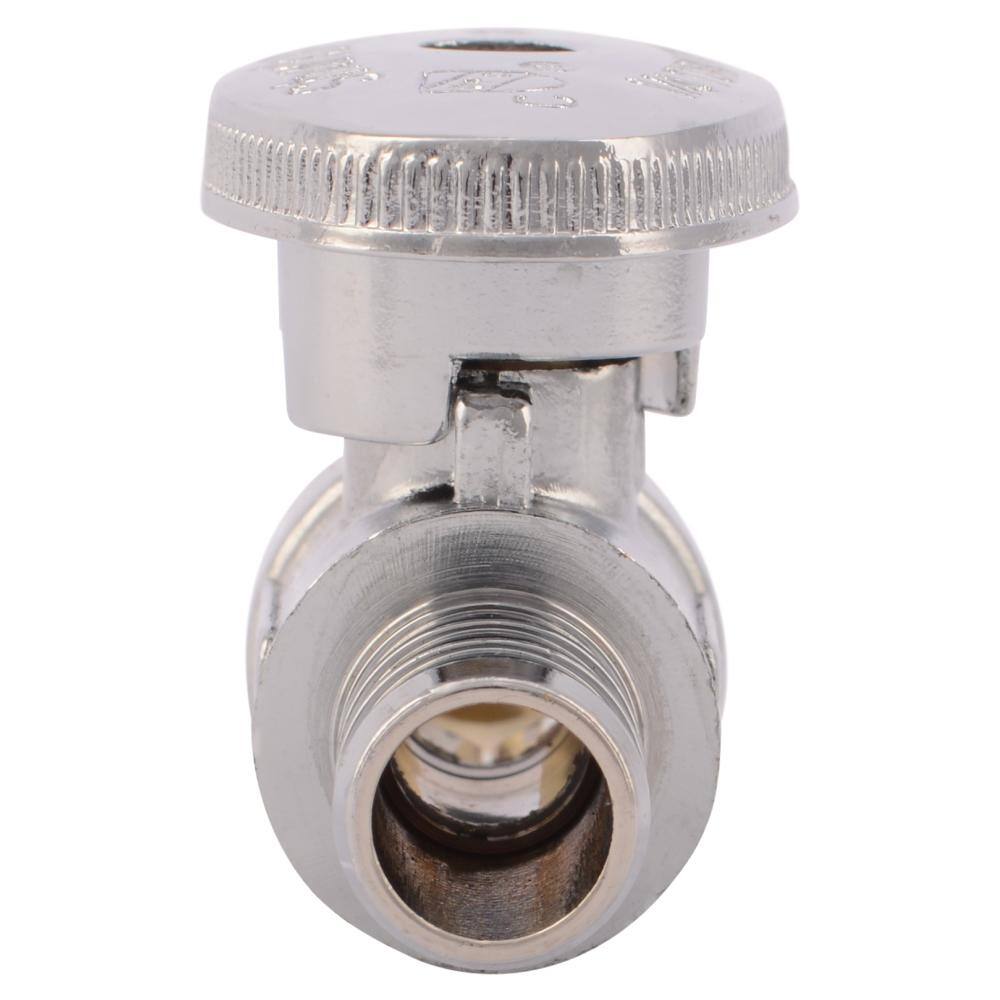

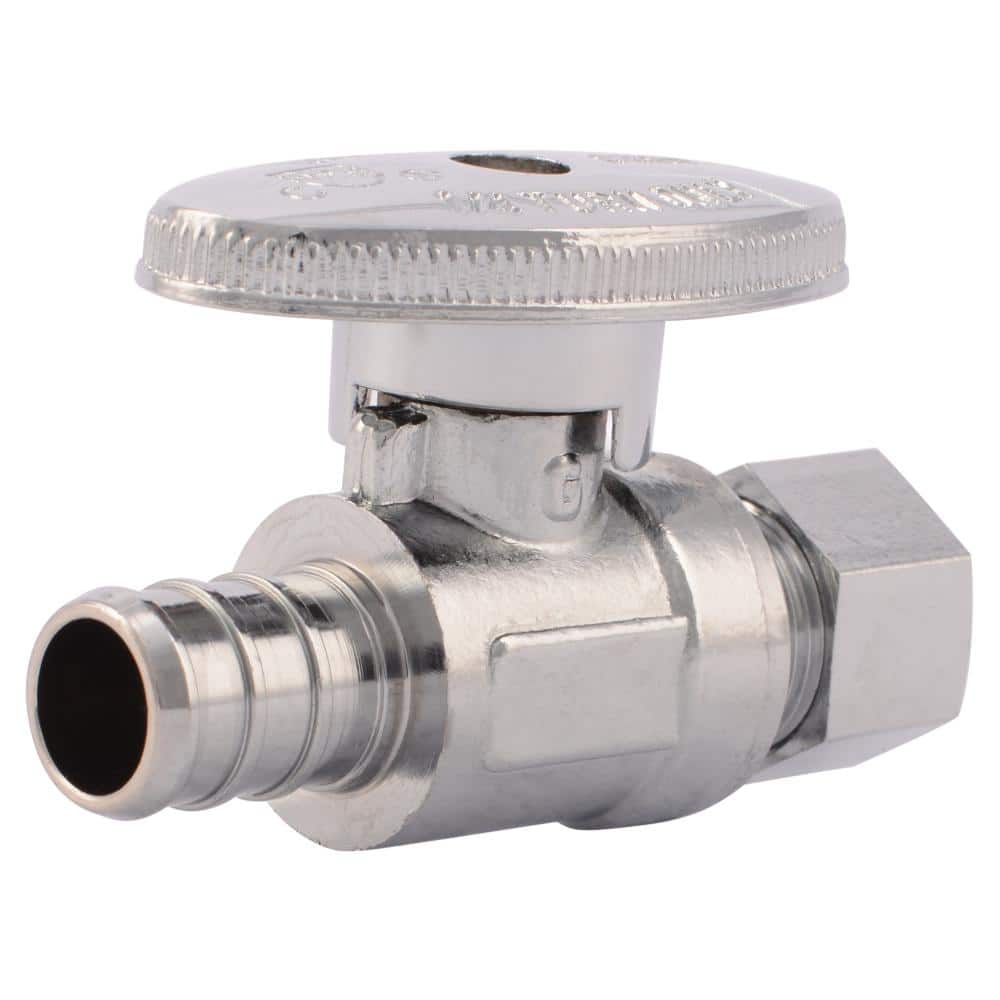

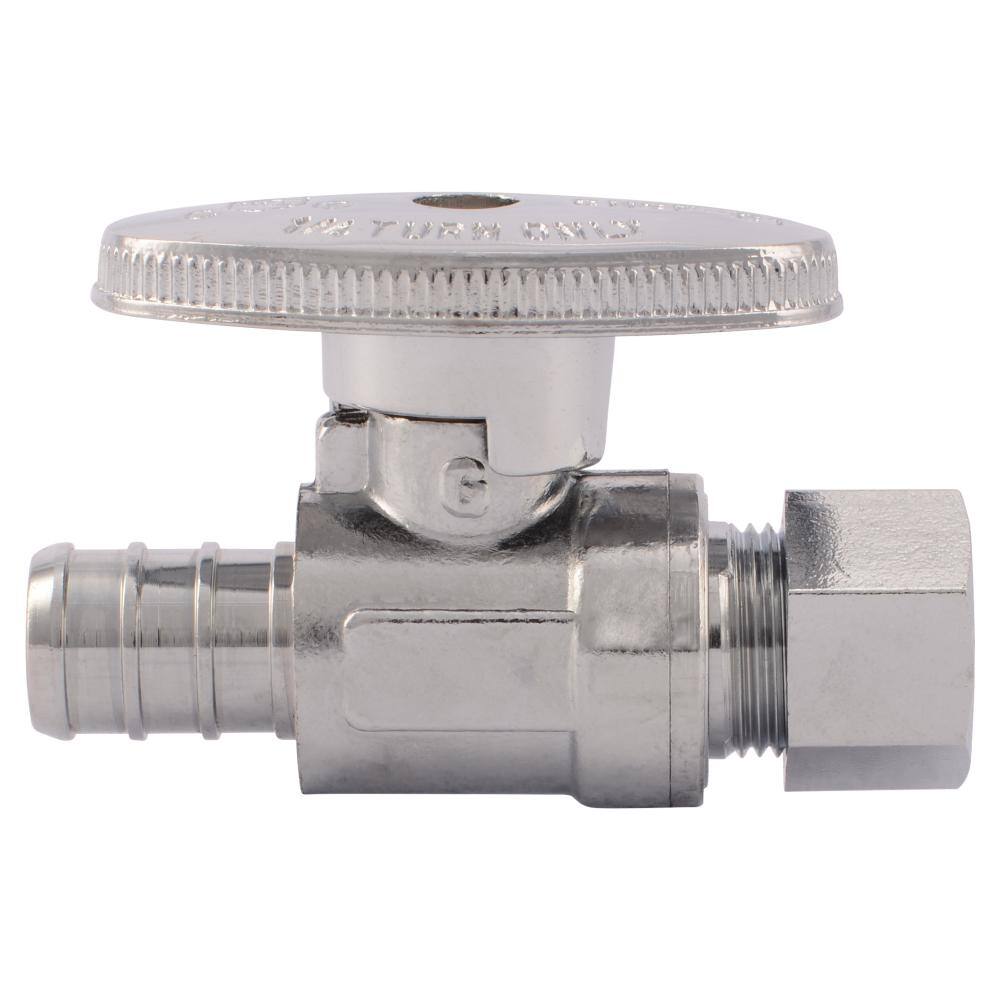

SharkBite Brass 1/2-in PEX Barb x 3/8-in OD Compression Quarter Turn Straight Valve
Regular price $8.721/2-in PEX x 3/8-in Compression Quarter-Turn Straight Stop Valve
Durable lead-free brass straight stop valve for PEX to compression connections. Quarter-turn operation provides quick, reliable shutoff for faucets or toilets. Compatible with PEX-A, PEX-B and PEX-C systems using crimp or clamp methods.
Key Features:
- Quarter-Turn Shutoff: Smooth on/off control for fixtures like faucets and toilets
- Lead-Free Brass: DZR brass construction resists corrosion for potable water
- PEX-to-Compression Connection: 1/2-in PEX barb inlet to 3/8-in OD compression outlet
- Easy PEX Installation: Works with copper crimp rings or stainless steel clamps—no flames or glue
- Rated Performance: 125 PSI max and up to 160°F for residential applications
Specifications Table:
| Specification | Details |
|---|---|
| Connection | PEX Barb x 3/8 in. OD Compression |
| Valve Configuration | Straight |
| Valve Connection | Clamp/Crimp |
| Material | Lead-free DZR brass |
| Compatible Pipe Material | PEX (PEX-A, PEX-B, PEX-C) |
| Compatible Product | Faucet, Toilet |
| Application | Potable Water |
| Indoor/Outdoor | Indoor |
| Inlet Fitting End Type | PEX |
| Outlet Fitting End Type | Compression |
| Maximum Pressure (PSI) | 125 |
| Maximum Working Temperature (F) | 160 |
| Color/Finish | Silver |
| Pack Size | 1 |
| Product Weight (lb.) | 0.18 |
| Product Height (in.) | 6.37 |
| Product Length (in.) | 3.75 |
| Product Width (in.) | 1.5 |
| Inlet Diameter (in.) | 1/2 |
| Outlet Diameter (in.) | 3/8 |
Frequently Asked Questions (FAQ):
Q: What pipe types is this valve compatible with?
A: It connects 1/2-in PEX (A, B, or C) on the inlet and 3/8-in OD compression tubing on the outlet.
Q: Do I need special tools to install it?
A: Use standard PEX crimp or clamp tools and rings/clamps for the barb side; the outlet secures with a compression nut and ferrule.
Q: Is it safe for potable water?
A: Yes, it’s made of lead-free DZR brass and rated for potable water applications.
Q: Where is this valve typically used?
A: Commonly used as a shut-off for faucets or toilets where PEX supply lines transition to compression connections.
Q: What are the pressure and temperature ratings?
A: Maximum 125 PSI and 160°F working temperature.
A Sleek, Functional Accent for Everyday Control
This compact brass valve introduces a polished, minimal profile that quietly elevates utility spaces. The quarter-turn handle delivers crisp, tactile control—perfect for clean-lined bath or powder rooms. Pair it with streamlined supply lines for a refined, uncluttered look. Consider it a small yet essential detail in crafting a thoughtful, luxurious home experience.
Upgrade your fixture connections with this reliable quarter-turn SharkBite valve for fast, durable PEX-to-compression shutoff.
