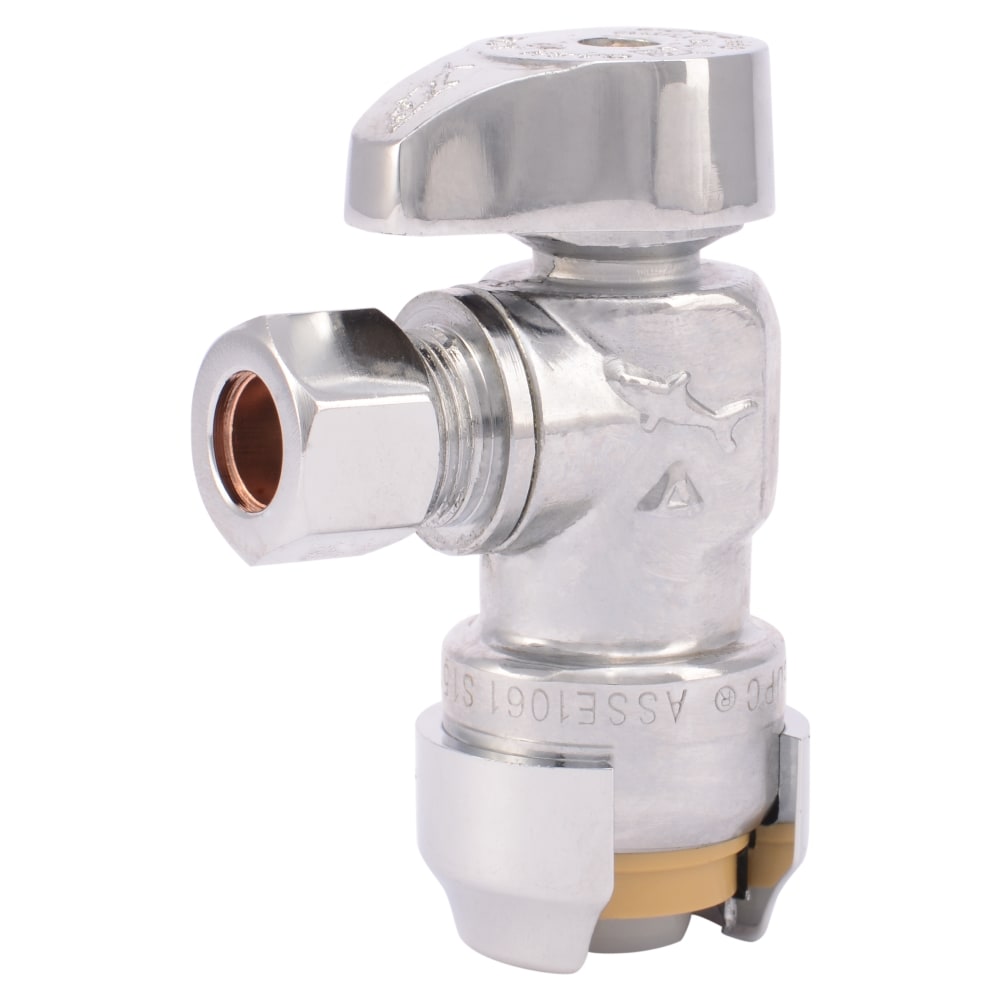

1/2-in Push-to-Connect x 3/8-in Compression Angle Stop Valve

This SharkBite quarter-turn angle stop valve installs fast on 1/2-in stub-outs and connects to 3/8-in OD compression supply lines. The chrome-plated, low-lead brass body with push-to-connect inlet works on PEX, copper, or CPVC and is rated for 125 PSI and 160°F.

---

Key Features:

• Tool-Free Installation: Push-to-connect inlet attaches to PEX, copper, CPVC, or PE-RT with no solder, glue, or clamps.
• Quarter-Turn Control: Smooth, reliable on/off operation for fixture shutoff.
• Durable Construction: Chrome-plated, low-lead DZR brass with chlorine-resistant O-ring and stainless steel teeth.
• Works on Wet Lines: Can be installed and pressure-tested immediately; rotatable and removable.
• Compact for Tight Spaces: Ideal for under-sink and toilet installations where access is limited.

---

Specifications Table:

Specification	Details
Type	Angle valve
Inlet Diameter	1/2-in
Outlet Diameter	3/8-in
Inlet Thread Type	Push-to-connect
Outlet Thread Type	OD Compression
Material	Brass (chrome plated, low-lead DZR)
Turn	Quarter turn
Maximum Pressure	125 PSI
Maximum Temperature	160°F
Package Quantity	1
Compliance	IAPMO listed; complies with federal lead guidelines; cUPC
Use Case	Fixture shutoff for faucets, toilets, dishwashers, washing machines, ice makers

---

Frequently Asked Questions (FAQ):

Q: What pipe types does the inlet fit?
A: The 1/2-in push-to-connect inlet works with PEX, copper, CPVC, and PE-RT stub-outs.

---

Q: What is the outlet connection?
A: 3/8-in OD compression outlet for common faucet and toilet supply lines.

---

Q: Do I need special tools to install it?
A: No. Simply deburr, mark depth, and push to connect; a disconnect tool can be used for removal.

---

Q: Can it be installed on a wet line?
A: Yes, it can be installed on wet or dry lines and pressure-tested immediately.

---

Q: What are the pressure and temperature ratings?
A: Rated to 125 PSI and 160°F.

---

A Sleek, Functional Jewel for Under-Sink Spaces

This compact angle valve adds a polished glint to utilitarian corners, transforming the under-sink zone with crisp, chrome confidence. I love the sculptural quarter-turn handle—clean, modern, effortless. Pair it with braided stainless lines and tidy escutcheons for a refined, gallery-worthy mechanical moment. It’s the small, well-made hardware that quietly elevates everyday luxury.

---

Upgrade your shutoff in minutes—choose this SharkBite angle valve for a fast, reliable, tool-free install.
