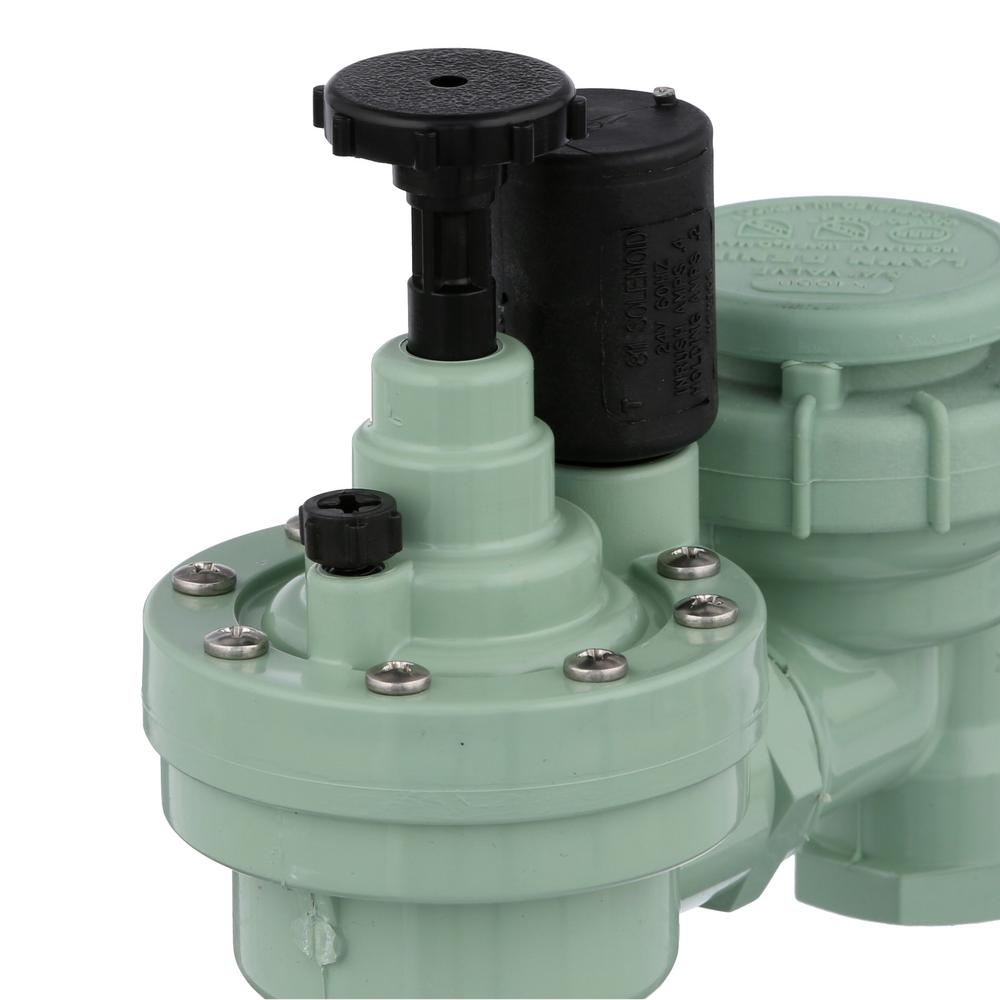

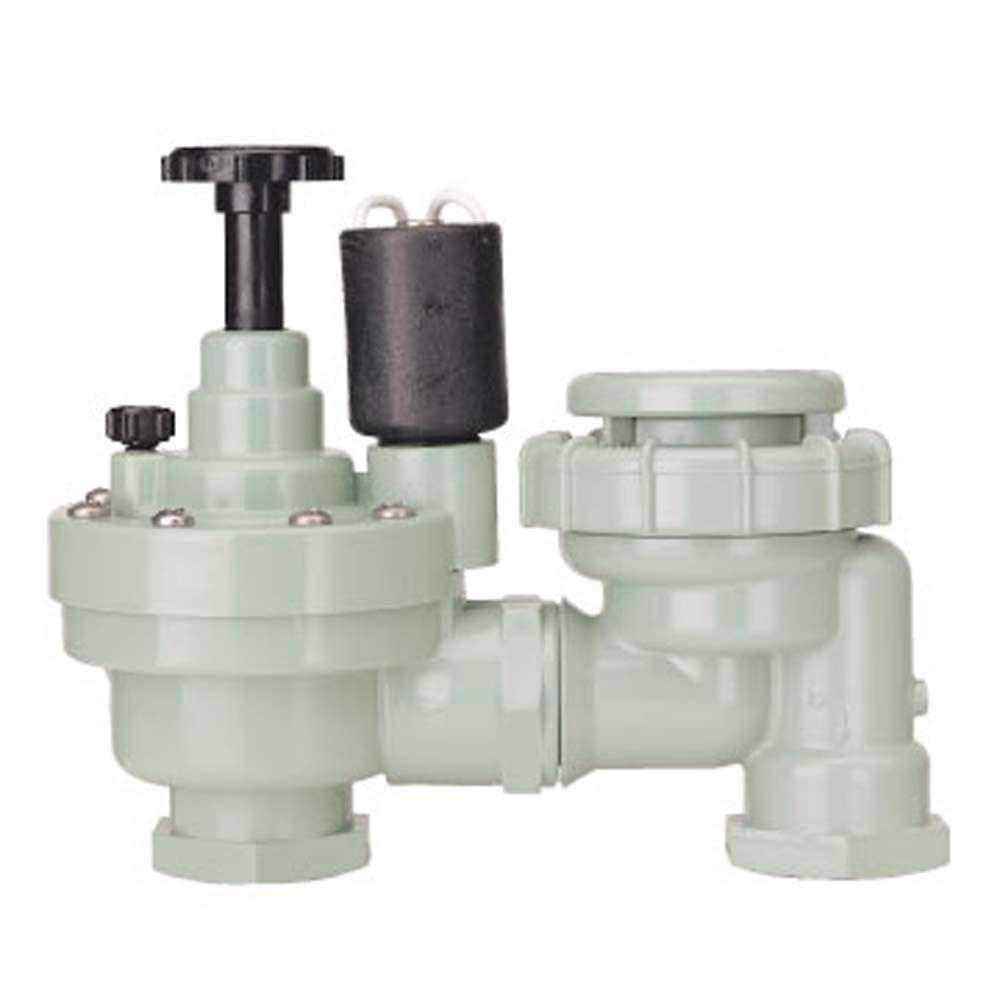

3/4 in. 150 psi RJ Anti-Siphon Valve with Flow Control
Regular price $0.00/
Shipping calculated at checkout.
Use this Lawn Genie 150 psi RJ Anti-Siphon Valve with Flow Control to help prevent irrigation water contaminants from entering the drinking water supply. This anti-siphon valve features a pressure-activated double-beaded diaphragm to strengthen the seal between the body and bonnet, external bleed, as well as flow control. The valve's low-voltage 24 VAC solenoid with captured plunger and a stainless-steel metering pin are built for durability and longevity.
Features
- Use in 24 VAC systems to help prevent irrigation water contaminants from entering the drinking water supply

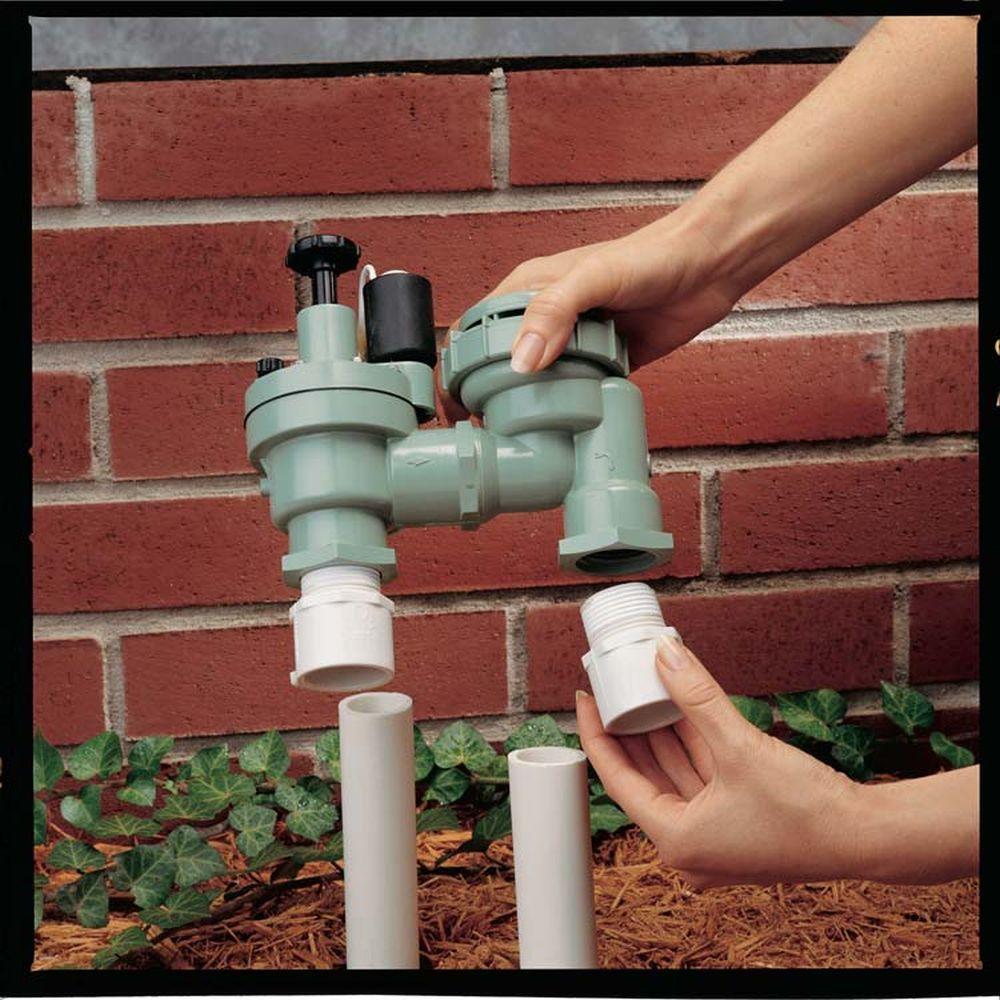

- Installed height should not be less than 6 in. above the highest downstream outlet
- Self-aligning bonnet ensures correct installation
- 5 - 25 GPM flow rate
- Precise flow control adjustment reduces misting and fogging at the sprinkler to save water
- Stainless-steel metering pin
- 3/4 in. FNPT inlet and outlet
- Captive solenoid plunger to help prevent lost parts during maintenance
- Pressure-activated double-beaded diaphragm to strengthen the seal between the body and bonnet
- External bleed to flush out dirt from the supply and lateral lines during new installations or repairs
- 4-1/4 in. footprint size (center to center of inlet/outlet)
Features
| Item Weight | 1.3 |
| Installation | Above Ground |
| Connection | Female Pipe Thread |
| Returnable | 180-Day |
| Number of Outlets | 1 |
| Thread Type | Female |
| Material | PVC |
| Compatible Pipe Material | PVC |
| Product Weight (lb.) | 1.185 |
| Irrigation System Component | Valve |
| Pressure Rating | 150 PSI |
| Maximum Working Temperature (F) | 120 |
| Maximum Pressure (psi) | 150 |
| Operation | Automatic |
| Valve Type | Anti-Siphone |
| Package Quantity | 1 |
| Outlet Size (in.) | 2 or less |
| Product Length (in.) | 5.125 in |
| Product Height (in.) | 5.875 |
| Inlet Size (in.) | .75 |
| Product Width (in.) | 3.375 in |
| Manufacturer Warranty | 1 year |
