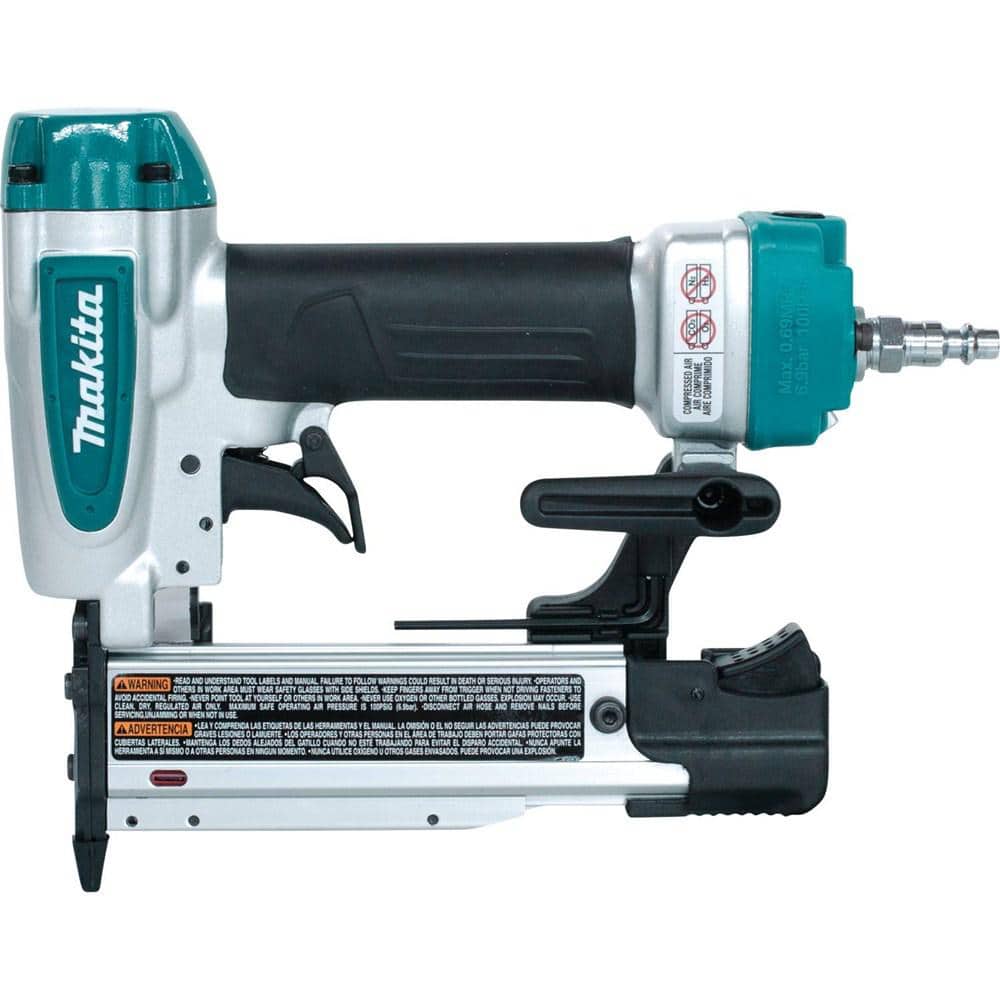

Makita 23-Gauge Pneumatic Pin Nailer, 1-3/8 in.

Compact and durable, the Makita AF353 drives 23-gauge headless pins from 5/8 in. to 1-3/8 in. for ultra-fine woodworking and trim. Its lightweight aluminum body, nail lock-out, and built-in air duster deliver precise, clean results with pro-grade reliability.

---

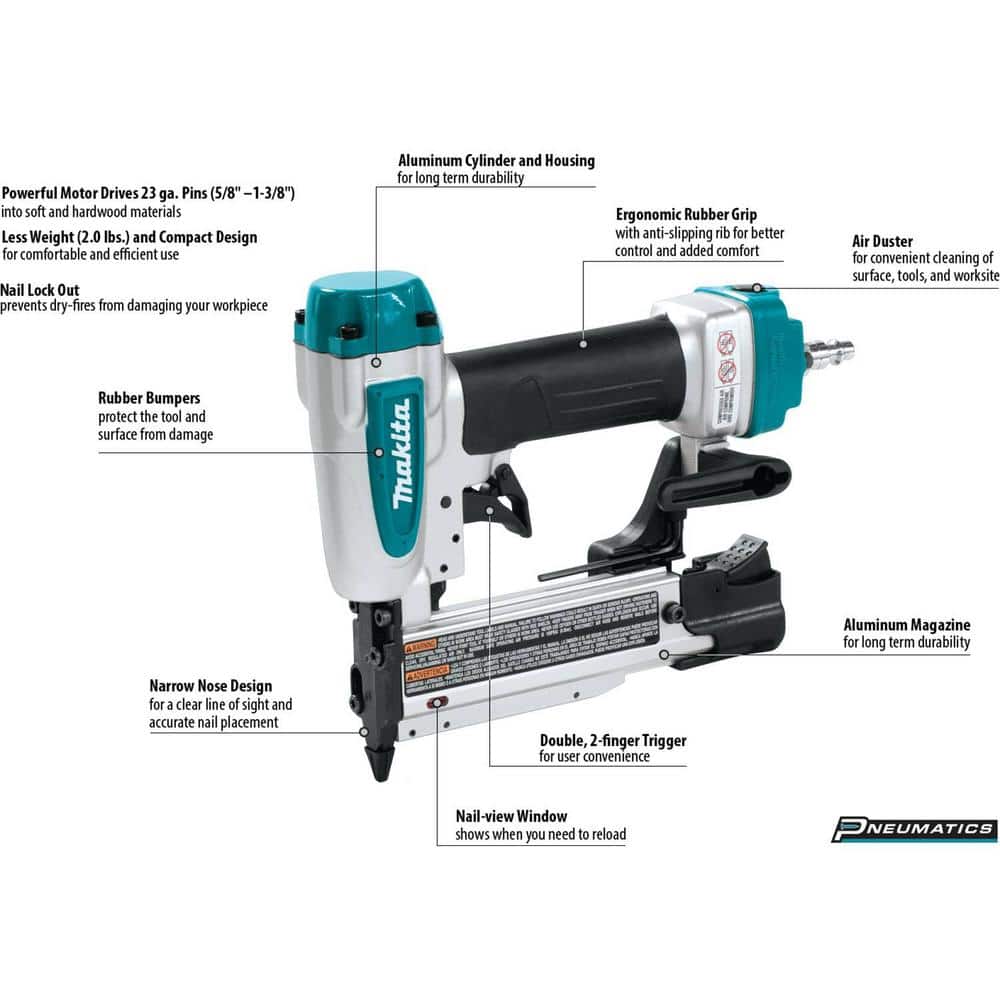

Key Features:

• Lightweight Aluminum Build: Aluminum body, magazine, and cylinder enhance durability while keeping weight to just 2 lb.

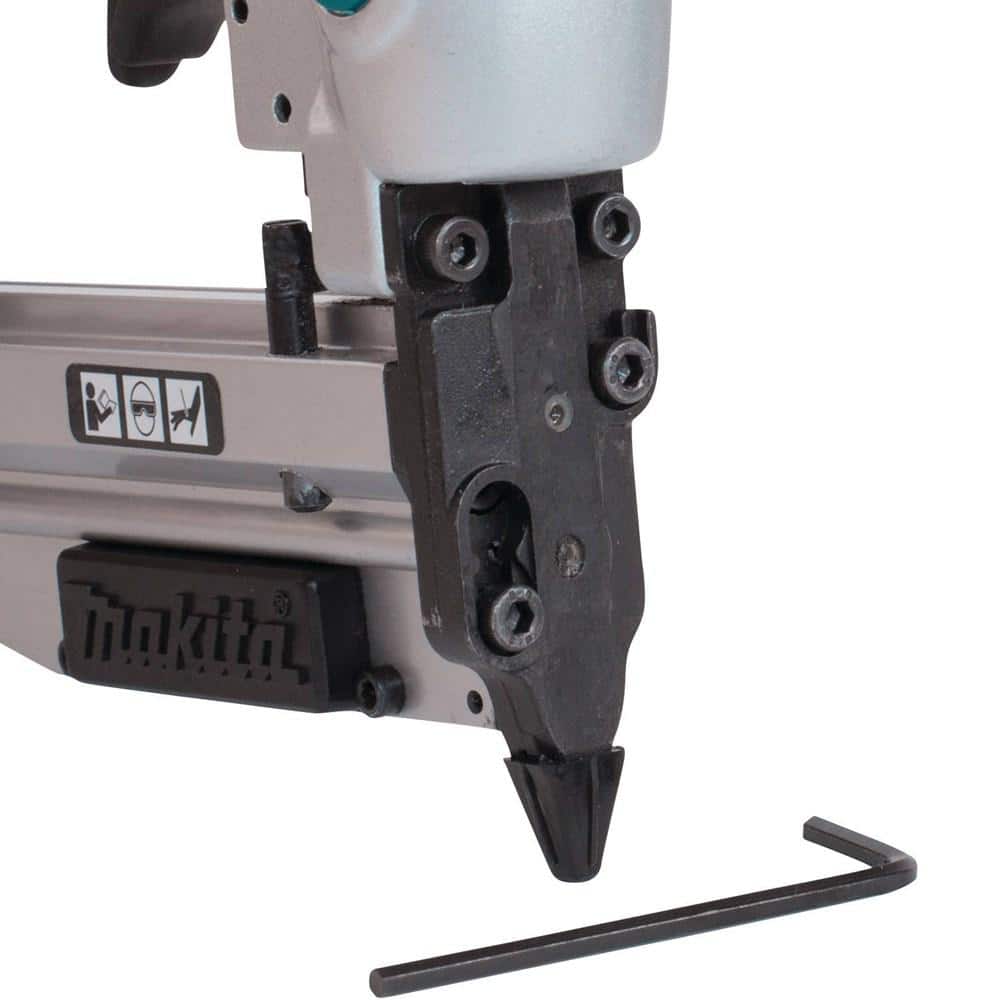

• Precision Pinning: Drives 23-ga headless pins from 5/8 in. to 1-3/8 in.; narrow nose and sightlines improve accuracy in tight spots.

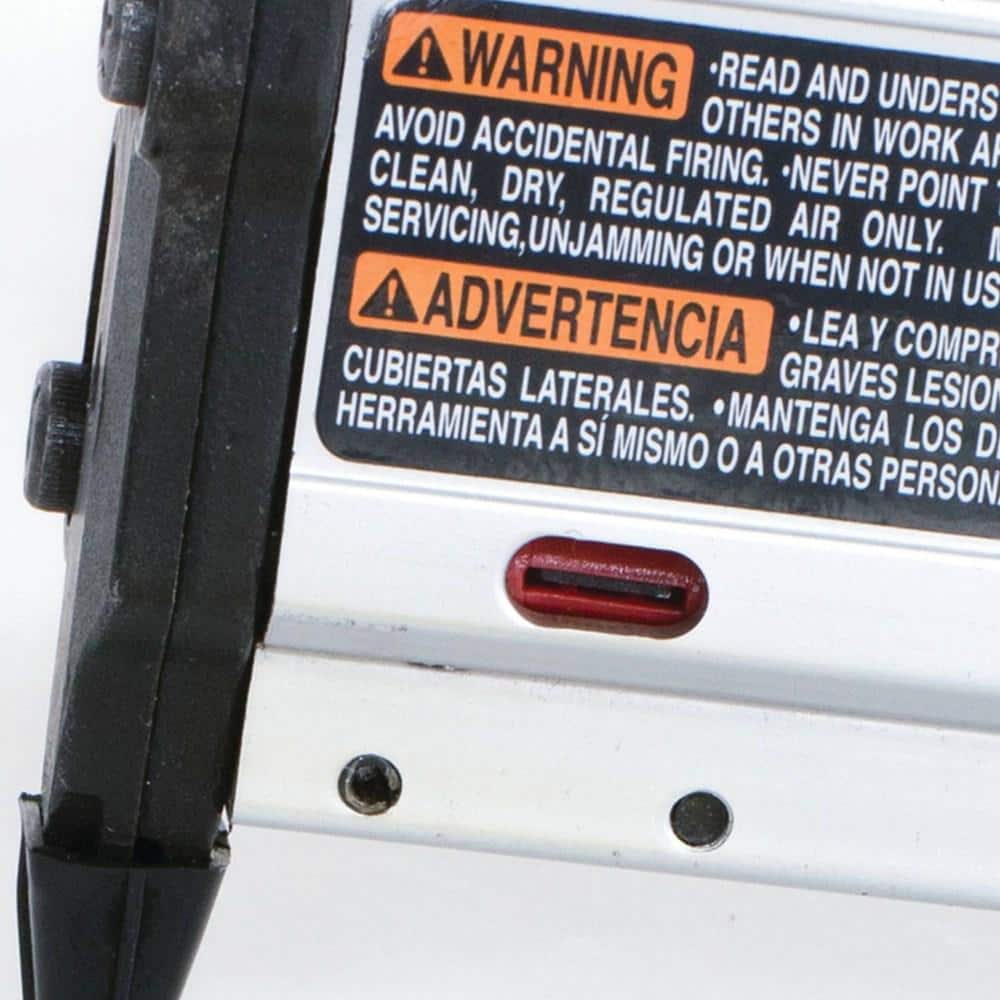

• Dry-Fire Protection: Nail lock-out and nail-view window help prevent blank fires and indicate when to reload.
• Cleaner Work Area: Built-in air duster clears dust and debris from the surface for better finishes.

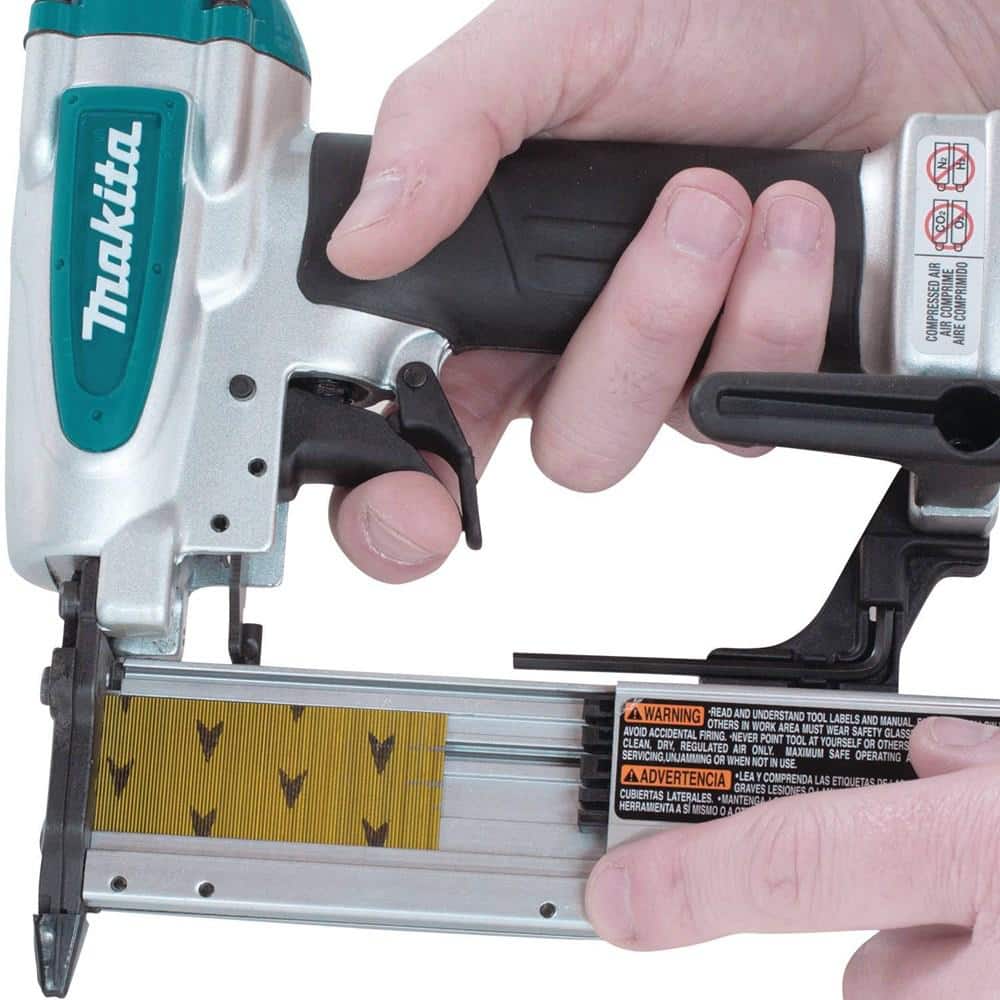

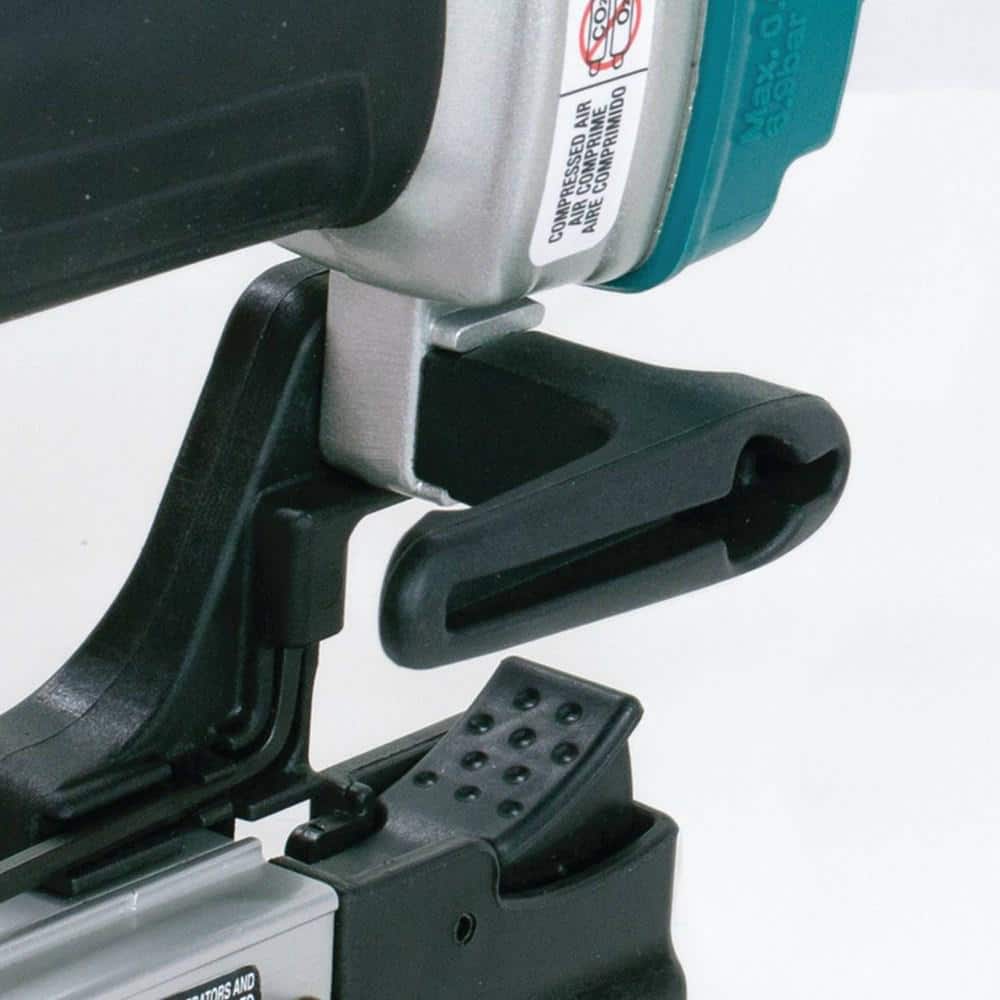

• Pro-Friendly Design: Side drop-in magazine (130 capacity), rear exhaust, reversible belt hook, and ergonomic rubber grip.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Power Type	Pneumatic
Cordless/Corded	Corded
Air Inlet Size	1/4 in
Nail Gauge	23 gauge
Maximum Fastener Size	1-3/8 in
Minimum Fastener Size	5/8 in
Magazine Capacity	130
Loading Type	Strip, side drop-in
Firing Mode	Contact
Compressor/Air Tool Features	Fastener Depth Control
Nailer Features	Nail lock-out; Nail-view window; Narrow nose; Rear exhaust; Built-in air duster; Reversible belt hook; Rubber bumpers; Ergonomic rubber grip; Double 2-finger trigger; Easy-clear nose
Minimum Recommended Air Delivery @90 PSI	0.9 SCFM
Minimum Recommended Operating Pressure	65 PSI
Product Depth	8.1875 in
Product Height	7.5 in
Product Width	2.625 in
Tool Weight	2 lb
Material	Aluminum body, magazine, and cylinder
Applications	Moulding, chair rail, trim, glass retainers, cross pinning dowels and joints, cabinets, paneling, glazed bead, craft work, picture frames, window beading, rattan furniture

---

Frequently Asked Questions (FAQ):

Q: What size pins does this nailer use?
A: It accepts 23-gauge headless pins from 5/8 in., 11/16 in., 3/4 in., 1 in., 1-3/16 in., up to 1-3/8 in.

---

Q: What air requirements are needed?
A: Minimum recommended air delivery is 0.9 SCFM at 90 PSI with an operating pressure range starting at 65 PSI; 1/4 in. air inlet.

---

Q: How many pins fit in the magazine?
A: The side, drop-in magazine holds up to 130 pins.

---

Q: Does it have dry-fire protection?
A: Yes, a nail lock-out mechanism prevents dry-fires and protects the work surface.

---

Q: What is the tool weight?
A: Approximately 2 lb., designed for all-day use.

---

Invisible Fastening, Flawless Finish

This sleek pin nailer is the quiet hero of refined carpentry, delivering clean, nearly invisible fastenings that let the millwork shine. I adore its narrow nose and whisper-light body—perfect for delicate trim and gallery-worthy frames. Style it with color-matched fills and a fine-bristle brush to feather edges for a couture finish. It’s an essential instrument for achieving that bespoke, high-luxury look in any room.

---

Upgrade your trim and finish work with precise, clean pinning—add the Makita AF353 to your toolkit today.

Warranty
