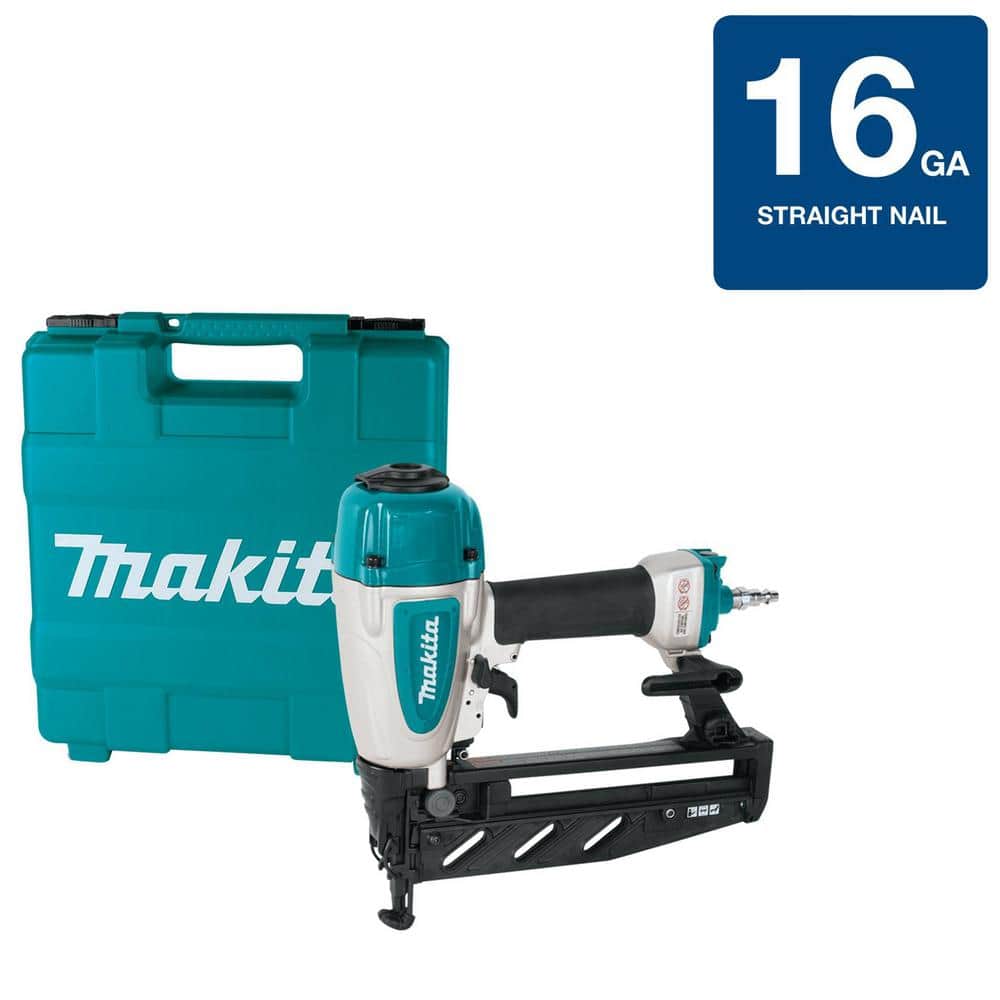

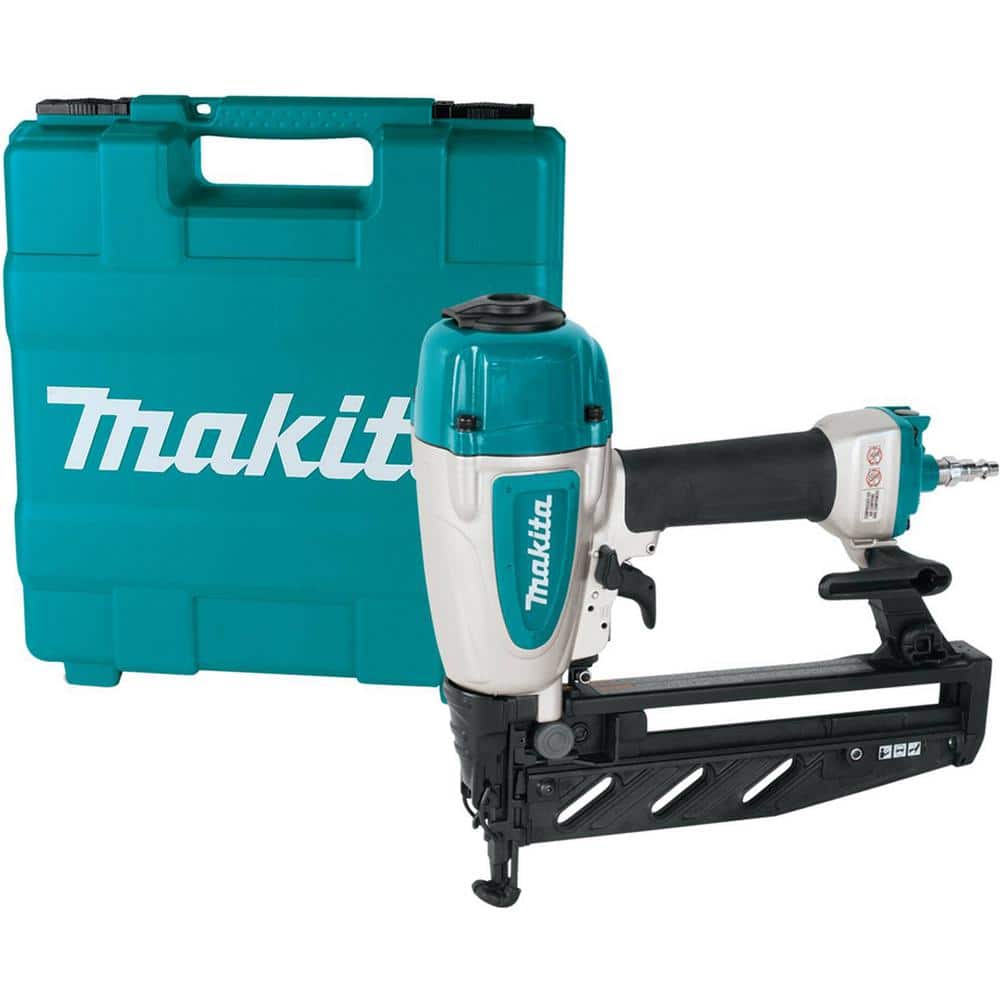

Pneumatic 16-Gauge Straight Finish Nailer, 2-1/2 in.

Compact and lightweight at 3.8 lb, the Makita AF601 drives 16‑gauge straight finish nails from 1 in. to 2-1/2 in. A nail lock-out, tool-less depth adjustment, and quick clear nose deliver precise, efficient fastening for trim, molding, and woodworking applications.

---

Key Features:

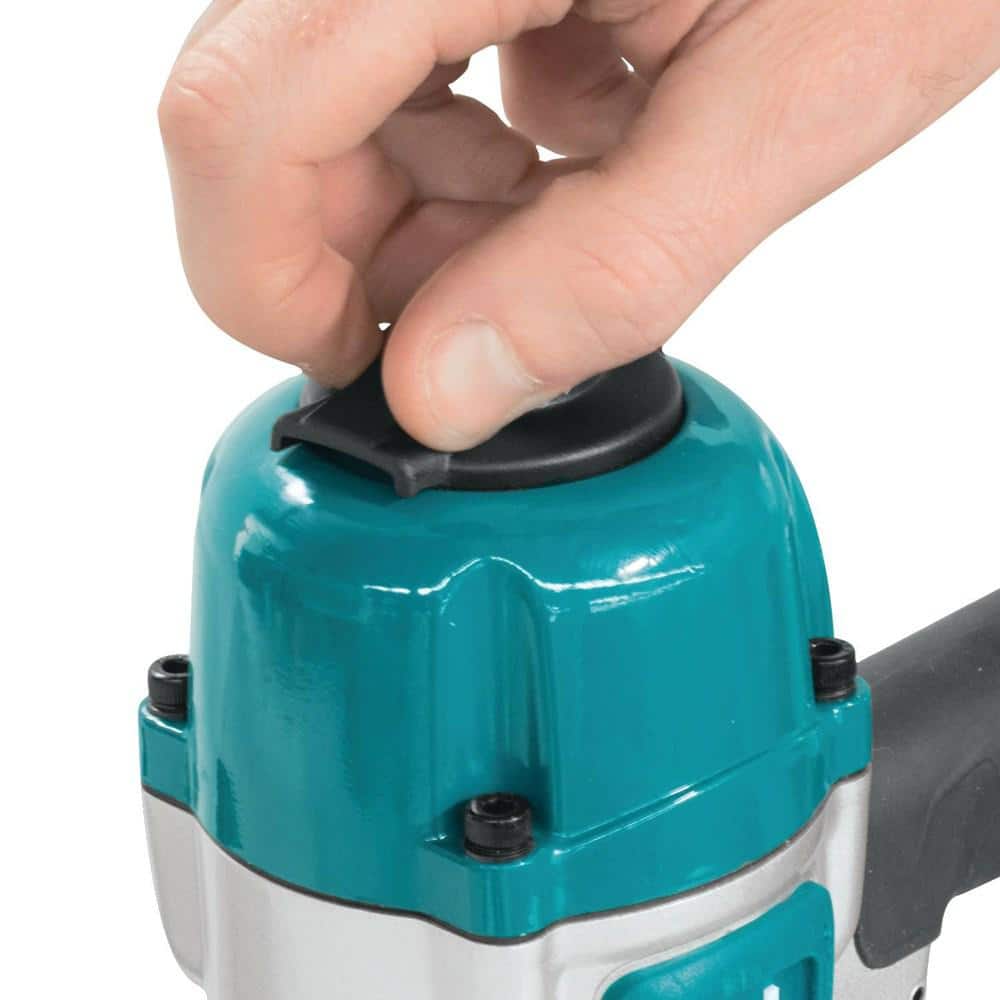

• Precise Depth Control: Tool-less depth adjustment for flush or countersunk nails

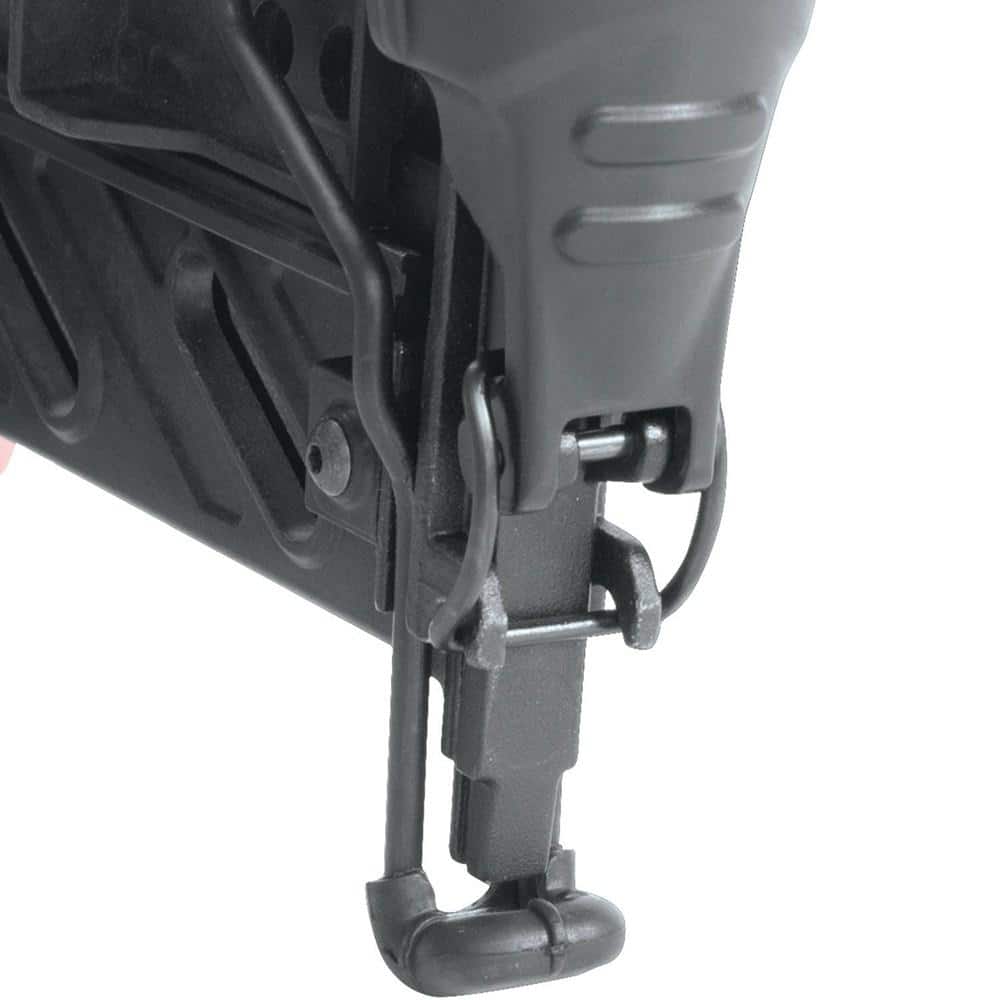

• Dry‑Fire Protection: Nail lock‑out mechanism helps prevent damage to tool and work surface

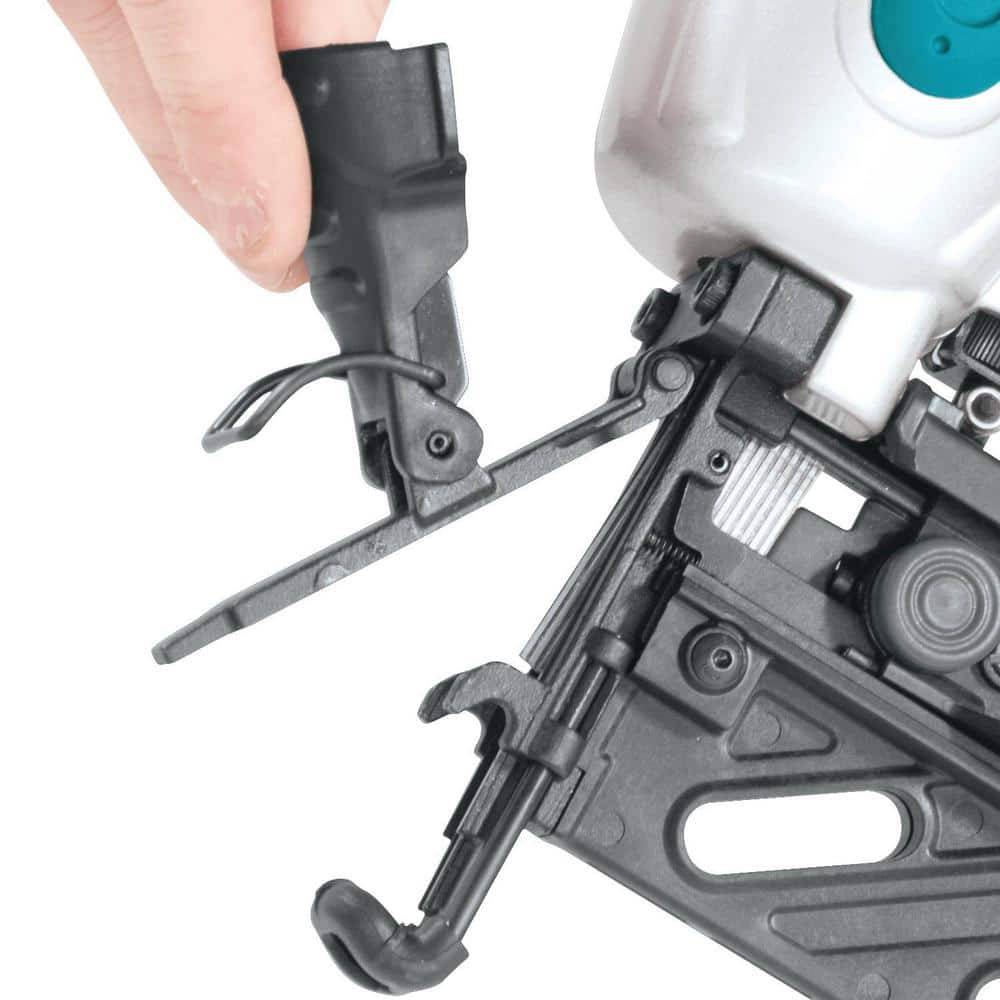

• Fast Jam Clearing: Tool-less quick release cam-lock for easy nail extraction
• Clean, Comfortable Operation: Multi-directional exhaust, built-in air duster, and rubber grip
• Durable, Lightweight Build: Magnesium body with housing bumpers; only 3.8 lb

---

Specifications Table:

Specification	Details
Power Type	Pneumatic
Cordless/Corded	Corded
Compressor/Air Tool Features	Fastener Depth Control
Firing Mode	Contact; selectable contact/sequential via 2‑mode switch
Included	Case; Tool Case; two removable no‑mar tips
Loading Type	Strip
Magazine Capacity	100 nails
Maximum Fastener Size	2-1/2 in
Minimum Fastener Size	1 in
Minimum Recommended Air Delivery (SCFM @ 90 PSI)	2.7
Minimum Recommended Operating Pressure	70 PSI
Multi‑Purpose	Single Purpose
Nail Gun Angle	Straight (tool uses 16‑ga straight nails) – site lists Angled; verify
Nail Gauge	16 gauge
Air Inlet Size	1/4 in
Product Depth	12 in
Product Height	11.75 in
Product Width	3.75 in
Tool Weight	3.8 lb
Body Material	Magnesium housing
Exhaust	Multi-directional exhaust port
Additional Features	Built-in air duster; reversible belt hook; narrow nose design; housing bumpers; quick clear nose
Applications	Trim work, baseboards, crown molding, flooring, woodworking

---

Frequently Asked Questions (FAQ):

Q: What nail sizes does this tool accept?
A: It uses standard 16‑gauge straight finish nails from 1 in. to 2-1/2 in.

---

Q: What air requirements are needed?
A: Minimum recommended air delivery is 2.7 SCFM @ 90 PSI, with operating pressure starting at 70 PSI and a 1/4 in. air inlet.

---

Q: What is the magazine capacity?
A: The rear lock‑and‑load magazine holds up to 100 nails.

---

Q: Does it have selectable firing modes?
A: Yes, a 2‑mode selector switch allows contact or sequential firing.

---

Q: What accessories are included?
A: Includes a tool case and two removable no‑mar tips.

---

Crisp Lines, Flawless Finishes

This finish nailer brings couture-level precision to trim and molding, delivering clean, deliberate placements that elevate a room’s architecture. I adore the narrow nose and featherlight magnesium body—an elegant blend of finesse and strength. Style it with painted crown or minimalist baseboards to create shadow lines that feel bespoke. A must-have for crafting interiors where every detail whispers luxury.

---

Bring pro-level precision to your next trim project—add the Makita AF601 to your toolkit today.
