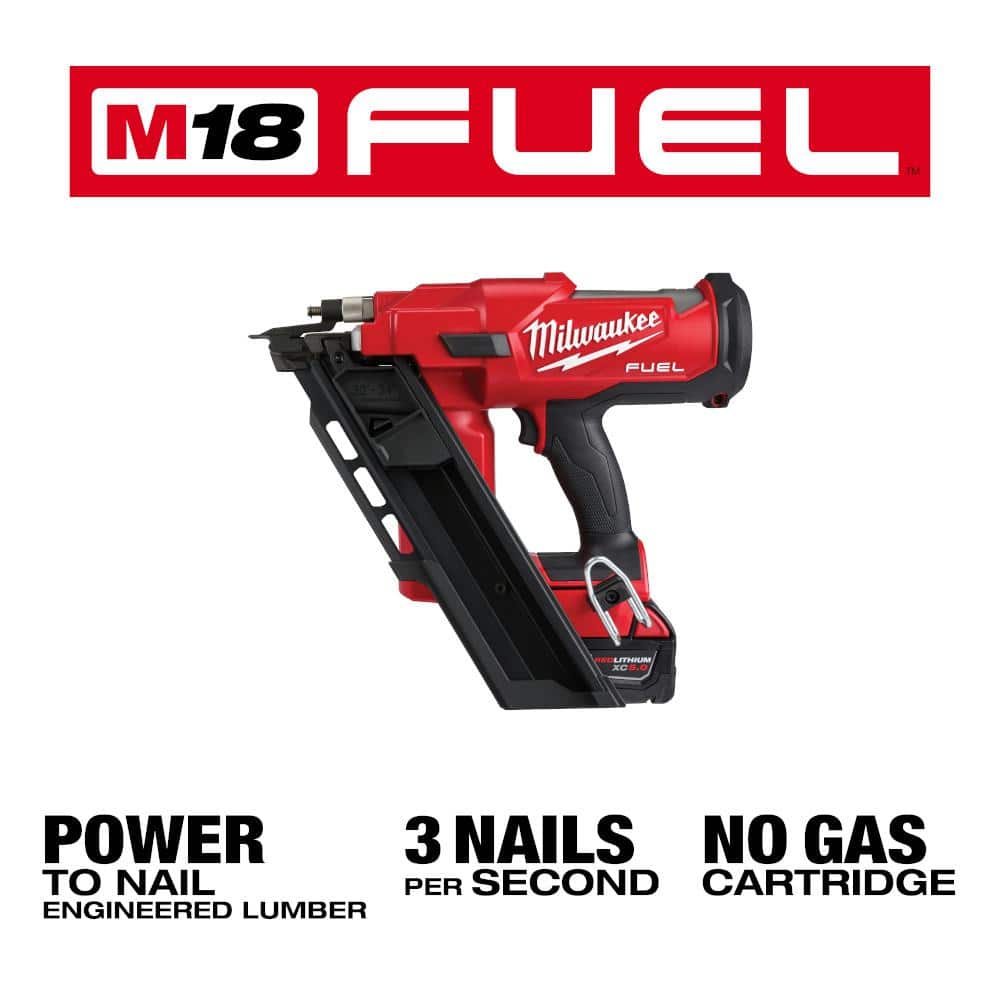

M18 FUEL 30° Cordless Framing Nailer Kit

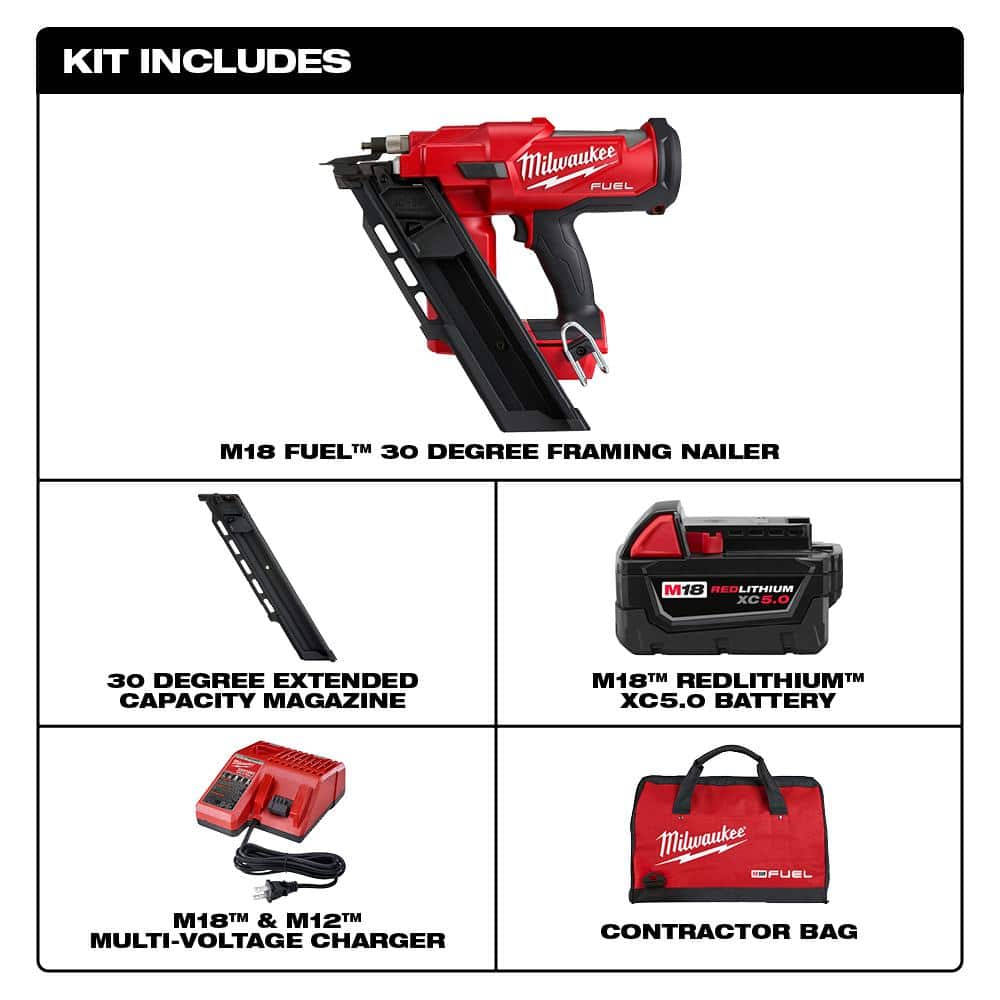

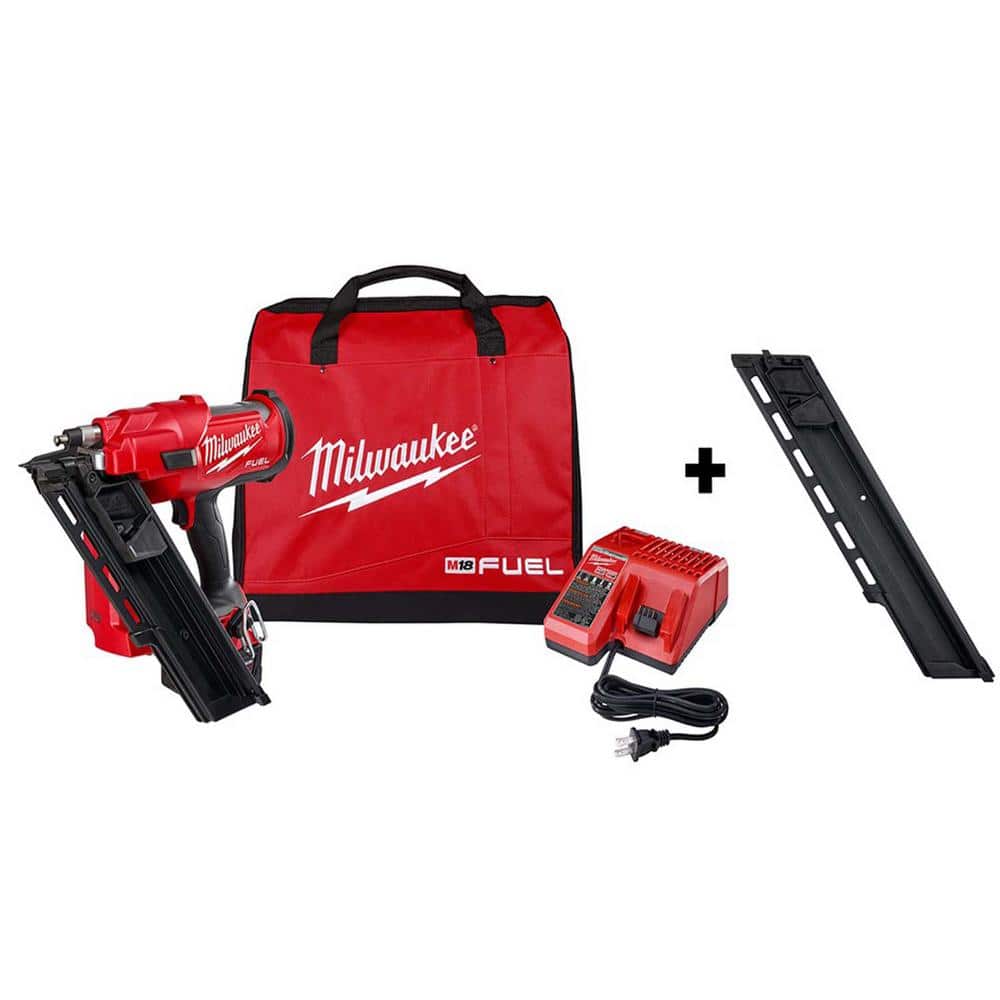

This Milwaukee M18 FUEL 30° framing nailer kit delivers pneumatic-like power without a hose or gas. The brushless motor and nitrogen spring mechanism drive 2 in. to 3-1/2 in. nails with zero ramp-up time, and the extended magazine boosts capacity for longer runs. Kit includes XC5.0 battery, M18/M12 charger, contractor bag, and non-marring tip.

---

Key Features:

• Pneumatic Performance: Nitrogen spring mechanism and POWERSTATE brushless motor drive full round head nails into engineered lumber
• Fast, No Ramp-Up: Fires up to 3 nails per second for high productivity
• Tool-Free Depth Adjustment: Dial in precise drive depth for various materials

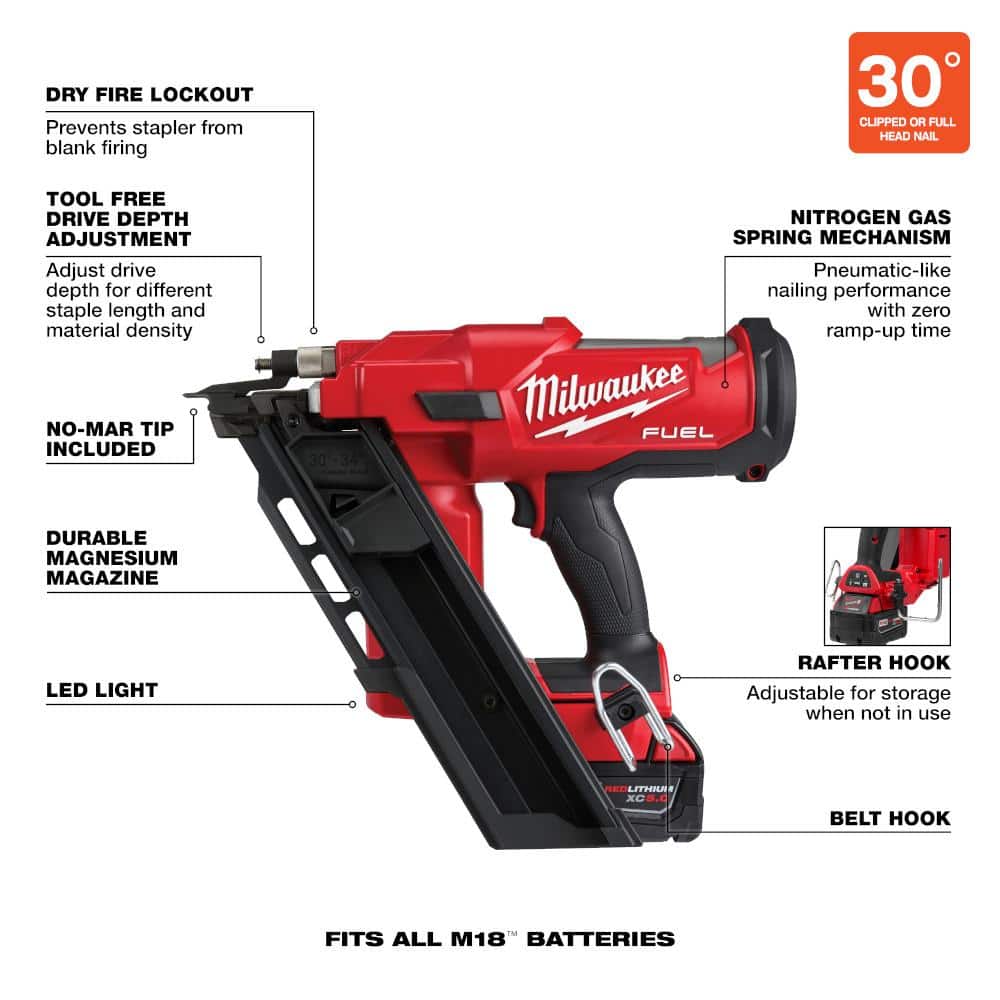

• Jobsite-Ready Design: Dry-fire lockout, rafter/belt hooks, LED light, and durable magnesium magazine

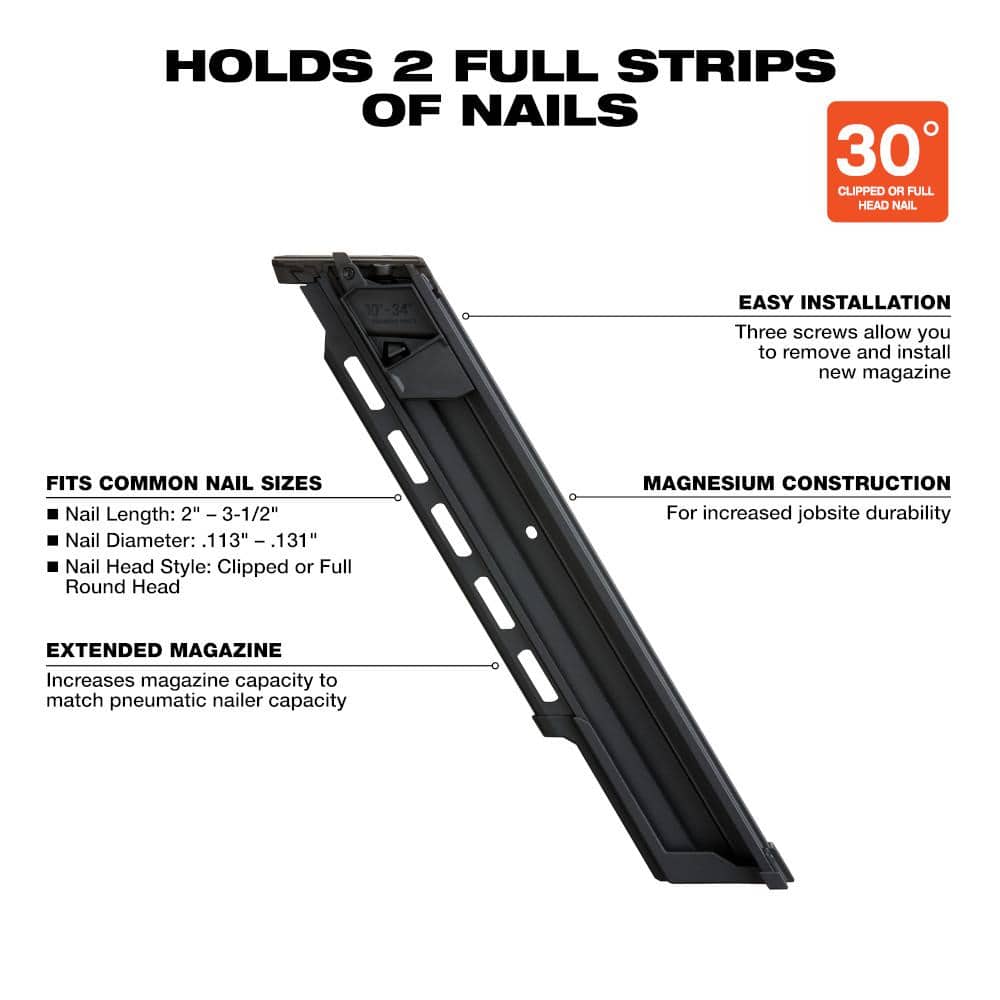

• Extended Capacity: Includes 30° extended magazine to hold two full strips of nails

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Battery System	M18
Battery Voltage	18V
Battery Amp Hours	5 Ah
Battery/Charger	(1) 5 Ah Battery & Charger Included
Number of Total Batteries Included	1
Charger Included	Yes
Power Type	Cordless Electric
Motor Type	Brushless (POWERSTATE)
Nail Angle	30°
Nail Gauge	NA / Other
Maximum Fastener Size	3-1/2 in
Minimum Fastener Size	2 in
Nail Diameter	.113 in – .131 in
Nail Head Style	Clipped or Full Round Head
Loading Type	Strip
Firing Modes	Sequential and contact actuation
Features	Zero ramp-up time; Dry fire lockout; Tool-free depth adjustment; LED light; Rafter hook; Belt hook; No-mar tip; On/off power button
Magazine Type	Durable magnesium; Extended capacity holds two full strips
Product Height	13.3 in
Product Length/Depth	14.1 in
Product Width	4.7 in
Tool Weight	11 lb
Color	Red/Black
Material	Metal / Magnesium magazine
ONE-KEY Enabled	No
Warranty	3 Years (Tool), 3 Years (Battery)

---

Frequently Asked Questions (FAQ):

Q: What nails does it use?

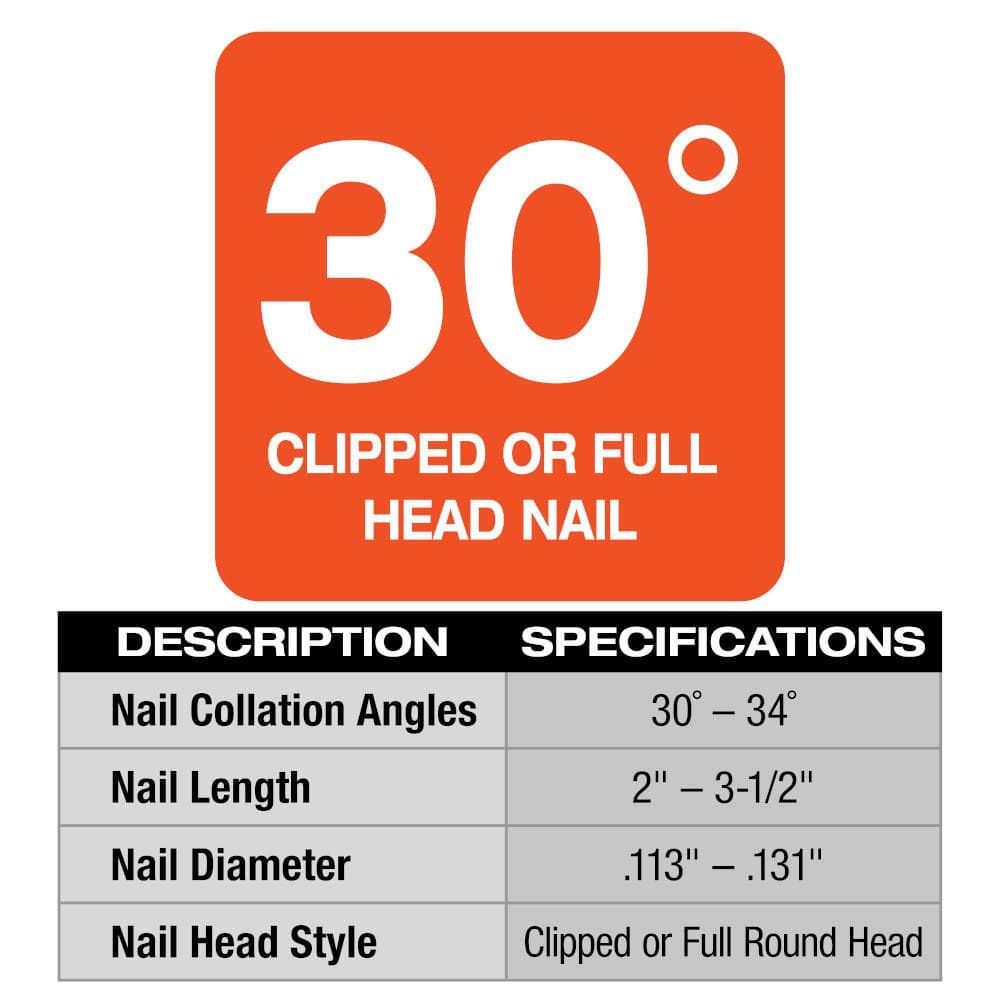

A: 30°–34° clipped or full round head nails, 2 in. to 3-1/2 in. length, .113 in. to .131 in. diameter.

---

Q: How many batteries are included?
A: One M18 REDLITHIUM XC5.0 battery is included along with an M18/M12 multi-voltage charger.

---

Q: Is there any gas cartridge required?
A: No. It runs on M18 batteries and sealed compressed nitrogen—no gas cartridges needed.

---

Q: Can I adjust the drive depth?
A: Yes, it has a tool-free drive depth adjustment for quick changes.

---

Q: Does it have a dry-fire lockout?
A: Yes, to prevent blank firing and protect the tool.

---

Power Meets Precision in a Rugged, Cordless Form

This framing nailer refines the raw rhythm of construction with sleek Milwaukee red and purposeful lines. The extended magazine is a standout—streamlined and magnesium-strong—keeping the silhouette balanced while you move from stud to deck. Pair it with matte black fasteners and a clean tool belt for a modern, efficient jobsite aesthetic. It’s the kind of tool that elevates the craft, bringing cordless luxury to serious build-outs.

---

AI Review Summary:

Across retailer reviews, buyers praise the nailer’s consistent sinking power in LVL and other engineered lumber, quick firing with no ramp-up, and the freedom from hoses and gas. Many highlight the extended magazine and solid runtime with the XC5.0 pack; typical reports cite 500–700 nails per charge in mixed use. Common critiques include the tool’s weight and size in tight spaces and occasional depth-setting tweaks needed for softer lumber. Quotes: “Drives 3-1/4 in. nails flush every time,” “Love no compressor—much faster setup,” and “A bit heavy after a full day, but worth the power.”

---

Build faster and cleaner—add this M18 FUEL framing nailer kit to your cart and experience cordless, pneumatic-like performance today.
