Weymouth Chrome Shower Bar System with Valve

Complete spa-style shower system from Moen’s Weymouth collection in polished chrome. Includes rainshower, handheld on slide bar, body sprays, trims, and rough-in valves for a coordinated, high-performance installation.

---

Key Features:

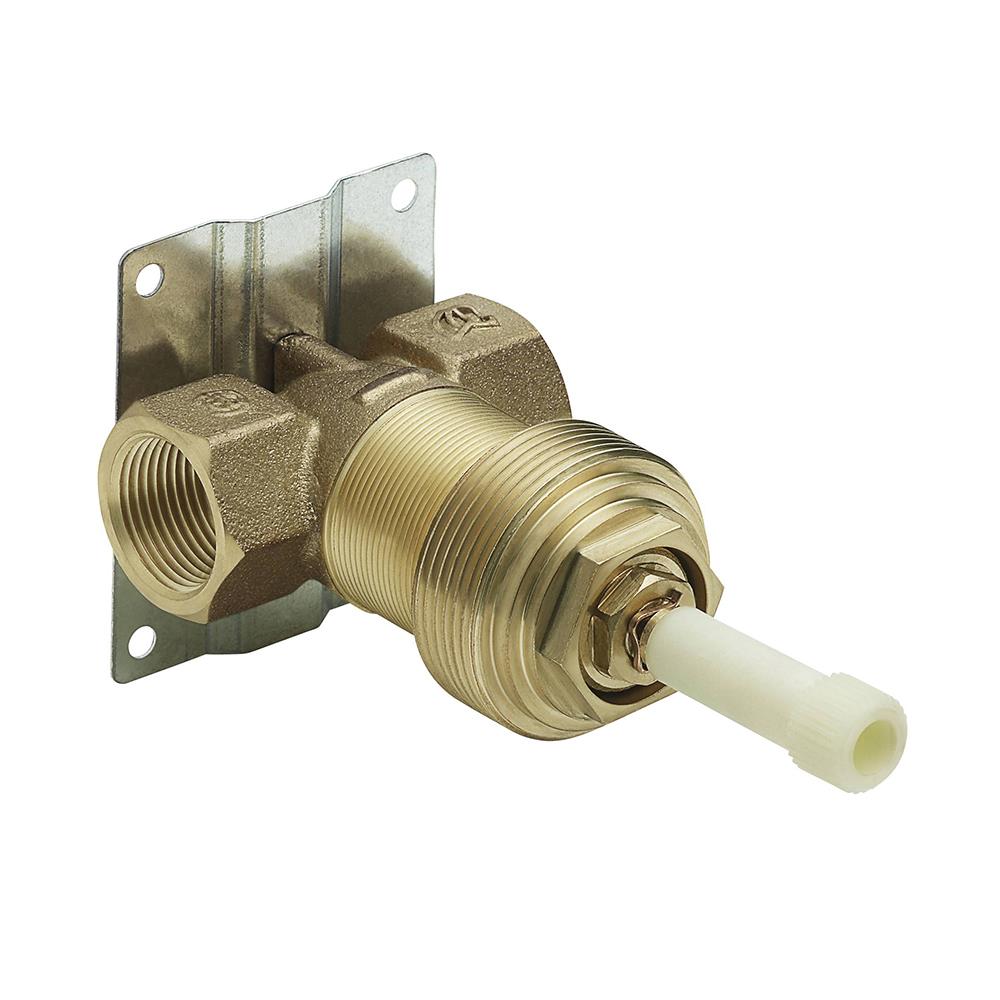

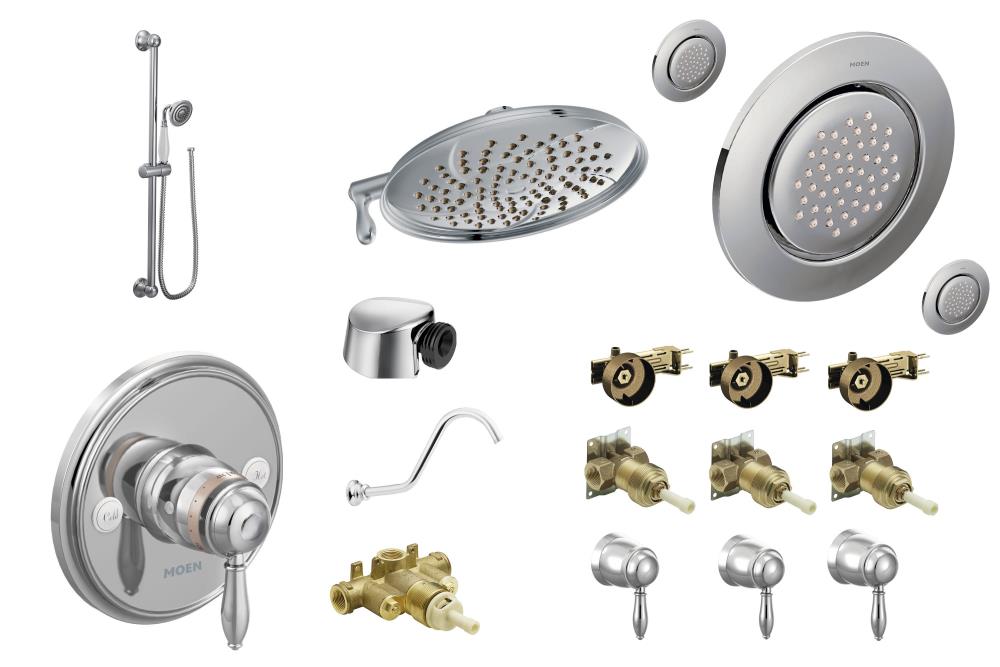

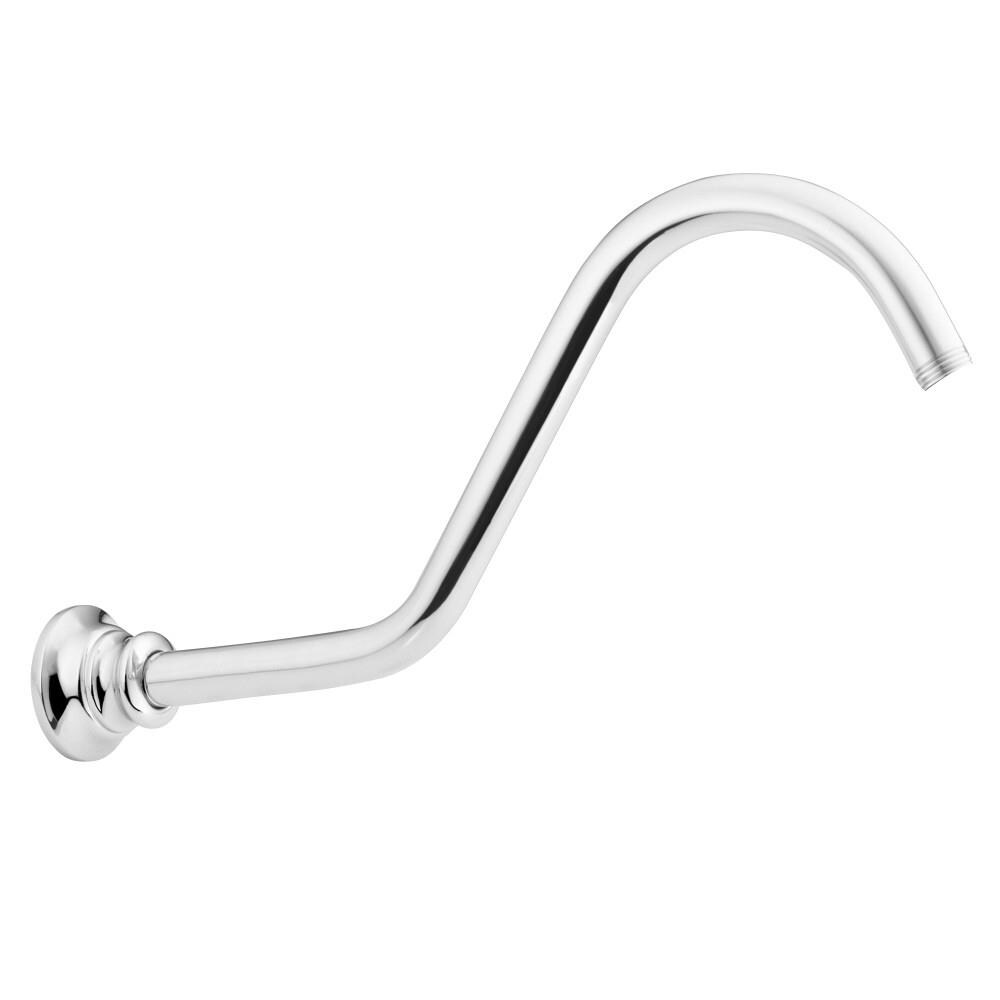

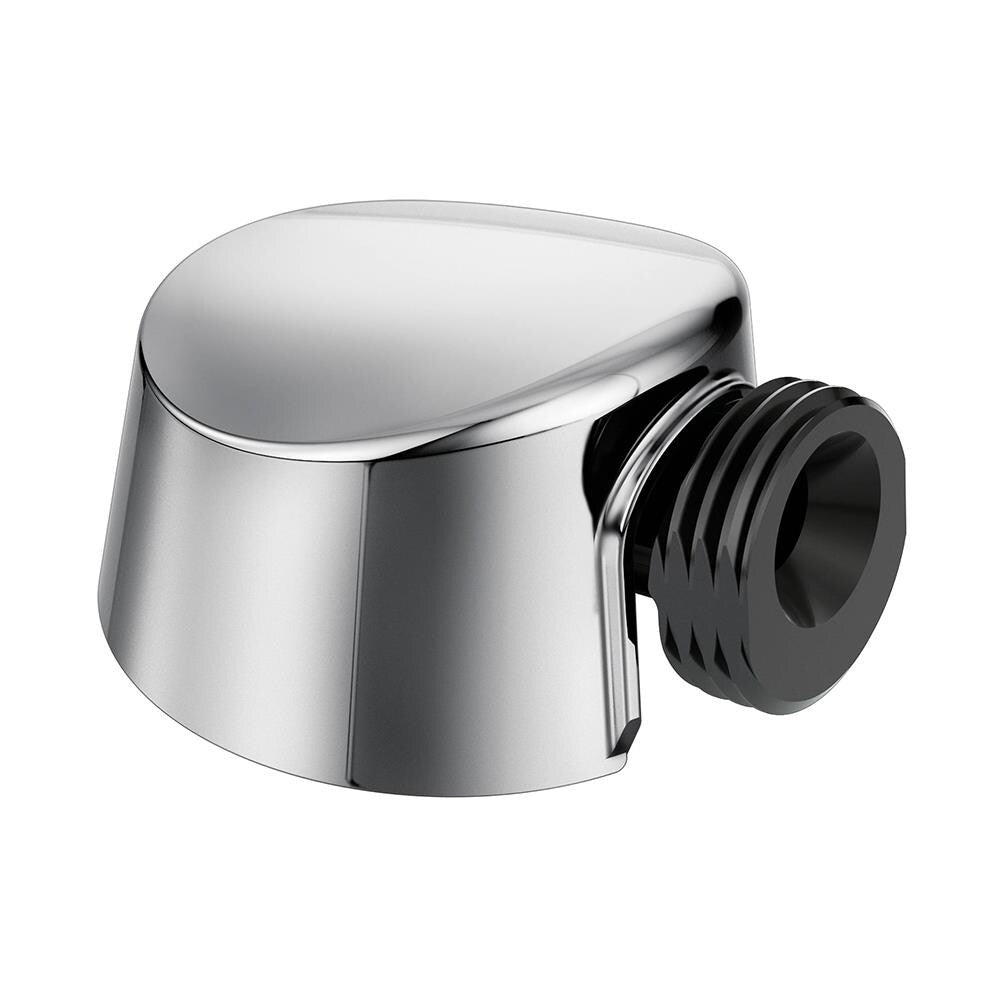

• Complete Kit: Handshower with slide bar, rainshower head, 3 body sprays, trims, wall elbow, shower arm, and all required rough-in valves included

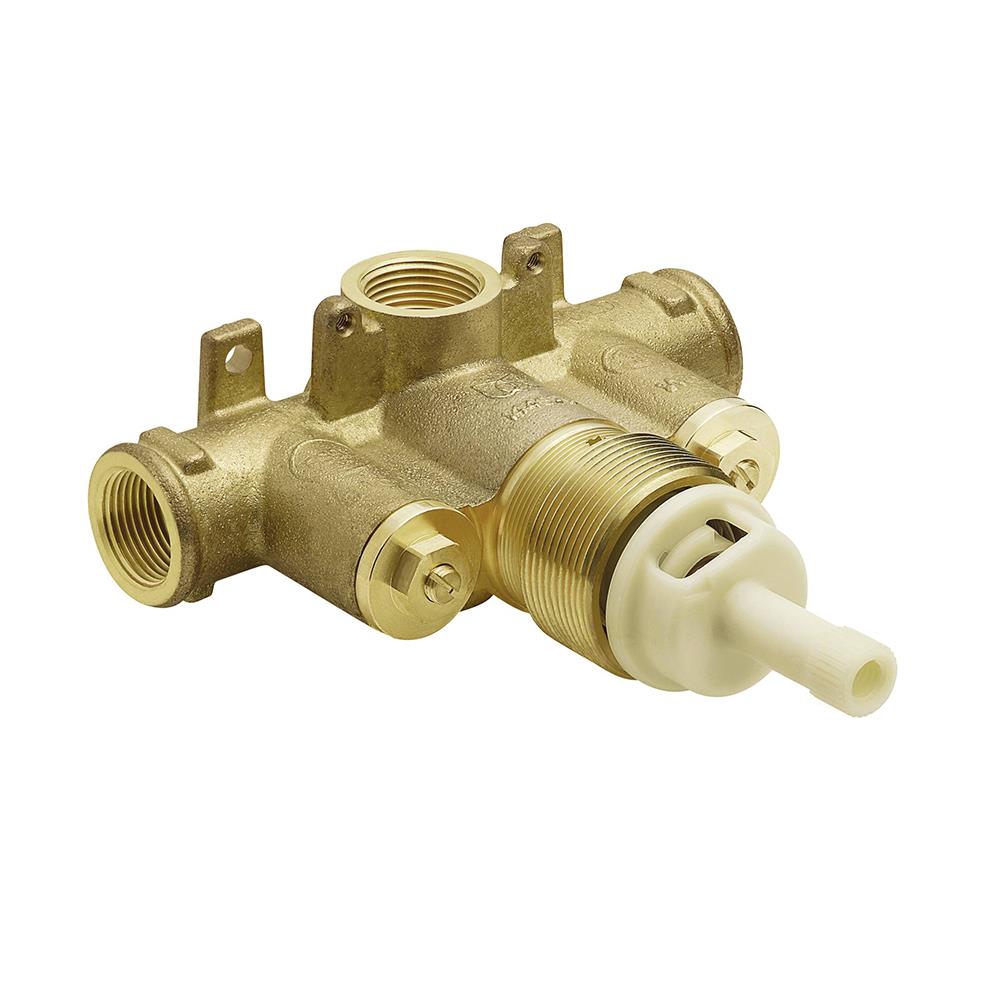

• Consistent Temperature: Posi-Temp pressure-balancing valve helps maintain water temperature
• Eco Performance: WaterSense-labeled components deliver up to 2.0 GPM without sacrificing pressure
• Immersion Technology: Self-pressurizing rainshower provides powerful, even coverage

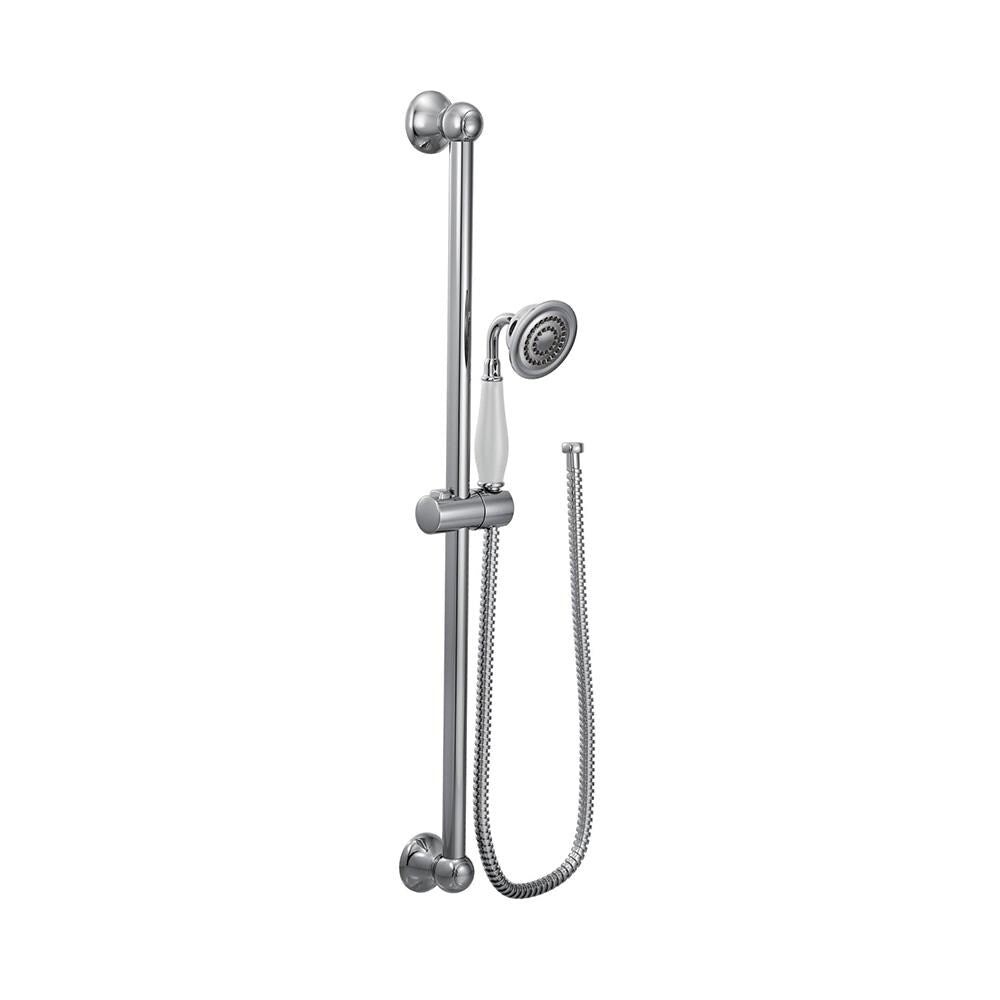

• Adjustable Convenience: Slide bar lets you easily position the handheld shower to your preferred height

---

Specifications Table:

Specification	Details
Collection Name	Weymouth
Fixture Color Family	Chrome
Fixture Finish	Polished
Manufacturer Color/Finish	Chrome
Series Name	WeymouthSpaCHr
Type	Shower bar system
Actual Depth (Inches)	19.125
Actual Height (Inches)	42
Actual Width (Inches)	14.125
Handheld Shower Head Diameter (Inches)	3.375
Hose Length (Inches)	69
Integrated Adjustable Height Slide Bar	Yes
Shower Head Diameter (Inches)	9
Total Bar/Panel Length (Inches)	30
Total Bar/Panel Width (Inches)	8
Water Source to Valve Length (Inches)	30.625
ADA Compliant	No
Adjustable Head	No
Antimicrobial	No
Body Jets Included	No
Commercial/Residential	Residential
Control Panel Included	No
Detachable Head	Yes
Diverter Type	4-way
Dual Head	No
Easy-Cleaning Nozzles	Yes
Handheld Pause/Trickle Control	No
Handheld Shower Head Material	Metal
Handle Type	Lever
High Pressure	No
Hose Material	Metal
Low Flow	Yes
Max Flow Rate (Handheld)	2.0 GPM (7.6 LPM)
Max Flow Rate (Showerhead)	2.0 GPM (7.6 LPM)
Number of Body Spray Jet Patterns	0
Number of Hand Showers Included	1
Number of Handheld Spray Patterns	1
Number of Jets	0
Number of Shower Head Spray Patterns	2
Number of Shower Heads Included	1
Number of Spray Settings	1
Projection from Wall (Inches)	19.125
Shower Head Material	Metal
Shower Head Pause/Trickle Control	No
Steam Feature	No
Thread Tape Included	No
Valve Included	Yes
Waterfall	No
WaterSense Labeled	Yes
Warranty	Limited lifetime
UNSPSC	30181500

---

Frequently Asked Questions (FAQ):

Q: Is the valve included?
A: Yes. The system includes the Posi-Temp pressure-balancing control valve plus the required rough-in valves.

---

Q: What flow rate does it provide?
A: Both the handheld and showerhead are rated at 2.0 GPM (7.6 LPM).

---

Q: Can I adjust the handheld height?
A: Yes. The integrated slide bar allows easy height adjustment.

---

Q: How many spray functions are there?
A: The rainshower has 2 functions; the handheld has 1 function.

---

Q: Is it WaterSense certified?
A: Yes, it meets EPA WaterSense criteria for water conservation.

---

Victorian Elegance, Spa-Caliber Indulgence

The Weymouth system drapes your bath in polished chrome with porcelain-accented details—an ode to vintage refinement with modern performance. A broad rainshower and sculptural slide-bar handshower create a layered, immersive experience. Style it with marble tile and unlacquered brass accents to amplify the timeless silhouette. This is a centerpiece of everyday luxury, elevating ritual into respite.

---

Transform your shower into a spa-worthy sanctuary—add the Moen Weymouth system to your cart today.
