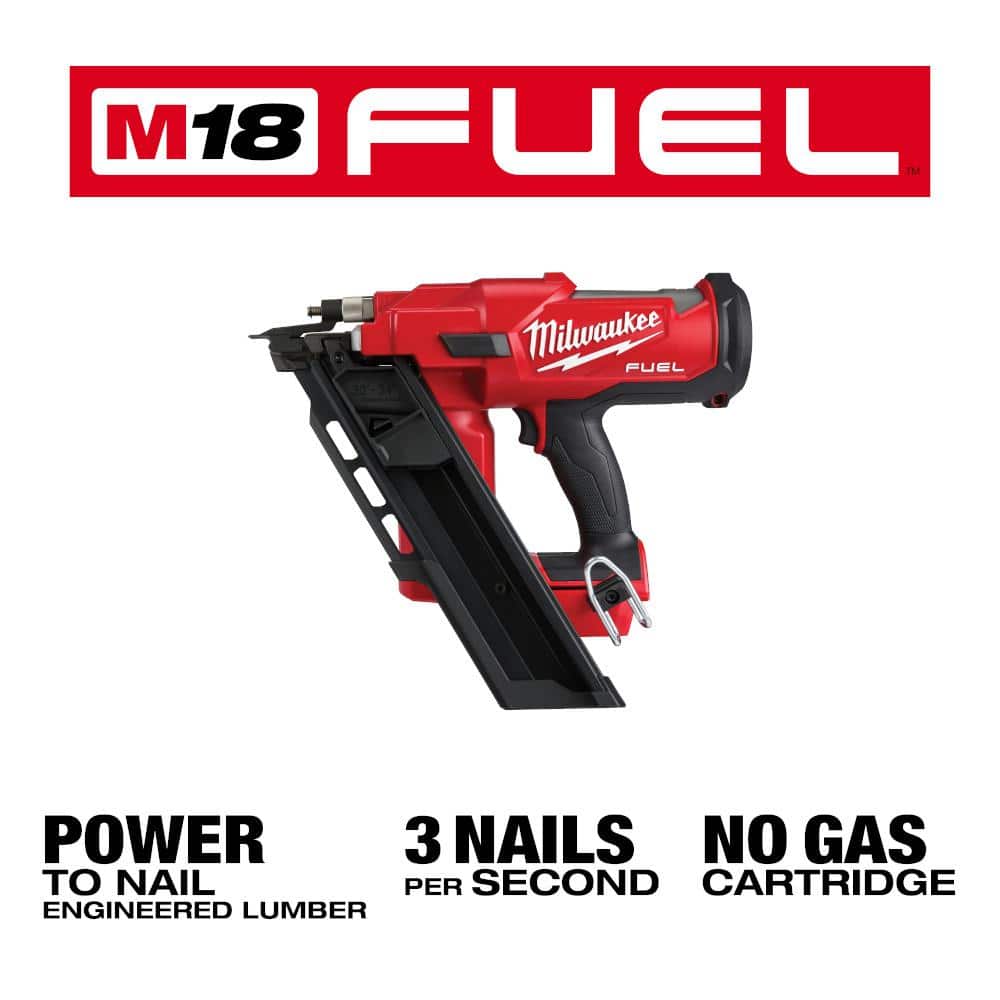

M18 FUEL 30° Cordless Framing Nailer with 5.0Ah Battery

A pro-grade 30° cordless framing nailer powered by Milwaukee’s M18 FUEL system. The brushless motor and nitrogen spring deliver pneumatic-like performance without hoses or gas, driving up to 3 nails per second into engineered lumber.

---

Key Features:

• Pneumatic Performance: Nitrogen spring and POWERSTATE brushless motor deliver hose-free, gas-free power
• Fast Productivity: Zero ramp-up and fires up to 3 nails per second
• Smart Power System: Uses REDLITHIUM XC5.0 battery for extended runtime

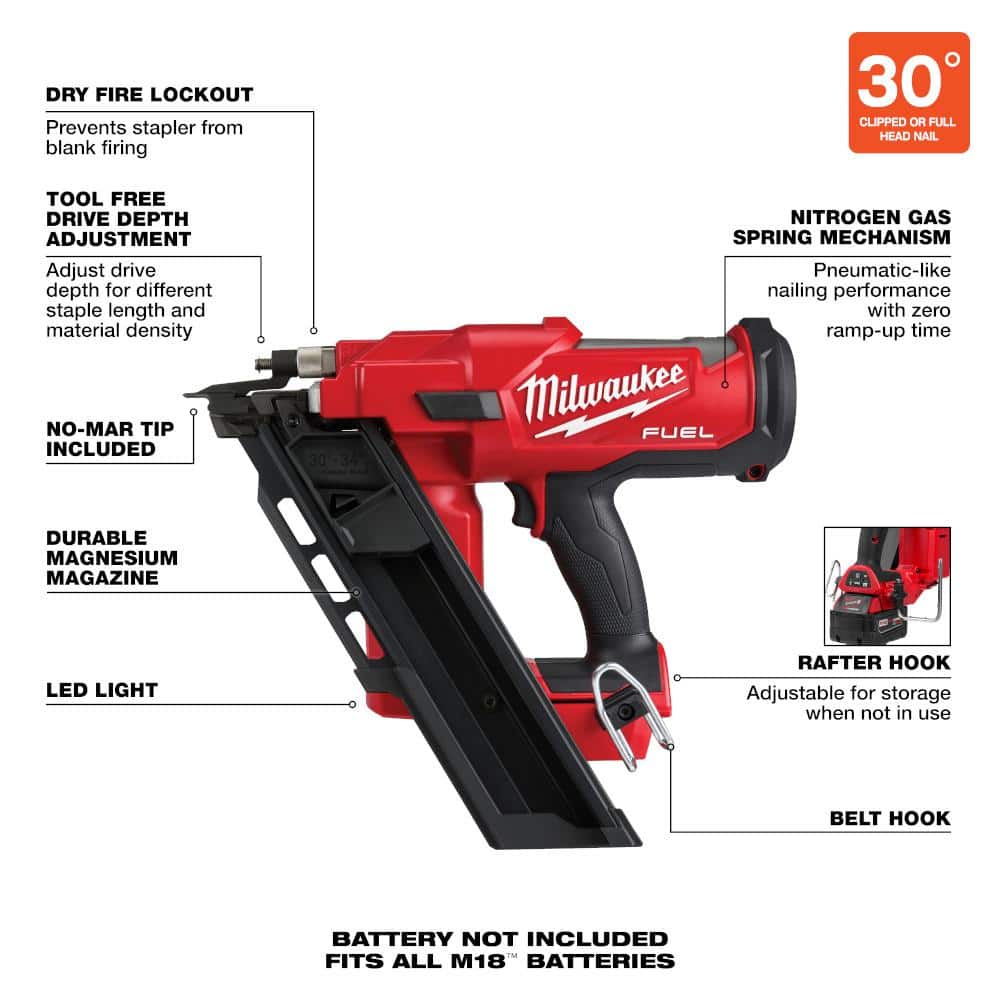

• Pro Features: Tool-free depth adjustment, dry fire lockout, LED light, rafter and belt hooks
• Durable Build: Magnesium magazine and no-mar tip for clean, consistent results

---

Specifications Table:

Specification	Details
Battery Amp Hours	5 Ah
Battery/Charger	Tool Only
Charger Included	Charger Not Included
Cordless/Corded	Cordless
Firing Mode	Contact, Single Sequential
Included	No additional components or accessories are included
Loading Type	Strip
Magazine Capacity	51
Maximum Fastener Size	3-1/2 in
Minimum Fastener Size	2 in
Multi-Purpose	Single Purpose
Nailer Features	No Features (plus dry fire lockout, tool-free depth, rafter/belt hooks per copy)
Number of Total Batteries Included	0
Power Type	Cordless
Tool Weight	9.4 lb
Tools Product Type	Air Tool
Voltage	18V
Battery Charge Time (Hours)	0
Nail Angle	30 degree
Nail Gauge	NA
Product Depth	14.1 in
Product Height	13.3 in
Product Width	4.7 in

---

Frequently Asked Questions (FAQ):

Q: What batteries does it use?
A: It runs on Milwaukee M18 REDLITHIUM batteries, including the XC5.0 pack.

---

Q: Is it compatible with all M18 batteries?
A: Yes, it works with all Milwaukee M18 batteries.

---

Q: How does it compare to pneumatic nailers?
A: It provides pneumatic-like power and speed without compressors, hoses, or gas cartridges.

---

Q: Can I adjust nail depth?
A: Yes—there’s a tool-free depth adjustment for different materials and fasteners.

---

Q: Is a charger included?
A: No. The kit includes the nailer and battery; charger is sold separately.

---

Cordless Power That Elevates the Jobsite

This framing nailer brings a sharp, architectural precision to builds—sleek, compact, and fearlessly efficient. The standout 30° magazine sweeps forward like a modernist line, letting you slip into tight framing with elegance. Pair it with blacked-out fasteners and clean, exposed structure for an industrial-chic statement. It’s the kind of tool that turns rigorous work into refined craftsmanship—essential for elevated, luxury construction.

---

Add the M18 FUEL Framing Nailer to your kit and tackle tough framing faster—no hoses, no gas, just pro-grade cordless power.
