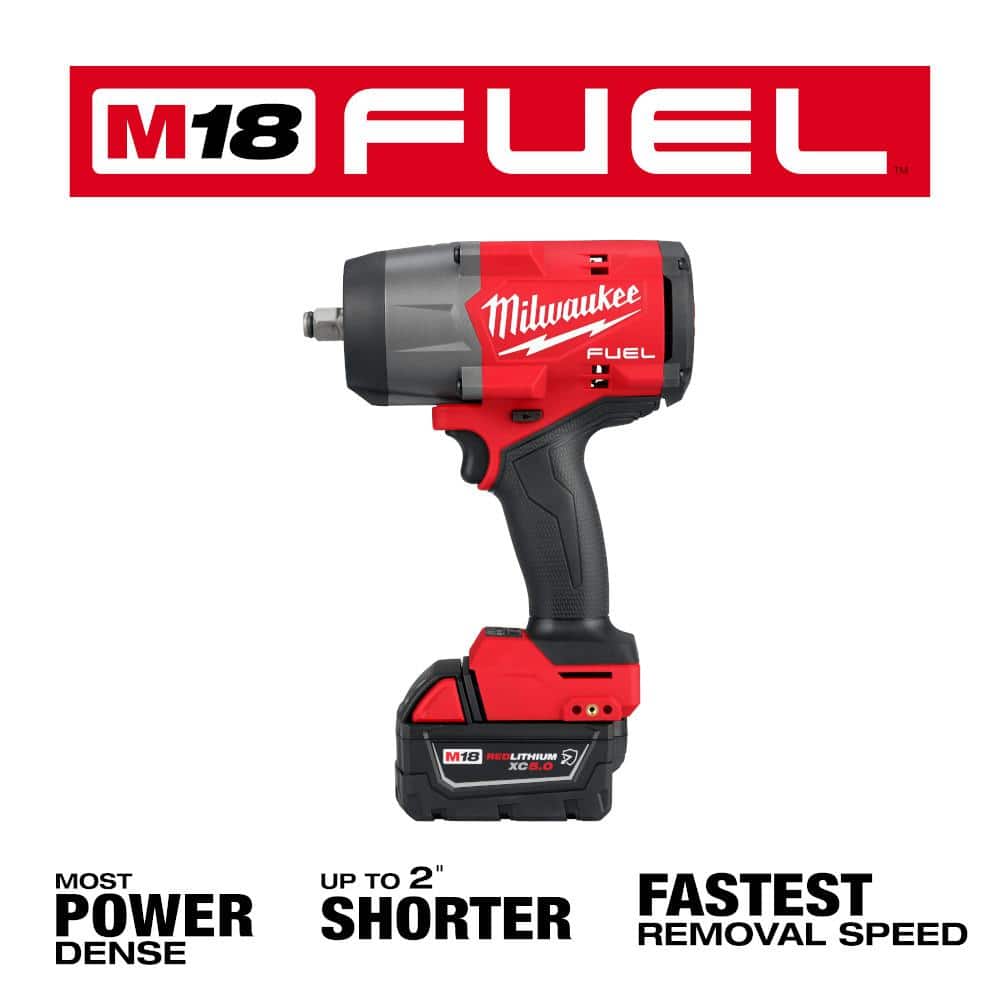

M18 FUEL 18V Brushless Impact Wrench Kit (Friction Ring)

High-torque Milwaukee M18 FUEL impact wrench kit powered by an 18V REDLITHIUM battery delivers up to 1,500 ft-lbs of breakaway torque in a compact 7.6 in. design. 4-Mode DRIVE CONTROL with Auto Shut-Off and Bolt Removal modes, plus a tri-LED worklight, give precision and visibility for tough jobs.

---

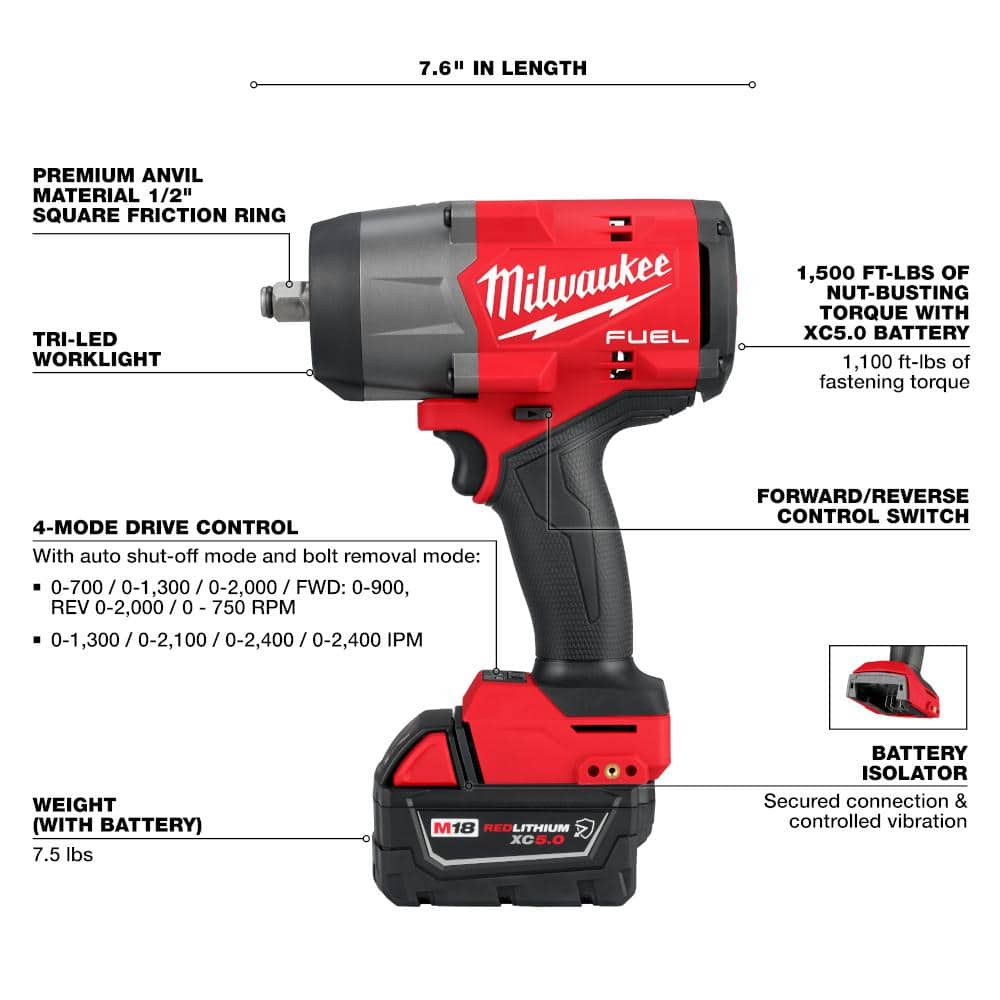

Key Features:

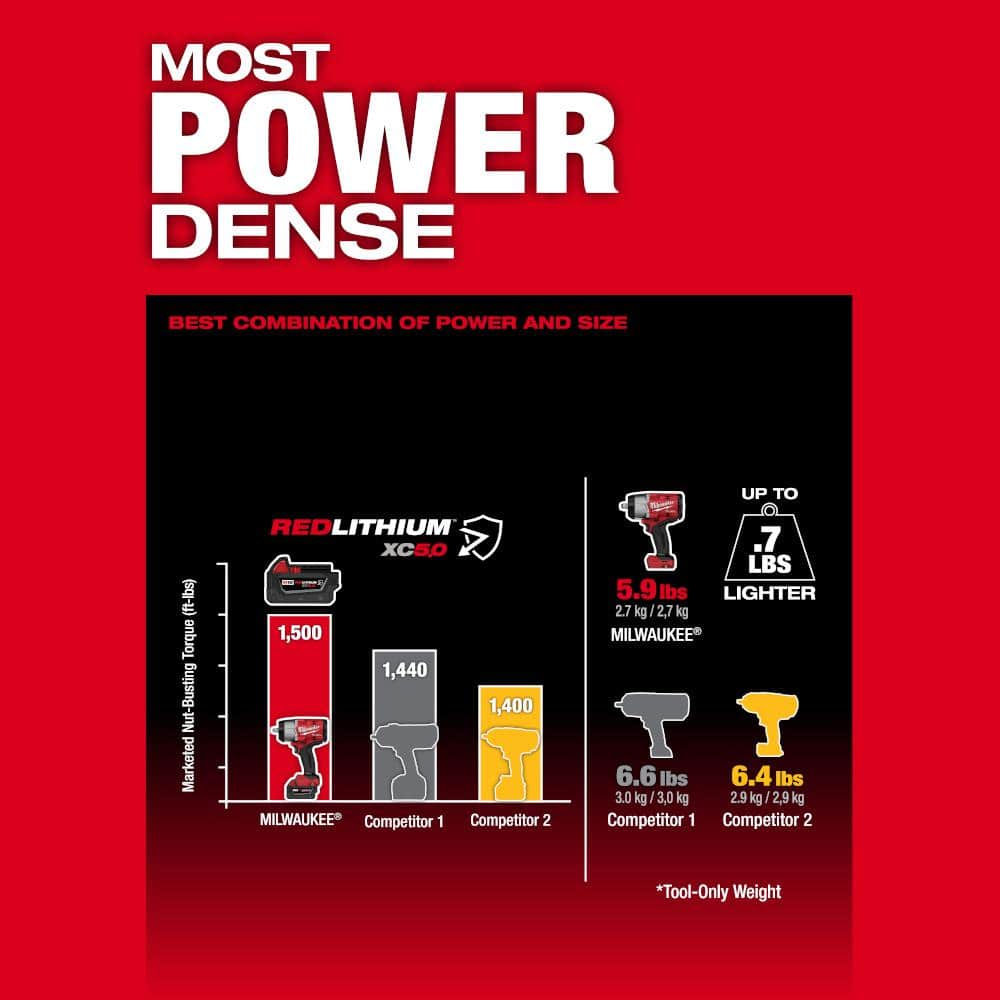

• Powerful Brushless Motor: Delivers up to 1,100 ft-lbs fastening and 1,500 ft-lbs nut-busting torque with XC5.0 battery
• Compact Access: 7.6 in. length fits into tight spaces without sacrificing power
• 4-Mode DRIVE CONTROL: Preset RPM/IPM with Auto Shut-Off and Bolt Removal Mode for optimal control
• Quick Socket Changes: 1/2 in. friction ring anvil enables fast, tool-free swaps
• Jobsite-Ready Lighting: Tri-LED around the anvil reduces shadows and improves visibility

---

Specifications Table:

Specification	Details
Batteries Included	Yes
Battery Amp Hours	5 Ah
Battery Power Type	Lithium Ion
Battery Size	18-volt
Battery Voltage (V)	18V
Charger Included	Charger Included
Color Family	Red
Cordless Tool Type	Impact Wrench
Cordless/Corded	Cordless
Impacts Per Minute	0-2,400 IPM (max)
Included	Battery, Charger, Tool Bag
Maximum Speed (RPM)	0-2,000 RPM (max); Mode 4 FWD: 0-900, REV: 0-2,000 / 0-750
Motor Type	Brushless
Number of Total Batteries Included	1
Power Tool Features	Variable Speed, 4-Mode DRIVE CONTROL, Auto Shut-Off, Bolt Removal Mode, Tri-LED Light
Product Weight	7.5 lb (with battery)
Tools Product Type	Power Tool
Torque	1,100 ft-lbs fastening; 1,500 ft-lbs nut-busting (18,000 in-lbs) with XC5.0 battery
Certifications and Listings	UL Listed
Manufacturer Warranty	5 Year (Tool), 3 Years (Battery)
Drive Size	1/2 in. friction ring
Product Depth	7.6 in
Product Height	11.35 in
Product Width	3.13 in

---

Frequently Asked Questions (FAQ):

Q: How does AUTO SHUT-OFF work?
A: In Mode 4, the tool limits torque to no more than 50 ft-lbs for hand-tight fastening to prevent overtightening.

---

Q: Is the kit suitable for harsh environments?
A: Yes. The included M18 REDLITHIUM XC5.0 Resistant Battery offers enhanced protection against oils, greases, and solvents.

---

Q: What does the TRI-LED lighting do?
A: It surrounds the anvil to provide bright, even illumination with fewer shadows.

---

Q: How does Bolt Removal Mode help?
A: It applies full torque to break loose fasteners, then automatically reduces RPM to help prevent dropped hardware.

---

Q: Are other Milwaukee batteries compatible?
A: Yes. It works with all M18 batteries and chargers.

---

Industrial Strength, Streamlined Control

This impact wrench brings a bold, engineered presence to the workshop—compact yet undeniably powerful. The tri-LED crown around its anvil is the chic detail that turns utility into statement lighting. Style it on a wall-mounted rail with polished sockets for a clean, professional vignette. For elevated projects and everyday fixes alike, it’s a refined essential for modern, luxurious utility.

---

Add the Milwaukee M18 FUEL Impact Wrench Kit to your cart and tackle heavy-duty fastening with compact power and precise control.
