M12 FUEL 4‑in‑1 Installation Drill/Driver (Tool‑Only)

Compact Milwaukee M12 FUEL brushless installation drill/driver delivers up to 300 in‑lbs torque and 1600 RPM with four interchangeable heads for unmatched access. Includes 3/8 in. all‑metal chuck, 1/4 in. hex, offset, and right‑angle attachments plus belt clip and contractor bag; powered by M12 REDLITHIUM batteries (not included). Ideal for cabinetry, electrical, HVAC, and tight‑space fastening.

---

Key Features:

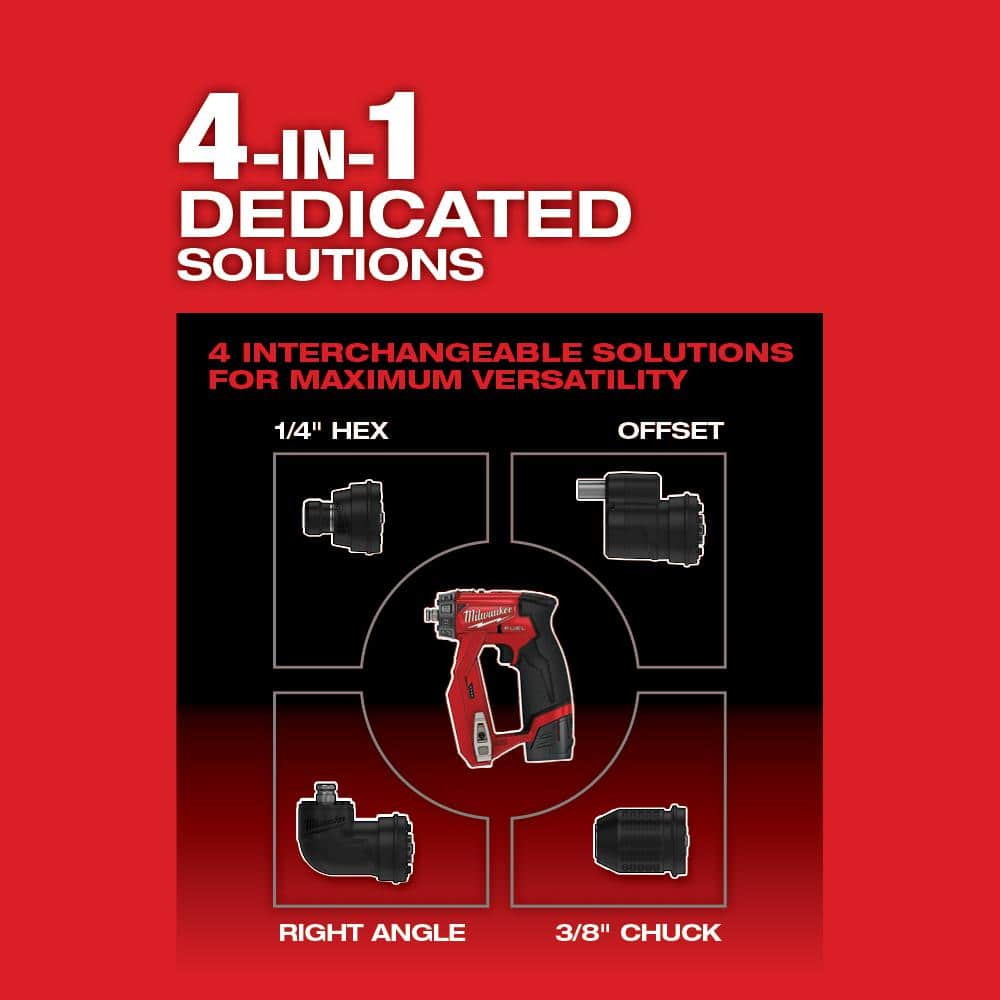

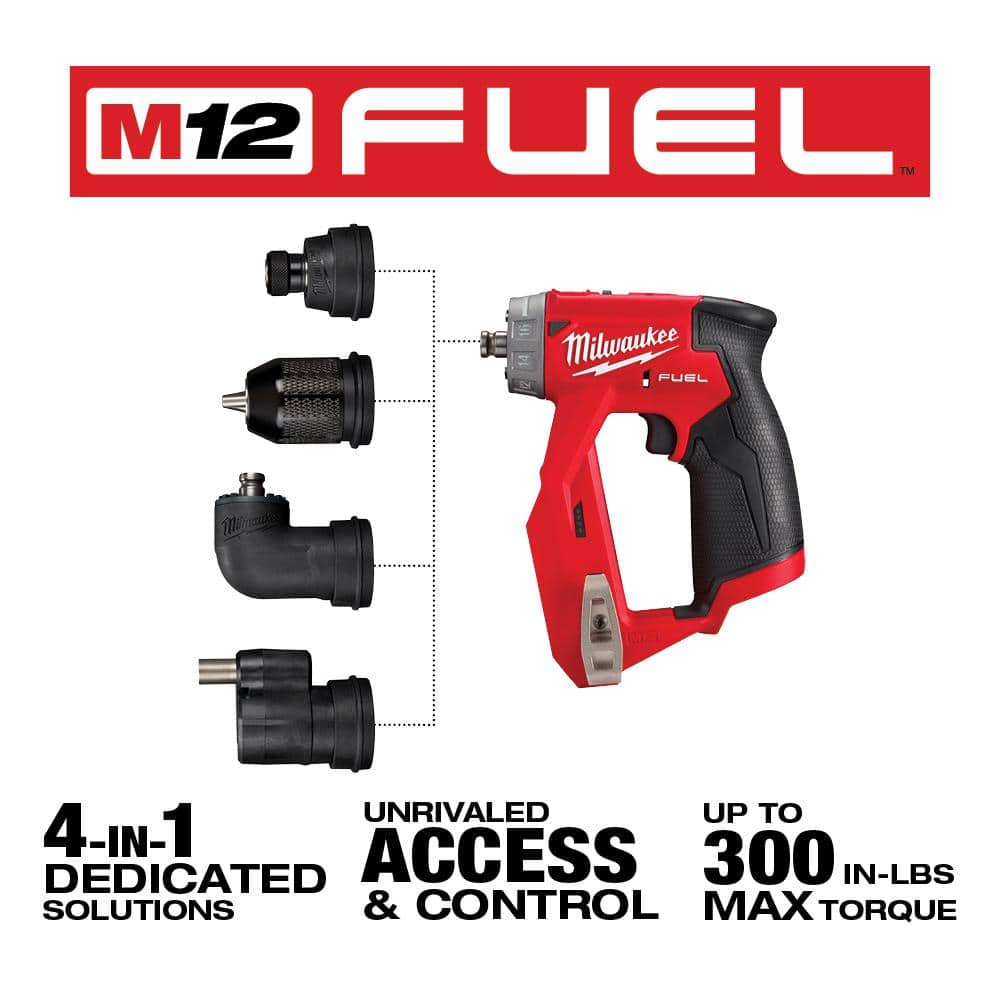

• 4-in-1 Interchangeable Heads: 3/8 in. chuck, 1/4 in. hex, offset, and right angle for maximum versatility

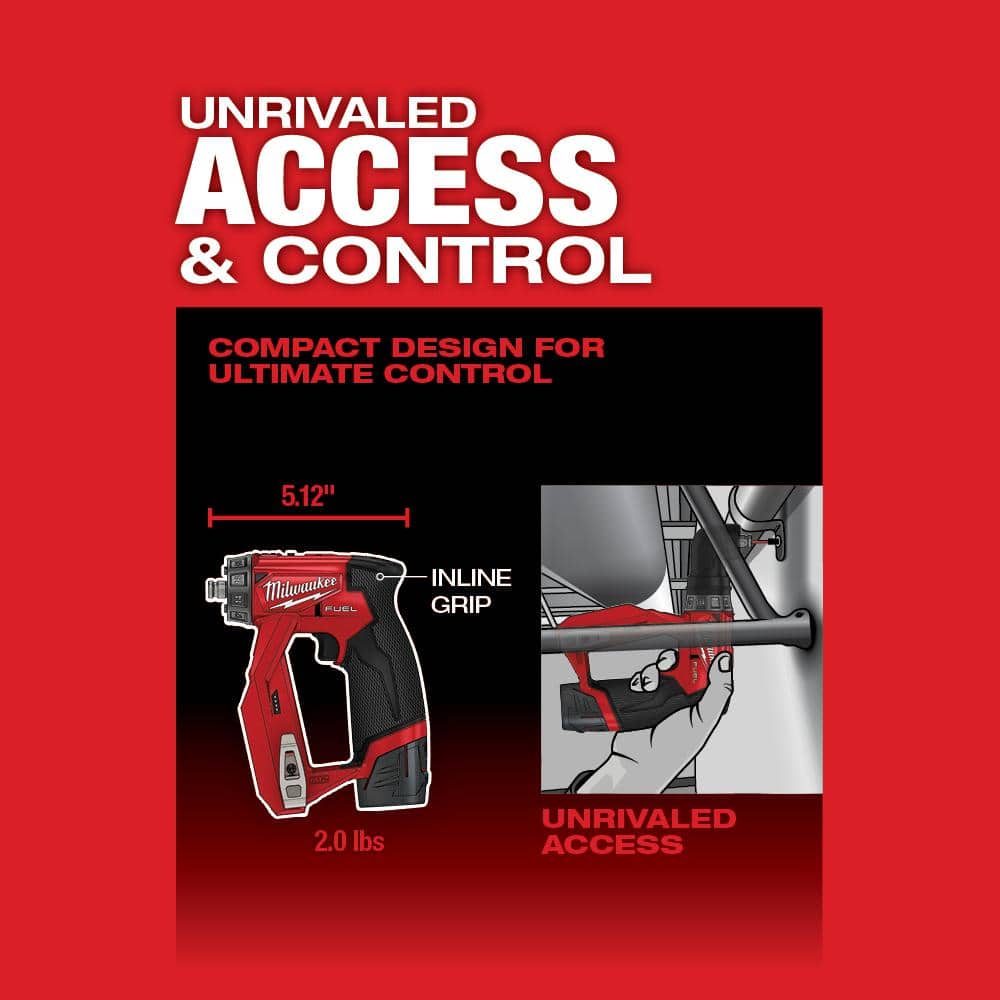

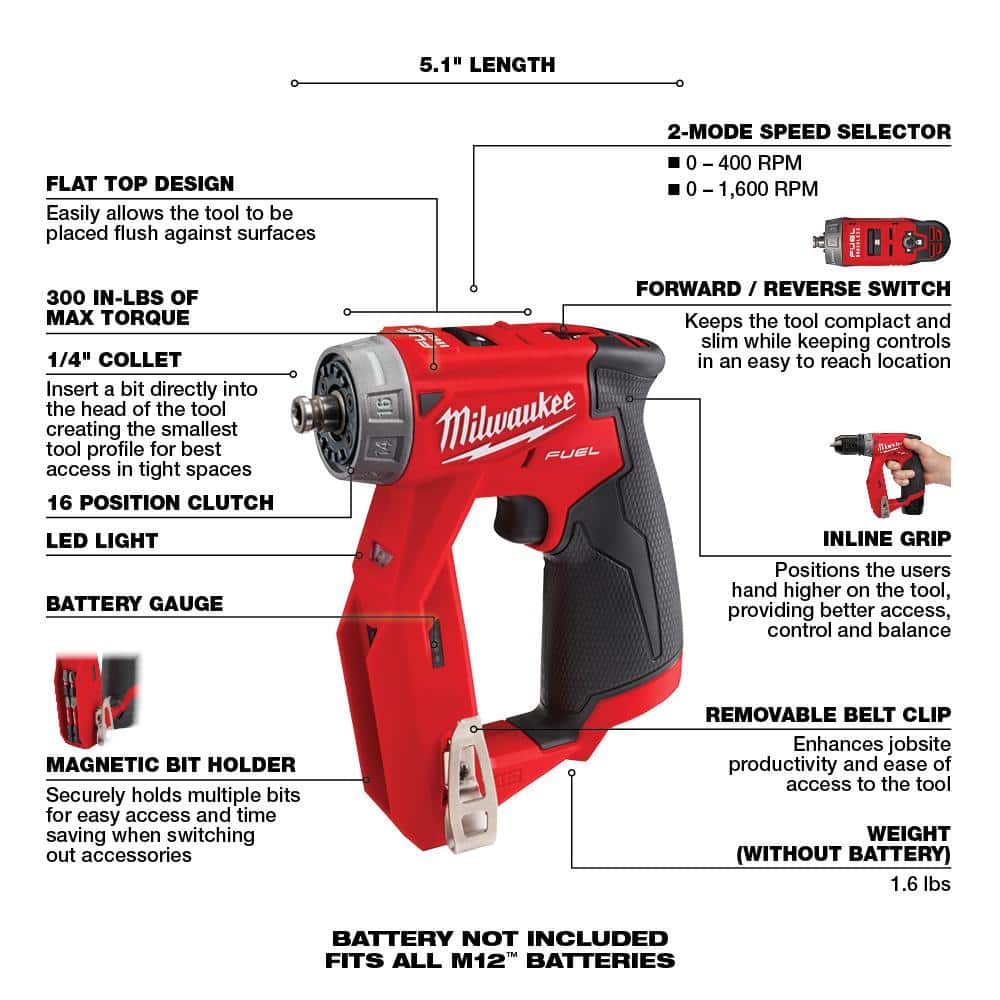

• Compact, Inline Design: 5.12 in. length with flat-top and magnetic bit holder for superior access and control
• Powerful Brushless Motor: Up to 300 in‑lbs max torque and 0–1,600 RPM with 2-mode speed selector
• Durable, User-Friendly Build: All‑metal chuck, 16-position clutch, LED light, and removable belt clip
• M12 System Compatible: Runs on all Milwaukee M12 REDLITHIUM batteries; tool only

---

Specifications Table:

Specification	Details
Model	2505-20
System	Milwaukee M12 FUEL
Voltage	12V
Battery Platform	M12 REDLITHIUM (battery not included)
Battery/Charger	Tool Only
Motor Type	Brushless

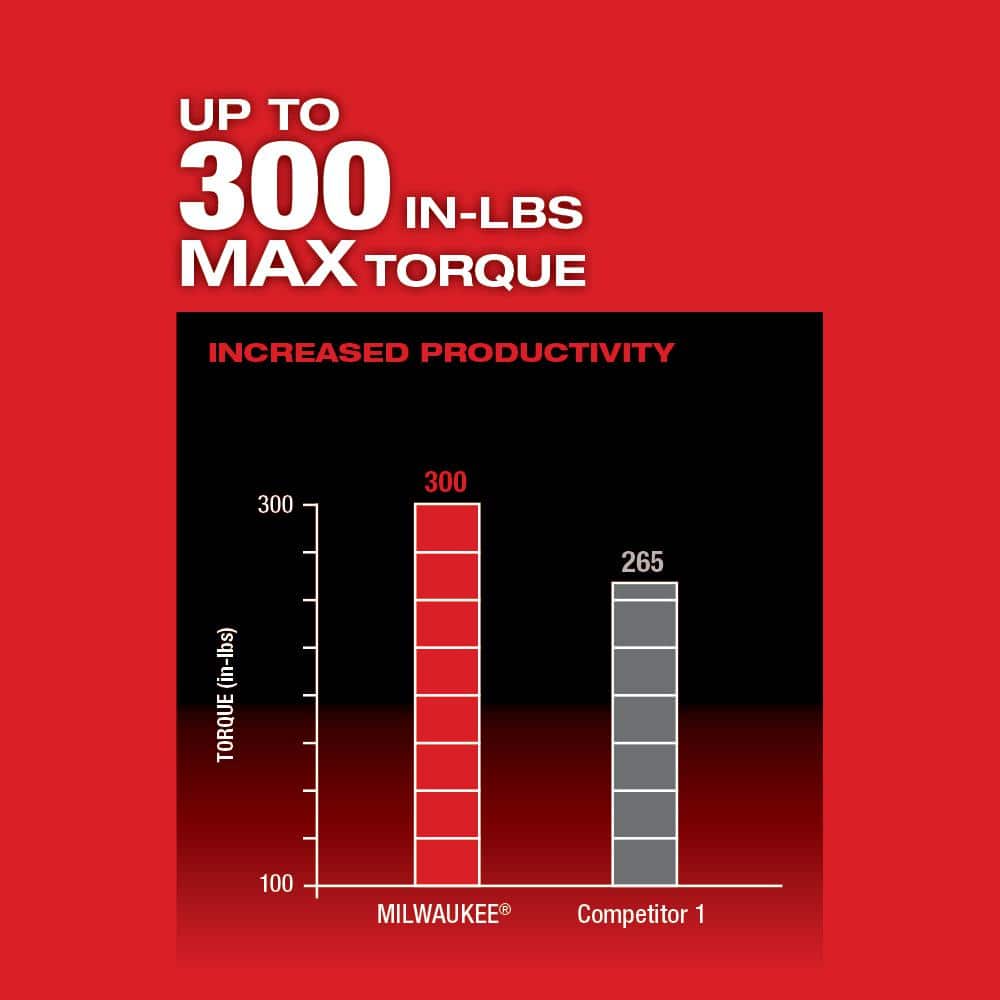

Max Torque	300 in‑lbs
No-Load Speed	0–400 / 0–1,600 RPM
Chuck Size	3/8 in.
Chuck Type	Keyless
Clutch Settings	16 positions

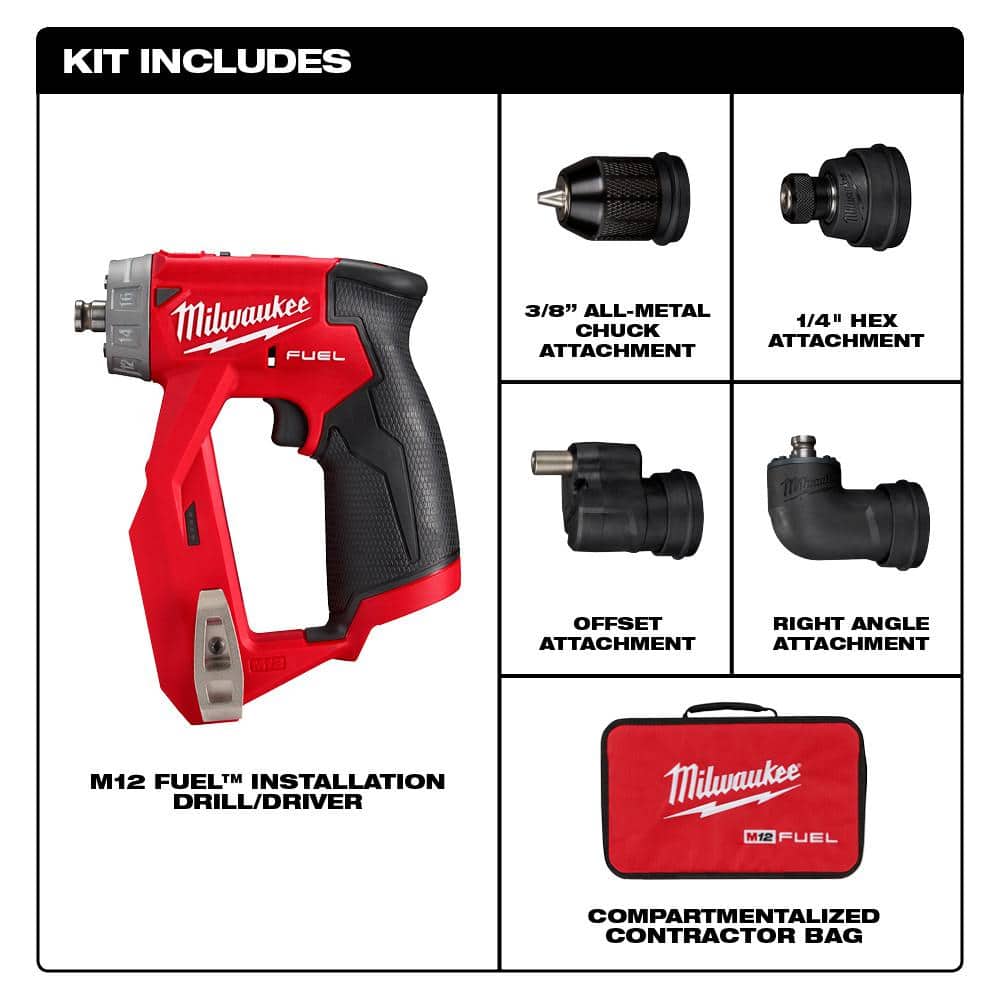

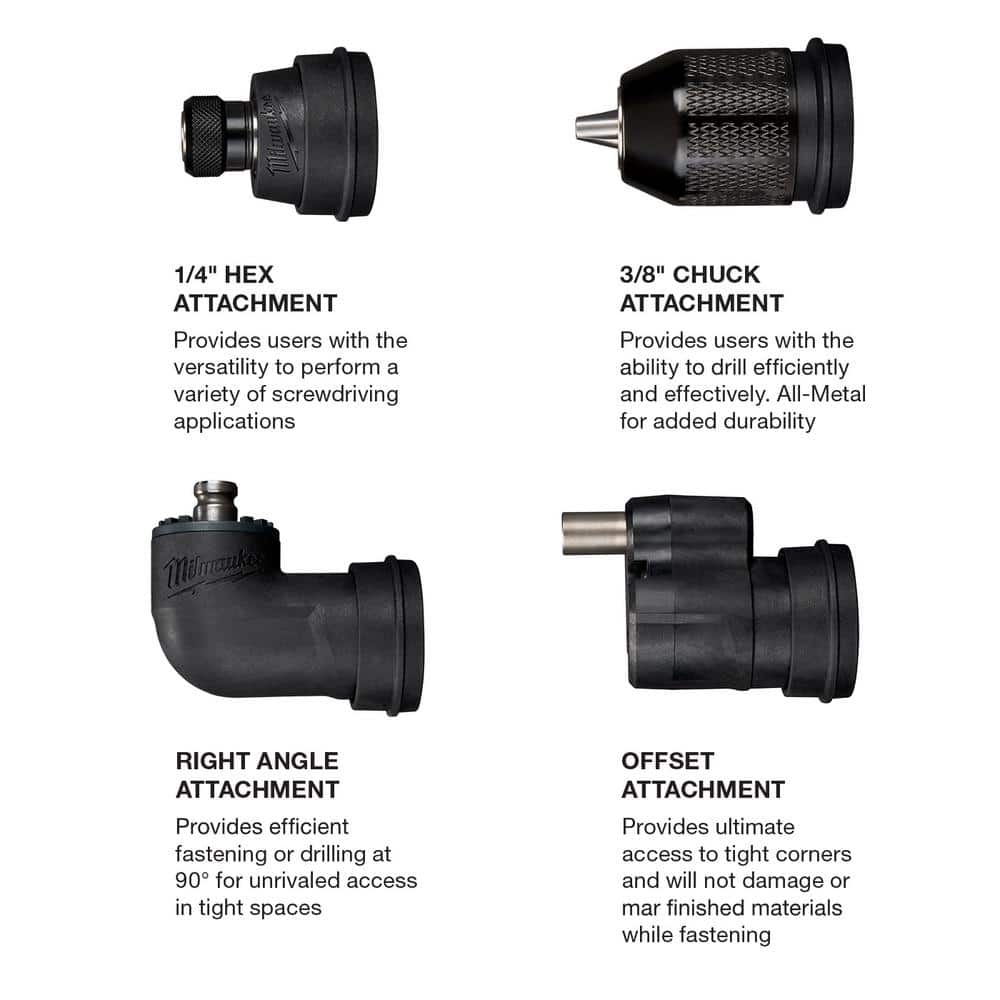

Attachments Included	3/8 in. chuck, 1/4 in. hex, offset, right angle
Head Positioning	16 attachment positions
Tool Length	5.2 in
Product Height	7 in
Product Width	1.8 in
Product Weight	1.8 lb (tool only); 2.0 lb with battery per imagery note
Color	Red
LED Light	Yes
Forward/Reverse Switch	Yes
Variable Speed	Yes

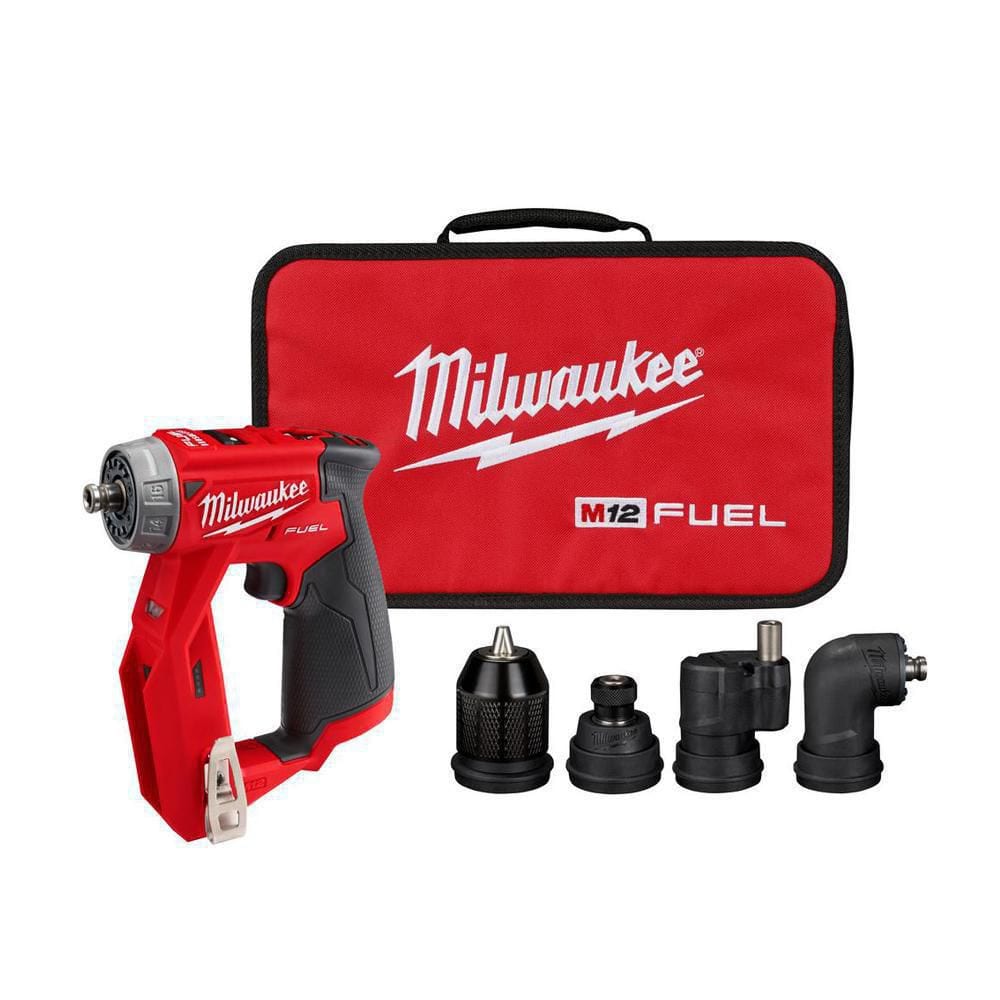

Included Accessories	Belt clip, compartmentalized contractor bag
Certifications	UL Listed
Manufacturer Warranty	5 Year Limited Warranty

---

Frequently Asked Questions (FAQ):

Q: What battery does this tool use?
A: It uses Milwaukee M12 REDLITHIUM 12V batteries; none are included with this tool-only model.

---

Q: What attachments are included?
A: Four heads: 3/8 in. all‑metal chuck, 1/4 in. hex, offset, and right‑angle attachments, plus a belt clip and contractor bag.

---

Q: How much torque and speed does it deliver?
A: Up to 300 in‑lbs of max torque with a top speed of 1,600 RPM and a 2‑mode speed selector.

---

Q: Can the heads be positioned differently?
A: Yes, the attachments connect in 16 positions for access at almost any angle.

---

Q: Is a charger included?
A: No. Charger and batteries are sold separately.

---

Precision Power for Tight, Beautiful Spaces

This compact drill/driver tucks effortlessly into cabinetry and built-ins, making finish work feel impeccably controlled. The sleek inline grip and modular heads are the standout—transforming to meet the moment without breaking your rhythm. Style it with a streamlined bit set and hang the vibrant contractor bag within reach to keep your workspace chic and orderly. It’s the small, powerful essential that elevates meticulous installs to a luxurious standard.

---

AI Review Summary:

Across major retailers, buyers praise the tool’s compact size and modular heads for getting into cabinets and tight corners; many cite strong torque for its size and smooth switching between attachments. Ergonomics and balance receive consistent compliments, especially the inline grip and clear clutch/speed controls. Common critiques include that the right‑angle head can add bulk in very tight spots, and some wish the kit included a battery/charger. A few users note minor wobble with the chuck attachment under heavy load but not a widespread issue. Representative quotes: “Game‑changer for cabinet installs,” “Surprisingly powerful for M12,” and “Wish it came with a battery, but the heads make it invaluable.”

---

Equip your toolkit with compact power and precision—add the M12 FUEL 4‑in‑1 Installation Drill/Driver to your cart today.
