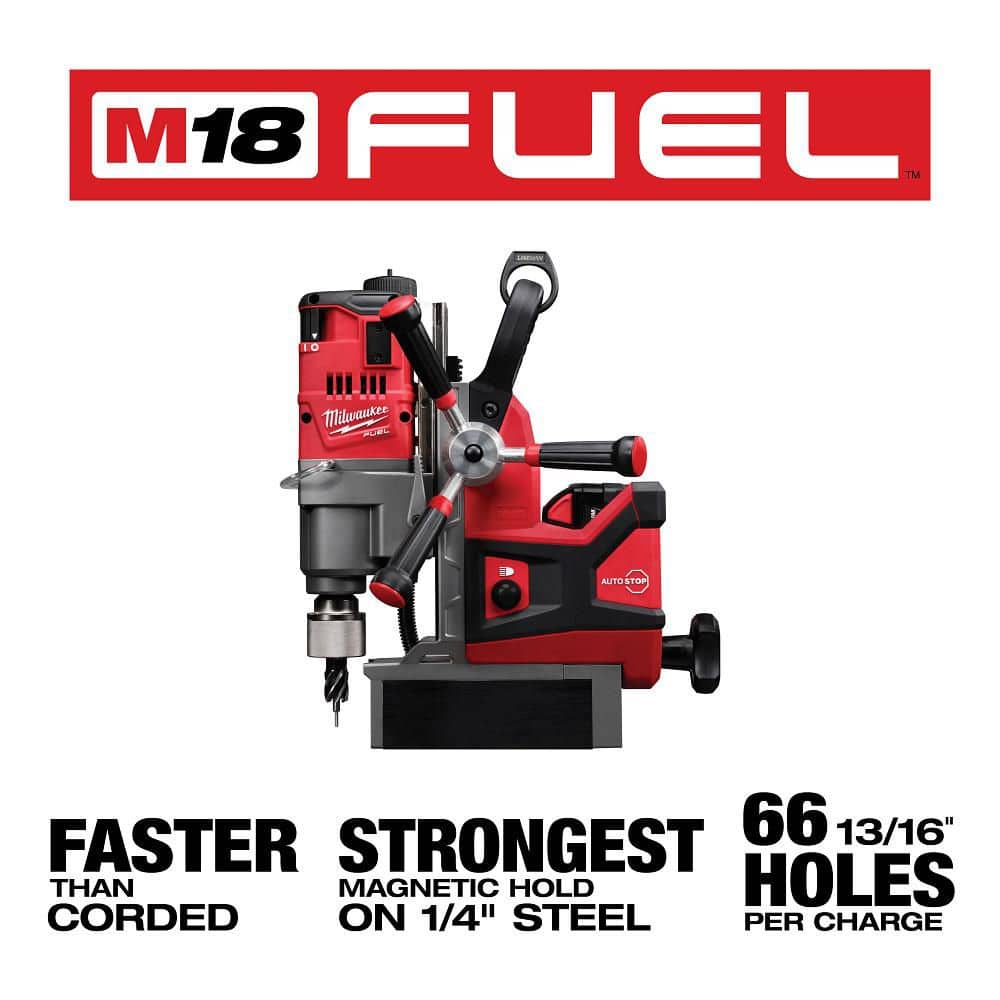

M18 FUEL 1-1/2 in. Lineman Magnetic Drill Kit

Heavy-duty cordless magnetic drill engineered for steel fabrication and utility work. POWERSTATE brushless motor, REDLINK PLUS intelligence, and a self-powered magnetic base deliver fast drilling, strong hold on 1/4 in. steel, and safer operation. Includes two REDLITHIUM HIGH OUTPUT XC8.0 batteries, rapid charger, and case.

---

Key Features:

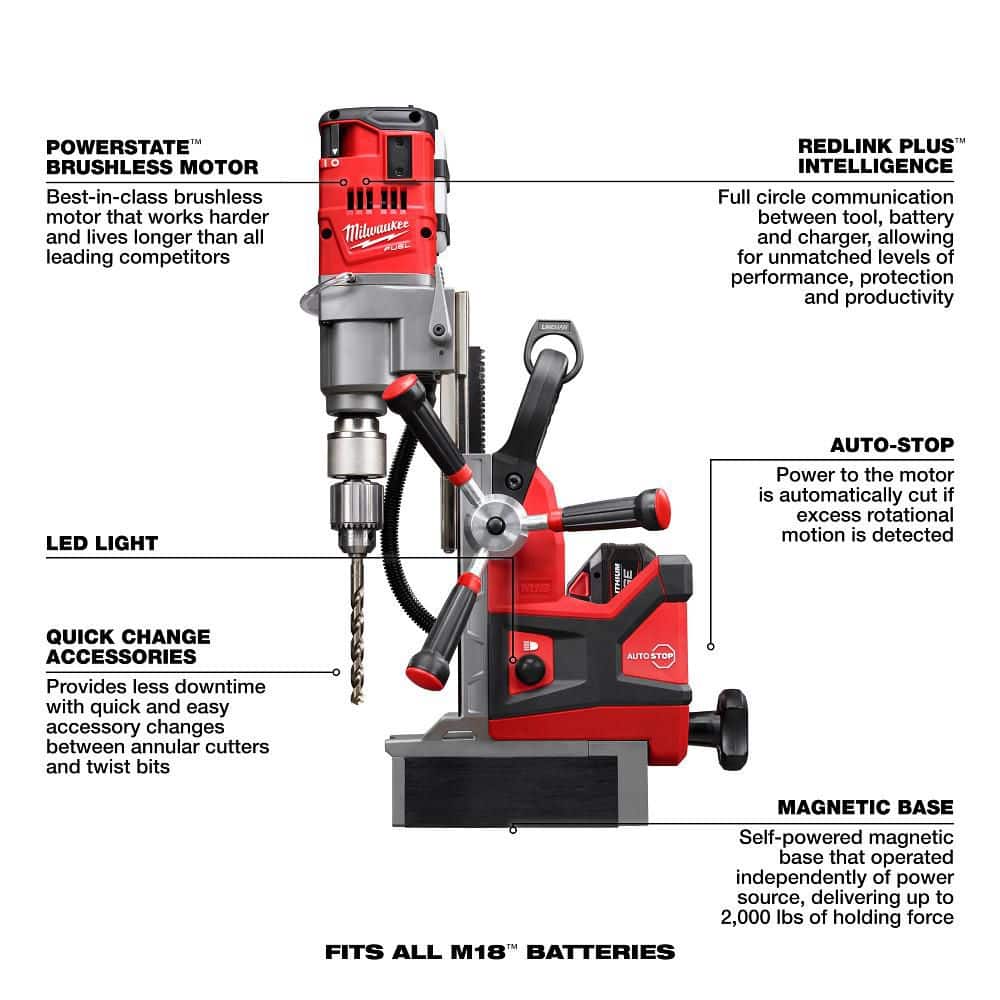

• Stronger Hold & Safety: Self-powered magnetic base provides up to 2,000 lbs holding force with Auto-Stop lift-off detection
• High Performance Motor: POWERSTATE brushless motor with REDLINK PLUS for optimized power and overload protection
• Versatile Capacity: 1-1/2 in. annular cutter and 1/2 in. twist bit capacities; 400/690 RPM 2-speed gearbox
• Long Run-Time: M18 REDLITHIUM HIGH OUTPUT XC8.0 batteries deliver extended run-time and cooler operation
• Jobsite Ready Kit: Includes rapid charger, 12V inverter, case, chuck adapter, pilot pins, lubrication tank, and safety strap

---

Specifications Table:

Specification	Details
Voltage	18V
Battery Amp Hours	8 Ah
Battery Power Type	Lithium Ion
Battery/Charger	2 Batteries & Charger Included
Number of Batteries Included	2
Charger Included	Yes (M18 & M12 Rapid Charger)
Motor Type	Brushless
Cordless/Corded	Cordless
Chuck Size	1-1/2 in.
Chuck Type	Keyed
Maximum Speed (RPM)	700 RPM (2-speed 400/690 RPM)
Annular Cutter Capacity	1-1/2 in.
Twist Bit Capacity	1/2 in.
Stroke Length	5-3/4 in.
Motor Head Adjustment	5-1/8 in.
Magnet	Permanent, operates without electricity; up to 2,000 lbs holding force
Color Family	Red
Power Tool Features	Brushless, Case Included, Variable Speed, Auto-Stop lift-off detection, LED light, Quick-change accessories
Included Accessories	3/4 in. Weldon to 1/2 in. chuck adapter, chuck key, magnetic lubrication tank, safety strap, (2) 1 in. retractable pilot pins, carrying case, 12V inverter
Product Dimensions	7.5 in. D x 13.75 in. W x 15.5 in. H
Product Weight	29.5 lb
Certifications and Listings	UL Listed
Manufacturer Warranty	5 Year On Tool & 3 Year On Batteries
Tools Product Type	Power Tool
Color	Red

---

Frequently Asked Questions (FAQ):

Q: What materials can this drill handle?
A: Designed for structural steel and most ferrous metals; 1-1/2 in. annular cutter and 1/2 in. twist bit capacities.

---

Q: Does the magnet require battery power?
A: No. The permanent-magnet base operates without electricity to maintain holding force even if a battery is drained.

---

Q: What batteries are included and are they compatible with other M18 tools?
A: Two M18 REDLITHIUM HIGH OUTPUT XC8.0 batteries are included and are compatible with all Milwaukee M18 tools.

---

Q: What are the tool dimensions and weight?
A: Approximately 7.5 in. D x 13.75 in. W x 15.5 in. H; about 29.5 lb product weight.

---

Q: What warranty comes with the kit?
A: 5-year warranty on the tool and 3-year warranty on the batteries.

---

Industrial Power, Cordless Freedom

This lineman magnetic drill brings a sculptural, purposeful presence to rugged worksites—its bold red silhouette telegraphs capability. I love the integrated, self-powered magnetic base that anchors the tool with confidence while the brushless motor hums with precision. Style it with a tidy, dedicated case setup and coordinated Milwaukee batteries so every element feels intentional and elevated. For professionals who demand performance with polish, it’s an essential expression of modern utility.

---

Equip your crew with faster, safer steel drilling—add this M18 FUEL magnetic drill kit to your cart today.
