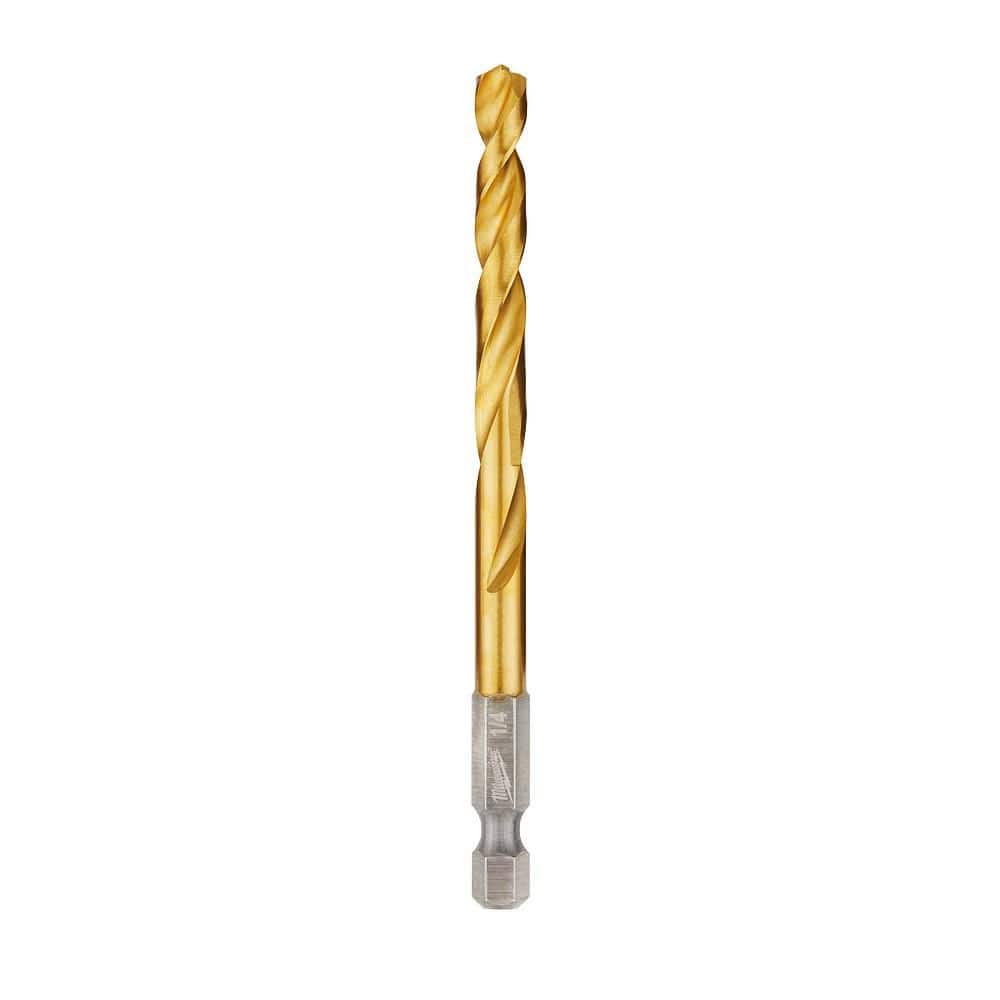

Milwaukee 1/4 in. Titanium Twist Drill Bit (Shockwave Red Helix)

Engineered for extreme durability, this Milwaukee SHOCKWAVE Red Helix titanium twist drill bit delivers rapid chip removal and longer life. Its 1/4 in. hex shank works in drills or impact drivers, while the quad-edge tip and variable helix reduce heat and increase speed across wood, plastics, and metals.

---

Key Features:

• Impact-Ready Hex Shank: 1/4 in. hex fits drills and impact drivers for secure, slip-free driving

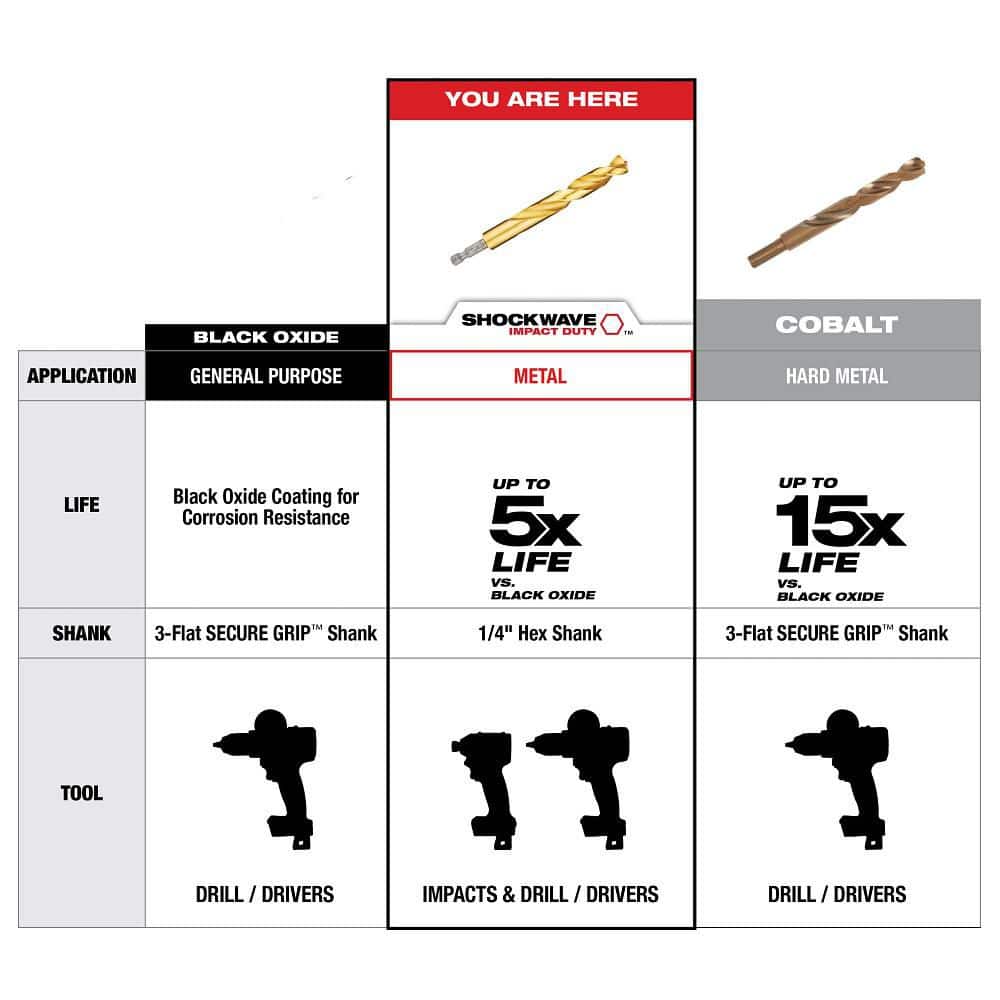

• Longer Life Titanium Coating: Up to 5X life vs. black oxide with enhanced wear resistance
• Fast Material Removal: RED HELIX variable 35°–15° flute design speeds chip ejection to stay sharper longer
• Precision Start Tip: 135° split-point quad-edge tip reduces walking and creates clean holes
• Strengthened Core: Enhanced tapered web resists breakage for consistent performance

---

Specifications Table:

Specification	Details
Bit Material	Titanium
Drill Bit Type	Twist
Drill Bit Type(s) Included	Twist
Shank Style	Hex
Individual/Set	Individual
Material Application	Aluminum, Cast Iron, Duct/Sheet Metal, Stainless Steel, Steel
Item Weight	0.05 lb

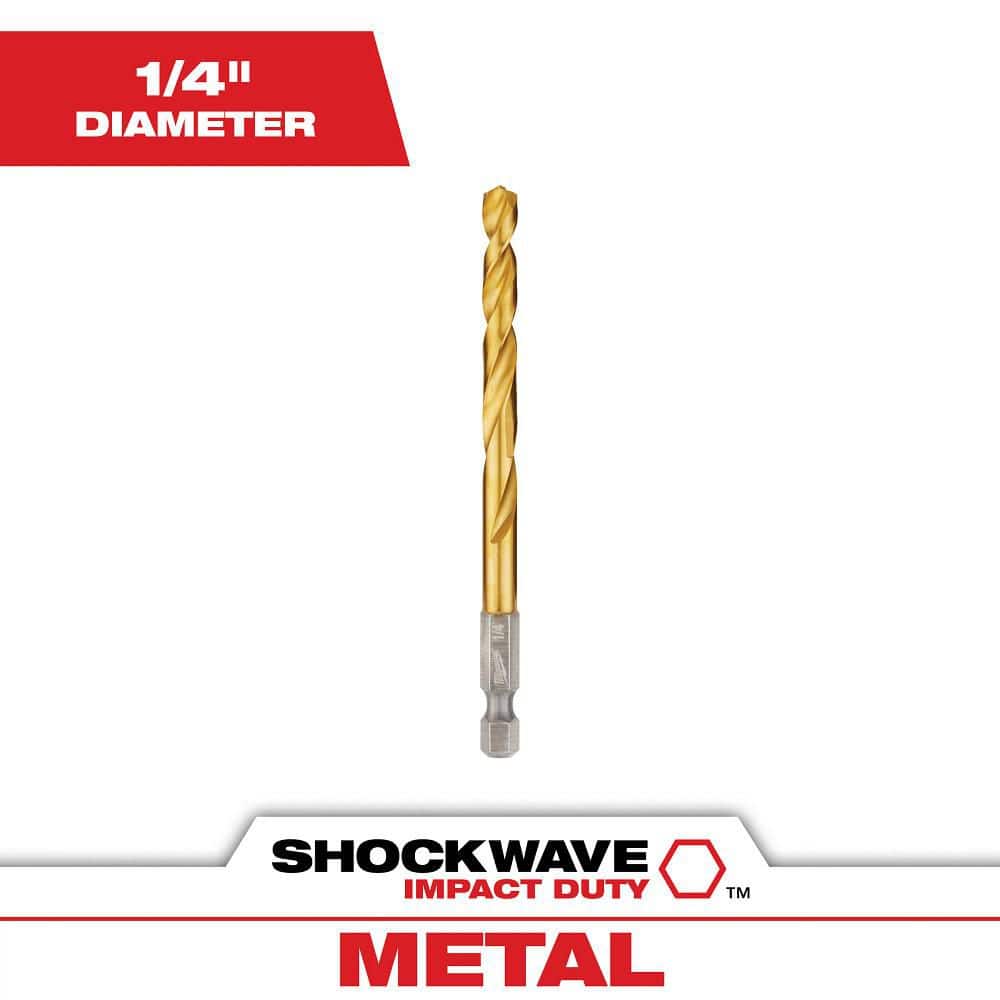

Bit Diameter	1/4 in
Shank Diameter	1/4 in
Bit Length (in.)	4.13
Assembled Width (in.)	4.13 in
Assembled Depth (in.)	1/4 in
Assembled Height (in.)	1/4 in
Tip	135° split point, Quad Edge
Helix	Variable helix 35°–15°
Returnable	180-Day
Tools Product Type	Power Tool
Self-Feeding	No

---

Frequently Asked Questions (FAQ):

Q: What tools can this bit be used with?
A: It has a 1/4 in. hex shank for use in standard drills and impact drivers.

---

Q: Which materials can it drill?

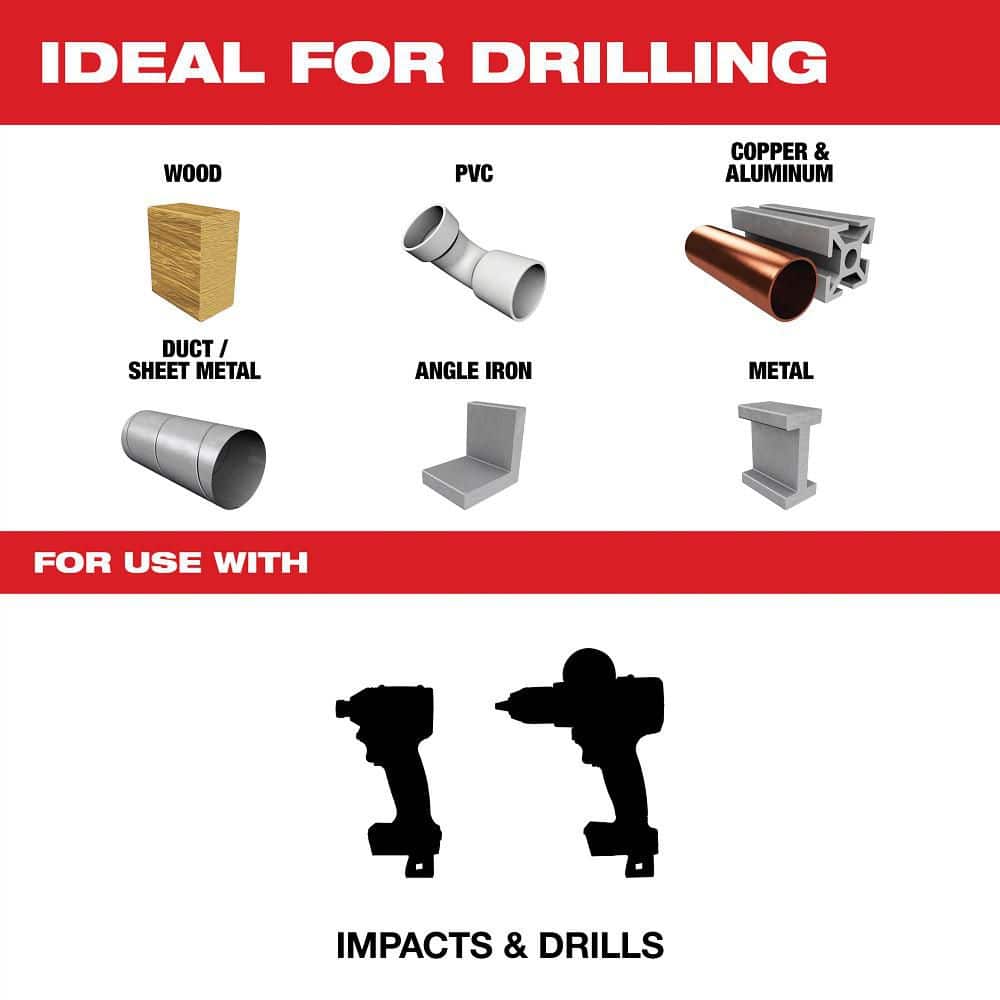

A: Suitable for wood, plastics (PVC), duct/sheet metal, angle iron, aluminum, stainless steel, and steel.

---

Q: What is the tip angle and benefit?
A: A 135° split-point tip helps start holes precisely and reduces walking.

---

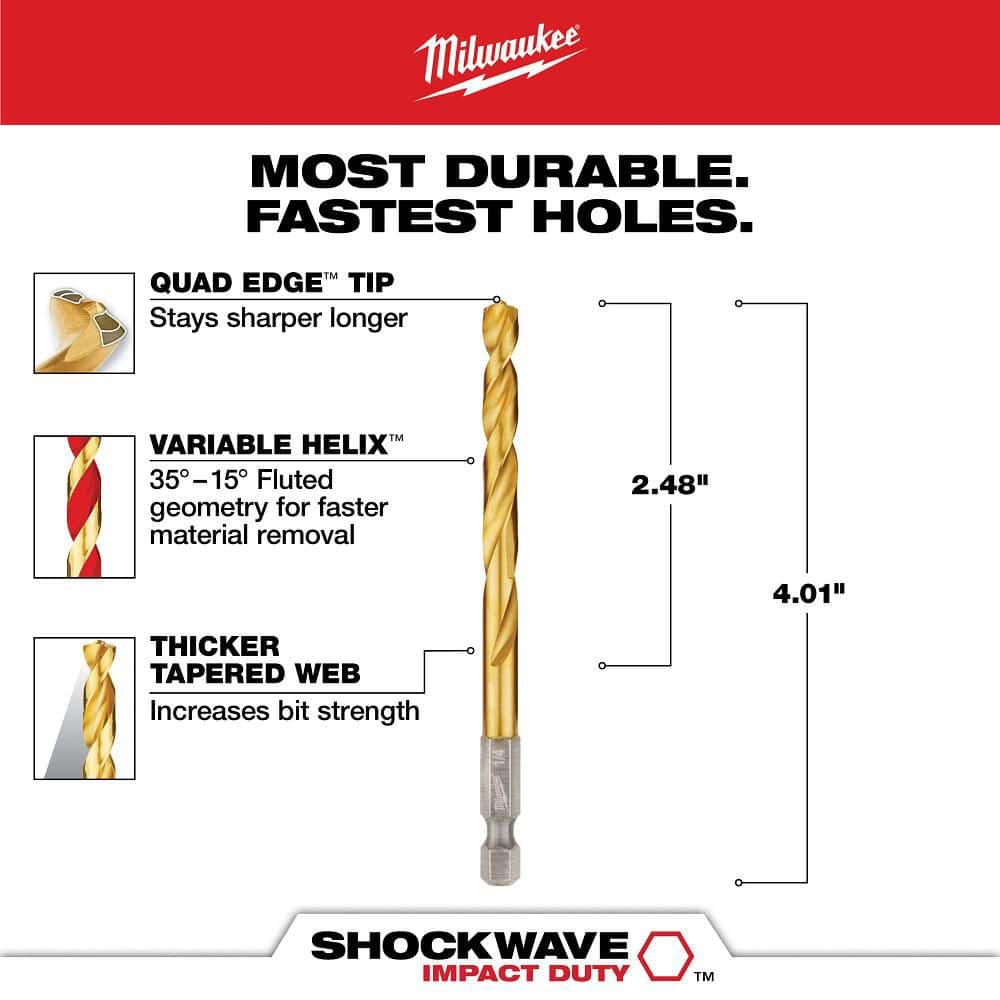

Q: What is the overall length and drilling depth?
A: Overall length is 4.13 in.; typical drilling depth shown is about 2.48 in.

---

Q: Is this sold individually or as a set?
A: Sold individually; one 1/4 in. bit is included.

---

Precision Meets Power in a Sleek Gold Finish

This titanium-coated bit brings a refined, purposeful energy to your toolkit. The sculptural Red Helix flutes create a dynamic rhythm while delivering clean, fast holes through wood and metal. Style it with your go-to impact driver—its hex shank snaps in with confidence for a streamlined workflow. Consider it the polished essential that elevates everyday projects to a more luxurious, efficient experience.

---

Upgrade your drilling with Milwaukee’s Shockwave Red Helix and enjoy faster holes and longer bit life—add it to your cart now.
