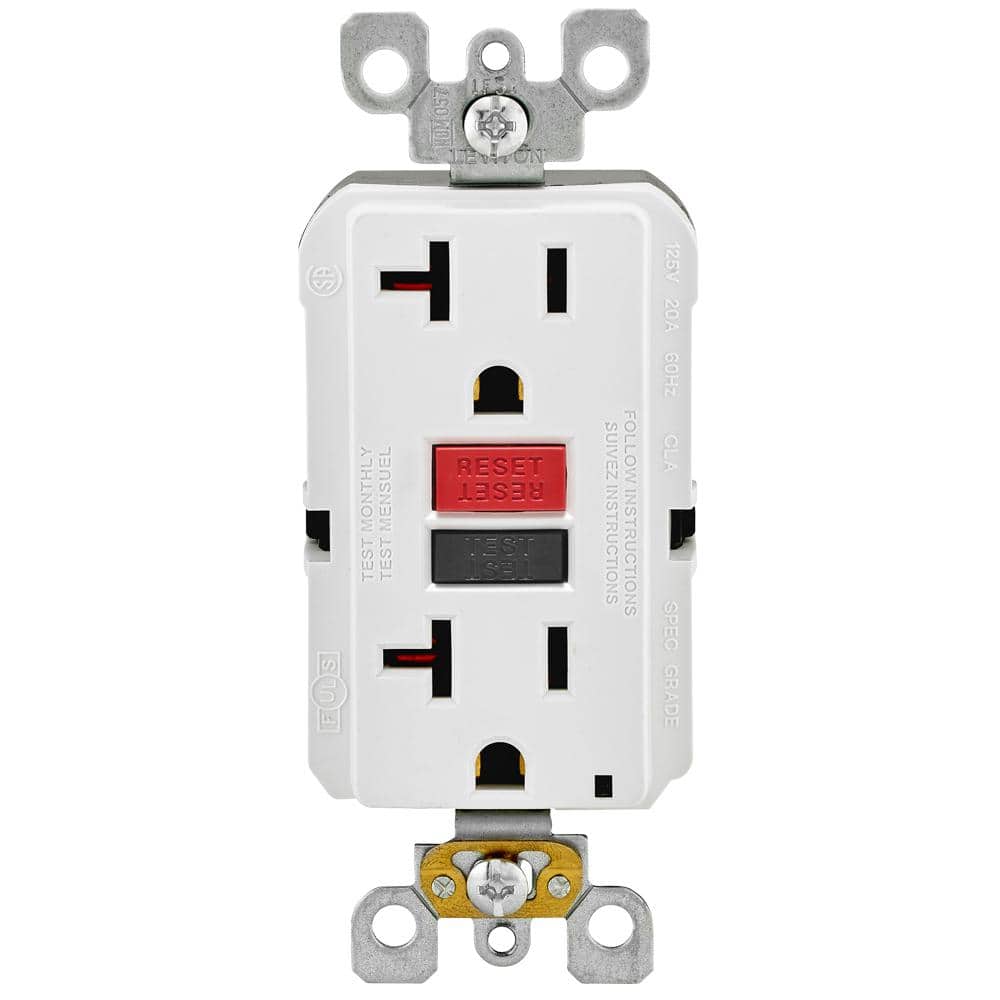

20A SmartlockPro Slim Duplex GFCI Outlet

Leviton’s SmartlockPro Self-Test GFCI delivers continuous ground-fault protection in a slim, easy-to-install duplex outlet. Auto-monitoring electronics self-test, provide status indication, and lock out reset if protection is compromised—ideal for kitchens, baths, garages, and other indoor areas.

---

Key Features:

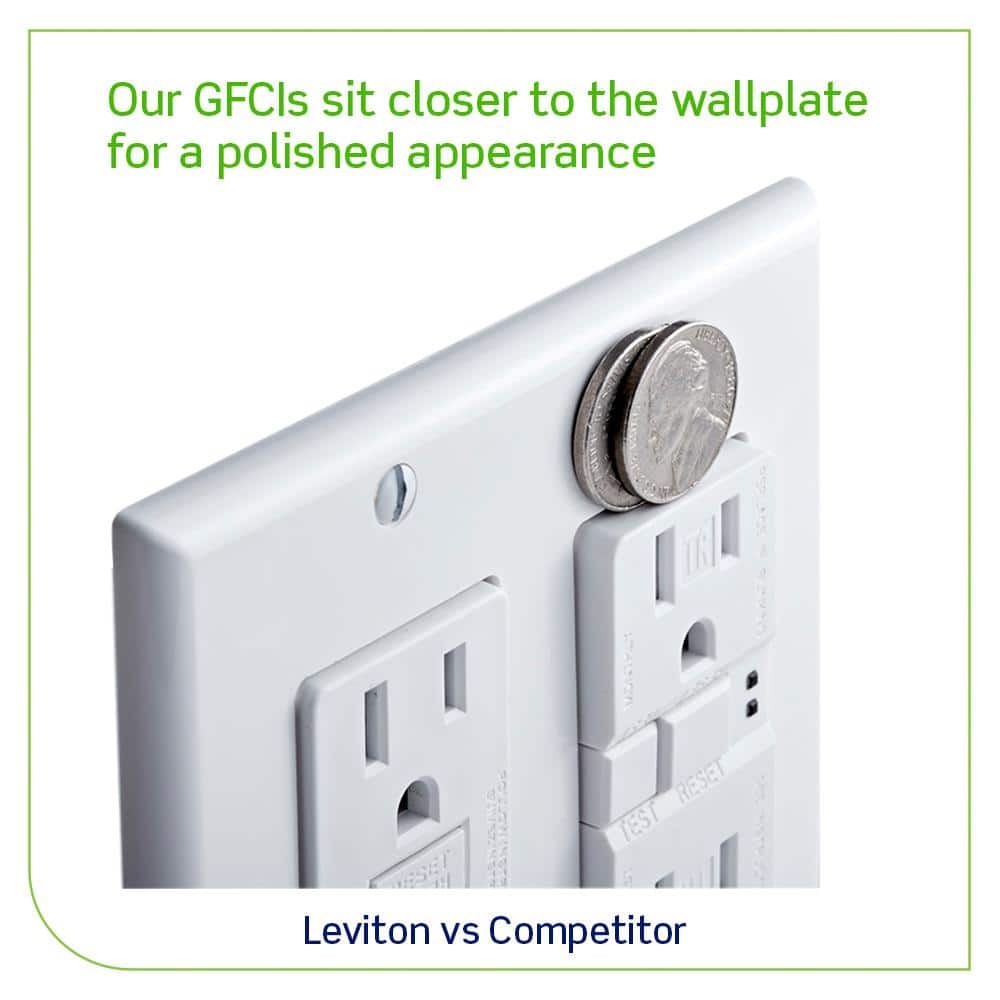

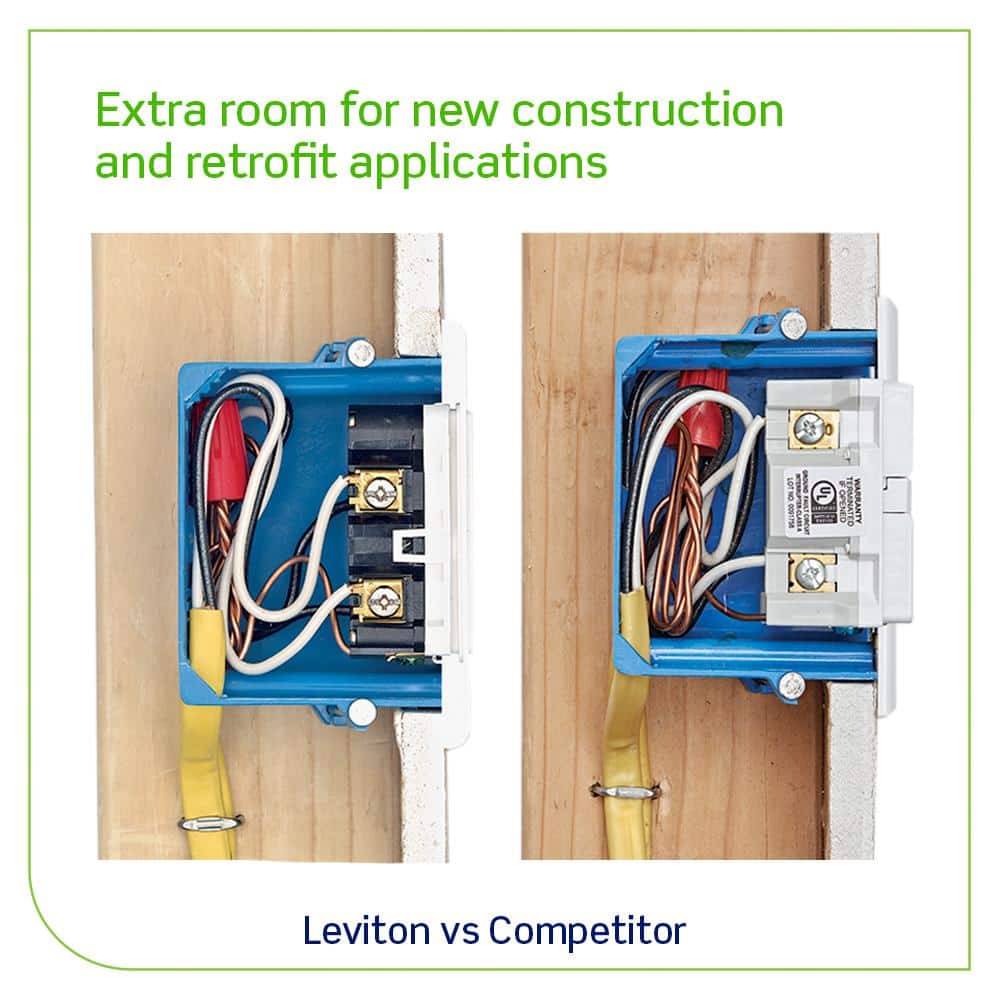

• Slim Profile Design: Reduced depth for easier installation in standard or shallow electrical boxes
• Self-Test Safety: Auto-monitoring exceeds UL requirements and locks out reset if protection is lost
• Clear Status Indication: LED/status feedback identifies power, protection, and line/load reversal
• Durable Build: Polycarbonate/nylon construction with surge-resistant electronics and self-grounding clip

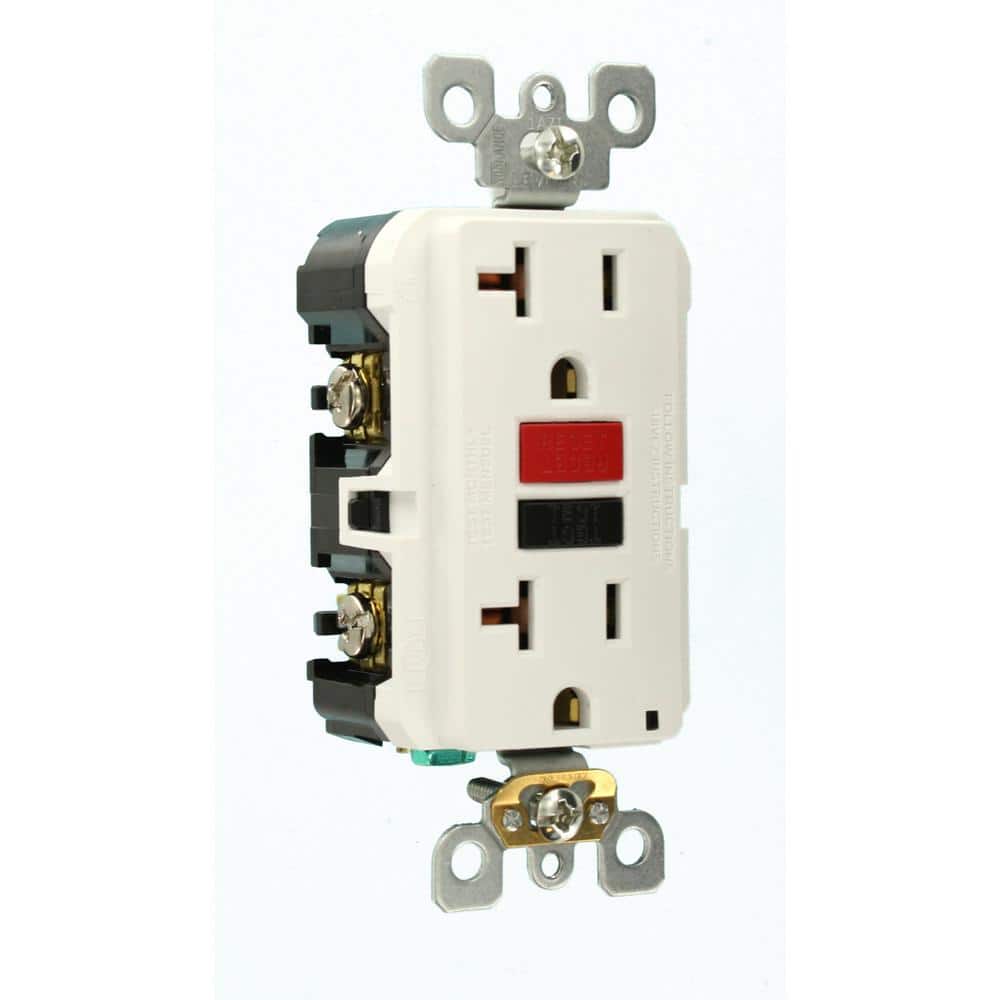

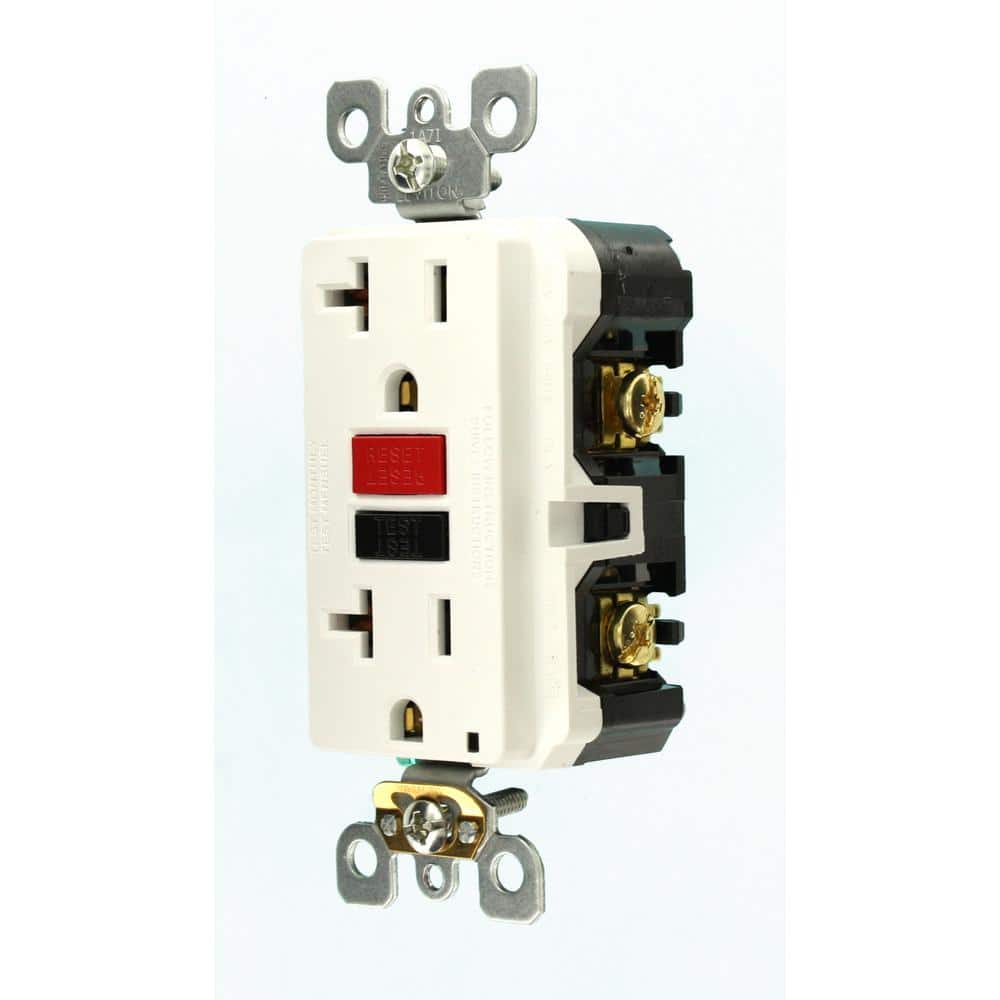

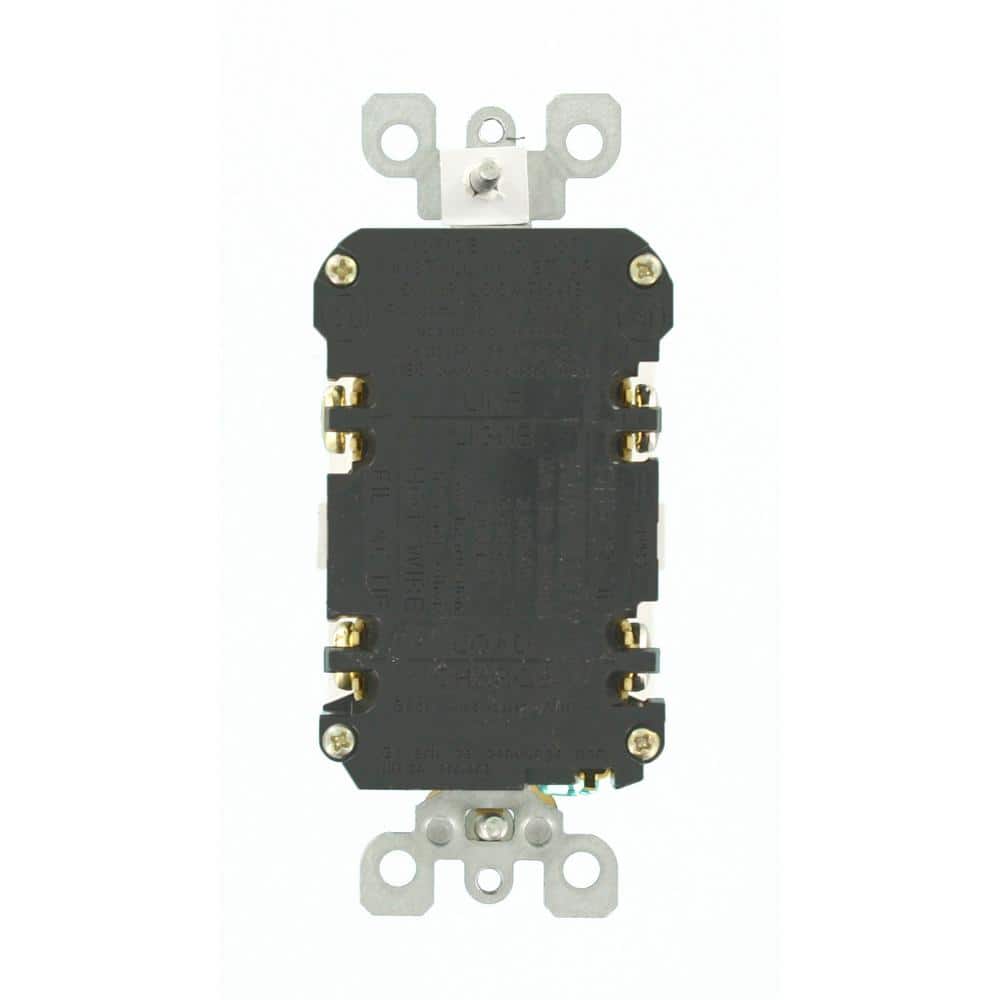

• Flexible Wiring: Side and back wire capable with external back wire clamps for secure terminations

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Amperage	20 A
Voltage	125 V
NEMA Configuration	5-20R
Receptacles	2 (Duplex)
Color/Finish	White
Color Family	White
Indoor/Outdoor	Indoor
Mounting Type	Screw-In
Wire Connection Type	Screw Terminal
Wire Connection Location	Side; back wire capable with clamps
Material	Polycarbonate; outlet face material: Nylon
Safety Rating	GFCI; Self-Test (auto-monitoring)
Grounding	Self-grounding clip
Outlet Style	Duplex Decora
USB	No USB
Package Quantity	1
Dimensions (H x W x D)	3.81 in x 1.68 in x 1.02 in
Certifications/Listings	UL Listed, CSA Certified; UL Fed Spec WC-596 rated
Manufacturer Warranty	2-Year Limited
Features	Patented reset lockout; status indicator light; surge and over-voltage resistance; improved noise immunity; reduced depth for easier installation

---

Frequently Asked Questions (FAQ):

Q: Is a wall plate included?
A: No, the wall plate is not included.

---

Q: What wiring options does it support?
A: It supports side and back wiring with screw terminals and external back wire clamps.

---

Q: Where can this GFCI be used?
A: Indoor locations requiring GFCI protection such as bathrooms, kitchens, laundry rooms, and garages.

---

Q: What is the electrical rating?
A: 20A, 125V, NEMA 5-20R duplex receptacle.

---

Q: Does it require monthly testing?
A: It self-tests automatically, but manual testing with the TEST button is recommended per instructions.

---

A Sleek Safety Essential for Refined Spaces

This GFCI’s slim silhouette nestles into the wall for a clean, tailored look that elevates everyday spaces. The crisp white face and geometric lines pair seamlessly with Decora wall plates, creating a modern, unobtrusive accent. Use it to punctuate spa-like bathrooms or polished kitchens where performance and poise matter. Safety becomes a subtle luxury—quiet, reliable, and beautifully integrated.

---

Upgrade to SmartlockPro protection today for a slimmer, safer outlet that installs fast and looks flawless.
