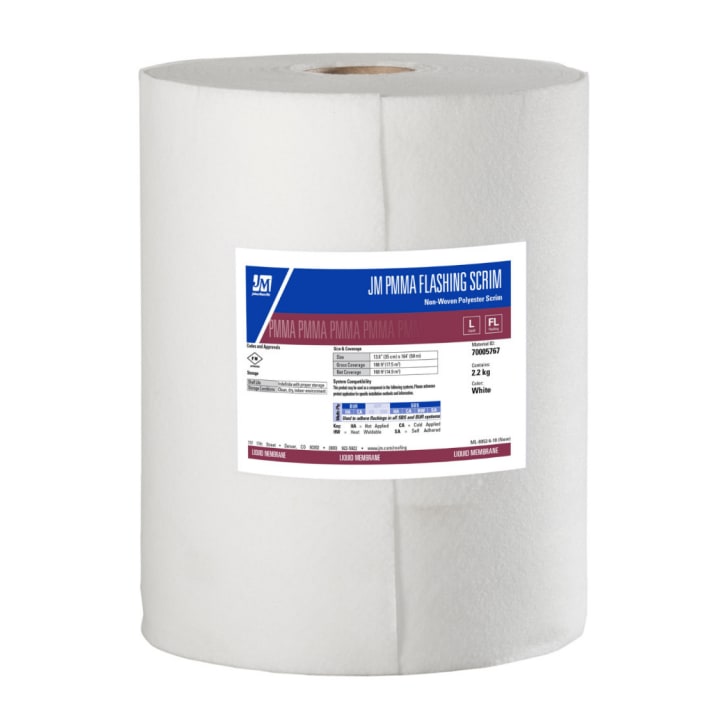

Johns Manville PMMA Scrim Reinforcement Fabric, 165 ft Rolls
Regular price $211.00Orders start at $399 — combine any items to reach the minimum. Learn more
Johns Manville PMMA Scrim Reinforcement Fabric, 165 ft Rolls
Johns Manville PMMA Scrim is a non-woven, chopped-strand fabric reinforcement used in JM PMMA liquid-applied, reinforced membrane systems. It improves tear strength, puncture resistance and crack-bridging capability of the finished membrane. Available in 13.8 in. x 165 ft and 41 in. x 165 ft white rolls, each sold as one roll per unit.
Key Features:
- Tear strength: Improves the tear strength of PMMA liquid-applied membrane systems.
- Puncture resistance: Reinforcement increases puncture resistance of the cured membrane.
- Crack bridging: Enhances the membrane's ability to bridge substrate cracks.
- Non-woven fabric: Made as a non-woven, chopped strand fabric reinforcement.
- Two widths: Offered in 13.8 in. and 41 in. widths, both 165 ft long.
- System component: Designed for embedding in JM PMMA liquid-applied, reinforced membrane systems.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Johns Manville |
| Sell unit | 1 roll, 13.8 in. or 41 in. x 165 ft |
| Product line | JM PMMA |
| Material | Non-woven, chopped strand fabric |
| Color / finish | White |
| Available sizes | ['13.8 in. x 165 ft', '41 in. x 165 ft'] |
| Dimensions | 13.8 in. or 41 in. wide, 165 ft long per roll |
| Length | 165 ft |
| Intended use | Reinforcement embedded in JM PMMA liquid-applied, reinforced membrane systems |
Coverage & How Much You Need:
Each 165 ft roll covers 165 linear feet at its width: about 189 square feet at 13.8 in. or about 564 square feet at 41 in., before waste. Size your order by linear feet of field and detail areas, and lap scrim edges per the JM PMMA system guidelines.
Fit and Compatibility:
Used only within JM PMMA liquid-applied, reinforced membrane systems with JM PMMA primers, resins and catalyst. Choose the 41 in. roll for open field areas and the 13.8 in. roll for details, penetrations and narrow flashing runs.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: Two roll sizes: 13.8 in. x 165 ft and 41 in. x 165 ft, both in white and sold one roll per unit.
Q: What does the scrim do?
A: It reinforces the PMMA liquid-applied membrane, improving tear strength, puncture resistance and crack bridging.
Q: How much area does a roll cover?
A: A 165 ft roll covers roughly 189 sq ft in the 13.8 in. width or about 564 sq ft in the 41 in. width before laps and waste.
Q: Which width should I buy?
A: Use the 41 in. width for efficient field coverage and the 13.8 in. width for details, seams and flashing areas.
Q: Is it cut or trimmed on site?
A: Yes, it is a flexible fabric reinforcement that can be cut to fit details and field runs as the system design requires.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Embed scrim fully wetted into the PMMA resin, working it out flat with no wrinkles or dry spots, then top-coat immediately so the fabric is fully encapsulated. Plan laps so edges overlap the system's specified amount, and keep the 13.8 in. roll on hand for vertical details where the wide roll cannot conform. Buy field and detail rolls separately to control waste.
Handle and trim reinforcement fabric with care, wearing gloves to protect against fiber irritation and cuts from utility knives.
Order Johns Manville PMMA Scrim in 13.8 in. or 41 in. rolls for reinforced PMMA membrane strength.
