Johns Manville Heat-Weldable TPO Cover Tape, 6 in. x 100 ft Roll, White
Regular price $432.00Johns Manville Heat-Weldable TPO Cover Tape, 6 in. x 100 ft Roll, White

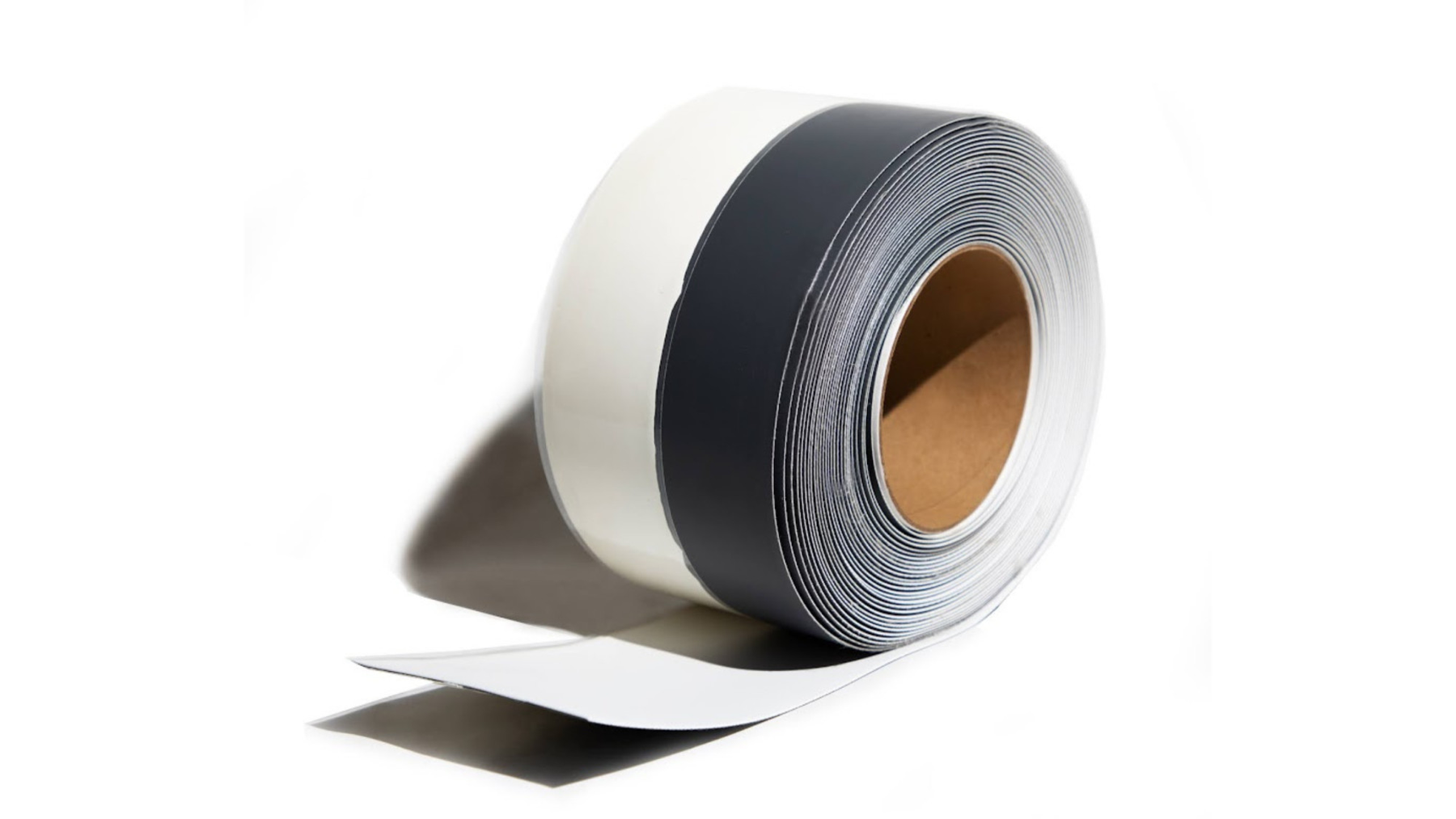

Johns Manville Heat-Weldable TPO Cover Tape is a 6 in. wide, flexible, reinforced TPO membrane tape used to strip in metal flanges on JM TPO membrane systems. Each roll is 6 in. x 100 ft, with a 60 mil reinforced TPO membrane over a 3 in. factory-applied peel-and-stick adhesive. One white roll per order unit.
Key Features:
- Strips metal flanges: Designed to strip in metal flanges on JM TPO membrane systems with a Heat Weldable detail on one side.
- Reinforced membrane: 60 mil (1.52 mm) thick reinforced TPO membrane for durable terminations.
- Peel-and-stick base: 3 in. wide by 30 mil (0.76 mm) thick factory-applied adhesive tape for positioning before heat welding.
- Flexible conformability: Flexible reinforced TPO conforms to irregular details and flange profiles.
- 100 ft roll: Each roll provides 100 linear feet of 6 in. wide tape.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Johns Manville |
| Sell unit | 1 roll, 6 in. x 100 ft |
| Product line | JM TPO Membrane Accessories |
| Material | Reinforced TPO (thermoplastic polyolefin) membrane |
| Color / finish | White |
| Dimensions | 6 in. wide x 100 ft long |
| Nominal size | 6 in. x 100 ft |
| Thickness | 60 mil (1.52 mm) membrane; 30 mil (0.76 mm) adhesive |
| Coverage per unit | 100 linear ft per roll |
| Intended use | Strip-in of metal flanges on JM TPO systems, or use as directed by JM technical services |
Coverage & How Much You Need:
One 100 ft roll strips approximately 100 linear feet of metal flange with the 6 in. tape width. Measure total flange and detail lengths and add waste for seams and cuts before ordering rolls.
Fit and Compatibility:
For use with Johns Manville TPO membrane systems, particularly where a Heat Weldable detail is called for; other uses only as directed by JM technical services. JM TPO membrane, flashing and primer/cleaner are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in one order unit?
A: One white 6 in. x 100 ft roll of JM Heat-Weldable TPO Cover Tape.
Q: What is it used for?
A: It strips in metal flanges on JM TPO membrane systems where a Heat Weldable detail applies, or as directed by JM technical services.
Q: How is it installed?
A: Position the tape using its 3 in. factory-applied peel-and-stick adhesive, then heat weld the exposed TPO side.
Q: How thick is the tape?
A: The reinforced TPO membrane is 60 mil (1.52 mm) thick with a 30 mil (0.76 mm) adhesive layer.
Q: What membrane systems is it compatible with?
A: It is made for JM TPO membrane systems; verify detail compatibility with JM technical services for non-standard uses.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Heat-weldable cover tape is the go-to for stripping raised metal flanges because it combines instant tack from the peel-and-stick backing with a weldable TPO cap, giving a continuous reinforced termination. Keep rolls warm and clean, dry the membrane surface, and probe all welds after cooling. Use only on JM TPO, as the chemistry is matched to that membrane and may not weld to other brands.
Heat welding uses open-flame or hot-air equipment; follow fire safety procedures and the manufacturer's installation and SDS guidance.
Order the Johns Manville Heat-Weldable TPO Cover Tape 6 in. x 100 ft roll for your next TPO detail.
