Johns Manville EPDM Pre-Taped Curb Flashing, 18 in. to 24 in. x 50 ft. Roll, Black or White
Regular price $446.00Orders start at $399 — combine any items to reach the minimum. Learn more
Johns Manville EPDM Pre-Taped Curb Flashing, 18 in. to 24 in. x 50 ft. Roll, Black or White

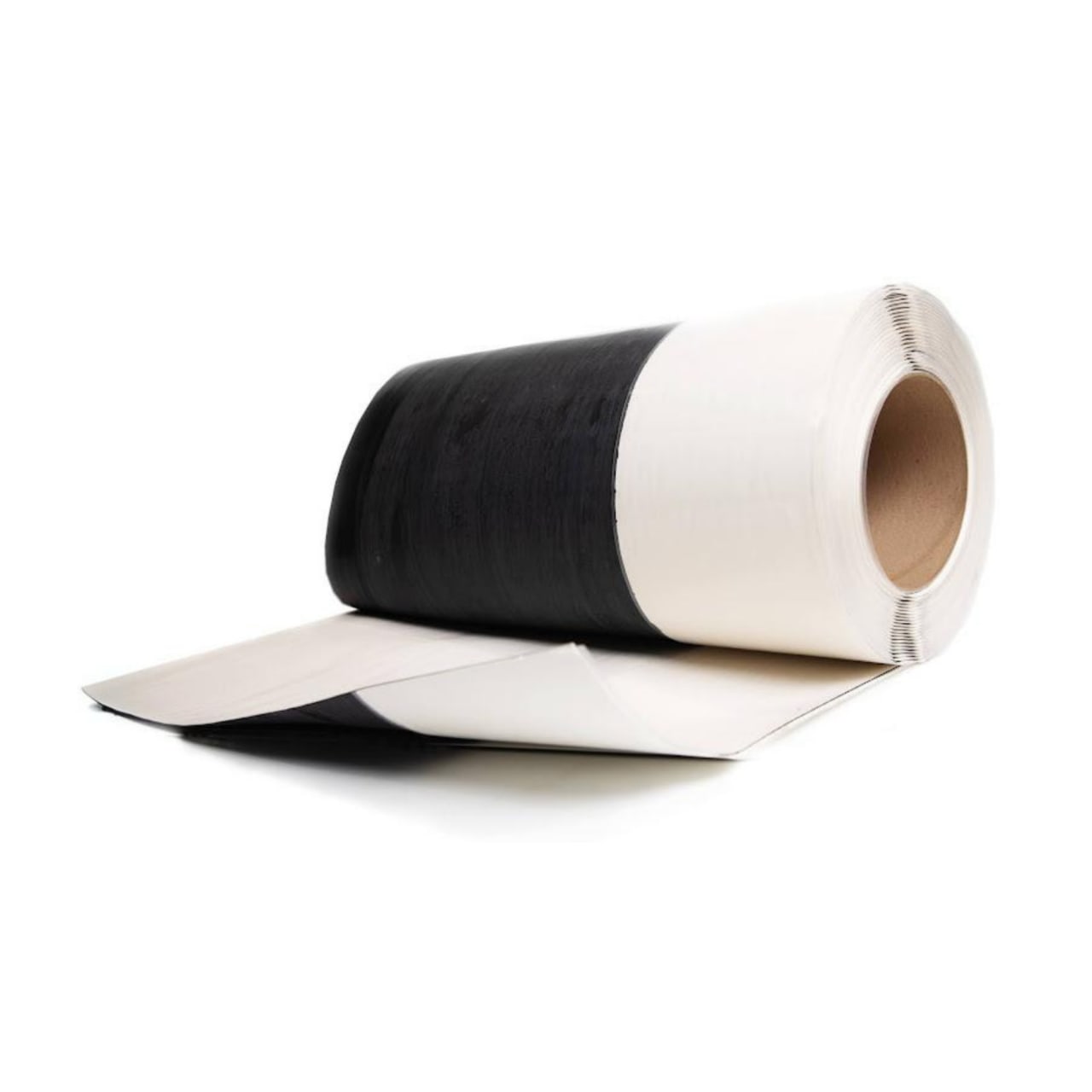

JM EPDM Pre-Taped Curb Flashing is a 60 mil EPDM strip with a factory-laminated 3 in. or 6 in. self-adhering EPDM tape and release liner, used to flash curbs quickly with a consistent, clean appearance. Choose Black in 18 in. or 24 in. x 50 ft. rolls, or White in a 20 in. x 50 ft. roll with 6 in. tape. One roll per sell unit.
Key Features:
- 60 mil EPDM: Made of 60 mil (1.52 mm) thick EPDM for durable curb flashing.
- Factory-laminated tape: Ships with a 3 in. or 6 in. factory-laminated self-adhering EPDM tape and release liner.
- Fast curb flashing: Flashes curbs efficiently with a consistent, clean appearance.
- White option: White 20 in. x 50 ft. strip with 6 in. tape suits light-colored or reflective roof surfaces.

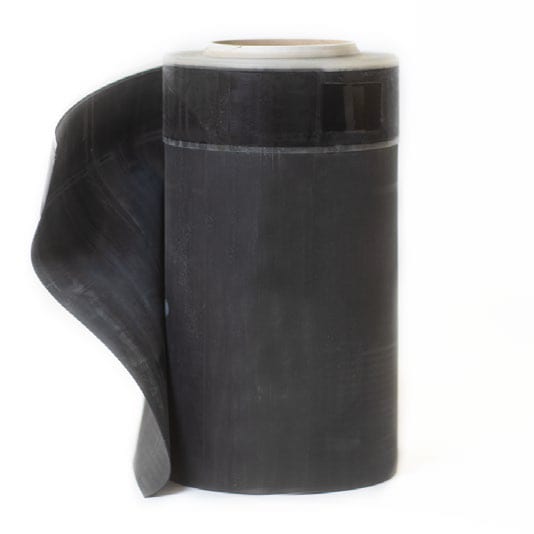

- Black options: Black rolls are offered in 18 in. and 24 in. widths, each 50 ft. long.
- Long roll length: 50 ft. rolls reduce laps and speed installation around multiple curbs.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Johns Manville |
| Sell unit | 1 roll, 50 ft. |
| Product line | JM EPDM systems accessories |
| Available colors | Black, White |
| Available sizes | Black 18 in. x 50 ft., Black 24 in. x 50 ft., White 20 in. x 50 ft. |
| Dimensions | 18 in., 20 in., or 24 in. wide x 50 ft. long |
| Thickness | 60 mil (1.52 mm) |
| Material | EPDM rubber |
| Finish / texture | Non-reinforced EPDM with factory-laminated self-adhering EPDM tape and release liner |
| Coverage per unit | 50 linear ft. per roll |
| Intended use | Flashing curbs on EPDM roof systems |
Coverage & How Much You Need:
Each 50 ft. roll flashes approximately 50 linear feet of curb perimeter for a single-row application; allow extra length for curb corners and termination. Choose 18 in., 20 in., or 24 in. width based on curb height plus horizontal leg.
Fit and Compatibility:
Designed for use within Johns Manville EPDM roof systems; pair with JM primers and sealants per the system specification. The 3 in. tape version is listed in JM product text while the current line items show the White strip with 6 in. tape; verify tape width when ordering.
Frequently Asked Questions (FAQ):
Q: What comes on a roll?
A: A 60 mil EPDM strip with a factory-laminated self-adhering EPDM tape protected by a release liner.
Q: How much curb will one roll flash?
A: Rolls are 50 ft. long, so one roll covers about 50 linear feet of curb perimeter before corner allowances.
Q: Which widths are available?
A: Black is offered in 18 in. and 24 in. widths, and White in a 20 in. width, all 50 ft. long.
Q: Why choose the White version?
A: The White 20 in. x 50 ft. strip provides a consistent, clean appearance on lighter roof surfaces and includes 6 in. tape.
Q: How is it installed?
A: Position the strip at the curb, remove the release liner from the factory-laminated tape, and adhere per the JM EPDM system specification.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Pre-taped curb flashing removes the field-laminating step, so it is a strong choice when you want repeatable, clean curb details across many penetrations. Pick the roll width from curb height plus the required horizontal leg, and keep the 6 in. tape version for curbs where extra bond width helps. Clean and prime the substrate per the JM specification before adhering.
Adhered flashing work on curbs can put you near roof edges and penetrations; maintain fall protection and follow the membrane manufacturer's priming and temperature guidelines.
Order JM EPDM Pre-Taped Curb Flashing in Black or White to flash curbs fast with a factory-laminated tape edge.
