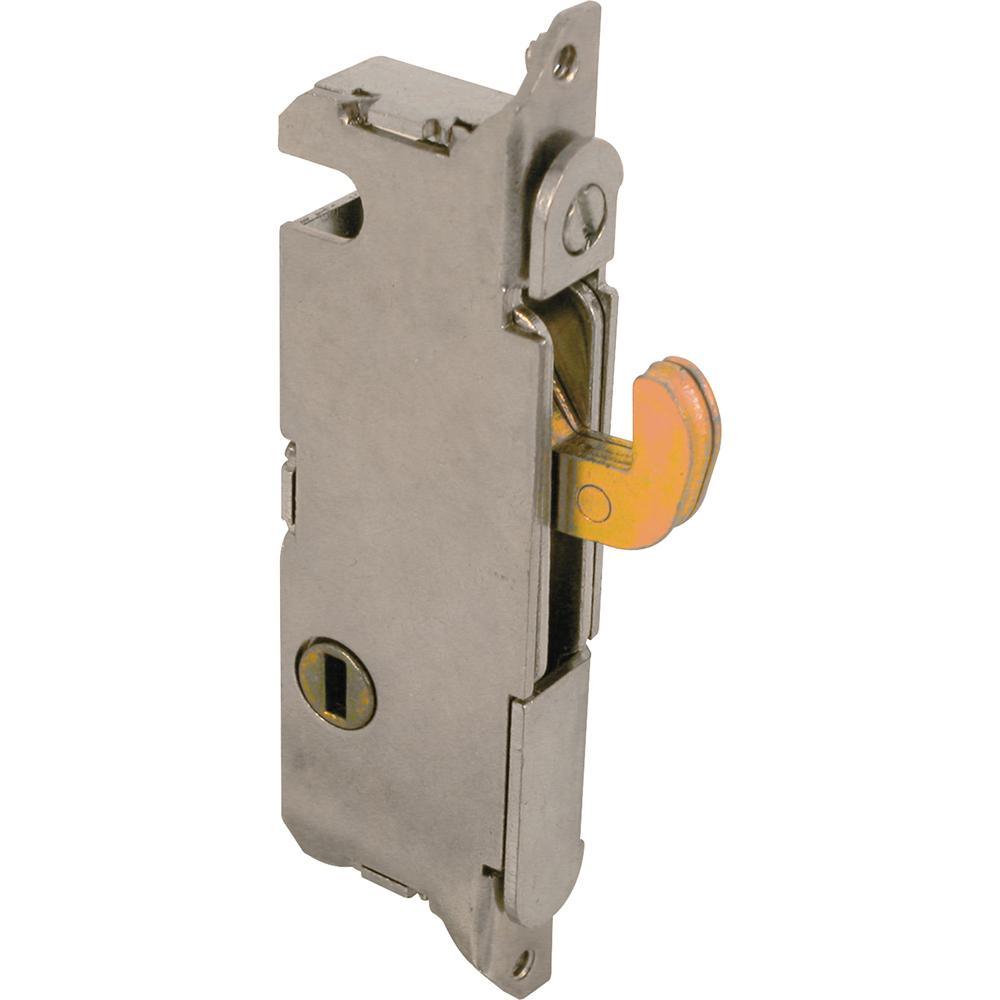

Mortise Lock, 3-11/16 in. Hole Centers, Vertical Keyway Position, Steel Construction
Regular price $13.48/
Shipping calculated at checkout.
This is a mortise lock that has an adjustable, spring-loaded hook latch projection for surface-mounted sliding patio doors constructed of wood, aluminum and vinyl with handle sets with vertical keyway position when in the locked position. It also fits doors using W&F manufactured handles. The mounting hole centers of this lock measures 3-11/16 in. on center, and the rear housing corners are square. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45-degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted.
Features
- Used to replace damaged or missing mortise locks in patio sliding doors. Used by W&F and other manufacturers
- 1/2 in. wide body, 3-3/16 in. tall faceplate, 1-1/8 in. depth, 3-11/16 in. mounting hole centers
- Round end faceplate with spring-loaded, adjustable hook latch projection
- Installation of this lock should be mounted out of children’s reach to help prevent them from opening a door themselves to enter or exit into dangerous areas
- Used on a variety of swing-in, hinged door types and can be mounted on, or beside the door casing
- This mortise lock works on older systems that use levers (Prime-Line parts E 2033, E 2034, E 2035, E 2037, E 2038 , and E 2066)

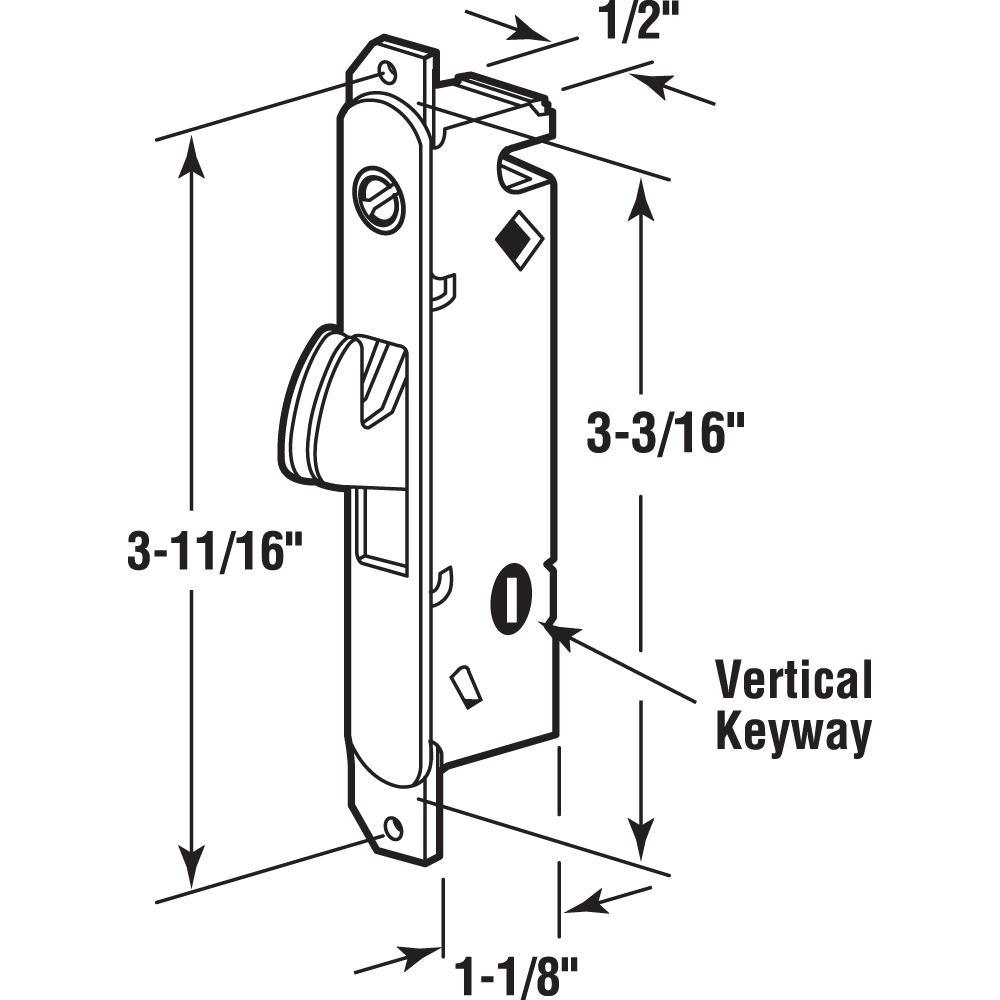

- For further dimensional information, please see the line drawing
Features
| Item Weight | 0.27 |
| Product Weight (lb.) | .29 |
| Included | Installation Instructions |
| Door Locks & Knobs Product Type | Mortise Locks |
| Material | Steel |
| Security/ANSI Grade | N/A |
| Interior/Exterior | Interior |
| Commercial/Residential | Residential |
| Door Lock Style | Modern |
| Finish | Stainless Steel |
| Returnable | 180-Day |
| Features | No Additional Features |
| Hardware Finish Family | Silver |
| Product Height (in.) | 3.6875 |
| Product Depth (in.) | 1.125 in |
| Chain/bar length (in.) | 0 |
| Product Width (in.) | .5 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
