GAF Drill-Tec Locking Impact Nail, Galvanized Steel Fasteners for Roof Decks
Regular price $440.00GAF Drill-Tec Locking Impact Nail, Galvanized Steel Fasteners for Roof Decks

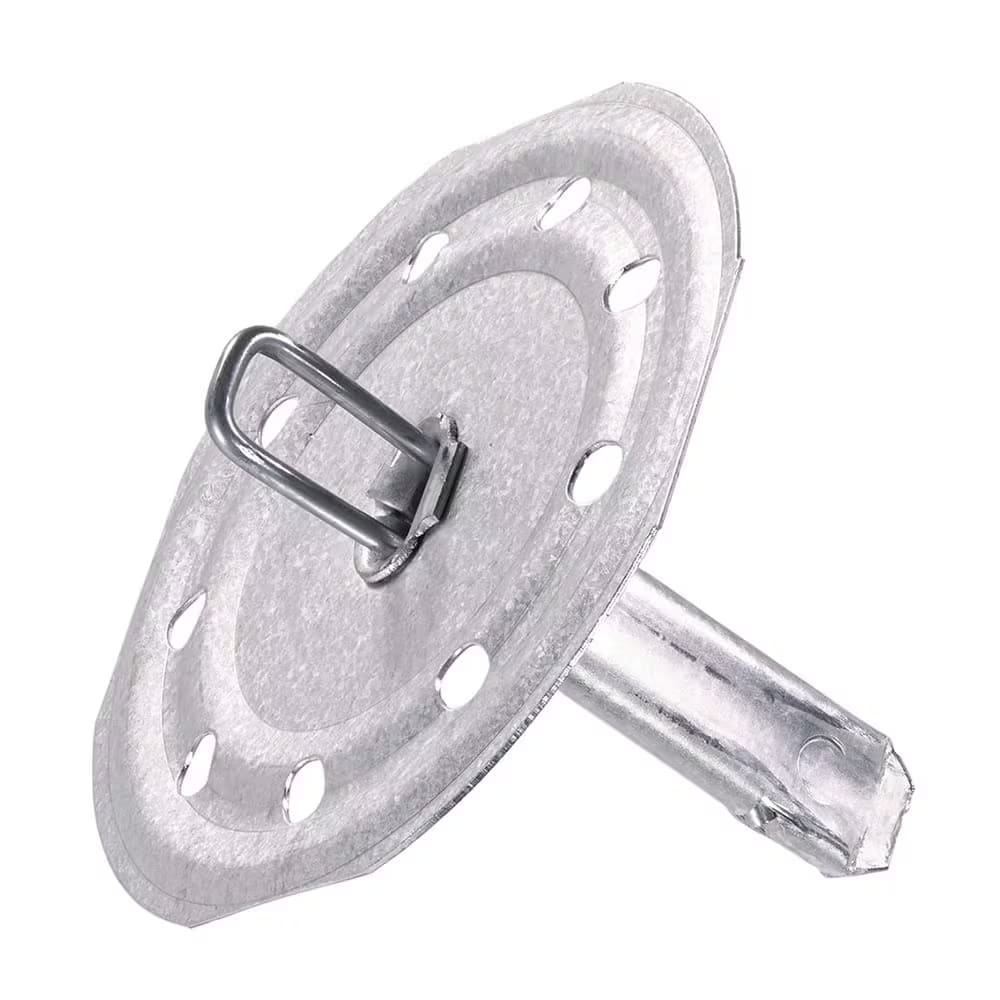

GAF Drill-Tec Locking Impact Nails attach base ply, recovery board and insulation with a minimum 1 in. embedment to cementitious wood fiber, poured gypsum decks and LWIC. The mill-finish fasteners combine a G-90 galvanized tube, Galvalume disk and coated locking staple. Sold in boxes of 500, or 250 for the longest length.
Key Features:
- Corrosion-Resistant Tube: Precision-formed tube is galvanized (G-90) coated steel shaped to easily penetrate decking and existing membranes.
- Rib-Reinforced Disk: 2.7 in. Galvalume (AZ-55) coated steel disk is securely clamped and rib reinforced to resist cupping.
- Locking Staple: High tensile steel wire locking staple, coated to prevent corrosion, secures the assembly.
- Multiple Lengths: Available in 1-2/5 in., 1-4/5 in., 2-4/5 in. and 4-4/5 in. lengths to match assembly thickness.
- Bulk Boxes: Boxed 500 per box, with the 4-4/5 in. length boxed 250 for productivity on large jobs.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | GAF |
| Sell unit | 1 box (500 fasteners; 4-4/5 in. length boxed 250) |
| Product line | GAF Drill-Tec specialty fasteners |
| Available sizes | 1-2/5 in., 1-4/5 in., 2-4/5 in. (500/box); 4-4/5 in. (250/box) |
| Dimensions | Disk diameter 2.7 in. (69 mm) |
| Material | Galvanized (G-90) steel tube, Galvalume (AZ-55) steel disk, high tensile steel wire staple |
| Finish / texture | Mill |
| Intended use | Attaching base ply, recovery board and insulation (minimum 1 in. embedment) to cementitious wood fiber, poured gypsum decks and LWIC |
Coverage & How Much You Need:
Fastener spacing and density follow the roofing system's specification; box counts (500 or 250) let you estimate quantities from the specified fastener rate per board.
Fit and Compatibility:
For use with GAF commercial roofing assemblies over cementitious wood fiber, poured gypsum and lightweight insulating concrete decks; minimum 1 in. embedment is required. Pair with matching Drill-Tec plates and fasteners where the system calls for them.
Frequently Asked Questions (FAQ):
Q: What is included in a box?
A: 500 fasteners per box for the three shorter lengths, and 250 per box for the 4-4/5 in. length.
Q: Which length should I choose?
A: Choose a length that achieves the required minimum 1 in. embedment below the insulation, base ply or recovery board you are fastening.
Q: What decks do these fasteners work in?
A: They are designed for cementitious wood fiber, poured gypsum decks and lightweight insulating concrete (LWIC).
Q: Will they rust?
A: The tube is G-90 galvanized steel, the disk is Galvalume (AZ-55) coated steel, and the staple is corrosion-coated to prevent corrosion.
Q: How is the disk kept secure?
A: The 2.7 in. disk is securely clamped to the tube and rib reinforced to resist cupping.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Select fastener length by totaling the assembly thickness plus the 1 in. minimum embedment into the deck; when in doubt, go one step longer rather than short. The locking staple design helps resist back-out in gypsum and LWIC, where smooth-shank fasteners can loosen. Always follow the membrane manufacturer's fastener pattern and pull-test the deck first to confirm holding power.
Impact-driving fasteners can eject shavings and staples; wear safety glasses and gloves, and keep hands clear of the tool tip.
Order GAF Drill-Tec Locking Impact Nails in the length and box count your deck assembly requires.
