M18 FUEL 30° Cordless Framing Nailer + 22 oz. Hammer (Tool-Only)

Drive 2 in. to 3-1/2 in. nails with pneumatic-like performance minus the hose. This 18V brushless, 30° cordless framing nailer fires up to 3 nails per second and pairs with a 22 oz. milled face hammer for heavy-duty framing tasks.

---

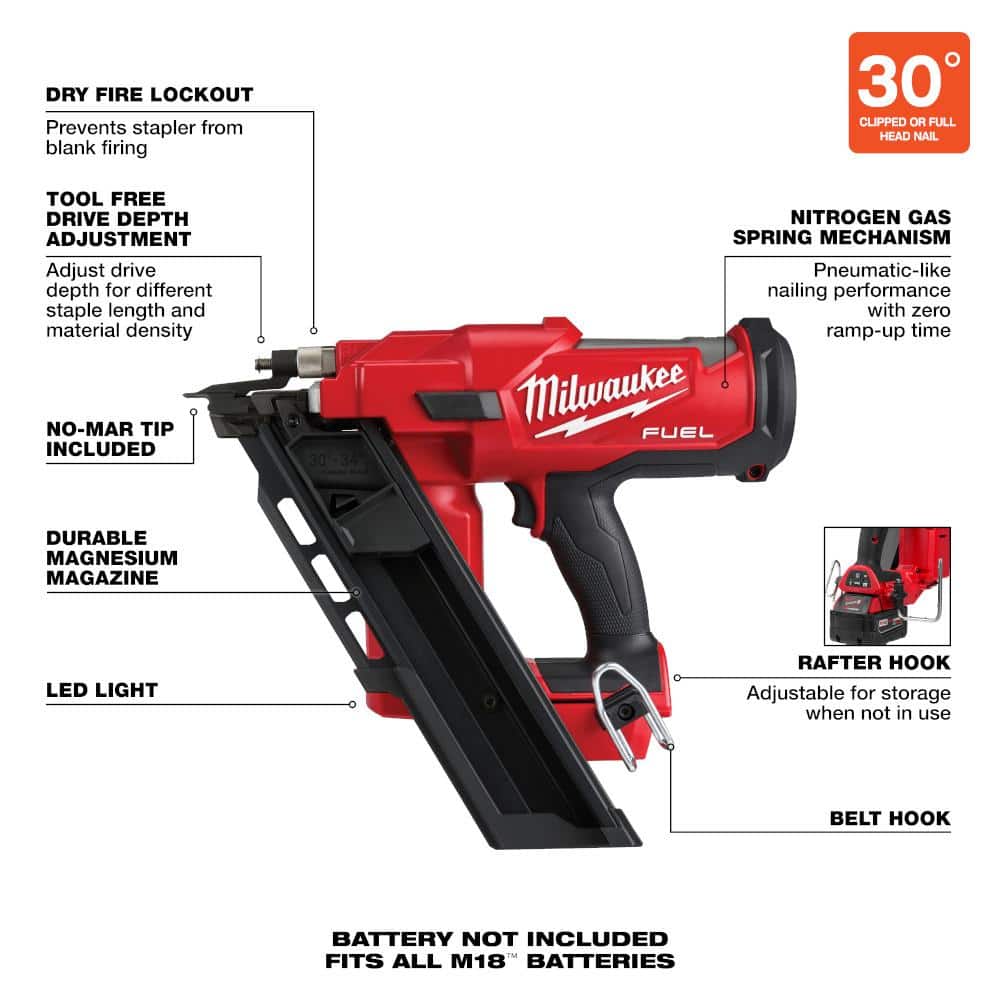

Key Features:

• Pneumatic Power, Cordless Freedom: Nitrogen spring mechanism and brushless motor deliver zero ramp-up time performance without gas cartridges.
• High Productivity: Fires 3 nails per second with contact or single sequential modes and dry fire lockout.

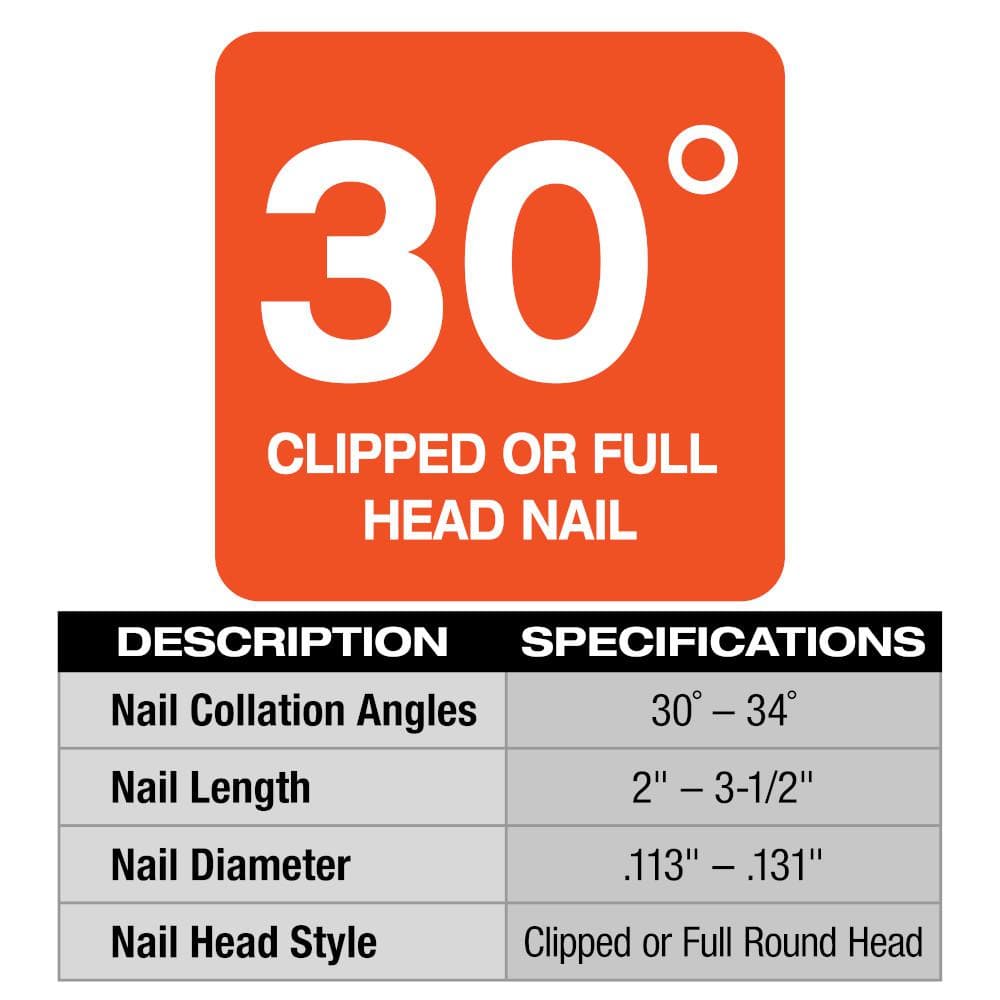

• Versatile 30° Magazine: Accepts 30°–34° clipped or full round head nails, 2 in.–3-1/2 in., .113"–.131" diameters.
• Jobsite-Ready Build: Durable magnesium magazine, LED light, belt and rafter hooks, and included no-mar tip.
• Tool-Only Convenience: Compatible with all M18 REDLITHIUM batteries; charger and batteries sold separately.

---

Specifications Table:

Specification	Details
Model	2745-20 (Nailer); 48-22-9022 (22 oz. milled face hammer)
Power Source	Battery (M18 System) - Tool Only
Battery Voltage	18V
Motor Type	Brushless
Mechanism	Nitrogen spring mechanism
Firing Modes	Contact, Single Sequential
Magazine Angle	30° (accepts 30°–34°)
Nail Length Range	2 in. to 3-1/2 in.
Nail Diameter	.113 in. to .131 in.
Nail Head Style	Clipped or Full Round Head
Magazine Capacity	51
Loading Type	Strip
Included Features	No-mar tip, belt hook, rafter hook, LED light, tool-free drive depth adjustment, dry fire lockout, on/off power button
Tool Weight	9.4 lb
Product Dimensions	14.1 in D x 4.7 in W x 13.3 in H
Number of Batteries Included	0
Charger Included	No
Tools Product Type	Air Tool (cordless)

---

Frequently Asked Questions (FAQ):

Q: Does this include a battery and charger?
A: No. This is a tool-only kit; M18 batteries and charger are sold separately.

---

Q: What nail sizes does it use?
A: 30°–34° clipped or full round head nails from 2 in. to 3-1/2 in., .113"–.131" diameter.

---

Q: What firing modes are available?
A: Contact and single sequential modes with zero ramp-up time.

---

Q: Is it suitable for engineered lumber?
A: Yes, it has power to sink nails into dense engineered lumber.

---

Q: What safety features are included?
A: Dry fire lockout and on/off power button; includes a no-mar tip to protect work surfaces.

---

Industrial Muscle, Streamlined Precision

This nailer brings a bold, architectural presence to the workshop—sleek, purposeful, and ready to perform. I love the angular 30-degree magazine and crisp red housing; it feels sculptural yet utterly functional. Style it on a wall-mounted tool rail beside the milled-face hammer for a cohesive, professional vignette. It’s a hardworking essential that elevates any space dedicated to craft and construction.

---

Upgrade your framing arsenal with cordless pneumatic performance—add this M18 FUEL nailer and hammer set to your cart today.
