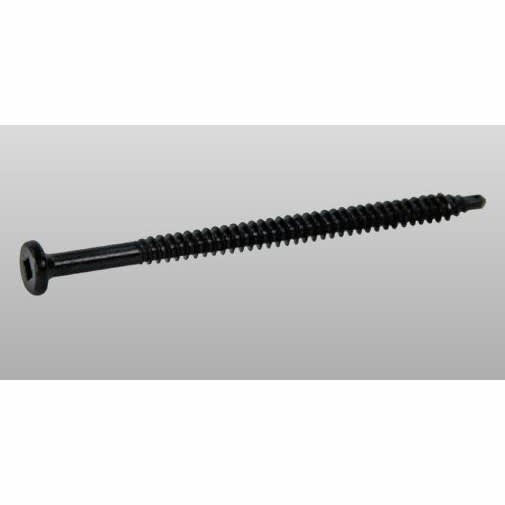

Versico HPV Fasteners, #14 Drill-Point Membrane Fasteners for Wood and Steel Decks
Regular price $455.00Versico HPV Fasteners, #14 Drill-Point Membrane Fasteners for Wood and Steel Decks
Versico HPV Fasteners are #14 drill-point fasteners used with Versico fastening plates to secure membrane, insulation and Quick-Applied Reinforced Termination Strip to wood or steel decks. Sizes include 8 in., 11 in. and 14 in. lengths in boxes of 250 or 500. They are designed for VersiGard Reinforced EPDM mechanically attached systems.
Key Features:
- Pull-out resistance: Buttress thread design and wide surface contact provide increased pull-out and back-out resistance.
- Dual deck use: Can be used on wood decks of minimum 15/32 in. CDX plywood and on 22-gauge (0.76 mm) or heavier steel decks.
- Fast drill point: The mini drill-point is designed to maximize installation efficiency.
- Corrosion resistance: Offers excellent corrosion resistance, surpassing the FM 4470 corrosion test.
- System matched: Specially designed for membrane securement on Versico VersiGard Reinforced EPDM mechanically attached systems.
- Boxed quantities: Sold in boxes of 500 (8 in. and 11 in.) or 250 (14 in.).
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Versico |
| Sell unit | 1 box (500 fasteners for 8 in. and 11 in.; 250 for 14 in.) |
| Product line | HPV Fasteners |
| Available colors | ['Black'] |
| Available sizes | ['8 in. #14, 500 per box', '11 in. #14, 500 per box', '14 in. #14, 250 per box'] |
| Material | Steel fastener (drill-point screw) |
| Finish / texture | Black, corrosion-resistant coating |
| Thread size | #14 |
| Dimensions | 8 in., 11 in. or 14 in. lengths |
| Deck compatibility | Wood (min. 15/32 in. CDX plywood) and steel (22-ga / 0.76 mm or heavier) |
| Corrosion testing | Surpasses FM 4470 corrosion test |
| Intended use | Securing membrane, insulation and QA RTS with Versico fastening plates |
Coverage & How Much You Need:
Choose fastener length so it reaches the structural deck with adequate embedment: the length must span membrane, insulation thickness and plate plus engagement into the deck. Order per the system's fastener density; boxes of 500 (8 in. and 11 in.) or 250 (14 in.) set the buy quantity.
Fit and Compatibility:
Made for use with various Versico fastening plates and VersiGard Reinforced EPDM mechanically attached systems, including QA Reinforced Termination Strip. Plates and other system components are sold separately.
Frequently Asked Questions (FAQ):
Q: What lengths and pack sizes are available?
A: 8 in. and 11 in. #14 fasteners in boxes of 500, and 14 in. #14 fasteners in boxes of 250.
Q: What decks can they fasten to?
A: Wood decks with a minimum 15/32 in. CDX plywood and steel decks of 22-gauge (0.76 mm) or heavier.
Q: What is the drill point for?
A: The mini drill-point drives through steel decks efficiently, saving installation time.
Q: How do I choose the right length?
A: Add the membrane, insulation and plate thickness to the required deck engagement; the 8, 11 and 14 in. options cover common build-ups.
Q: Are they corrosion resistant?
A: Yes, Versico states the fasteners surpass the FM 4470 corrosion test.
Q: Do plates come with them?
A: The fastener is used with various Versico fastening plates, which are sold separately.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Select fastener length from the total fastening stack: the HPV must fully engage a 22-gauge or heavier steel deck or penetrate CDX plywood or wood plank. The buttress thread resists back-out in mechanically attached EPDM, where cyclic wind loading is the main concern. Match the fastener with the correct Versico plate for the membrane attachment pattern specified in the system details.
Use appropriate eye protection and a controlled-torque screw gun; over-driving can strip the deck or damage the membrane, and recoil of fasteners is a hazard.
Order Versico HPV Fasteners in 8 in., 11 in. or 14 in. lengths for reliable VersiGard EPDM membrane securement.
