TopShield PRO #15 Extra Heavy Duty Roofing Fasteners, Self-Drilling, Black, Multiple Sizes
Regular price $274.00Orders start at $399 — combine any items to reach the minimum. Learn more
TopShield PRO #15 Extra Heavy Duty Roofing Fasteners, Self-Drilling, Black, Multiple Sizes

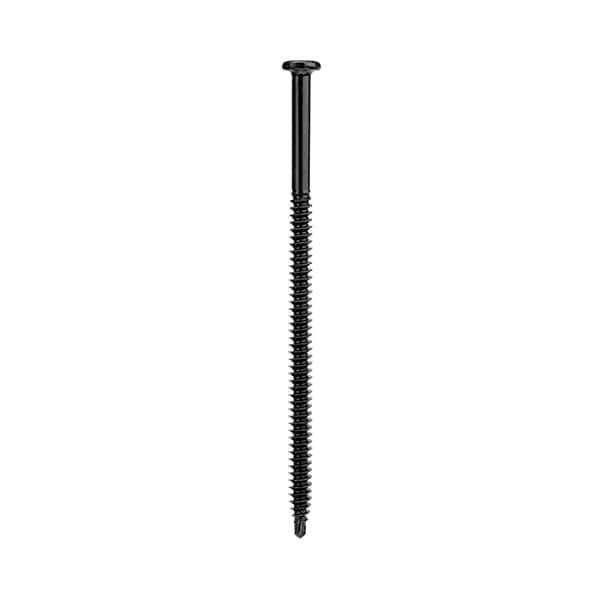

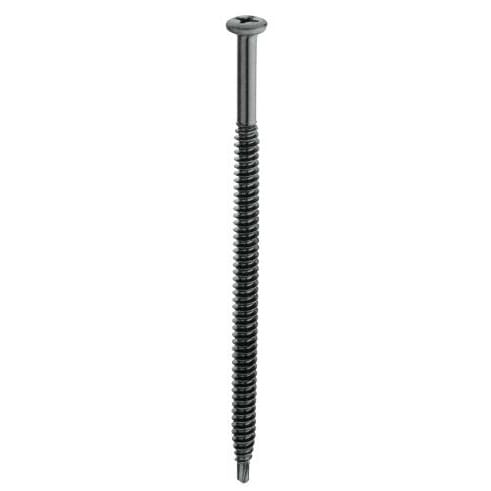

TopShield PRO #15 EHD Fasteners are extra heavy duty screws for lap attachment to 18 to 22 gauge corrugated steel and wood substrates in higher wind uplift roof assemblies. The line spans twelve sizes from 2 in. to 24 in., in buckets or cartons ranging from 250 to 1000 pieces. A #2 double flute self-drilling point and tapered entry thread deliver fast penetration and strong back-out resistance.
Key Features:
- Self-Drilling Point: A #2 double flute self-drilling point penetrates steel quickly.
- Back-Out Resistance: Exclusive tapered entry thread design offers exceptional back-out resistance.
- Extra Heavy Duty: The #15 EHD fastener is engineered for higher wind uplift roof assemblies.
- Steel & Wood Use: Designed for lap attachment to corrugated steel (18 to 22 ga.) and wood substrates.
- Wide Size Range: Twelve lengths from 2 in. to 24 in. to match insulation thickness and deck build-up.
- Plate Compatible: Use with TopShield metal insulation plates MP-3000 and MPR-3000.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | TopShield |
| Sell unit | 1 bucket or carton (pack size varies by length: 250, 500, or 1000) |
| Product line | TopShield PRO #15 EHD |
| Available colors | Black |
| Available sizes | 12 sizes: 2 in., 3 in., 4 in., 5 in., 6 in., 7 in., 8 in., 14 in., 18 in., 20 in., 22 in., and 24 in. |
| Material | Steel (self-drilling screw) |
| Color / finish | Black |
| Point type | #2 double flute self-drilling point |
| Thread | Tapered entry thread design |
| Intended use | Lap attachment to corrugated steel (18 to 22 ga.) and wood substrates in higher wind uplift assemblies |
| Compatible plates | Use with metal insulation plates MP-3000 and MPR-3000 |
| Pack sizes by length | 2-5 in.: 1000/bucket; 6-8 in.: 500/bucket or carton; 14 in.: 250/carton; 18 in.: 250 each; 20 in. and 22 in.: 250/carton; 24 in.: 250 each |
Coverage & How Much You Need:
Fastener count depends on wind uplift requirements, insulation thickness, and fastener pattern; determine pull-out and pull-over values per assembly, then divide plate count by the pack size (250, 500, or 1000 per bucket or carton). Longer 14-24 in. fasteners are for thick insulation over steel or wood decks.
Fit and Compatibility:
Use with TopShield metal insulation plates MP-3000 and MPR-3000 (sold separately). Screws are sized to fasten through insulation into 18 to 22 gauge corrugated steel decks or wood substrates, so choose a length at least long enough for the required embedment through the deck.
Frequently Asked Questions (FAQ):
Q: What is included in the sell unit?
A: Depending on size, a bucket or carton of 250, 500, or 1000 black #15 EHD fasteners in the selected length from 2 in. to 24 in.
Q: What substrates can these fasten into?
A: They are engineered for lap attachment to corrugated steel from 18 to 22 gauge and wood substrates.
Q: What length should I choose?
A: Select a length that passes through the insulation and achieves proper embedment in the steel deck or wood substrate; long 14 to 24 in. sizes serve thick insulation build-ups.
Q: Do they need a pilot hole?
A: No, the #2 double flute self-drilling point drills and taps steel quickly without pre-drilling.
Q: Which plates do they use?
A: Use them with TopShield metal insulation plates MP-3000 and MPR-3000.
Q: Why extra heavy duty?
A: The #15 EHD design with tapered entry thread is built for higher wind uplift assemblies and exceptional back-out resistance.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The #15 EHD line covers nearly every commercial re-roof build-up, so pick the fastener length from your total insulation stack-up plus required deck embedment, and verify withdrawal values against your uplift design pressures. Pair every fastener with the MP-3000 or MPR-3000 plate to distribute load over the membrane. Drill with a screwgun at the speed the manufacturer recommends so the self-drilling point does not burn out in heavier decks. For jobs near the coast or with strict uplift zones, favor the tapered thread design's back-out resistance over commodity screws.
Self-drilling screws are sharp and generate hot metal shavings; wear gloves and eye protection and use a screwgun with proper bit and clutch settings.
Stock TopShield PRO #15 Extra Heavy Duty Fasteners for dependable attachment in high wind uplift roof assemblies.
