Everbilt 3/4 in. FIP x 3/4 in. FIP x 24 in. Stainless Steel Corrugated Water Connector
Regular price $20.18Stainless Steel Corrugated Water Connector, 3/4 in. FIP, 24 in.
Durable Everbilt corrugated stainless steel connector for residential or commercial water heater hookups. Flexible, kink-free design with attached end fittings and built-in dielectric sleeves for easy, reliable installation.
Key Features:
- Flexible Stainless Steel: Corrugated, kink-free body bends easily and outlasts copper lines
- Built-In Dielectric Sleeve: Helps prevent galvanic corrosion—no separate union needed
- Universal Fit: 3/4 in. FIP x 3/4 in. FIP connections adapt to standard water heaters
- Pressure/Temperature Rated: Designed for continuous pressure under 125 psi and temps up to 160°F (180°F intermittent)
- Leak-Resistant Seals: Includes soft rubber washers and chrome-plated brass nuts for a secure connection
Specifications Table:
| Specification | Details |
|---|---|
| Connection Size 1 | 3/4 in. FIP |
| Connection Size 2 | 3/4 in. FIP |

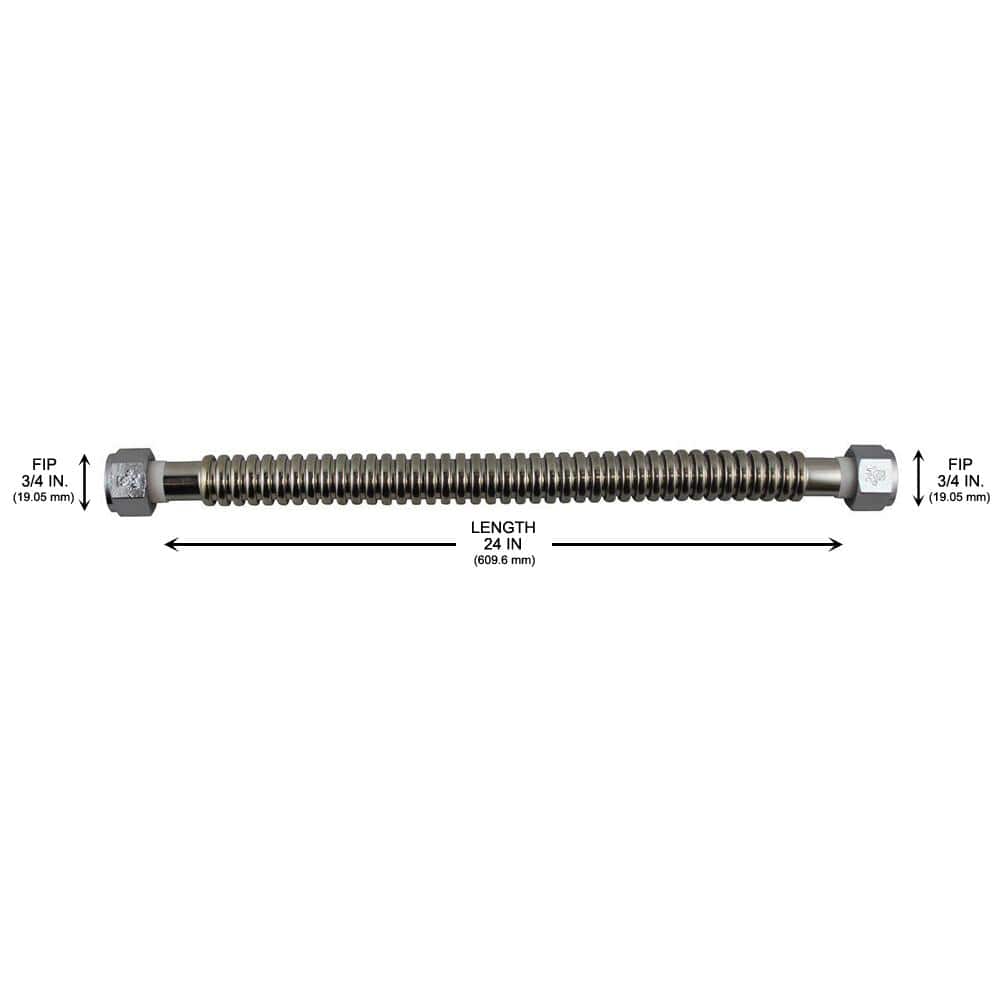

| Length | 24 in. (609.6 mm) |
| Material | Stainless Steel; chrome-plated brass nuts; soft rubber washers |
| Finish Family | Silver Metallic / Bright chrome corrugated tube |
| Application | Water Heater, Water Supply |
| For Use With | Electric Tank, Electric Tankless, Gas Tank, Gas Tankless |
| Compatible Brand/Model | All (standard 3/4 in. MPT) |
| Pack Size | 1 |
| Product Weight | 0.71 lb |
| Dimensions | Product Height 1.27 in.; Product Width 1.27 in.; Product Depth 24 in. |
| Minimum Bend Radius | 2.5 in. |
| Pressure Rating | Continuous <125 psi; Maximum intermittent impulse 180 psi |
| Temperature Rating | Continuous <160°F; Intermittent 180°F |
| Certifications | IAPMO certified |
| Warranty | 90 Days |
Frequently Asked Questions (FAQ):
Q: What appliances can this connector be used with?
A: It’s designed for water heater hookups—compatible with electric and gas, tank and tankless units that use 3/4 in. male pipe threads.
Q: Is a dielectric union required?
A: No. The connector has built-in dielectric sleeves that eliminate the need for a separate dielectric union.
Q: What are the pressure and temperature limits?
A: Continuous pressure less than 125 psi (180 psi intermittent impulse) and continuous temperature less than 160°F with intermittent exposure to 180°F.
Q: What is the length and connection size?
A: 24 in. overall length with 3/4 in. FIP x 3/4 in. FIP ends.
Q: Is this connector certified?
A: Yes, it is IAPMO certified.
Streamlined Utility With Polished Purpose
A sleek ribbon of corrugated stainless steel, this connector brings a refined, utilitarian elegance to the mechanical moments of a home. The chrome-plated fittings glint subtly, signaling quality and intention. Tuck it neatly beside a sculptural water heater and let the quiet shine of metal punctuate a clean utility space. Consider it the finishing touch that makes everyday performance feel luxuriously considered.
Upgrade your water heater hookup with this flexible, corrosion-resistant stainless connector and install with confidence today.
