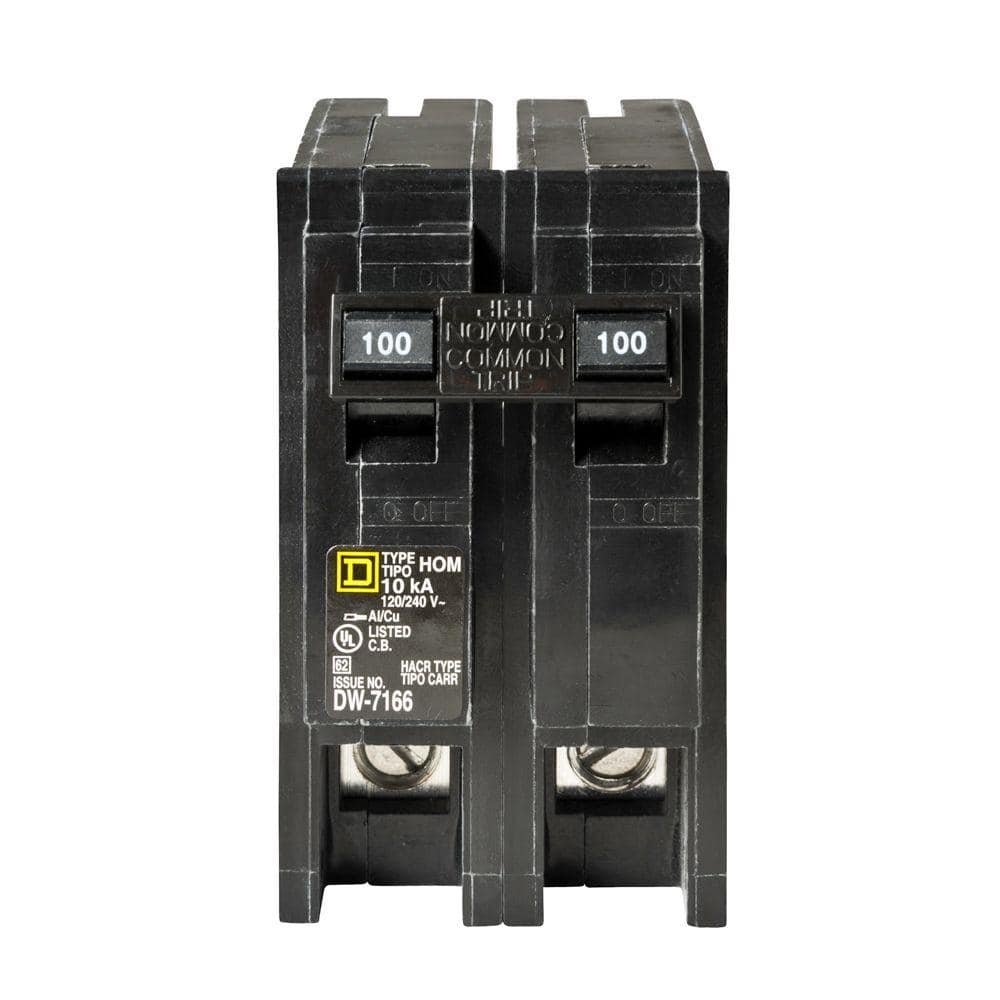

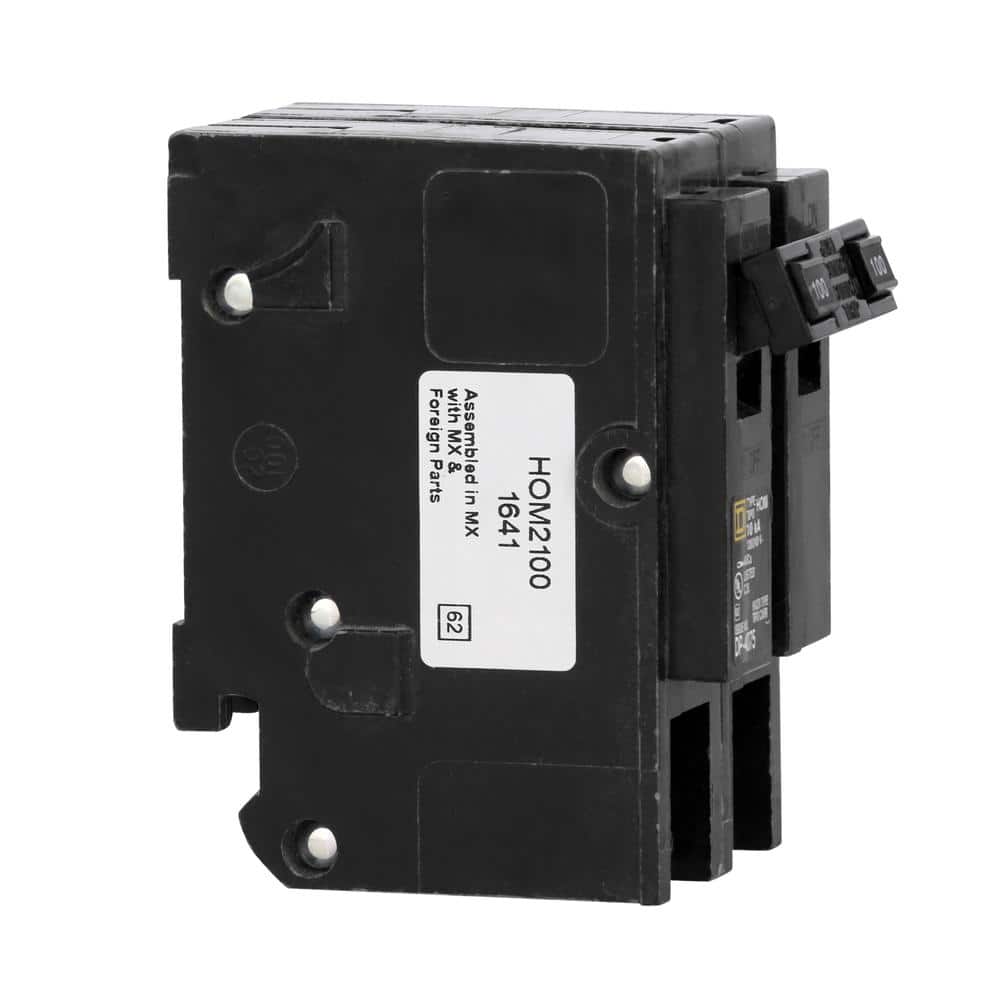

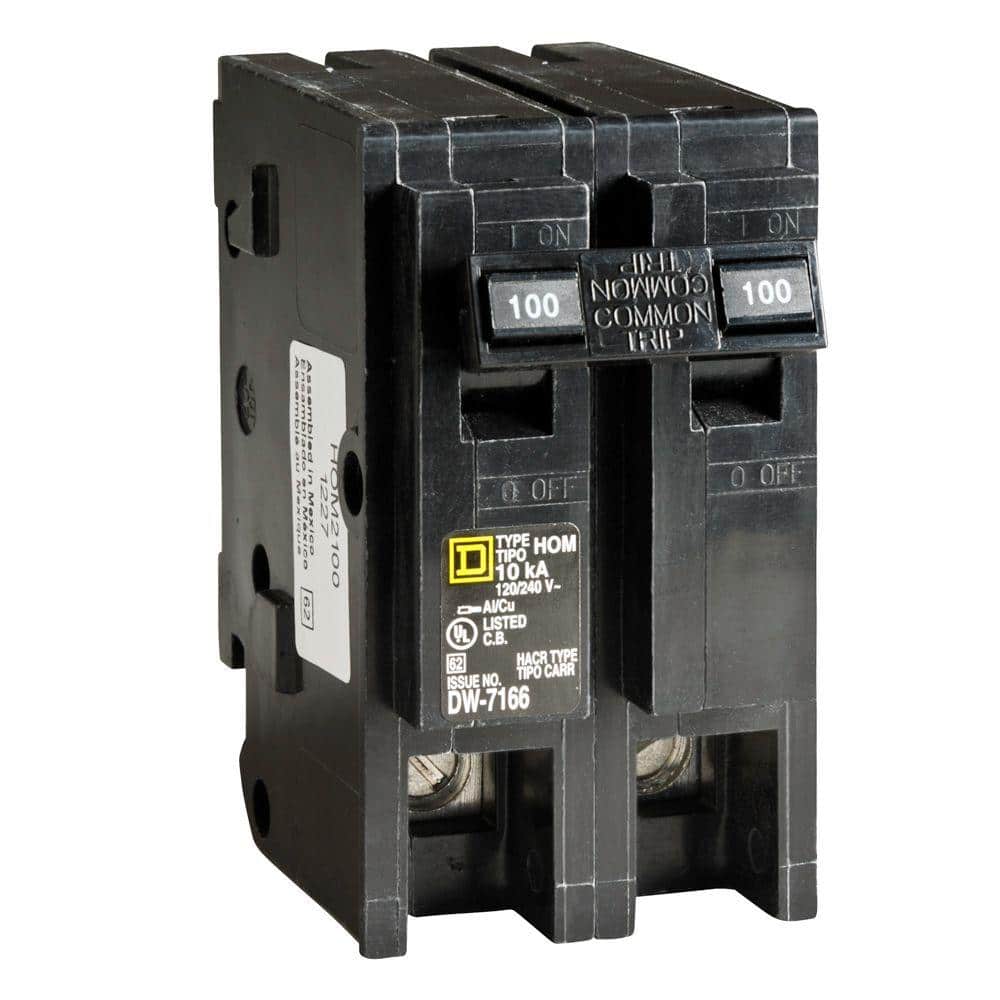

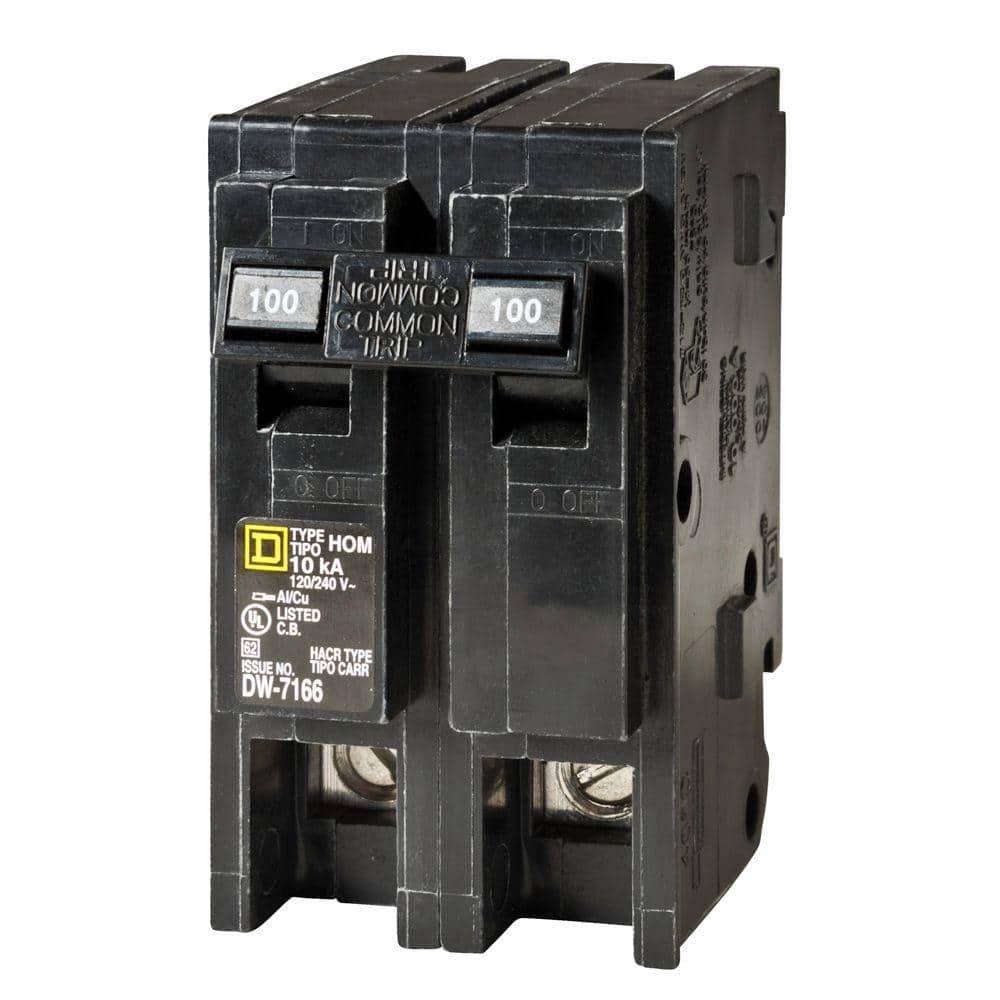

Square D Homeline 100A 2-Pole Circuit Breaker

This Square D Homeline 2-pole breaker provides reliable overload and short-circuit protection for residential branch circuits. Rated 100A at 120/240V with a 10kA interrupt rating, it features a plug-on design for quick installation in Homeline load centers and CSEDs.

---

Key Features:

• Thermal Magnetic Protection: Standard trip unit safeguards against overloads and short circuits
• Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs with 2 spaces
• Robust Performance: 100A rating, 120/240 VAC, 10,000 AIR interrupting capacity
• Durable Build: UL Listed and ANSI certified for dependable residential use
• Easy Installation: Compact 2-pole form factor simplifies panel layout

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Type	Main Breaker
Interruption Type	Standard Trip
Trip Unit	Thermal Magnetic
Maximum Amperage	100 A
Voltage	120/240 VAC
Number of Poles	2 (Double)

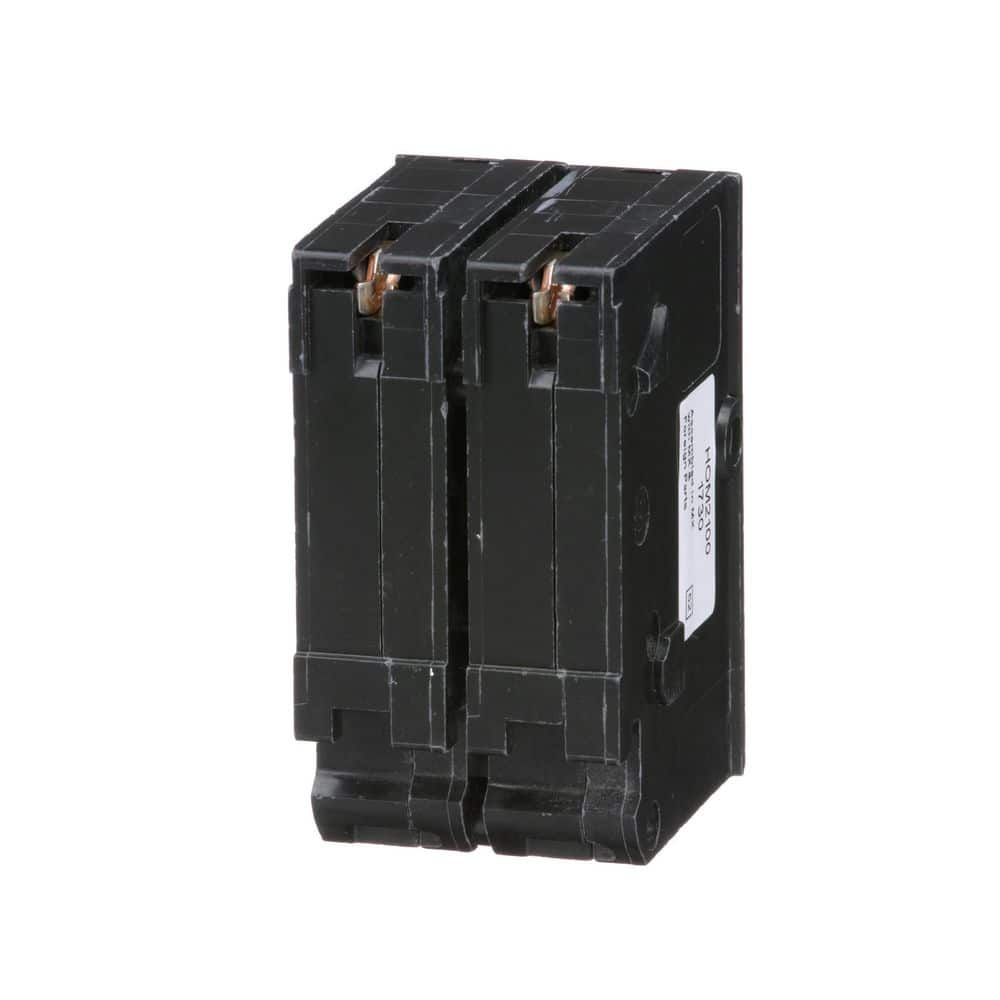

Mounting Type	Plug-On

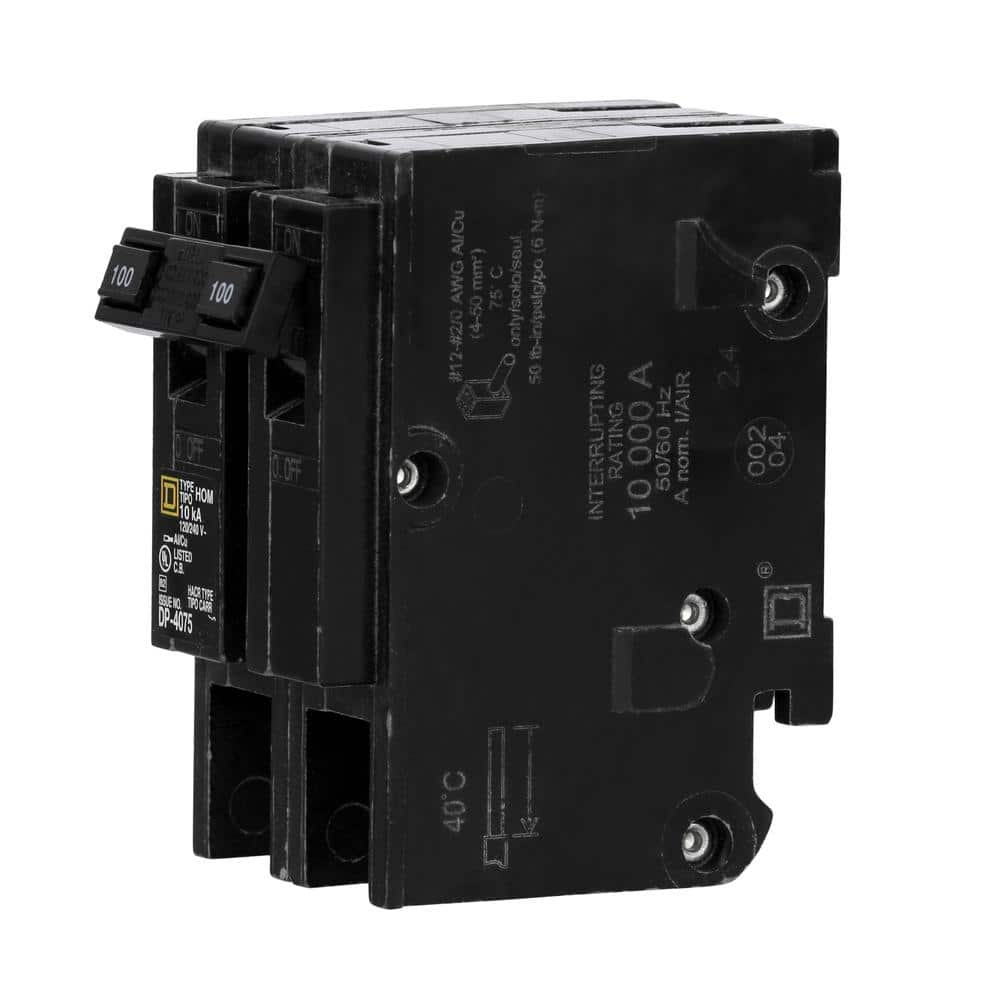

AIC Rating	10,000 AIR
Certifications	UL Listed, ANSI Certified
Product Weight	0.88 lb
Product Dimensions	2.98 in D x 2 in W x 3.13 in H
Pack Size	1

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with all Square D panels?
A: It is designed for Square D Homeline load centers and CSED devices; it will not fit QO series panels.

---

Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.

---

Q: What type of trip unit does it use?
A: Thermal-magnetic, standard trip.

---

Q: What wire sizes are supported?
A: See the product labeling/spec sheet for approved conductor sizes; typical range is for copper or aluminum conductors appropriate for 100A breakers in Homeline panels.

---

Q: Is it UL listed?
A: Yes, it is UL Listed and ANSI certified.

---

Sleek, Safe Power for Modern Panels

Quiet confidence meets essential performance—this Homeline breaker tucks neatly into your panel while delivering steadfast protection. The bold twin-toggle face and compact geometry keep the look clean and purposeful. Pair it with a well-organized, clearly labeled load center to elevate both safety and aesthetics. It’s the discreet backbone of a luxurious, well-powered home.

---

Upgrade your panel with reliable Square D protection—add this Homeline 100A 2-pole breaker to your cart today.
