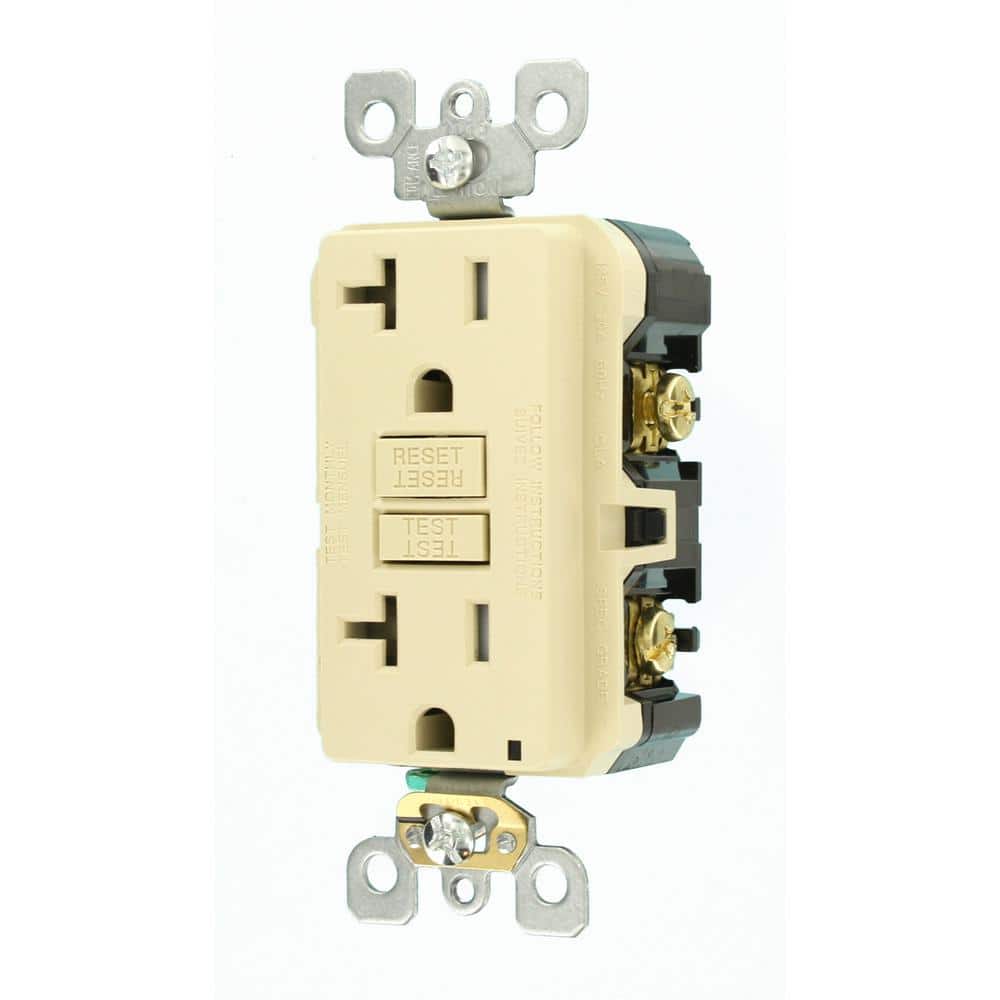

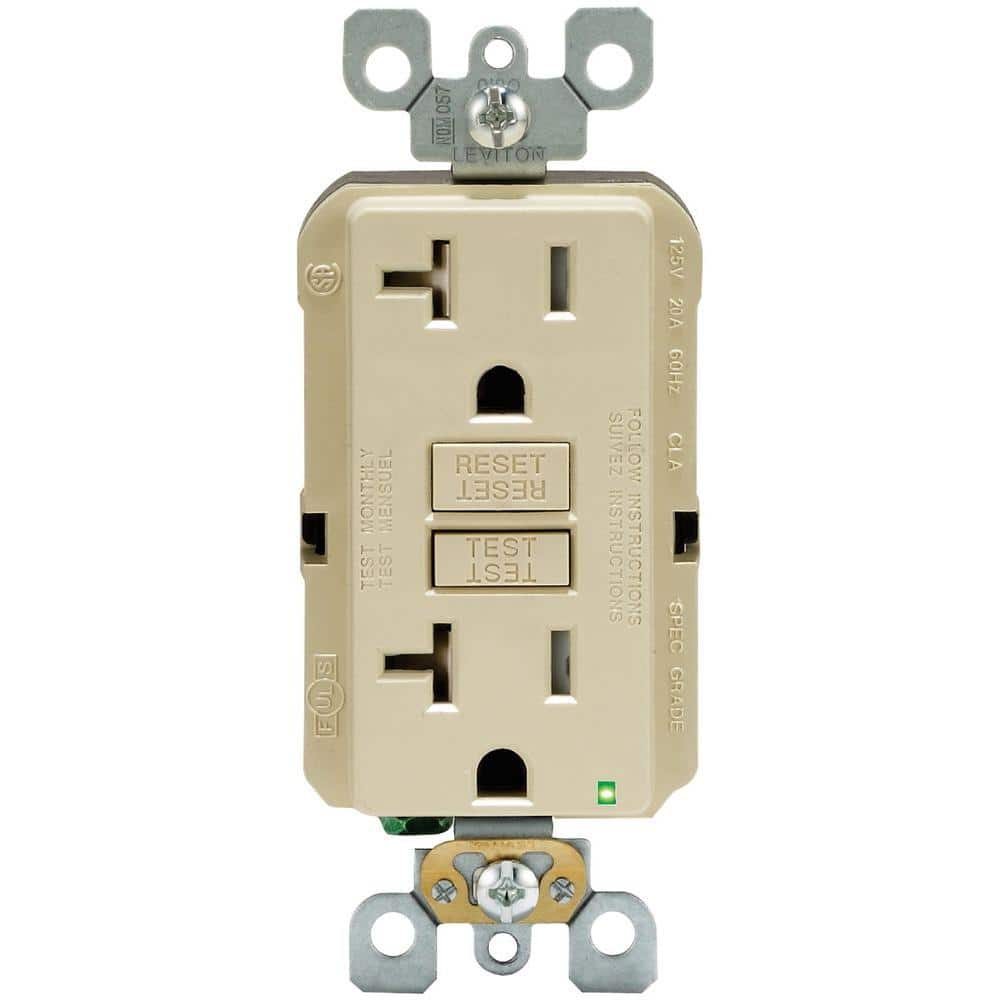

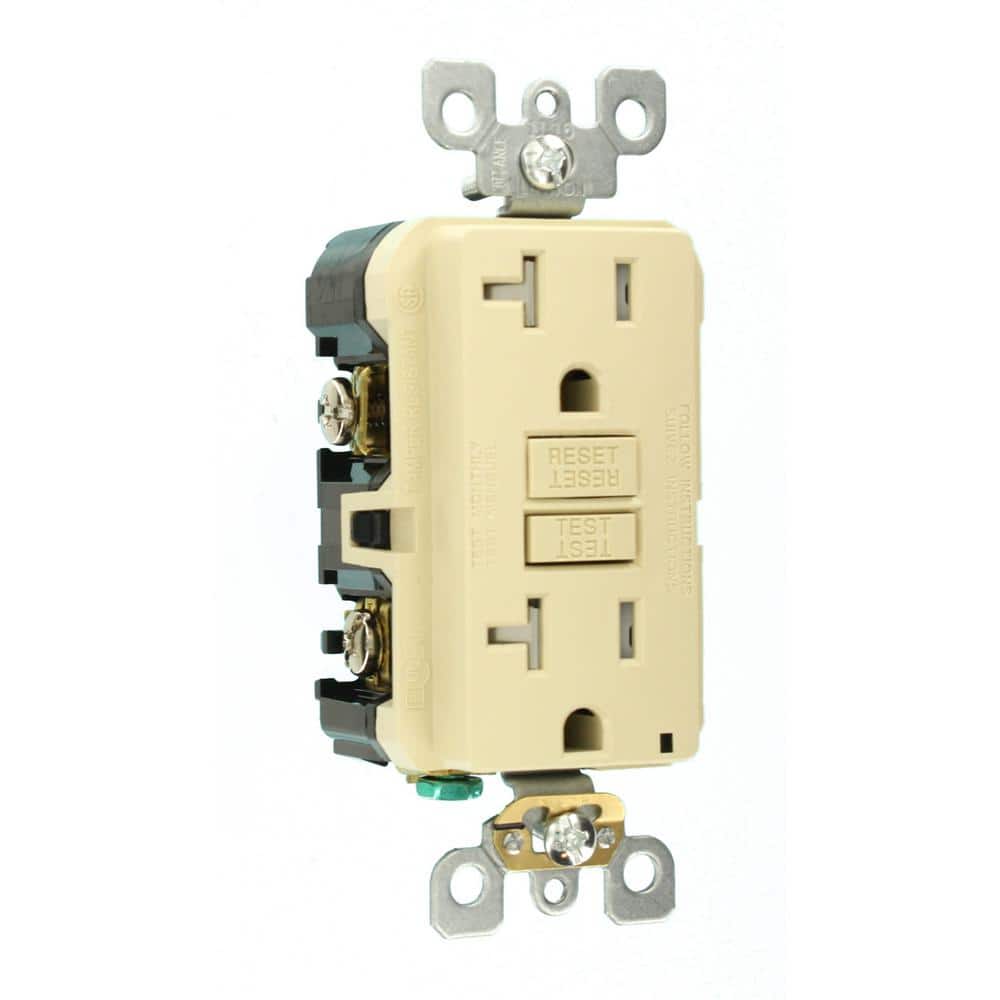

20A Self-Test SmartlockPro Tamper-Resistant GFCI Outlet, Ivory

Leviton’s SmartlockPro GFCI provides continuous ground-fault protection with auto self-testing to verify proper operation. The slim, tamper-resistant duplex design installs easily in standard boxes and delivers reliable safety in kitchens, baths, garages, and more. Ivory thermoplastic construction pairs with Decora wall plates for a clean, finished look.

---

Key Features:

• Auto-Monitoring Safety: Self-tests periodically and prevents reset if protection is compromised
• Tamper-Resistant Design: Built-in shutters help prevent unwanted object insertion

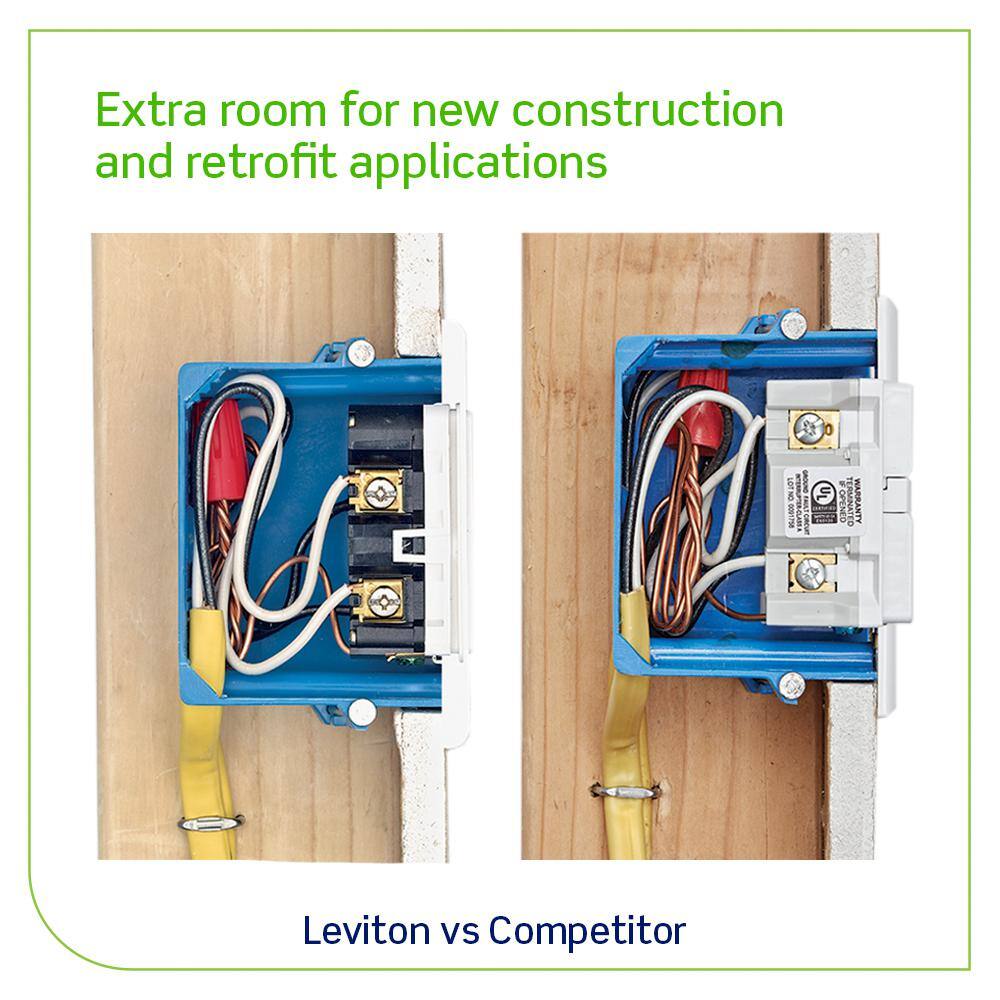

• Slim Profile: Reduced depth eases installation in new work or retrofit boxes
• Durable Construction: Thermoplastic/Polycarbonate body resists surges and wire pullout
• User Feedback: LED indicator shows power/protection status and line/load reversal

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Amperage	20 A
Voltage	125 V
Outlet Style	Duplex
Number of Receptacles	2
Durability	Tamper Resistant
Grounding	Grounded
Indoor/Outdoor	Indoor
NEMA Configuration	NEMA 1-15R
Receptacle Configuration	1-15
Mounting Type	In-Wall
Wire Connection Type	Screw Terminal

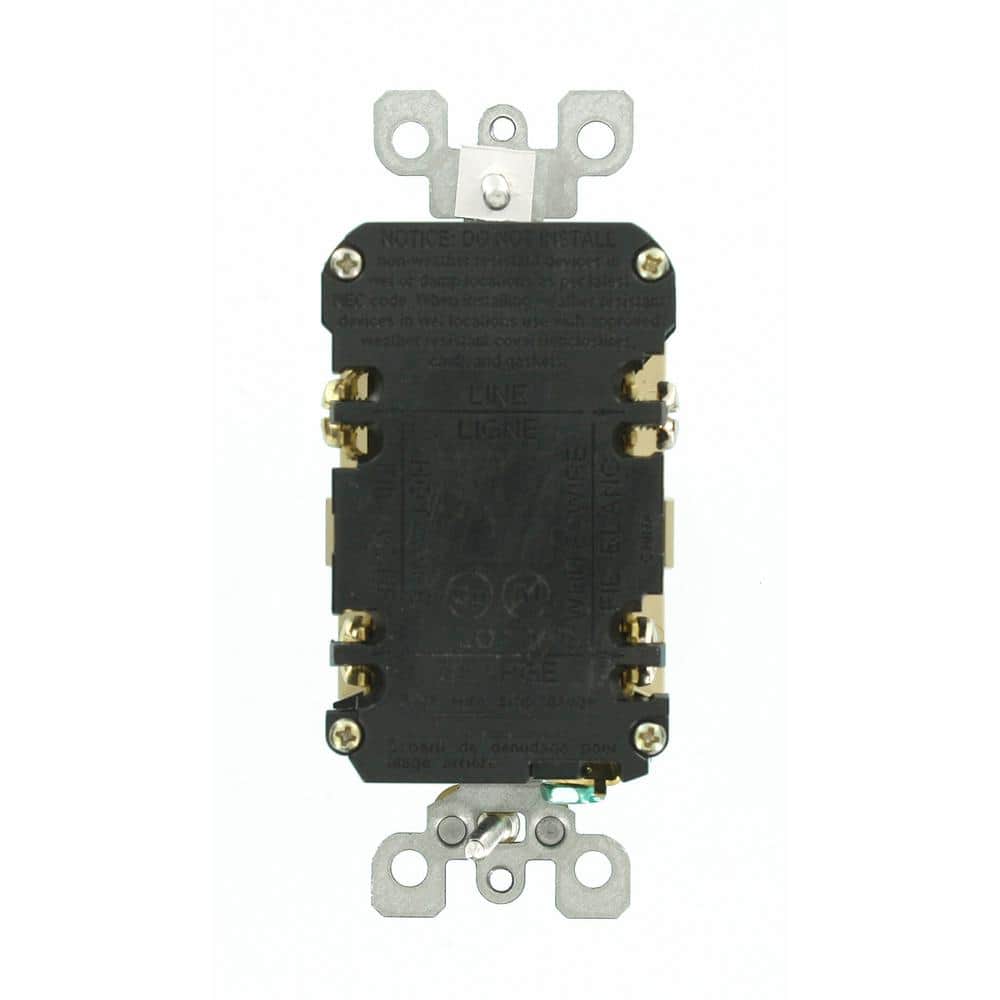

Wire Connection Location	Side; back and side wire capable with external back wire clamps
Material	Polycarbonate/Thermoplastic
Wall Plate Included	No
USB Connection	No USB
Safety Rating	GFCI
Certifications and Listings	UL Listed, CSA Listed; UL Federal Specification WC-596 rated
Manufacturer Warranty	2-Year Limited
Product Depth	1.02 in
Product Height	3.81 in
Product Width	1.68 in
Features	Self-test (auto-monitoring), patented reset lockout, status indicator LED, surge and over-voltage resistance, reduced depth for easier installation
Color/Finish	Ivory
Color Family	White
Package Quantity	1

---

Frequently Asked Questions (FAQ):

Q: Is a wall plate included?
A: No, the wall plate is sold separately.

---

Q: Can this GFCI be back and side wired?
A: Yes, it supports both back and side wiring with screw terminals.

---

Q: Where should I install a GFCI outlet?
A: GFCIs are recommended/required in wet or damp areas such as kitchens, bathrooms, garages, basements, laundry rooms, and outdoor locations (use an appropriate weather-resistant enclosure if outdoors).

---

Q: Does it self-test automatically?
A: Yes. It automatically self-tests; if a fault is detected, the device will not reset and the status LED indicates the issue.

---

Q: What certifications does it carry?
A: It is UL and CSA listed and meets GFCI safety standards.

---

Safety, Slimmed—A Chic Essential for Modern Walls

This ivory GFCI outlet melts into a neutral palette while delivering a refined, low-profile silhouette against the wall plate. Its SmartlockPro face with discreet LED adds a subtle, technical polish that feels both current and considered. Use it to unify kitchens and baths where creamy stones and warm woods meet, letting safety become part of the aesthetic story. It’s the quiet luxury upgrade every elevated home deserves.

---

Choose SmartlockPro protection today and upgrade to a safer, slimmer GFCI that installs fast and looks refined.
