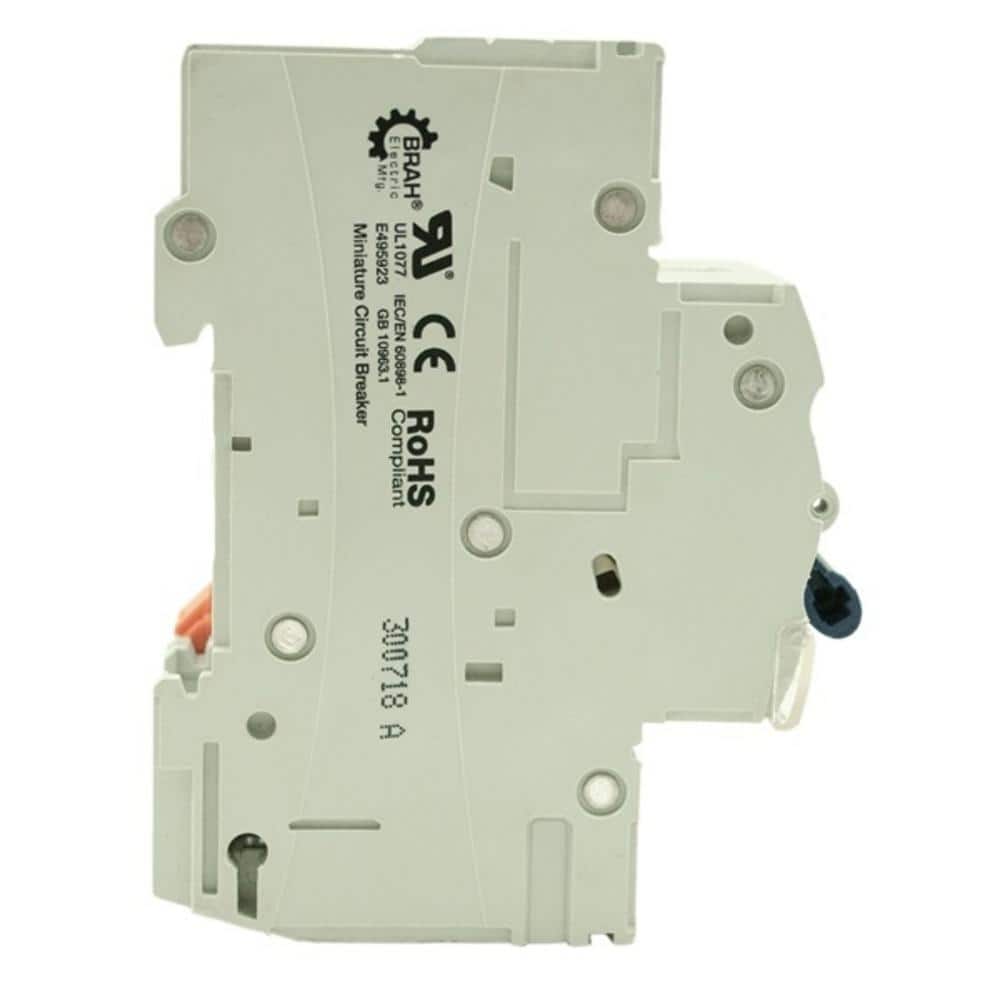

Connecticut Electric 2-Pole 0.5 Amp Din Rail Circuit Breaker
Regular price $24.46Connecticut Electric 2-Pole 0.5 Amp Din Rail Circuit Breaker
Enhance your electrical systems with the Connecticut Electric 2-Pole 0.5 Amp Din Rail Circuit Breaker. Designed for high inductive loads like small motors and lighting, this miniature breaker ensures reliable protection with its thermal magnetic trip unit. Its robust design suits commercial and industrial installations requiring high short circuit current handling.
Key Features:
- Trip Free Mechanism: Provides reliable performance without manual reset.
- Padlocking Facility: Ensures safety and prevents unauthorized access.
- High Thermal Capacity: Engineered with deep serrations for effective heat dissipation.
- Low Power Consumption: Built for efficiency and energy saving in commercial settings.
- ETL Listed: Meets industry standards for safety and performance.
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Maximum Amperage (A) | 0.5 A |
| Mounting Type | Din Rail |
| Number of Poles | Double |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.25 lb |
| Series Type | Not Specified |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 240/415 V |
| Certifications and Listings | ETL Listed |
| Manufacturer Warranty | 2 Years |
| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 3 in |
| Product Width (in.) | 0.75 in |
Frequently Asked Questions (FAQ):
Q: How do I install this circuit breaker?
A: The breaker is designed for easy installation on a Din Rail mounting system. Ensure power is off before installation and follow the wiring diagram provided in the manual.
Q: Is this breaker suitable for residential use?
A: It is mainly suited for commercial and industrial applications due to its capacity to handle high inductive loads, but can be used in residential settings with compatible systems.
Q: What is the benefit of the 'Type C' breaker?
A: Type C breakers are ideal for handling higher short circuit currents, making them suitable for environments with significant inductive loads such as motors and fluorescent lamps.
Q: Can this circuit breaker be used for outdoor applications?
A: It's designed for indoor use unless housed within a weatherproof enclosure suitable for outdoor conditions.
Q: Does it support padlocking for added safety?
A: Yes, it includes a padlocking facility to enhance safety and prevent unauthorized operation.
Electrifying Efficiency with Enduring Sophistication
Transform your utility spaces with the remarkable Connecticut Electric Din Rail Circuit Breaker. Its sleek, compact design discreetly integrates into your control systems, ensuring uninterrupted harmony in industrial areas. Embrace its sophisticated engineering which quietly underscores power distribution efficiency. Style it within a meticulously curated panel setup to make your mechanical environments as bespoke as they are reliable, achieving unrivaled elegance in functionality.
Equip your system with reliability and start controlling your power distribution like a pro with the Connecticut Electric Din Rail Circuit Breaker.
