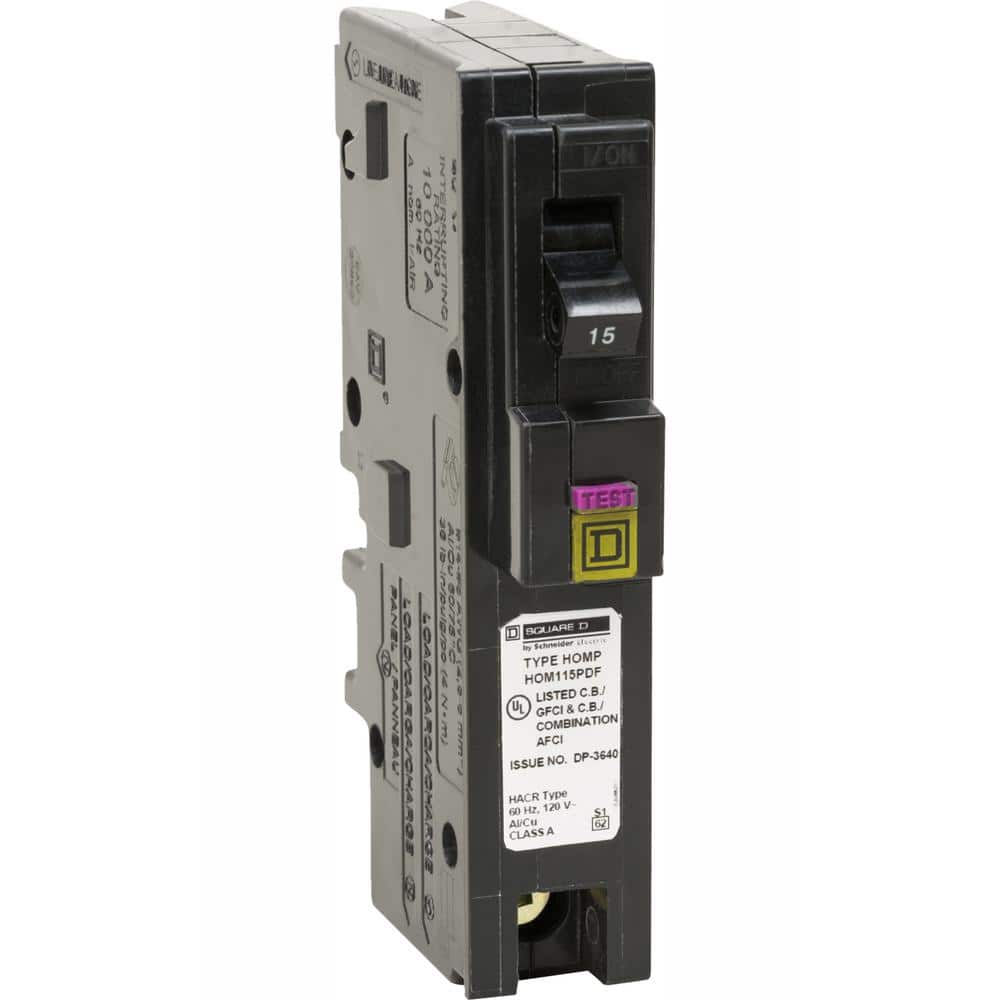

Homeline 15A Dual Function CAFCI/GFCI Circuit Breaker

This Square D Homeline 15A single-pole circuit breaker delivers combined CAFCI and GFCI protection in one plug-on neutral design for faster, cleaner installs. Engineered for Homeline plug-on neutral panels, it eliminates pigtails, saves gutter space, and meets current NEC requirements for kitchen and laundry branch circuits.

---

Key Features:

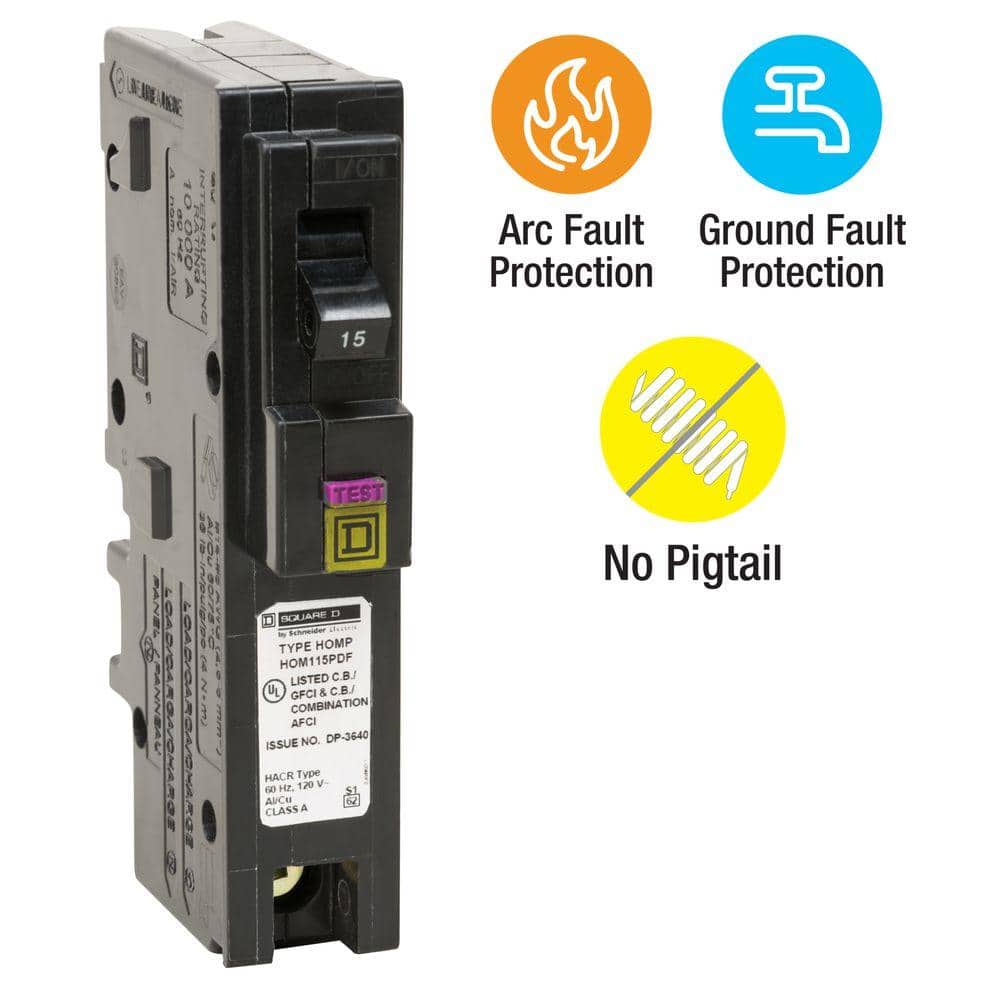

• Dual Protection: Combines Combination Arc Fault (CAFCI) and Ground Fault (Class A GFCI) in one breaker

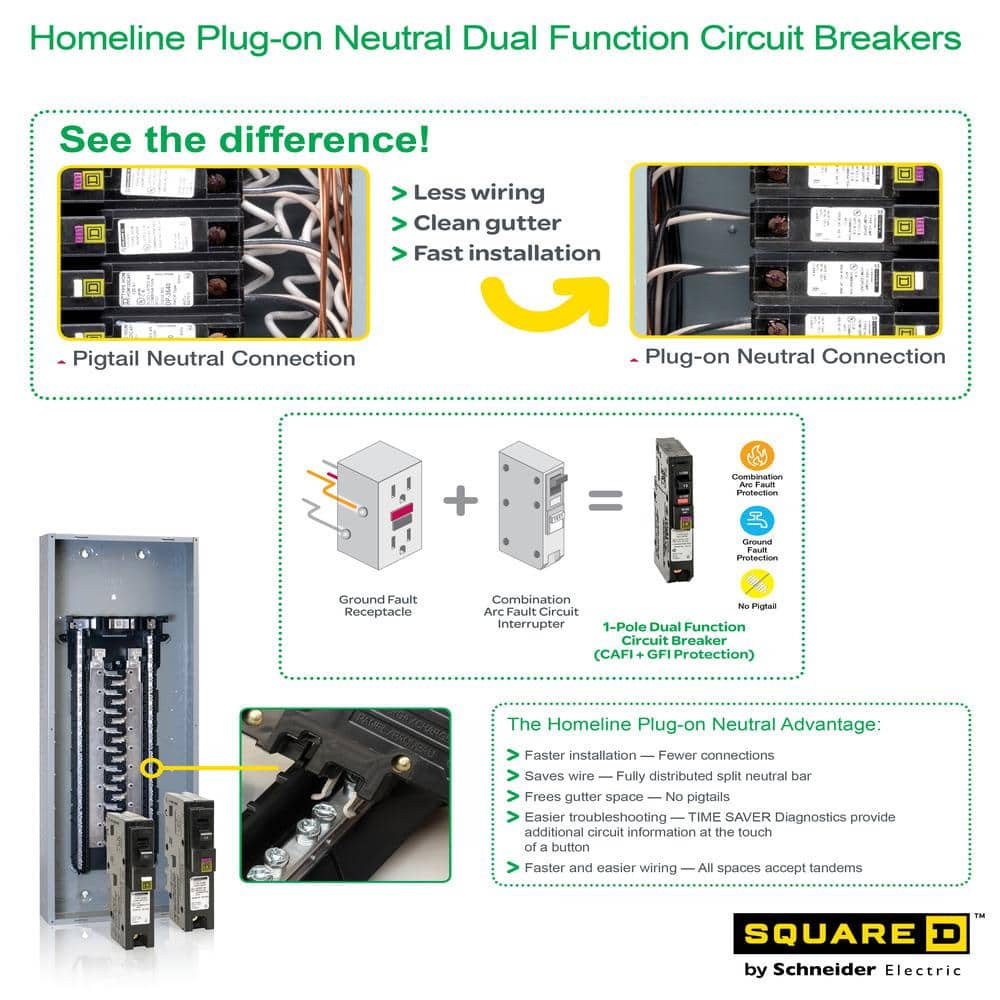

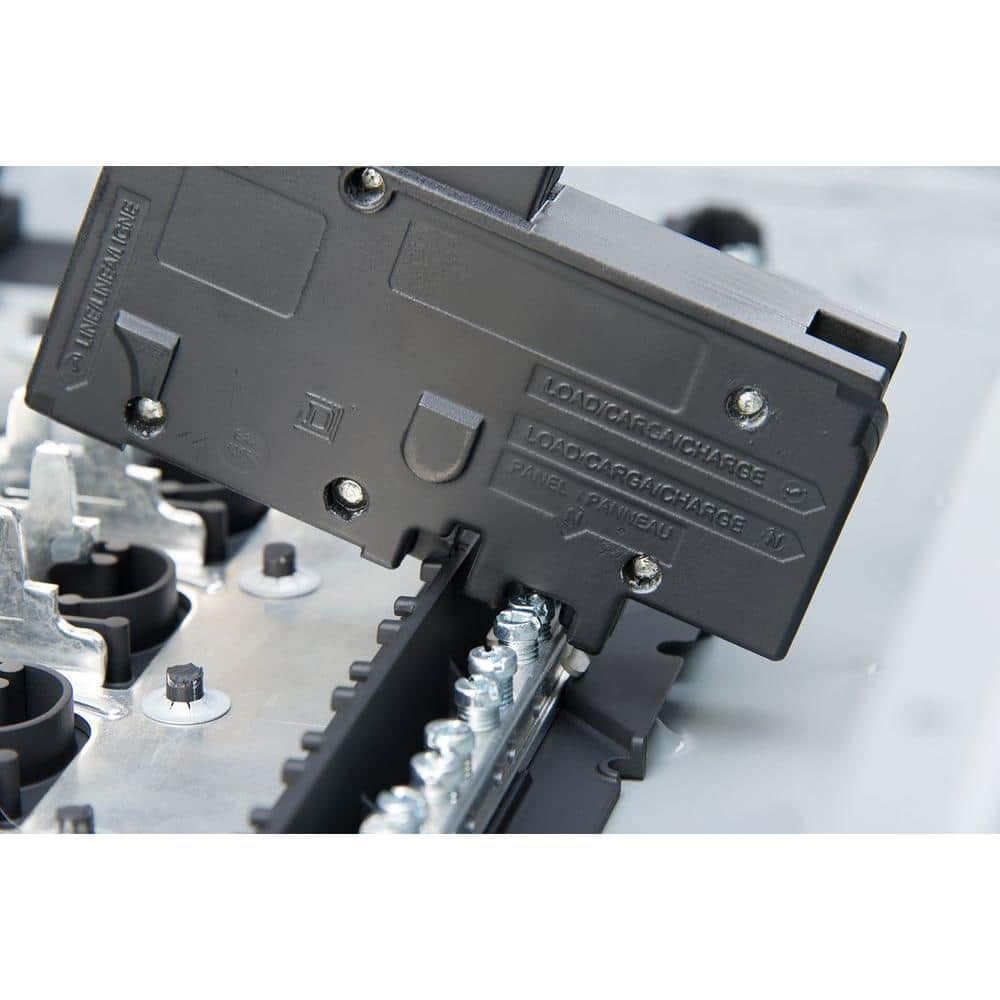

• Plug-On Neutral Design: Connects directly to the neutral bar for fewer connections and quicker installation—no pigtails
• Time Saver Diagnostics: Built-in diagnostics help speed troubleshooting at the touch of a button
• Homeline Compatibility: For Square D Homeline plug-on neutral load centers; single-pole, 1 space

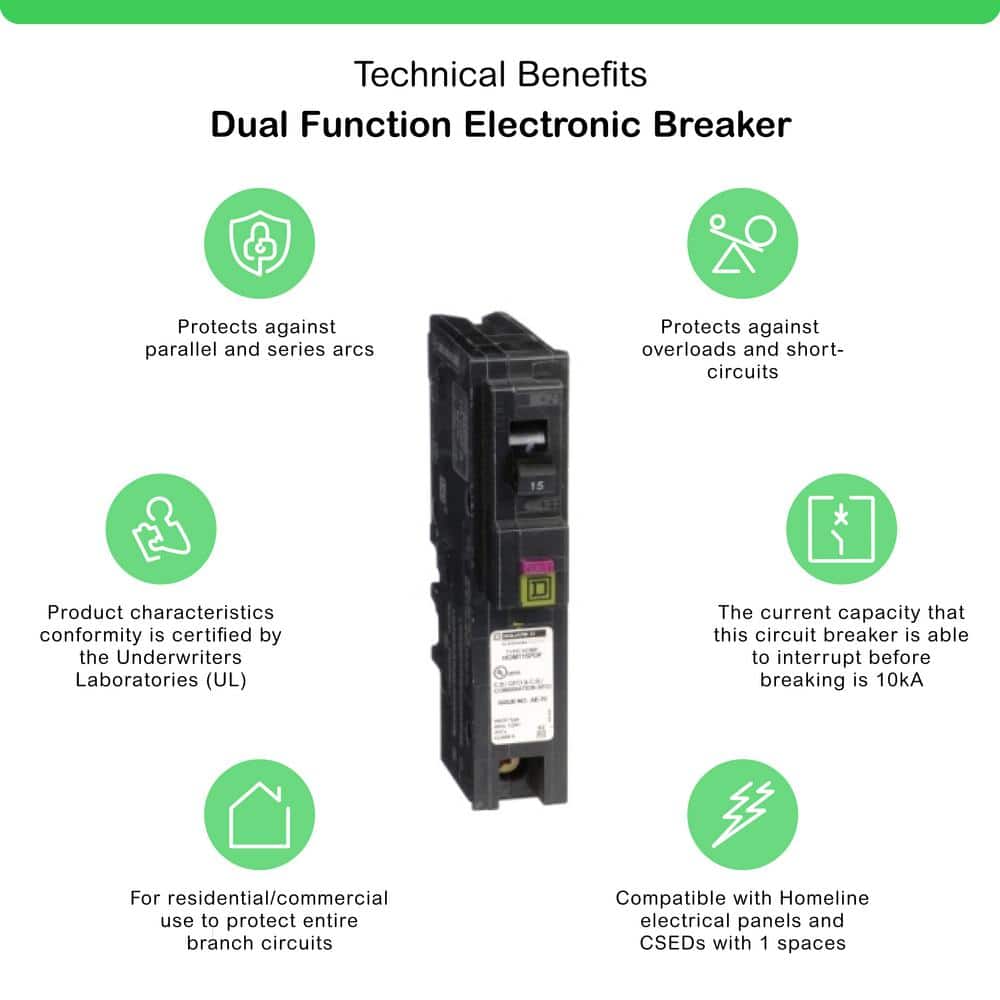

• UL Listed Reliability: 10kA interrupt rating; electronic trip unit for consistent performance

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Amperage	15 A
Poles	Single
Voltage	120/240 V
AIC Rating	10,000
Interruption Type	CAFCI/GFCI
Mounting Type	Plug-On
Connection Type	Plug-on neutral (no pigtail)
Trip Unit	Electronic
Number of Spaces	1
Pack Size	1
Certifications	UL Listed; ANSI Certified
Product Weight	0.28 lb

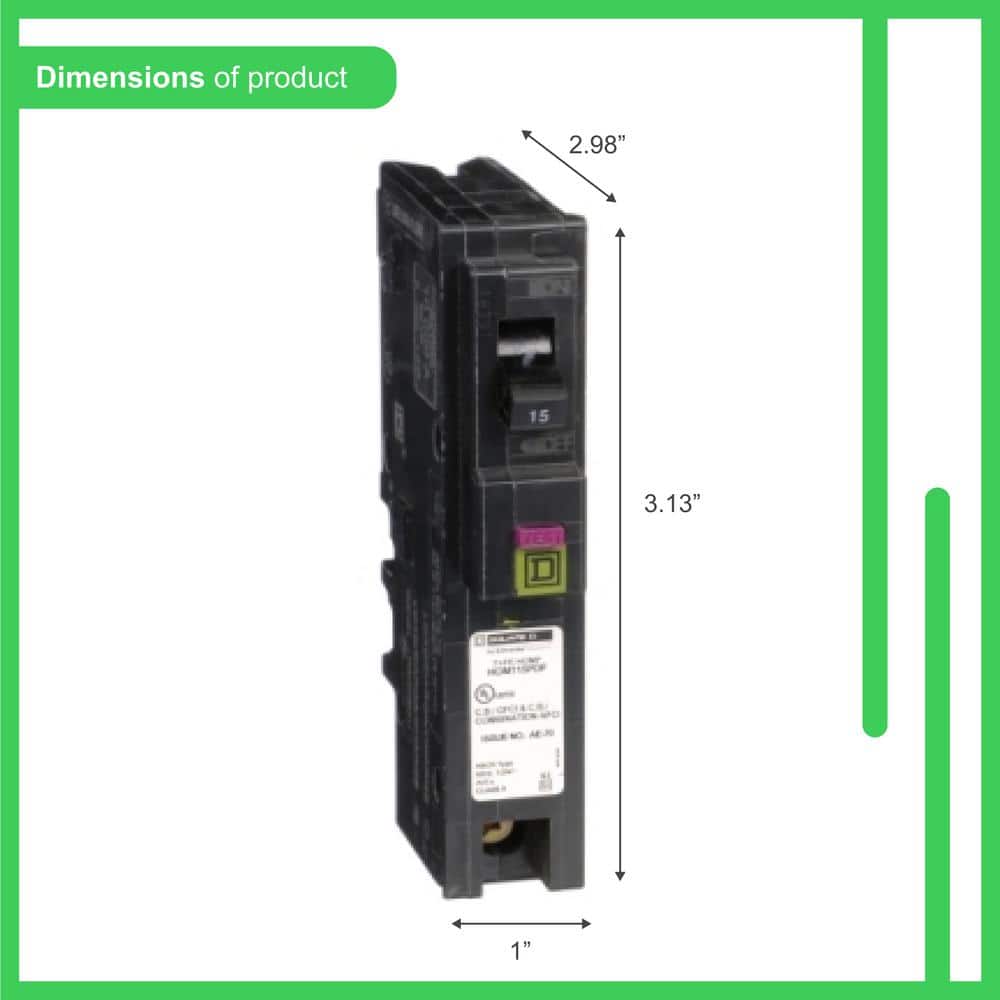

Product Dimensions	Height 3.13 in; Width 1 in; Depth 2.98 in
Manufacturer Warranty	Limited lifetime warranty for the Homeline load center in which it is installed

---

Frequently Asked Questions (FAQ):

Q: Will this breaker fit any panel?
A: No. It is compatible only with Square D Homeline plug-on neutral panels and CSEDs.

---

Q: What circuits require this dual function breaker?
A: NEC requires CAFCI and GFCI protection on 1-pole 15A and 20A kitchen and laundry circuits; this breaker provides both.

---

Q: Does it require a pigtail neutral wire?
A: No. The plug-on neutral design eliminates pigtails and connects directly to the neutral bar.

---

Q: What is the interrupt rating and voltage?
A: 10,000 AIC and 120/240 V.

---

Q: Is it UL listed and warranted?
A: Yes, it is UL Listed and covered by a limited lifetime warranty for the Homeline load center it’s installed in.

---

Streamlined Safety with Modern Ease

This sleek, minimal breaker elevates the heart of your home’s power with refined, intelligent protection. The plug-on neutral design removes clutter, creating a cleaner panel aesthetic while maximizing functional elegance. Pair it with a well-organized Homeline load center to keep wiring tidy and maintenance effortless. It’s a discreet essential that delivers luxury through safety and simplicity.

---

Upgrade to dual protection and faster installation—add the Homeline 15A CAFCI/GFCI breaker to your panel today.
