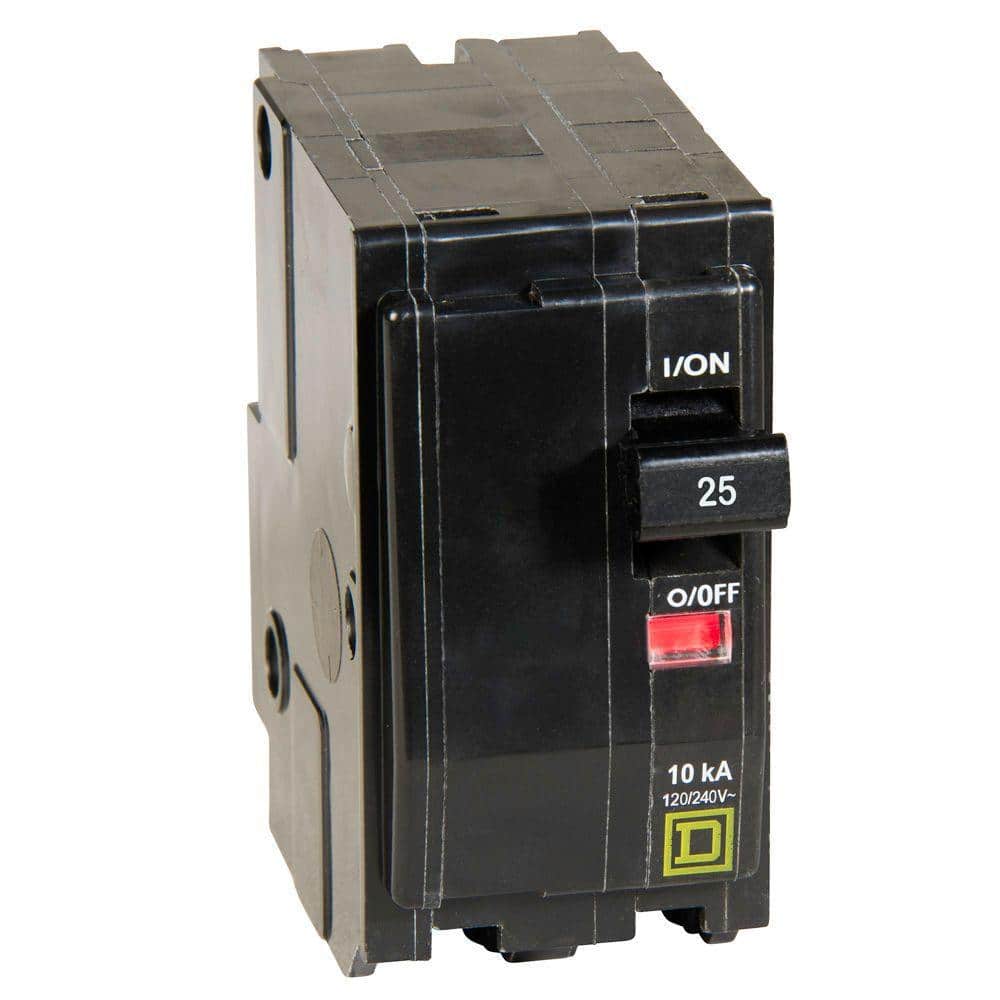

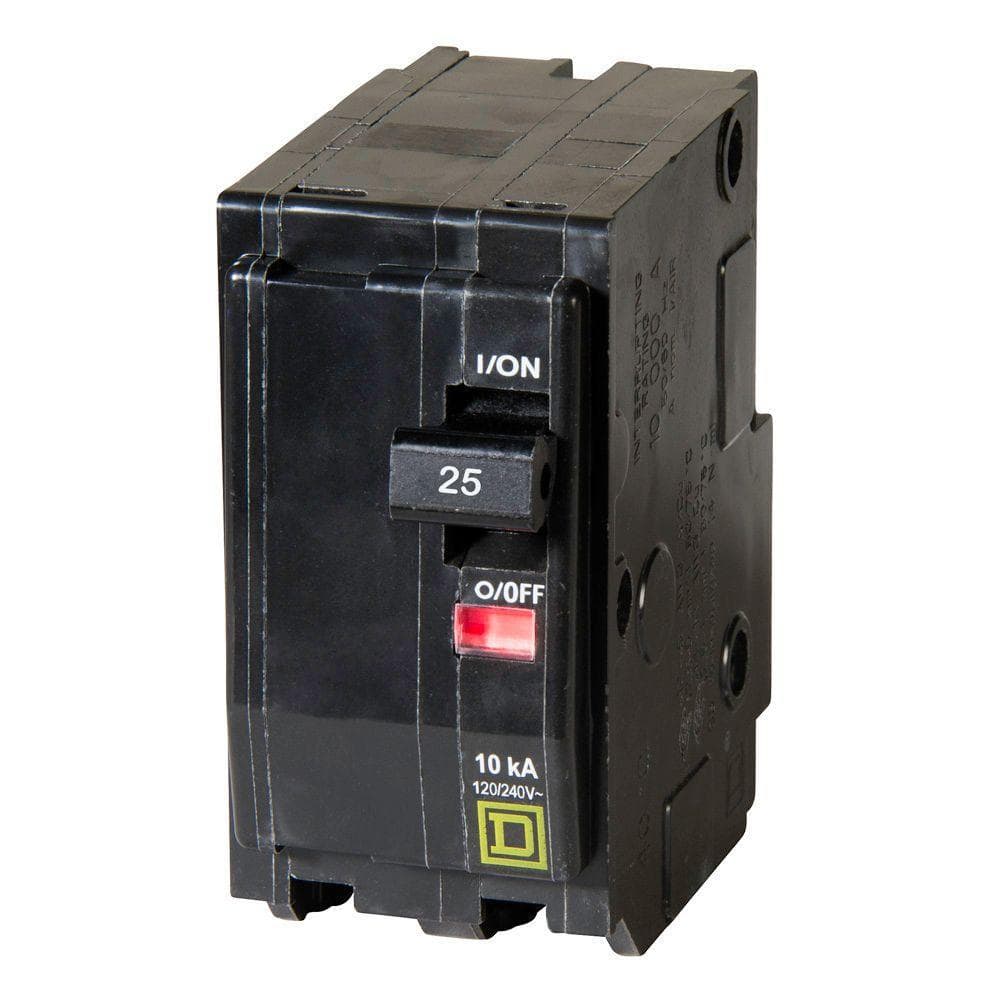

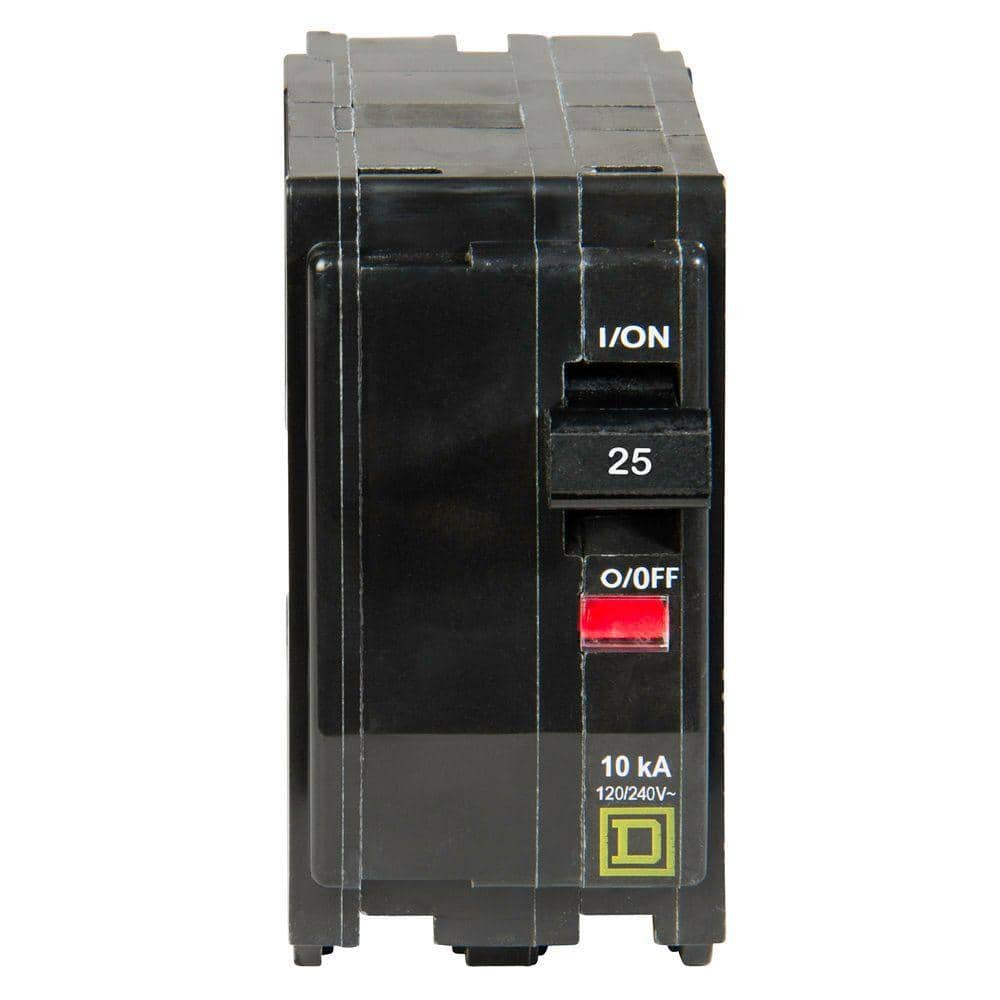

QO 25A Double-Pole Circuit Breaker

A thermal-magnetic Square D QO circuit breaker delivering reliable overload and short-circuit protection for 120/240V systems. Plug-on design fits QO load centers and CSEDs, featuring the Visi-Trip indicator for fast troubleshooting.

---

Key Features:

• Thermal-Magnetic Protection: Safeguards circuits against overloads and short-circuits
• Quick Diagnostics: Visi-Trip red indicator clearly shows a tripped breaker
• Plug-On Installation: Simple fit for Square D QO panels and CSEDs with 2 spaces
• Durable Performance: 10,000 AIC interrupt rating for dependable protection

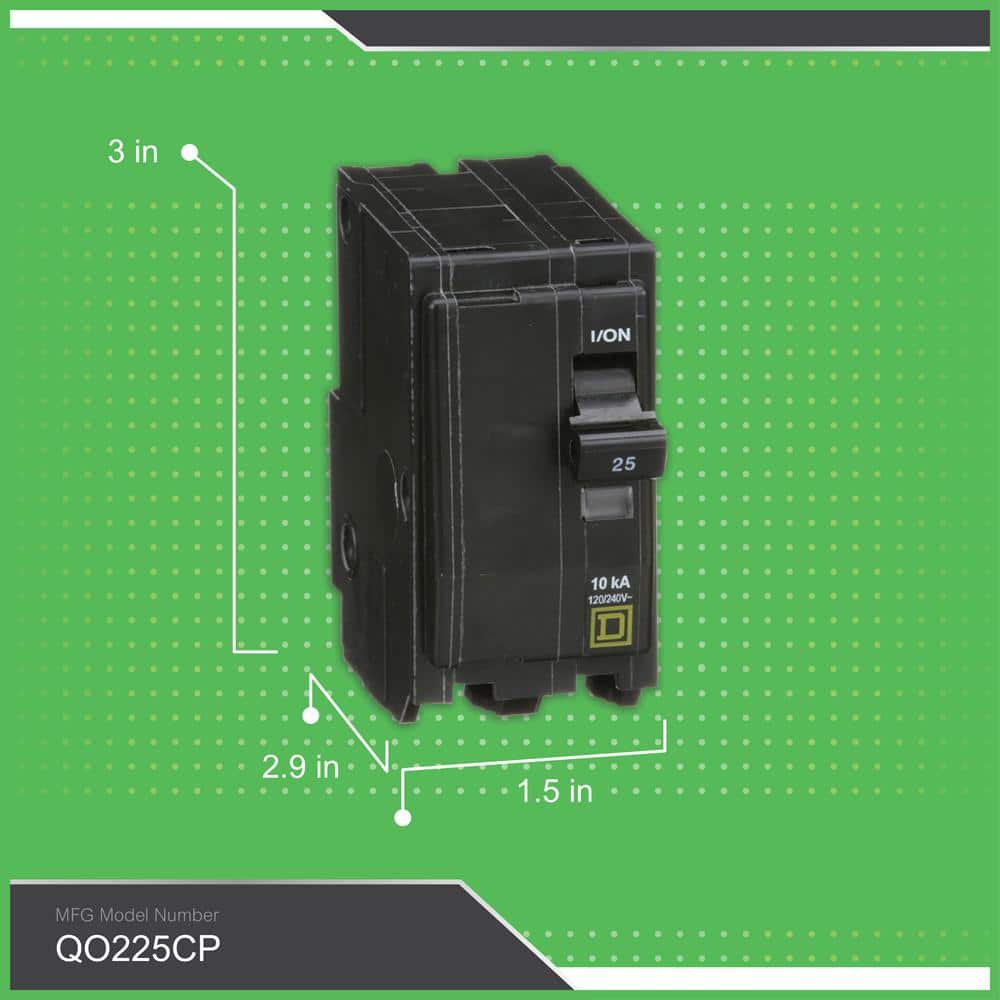

• Compact Dimensions: 3 in H x 2.9 in D x 1.5 in W for tight panel spaces

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	QO
Breaker Type	Standard
Trip Unit	Thermal Magnetic
Interruption Type	Standard Trip
Maximum Amperage	25 A
Voltage	120/240 V AC
AIC Rating	10,000 A
Number of Poles	2 (Double-Pole)
Mounting Type	Plug-On
Connection Type	Non-Neutral
Pack Size	1
Certifications and Listings	UL Listed; ANSI Certified
Product Height	3 in
Product Depth	2.9 in
Product Width	1.5 in
Product Weight	0.53 lb
Compatibility	Square D QO electrical panels, CSEDs, NQOD panelboards with 2 spaces
Indicator	Visi-Trip red indicator
Warranty	Limited lifetime warranty when installed in a QO load center

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my panel?
A: It is designed for Square D QO load centers, CSED devices, and NQOD panelboards requiring a 2-space, 2-pole breaker.

---

Q: What voltage and amperage is it rated for?
A: Rated 25 amps for 120/240 VAC systems with a 10,000 AIC interrupt rating.

---

Q: What type of trip mechanism does it use?
A: A thermal-magnetic trip unit provides both overload and short-circuit protection.

---

Q: How do I know if it has tripped?
A: The Visi-Trip feature snaps the handle to a midpoint and shows a red indicator to easily identify the tripped breaker.

---

Q: Is there a warranty?
A: Square D offers a limited lifetime warranty for branch circuit breakers when installed in a QO load center.

---

Streamlined Safety with Iconic Square D Precision

This compact breaker brings a refined, utilitarian elegance to your electrical panel—clean lines, purposeful form, and the confidence of precise engineering. The standout Visi-Trip window punctuates the design with a smart touch of red, signaling clarity at a glance. Pair it with a meticulously labeled QO load center to keep the panel’s aesthetic crisp and orderly. It’s a small yet essential upgrade that elevates both safety and the quiet luxury of a well-organized home.

---

Upgrade your panel with trusted Square D protection—add the QO 25A 2‑Pole breaker to your cart today.
