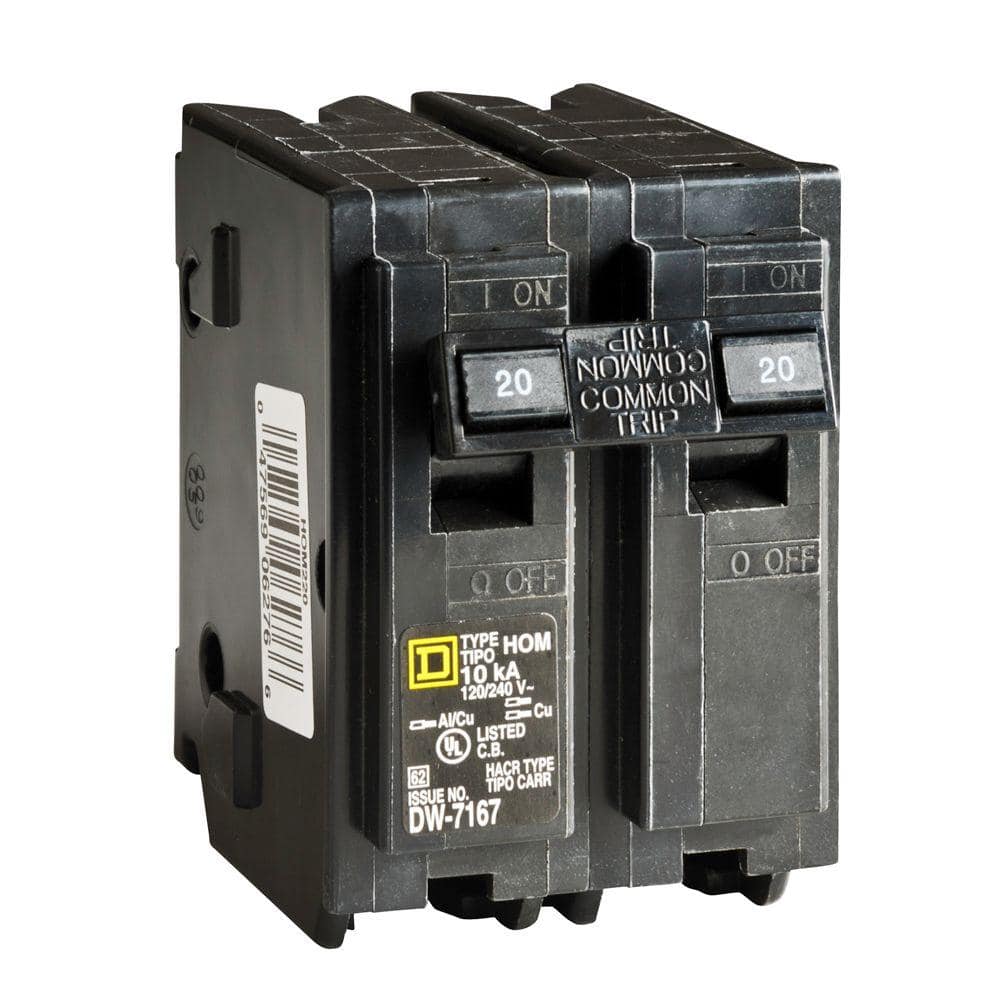

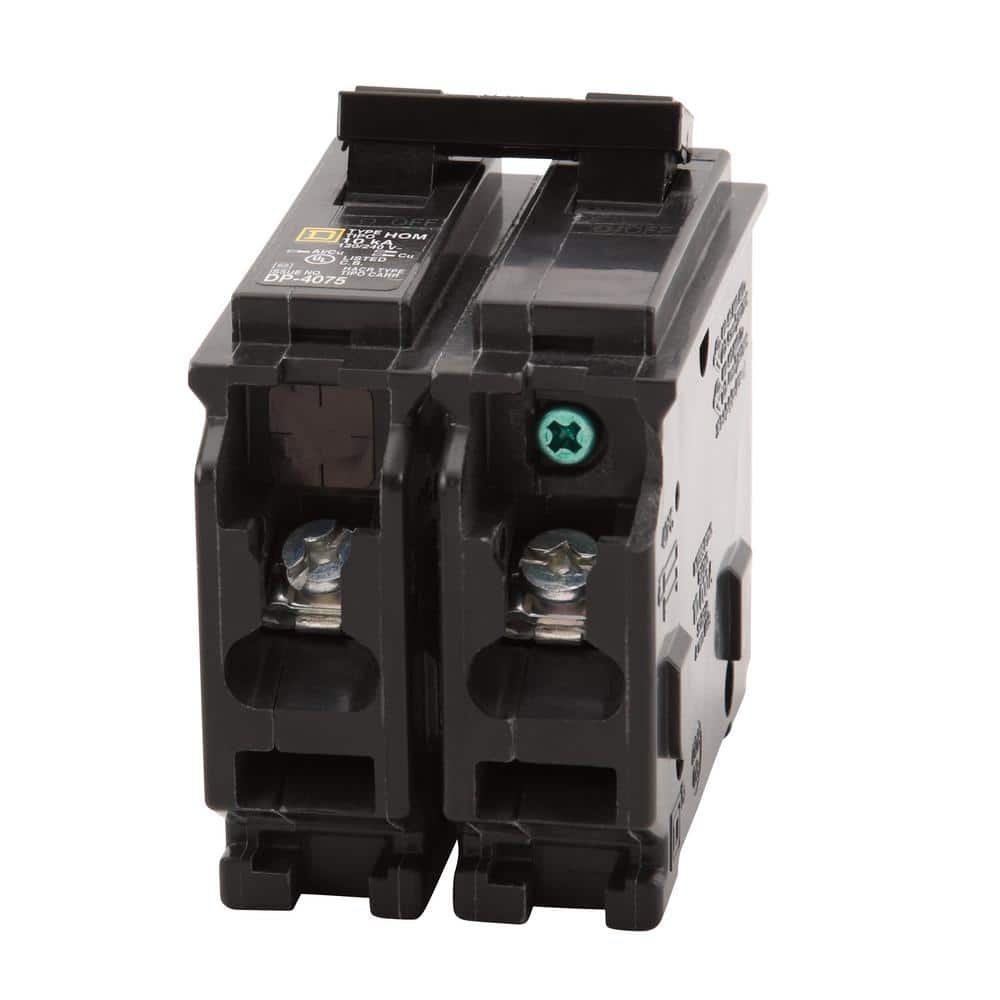

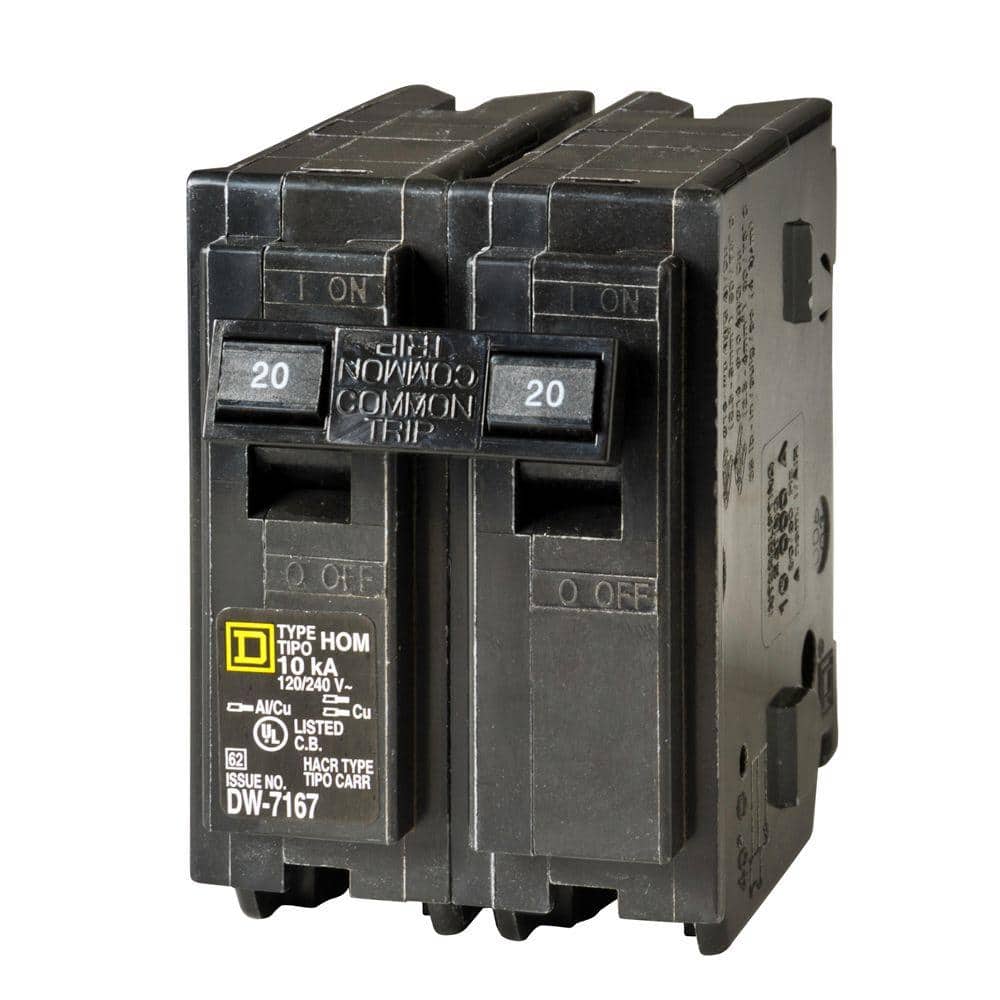

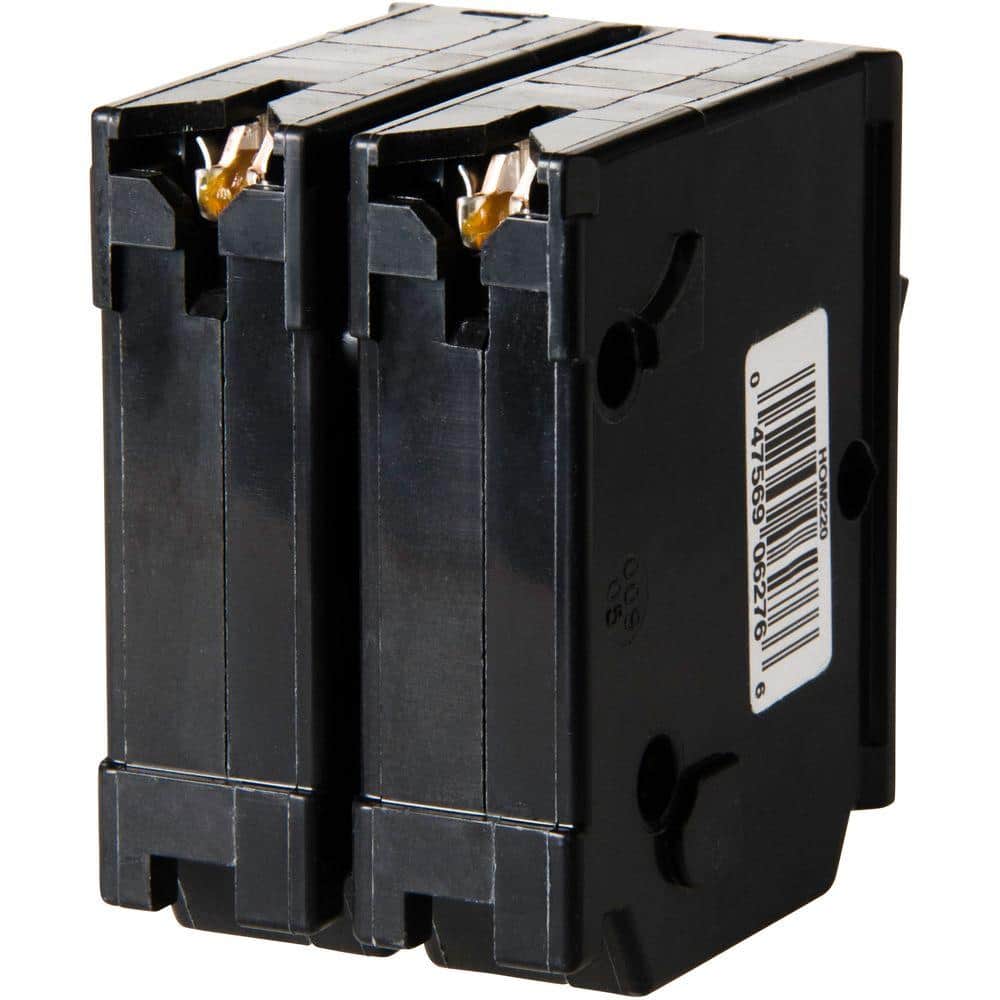

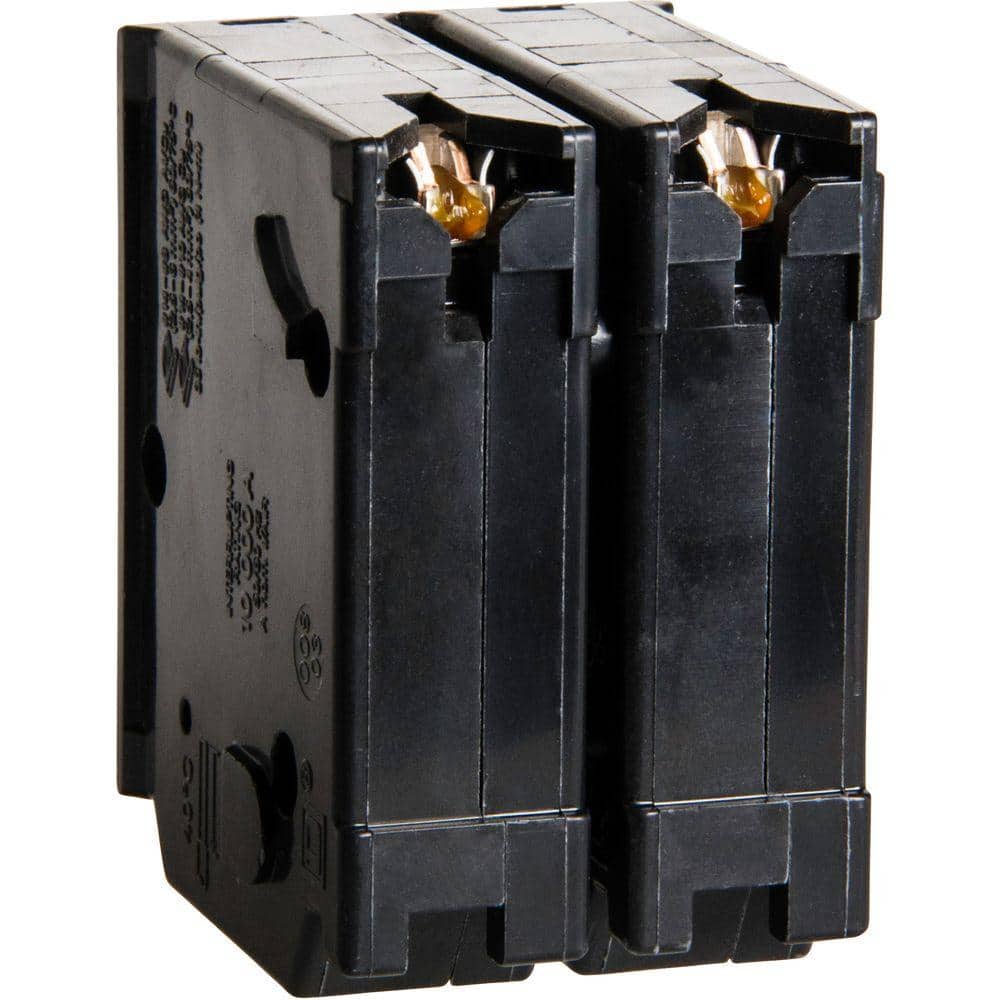

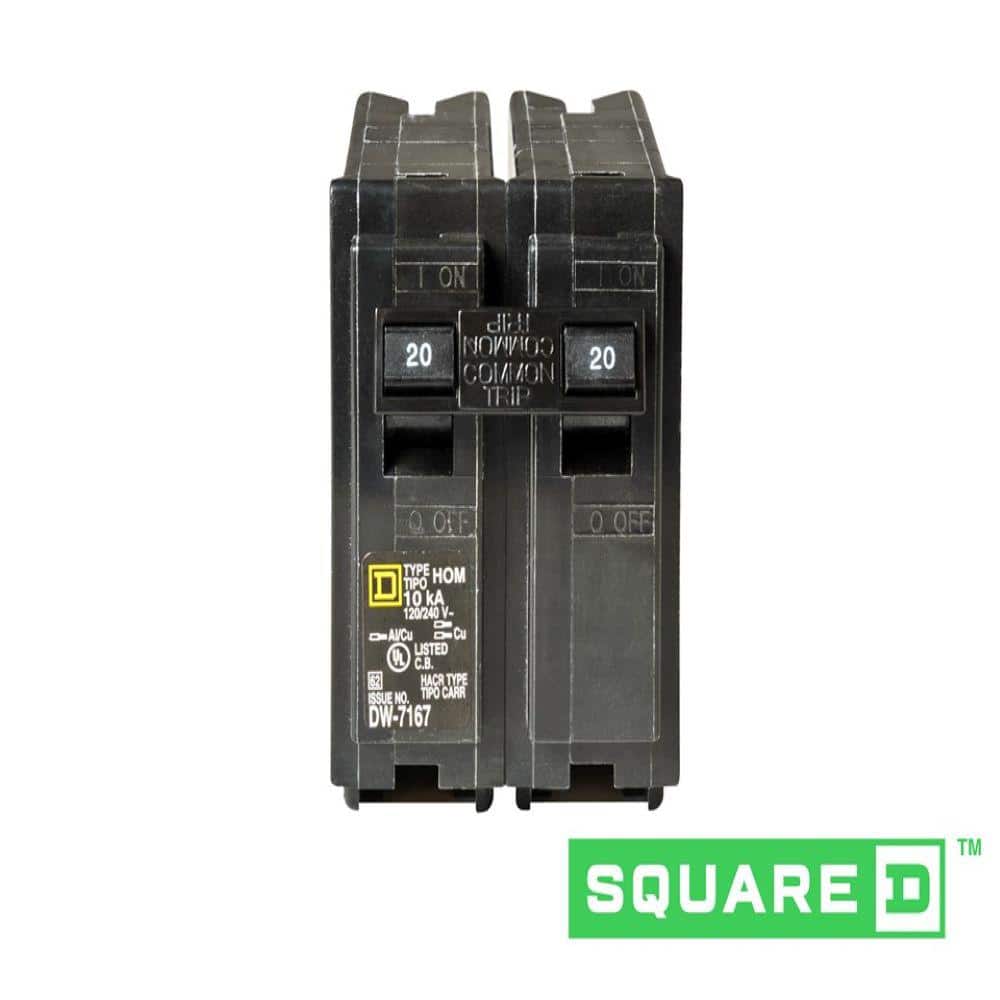

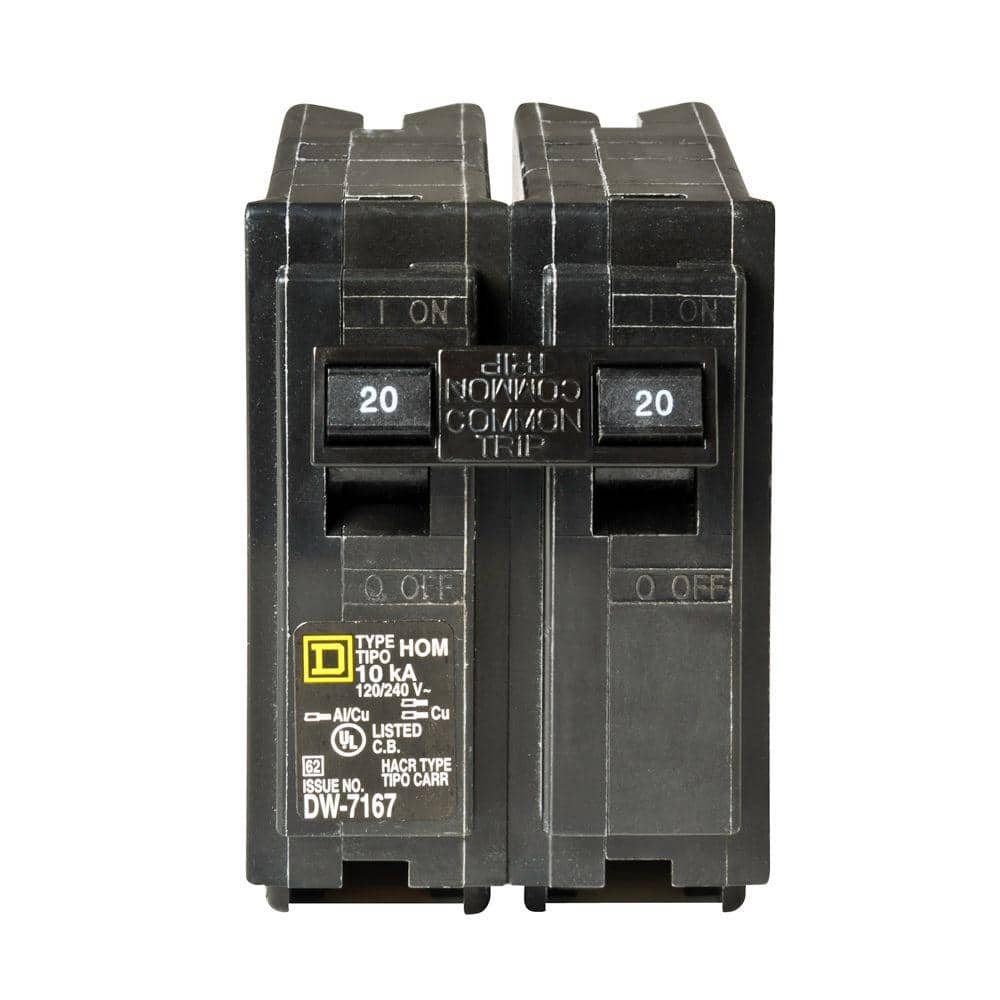

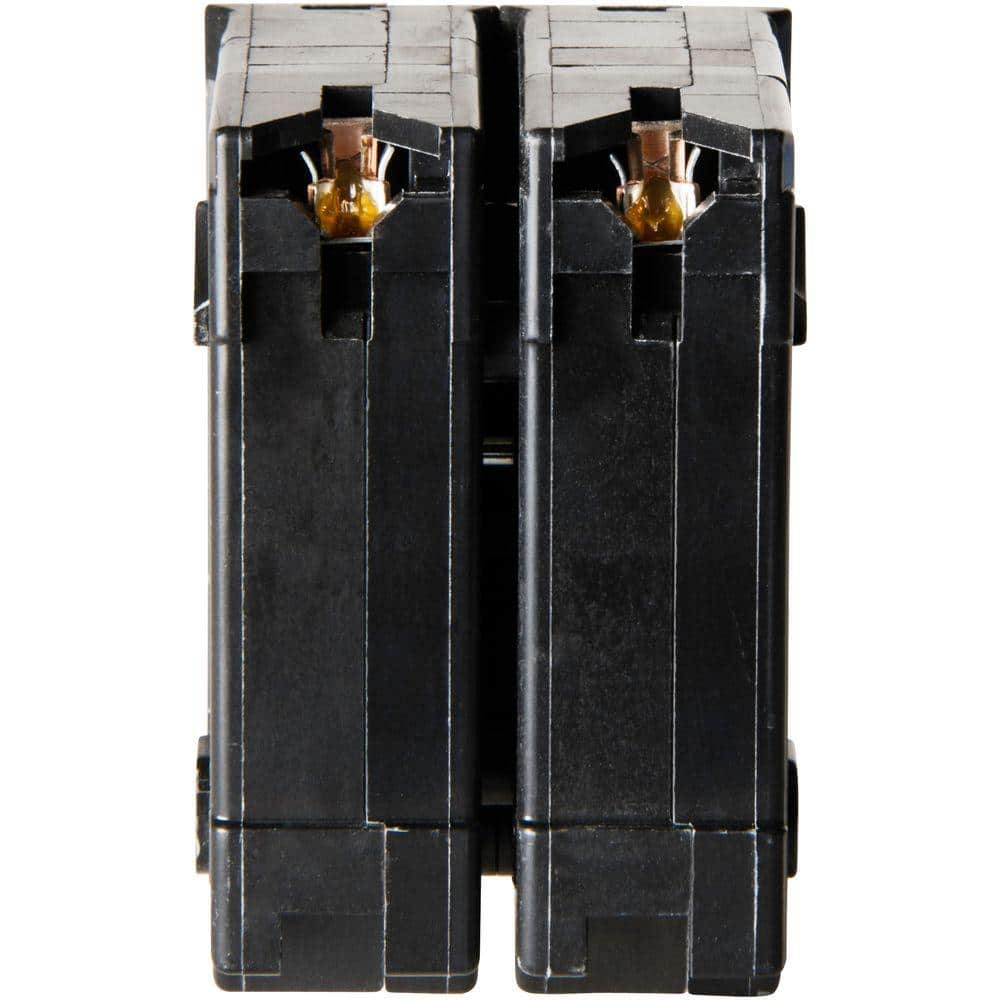

Homeline 20A Double-Pole Circuit Breaker

A thermal-magnetic, plug-on Square D Homeline breaker for 120/240V branch circuit protection. Rated 20A with 10,000 AIR, it fits Homeline load centers and CSED devices for reliable overload and short-circuit defense.

---

Key Features:

• Reliable Protection: Thermal-magnetic trip safeguards against overloads and short-circuits
• Homeline Compatibility: Fits Square D Homeline load centers and CSEDs using two spaces
• Easy Plug-On Mounting: Simple installation into compatible panels
• Dual-Pole Performance: 20A, 120/240V common-trip design for multi-wire or 240V circuits
• UL Listed Quality: ANSI-certified and UL Listed for safety and performance

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Maximum Amperage	20A
Poles	2 (Double-Pole)
Voltage	120/240 VAC
AIC Rating	10,000 AIR
Mounting Type	Plug-On
Trip Unit	Thermal Magnetic
Breaker Type	Standard, Common Trip
Connection Type	Non-Neutral
Pack Size	1
Certifications	UL Listed; ANSI compliant
Product Height	3.13 in
Product Width	2 in
Product Depth	2.98 in
Application	Residential/commercial branch circuit protection
Wire Compatibility	Al/Cu conductors
Panel Compatibility	Square D Homeline load centers and CSED devices

---

Frequently Asked Questions (FAQ):

Q: Will this breaker fit my panel?
A: It is designed for Square D Homeline load centers and CSED devices; it will not fit QO or other panel types.

---

Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.

---

Q: Is it suitable for aluminum or copper wire?
A: Terminals accept Al/Cu conductors as indicated on the product labeling.

---

Q: How many spaces does it require?
A: Two spaces in the Homeline panel.

---

Q: What type of trip mechanism does it use?
A: Thermal-magnetic standard trip (common trip).

---

Streamlined Safety with a Minimalist Profile

This compact, dual-pole breaker brings a crisp, utilitarian aesthetic to modern electrical layouts. Its clean lines and subtle black finish tuck neatly into Homeline panels, elevating function with quiet confidence. Pair it with a well-organized load center and labeled circuits for a polished, professional look. Essential, dependable protection—refined for everyday luxury in the home.

---

Choose this Homeline 20A 2-pole breaker for dependable 120/240V protection and easy plug-on installation in your Square D panel.
