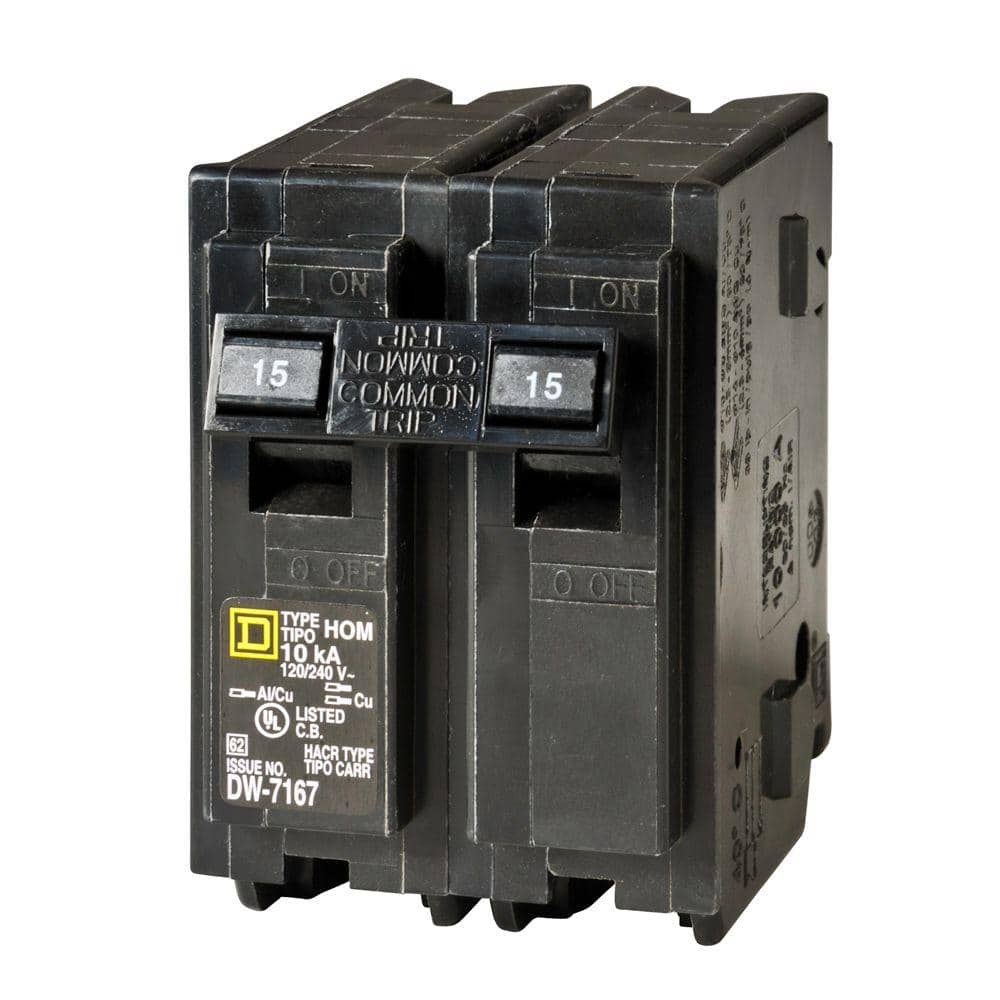

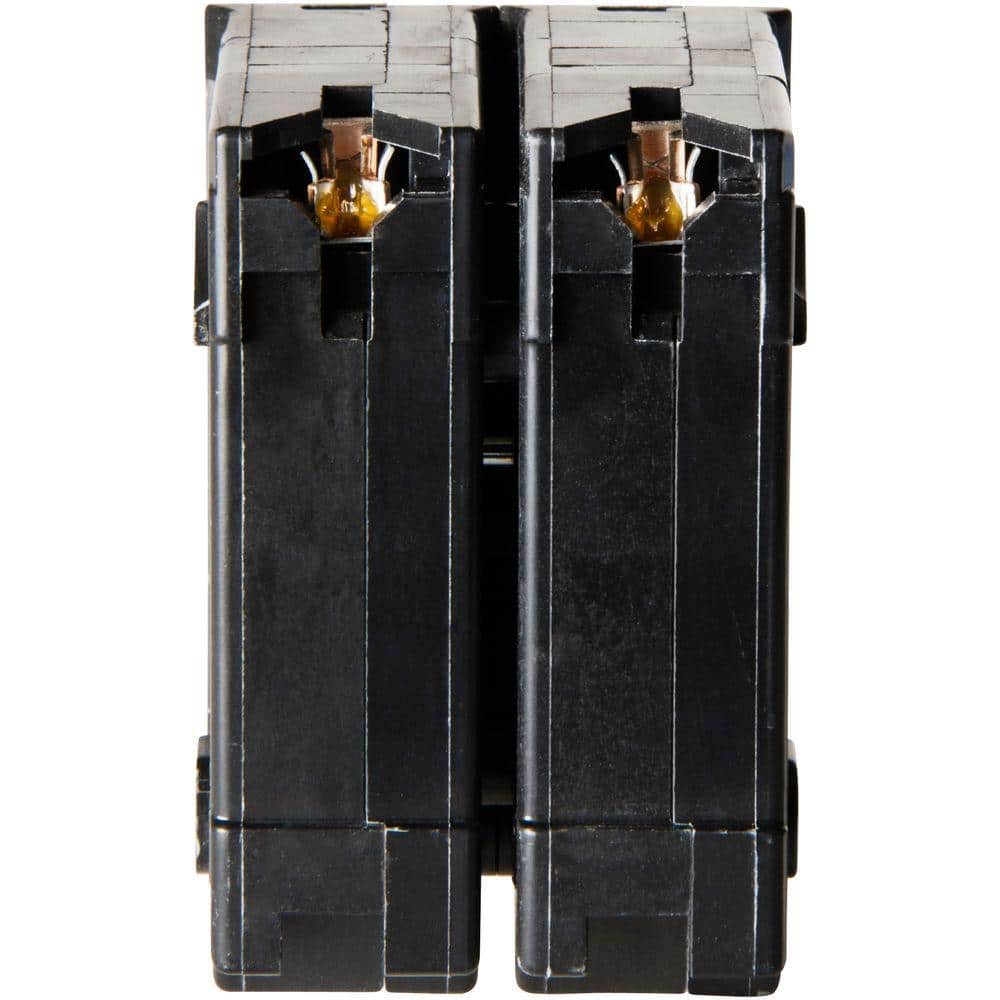

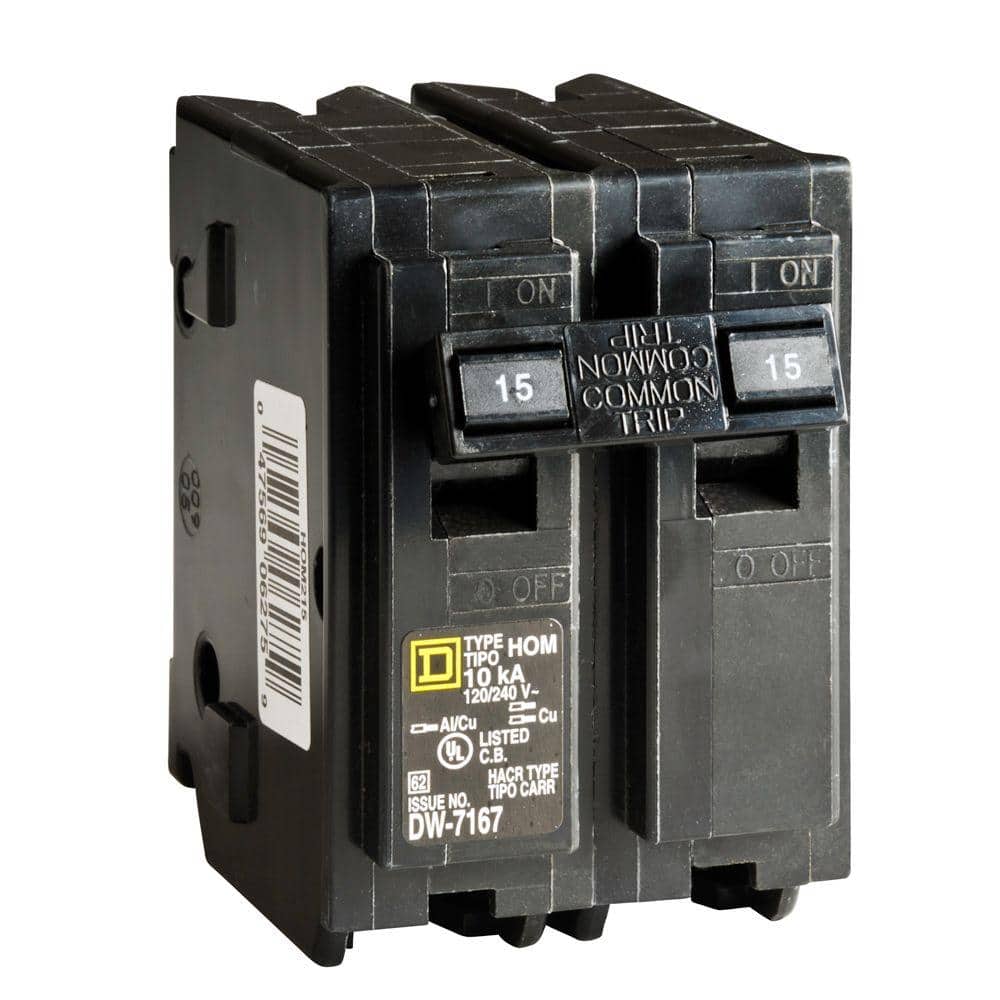

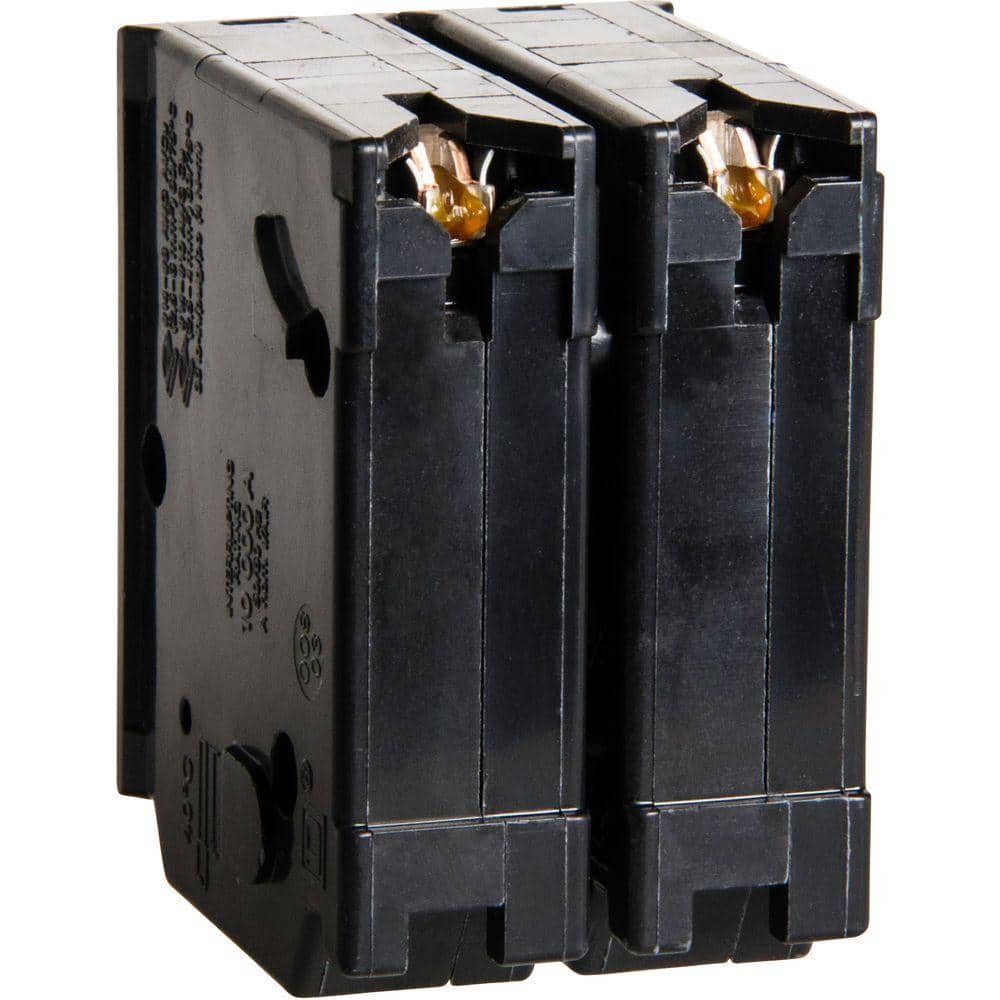

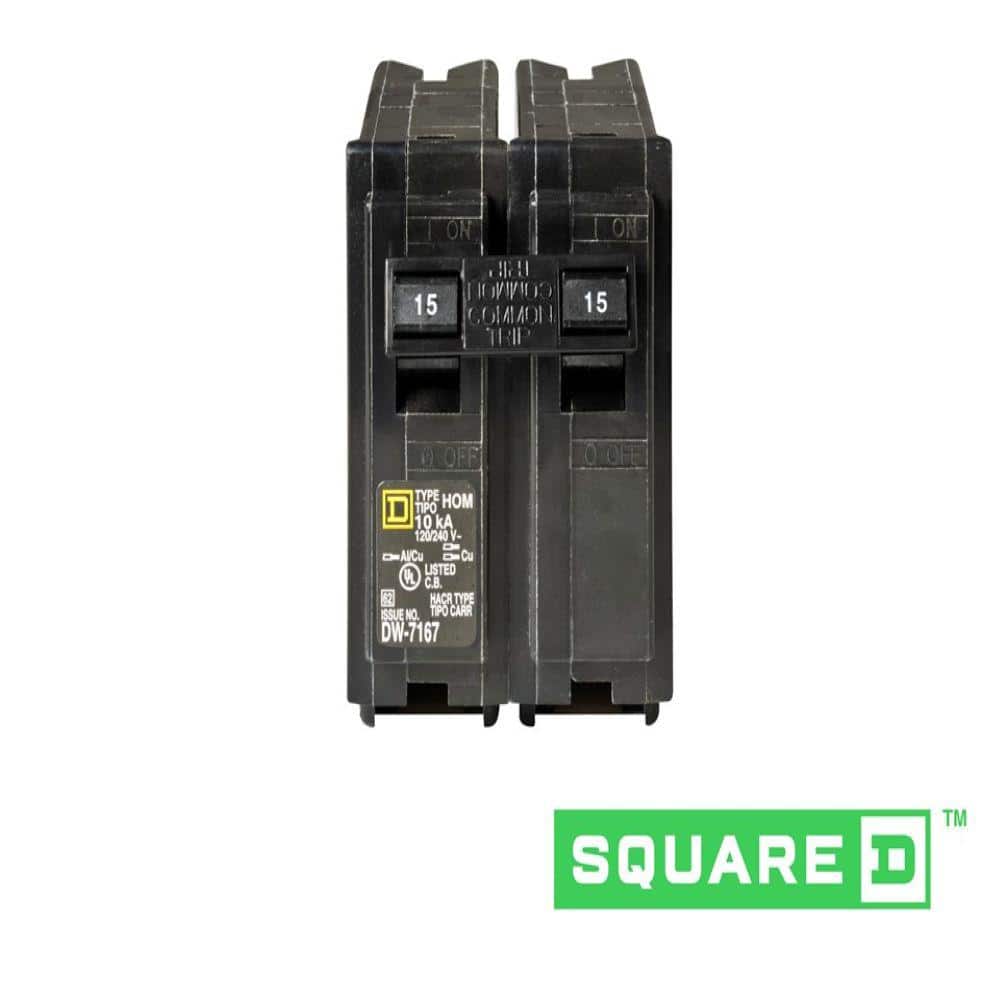

Homeline 15A 2-Pole Circuit Breaker

Square D Homeline thermal-magnetic breaker provides reliable overload and short-circuit protection for residential branch circuits. Plug-on design fits Homeline load centers and CSEDs using two spaces, rated 120/240 VAC with 10,000 AIR.

---

Key Features:

• Reliable Protection: Thermal-magnetic trip guards against overloads and short-circuits
• Homeline Compatibility: Plug-on design for Homeline load centers and CSEDs with 2 spaces
• Dual-Pole Power: 15A, 120/240 VAC for multi-wire or 240V circuits
• Durable Build: UL Listed with 10 kA interrupt rating for dependable performance
• Easy Installation: Commercially packaged and ready to install

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Amperage	15 A
Poles	2 (Double-Pole)
Voltage	120/240 VAC
AIC Rating	10,000 AIR
Breaker Type	Standard
Interruption Type	Standard Trip
Trip Unit	Thermal Magnetic
Mounting Type	Plug-On
Connection Type	Non-Neutral
Pack Size	1
Product Height	3.13 in
Product Depth	2.98 in
Product Width	2 in
Certifications	UL Listed
Application	Residential/commercial branch circuit protection
Compatibility	Square D Homeline load centers and CSEDs (2 spaces)

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with all Square D panels?
A: It is designed for Square D Homeline load centers and CSEDs; it will not fit QO-series panels.

---

Q: What is the interrupt rating (AIC)?
A: 10,000 AIR.

---

Q: What type of trip mechanism does it use?
A: Thermal magnetic.

---

Q: What are the dimensions?
A: Approximately 3.13 in H x 2.98 in D x 2 in W.

---

Q: Is it UL listed and does it have a warranty?
A: Yes, UL Listed; covered by a limited lifetime warranty for the life of the Homeline load center in which it is installed.

---

Streamlined Safety for Modern Panels

This compact Homeline breaker brings quiet confidence to your electrical layout, delivering protection with a clean, utilitarian silhouette. The twin toggles and crisp black housing feel purposeful and unobtrusive—perfect for a tidy, well-considered panel. Pair it with a neatly labeled Homeline load center for an organized, high-functioning utility space. Safety this refined is an essential layer of luxury living.

---

Protect your circuits with trusted Square D performance—add this Homeline 15A 2-pole breaker to your panel today.
