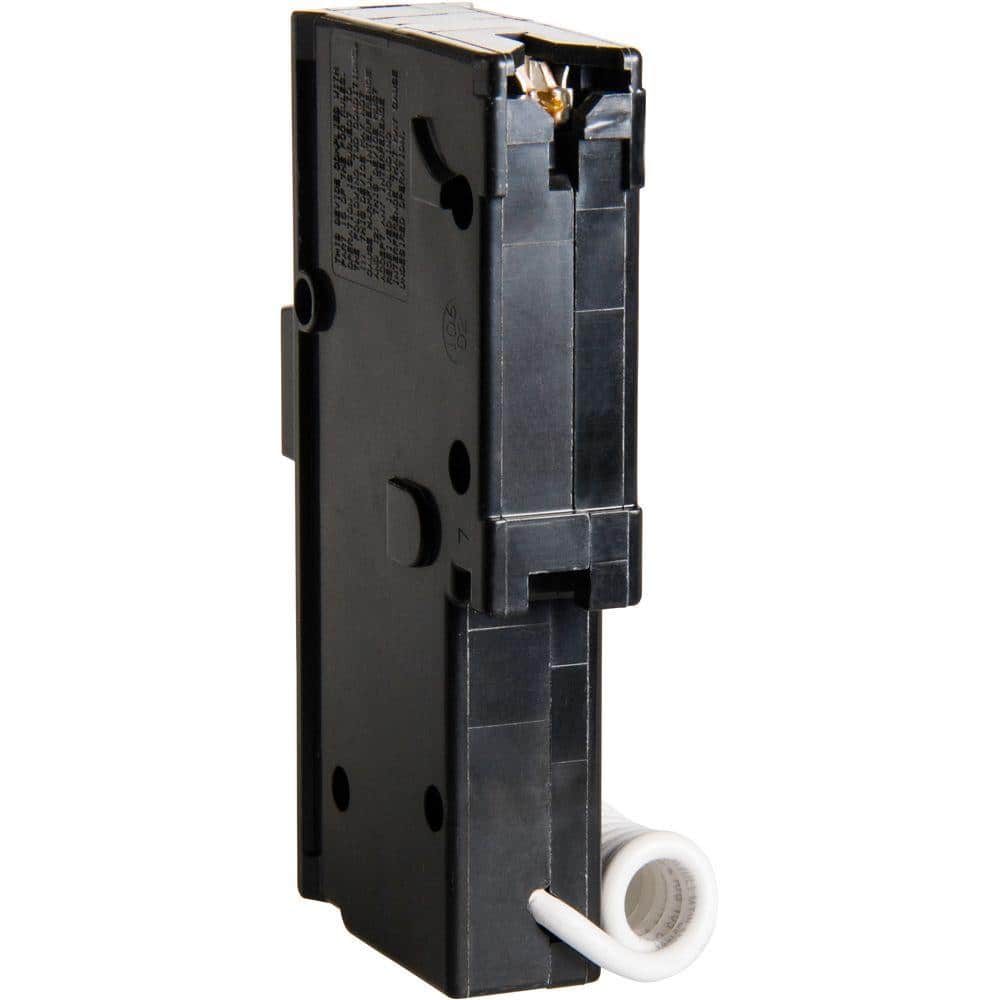

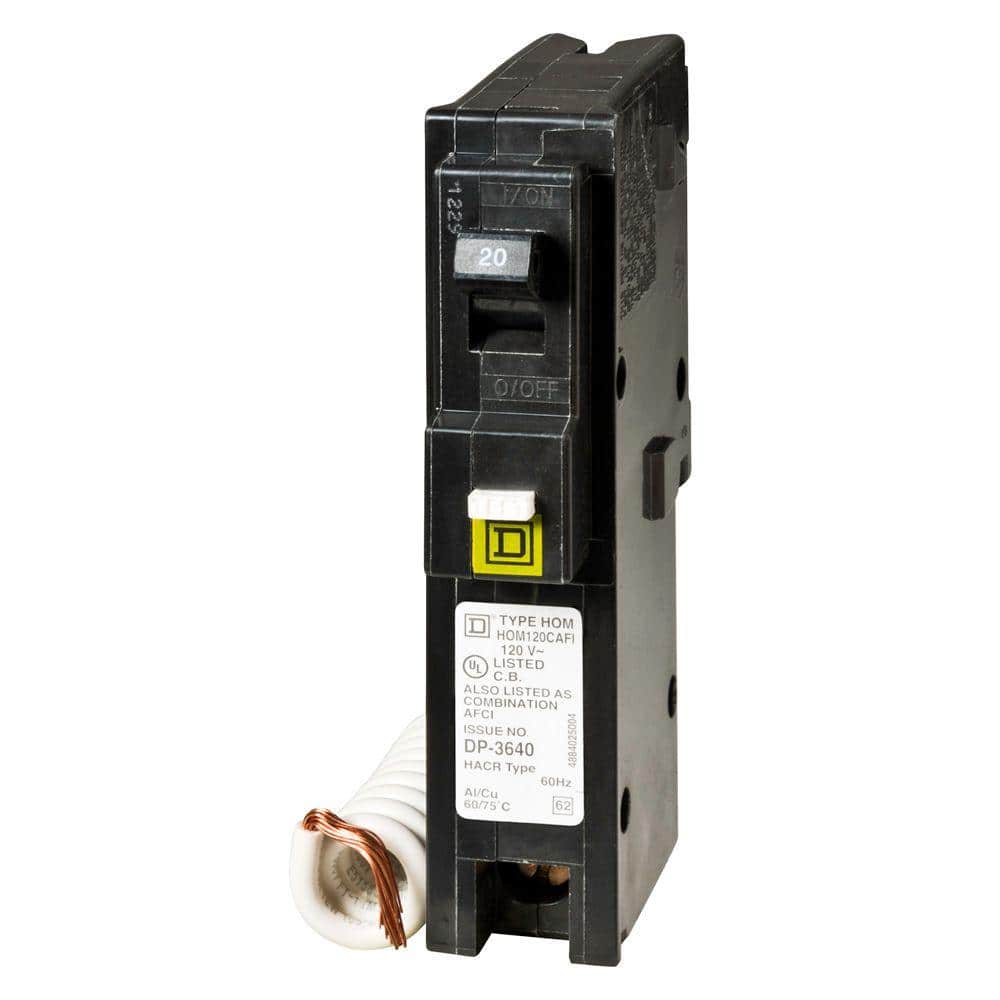

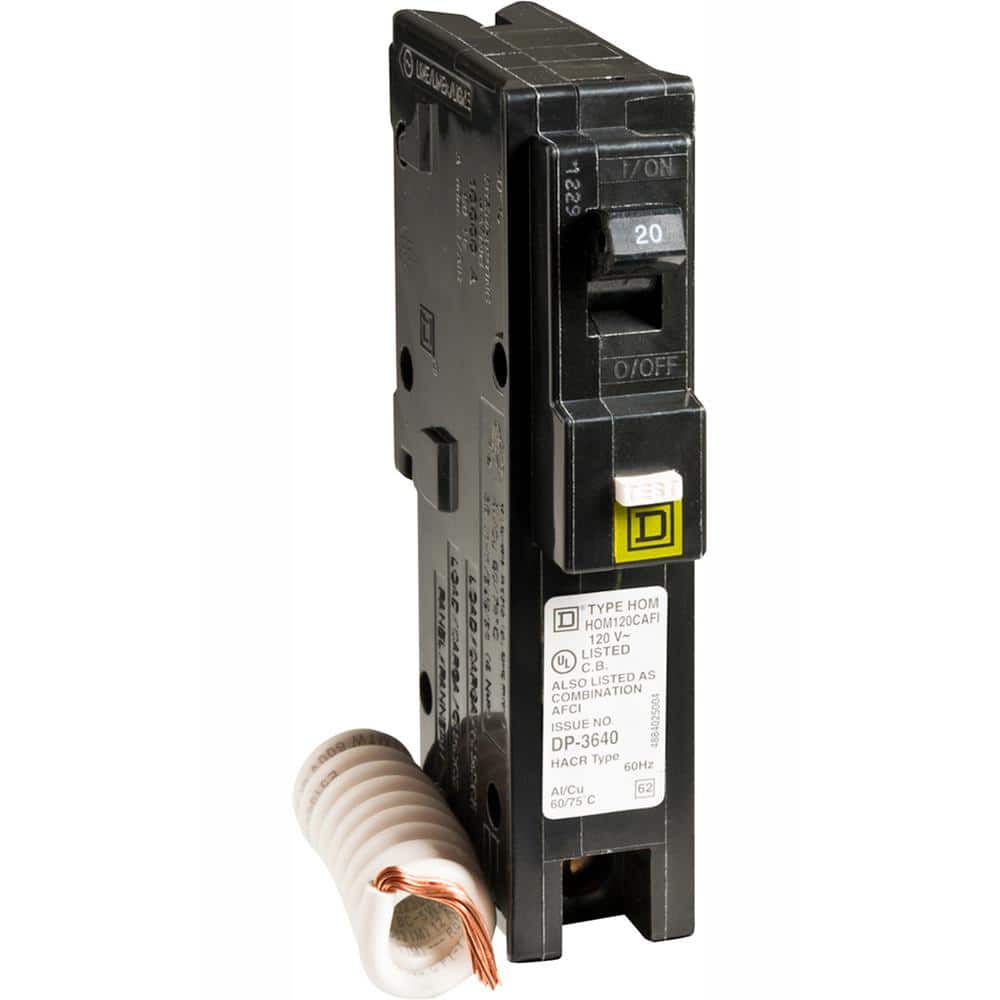

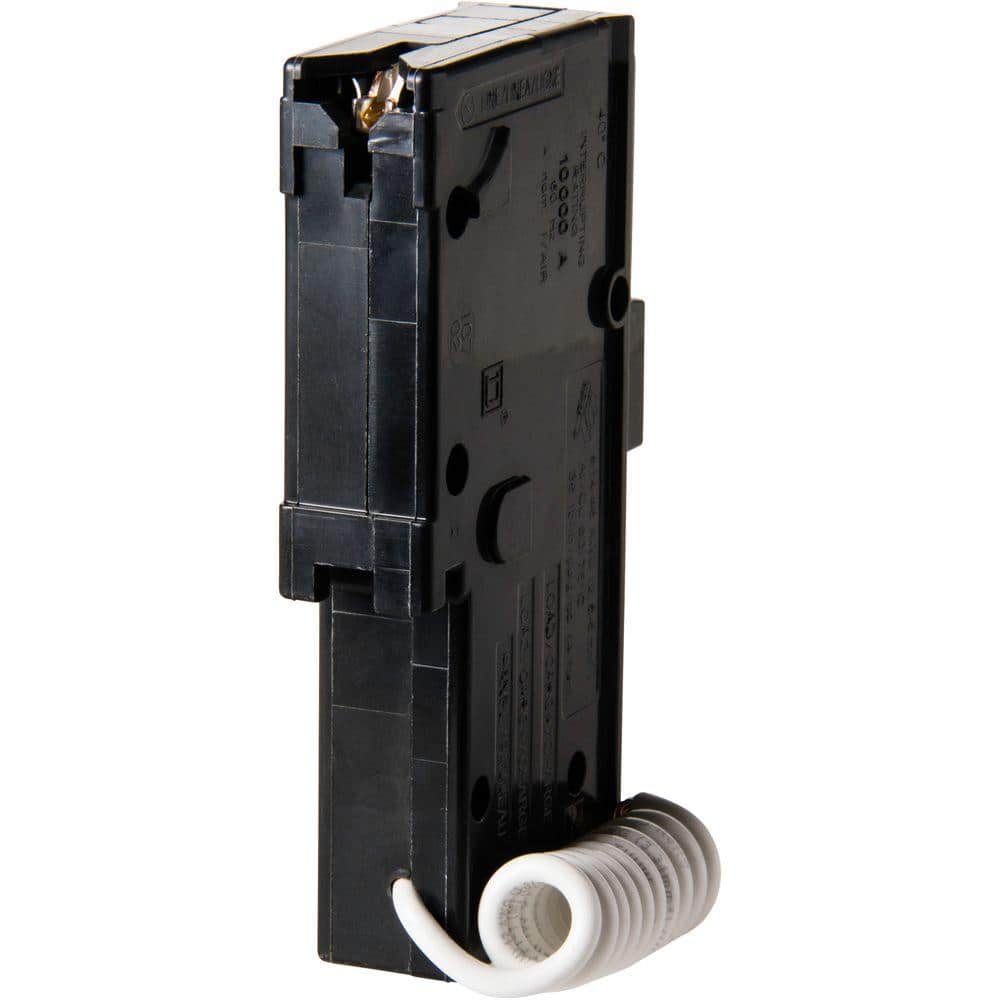

Homeline 20A Single-Pole Combination AFCI Breaker

Square D Homeline combination AFCI breaker delivers 20A single-pole protection against parallel and series arcing faults while safeguarding against overloads and short-circuits. Designed for Homeline panels, it features plug-on mounting with a pigtail neutral and Time Saver Diagnostics for faster troubleshooting.

---

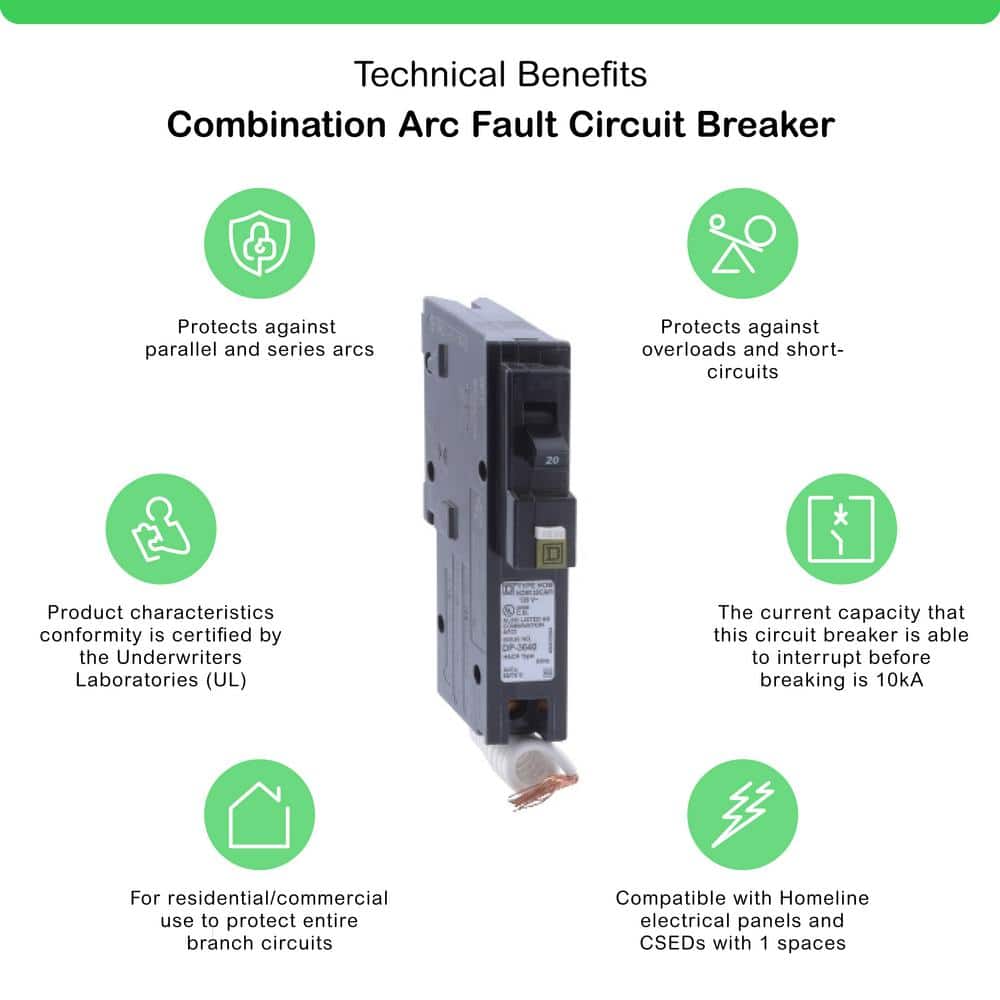

Key Features:

• Arc-Fault Protection: Detects parallel and series arcs to help prevent electrical fires
• Time Saver Diagnostics: Built-in trip indication speeds troubleshooting and reduces downtime
• Homeline Compatibility: Fits Homeline load centers and CSEDs using 1 space
• Plug-On, Pigtail Neutral: Simple installation with secure connections
• UL Listed & 10kA Interrupt Rating: Tested safety compliance with robust fault interruption

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Amperage	20 A
Poles	Single-pole
Interruption Type	AFCI (Combination)
Voltage	120/240 VAC
AIC Rating	10,000 AIC
Mounting Type	Plug-On
Connection Type	Pigtail neutral
Spaces Required	1
Trip Unit	Electronic
Certifications	UL Listed
Product Height	3.13 in
Product Width	1 in
Product Depth	2.98 in
Manufacturer Warranty	Limited lifetime warranty for the lifetime of the Homeline load center in which it is installed

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with all Square D panels?
A: It is designed for Square D Homeline load centers and CSED devices that accept single-pole breakers and require one space.

---

Q: What voltage does it support?
A: Rated for 120/240 VAC systems.

---

Q: Does it include arc fault protection?
A: Yes, it provides combination AFCI protection against both parallel and series arcing faults.

---

Q: How do Time Saver Diagnostics help?
A: They indicate the type of fault that last occurred, helping you quickly identify and correct issues.

---

Q: What is the interrupt rating?
A: 10,000 AIC.

---

Discreet Safety with Homeline Precision

This streamlined breaker brings invisible confidence to residential projects, elevating everyday living with quiet reliability. The signature Square D design and test button offer a subtle, modern touch within the panel. Pair it with a clean, well-labeled Homeline load center to keep electrical spaces organized and elegant. Essential protection that complements refined, luxurious homes.

---

Protect your home’s circuits with reliable arc-fault defense—add the Homeline 20A AFCI breaker to your panel today.
