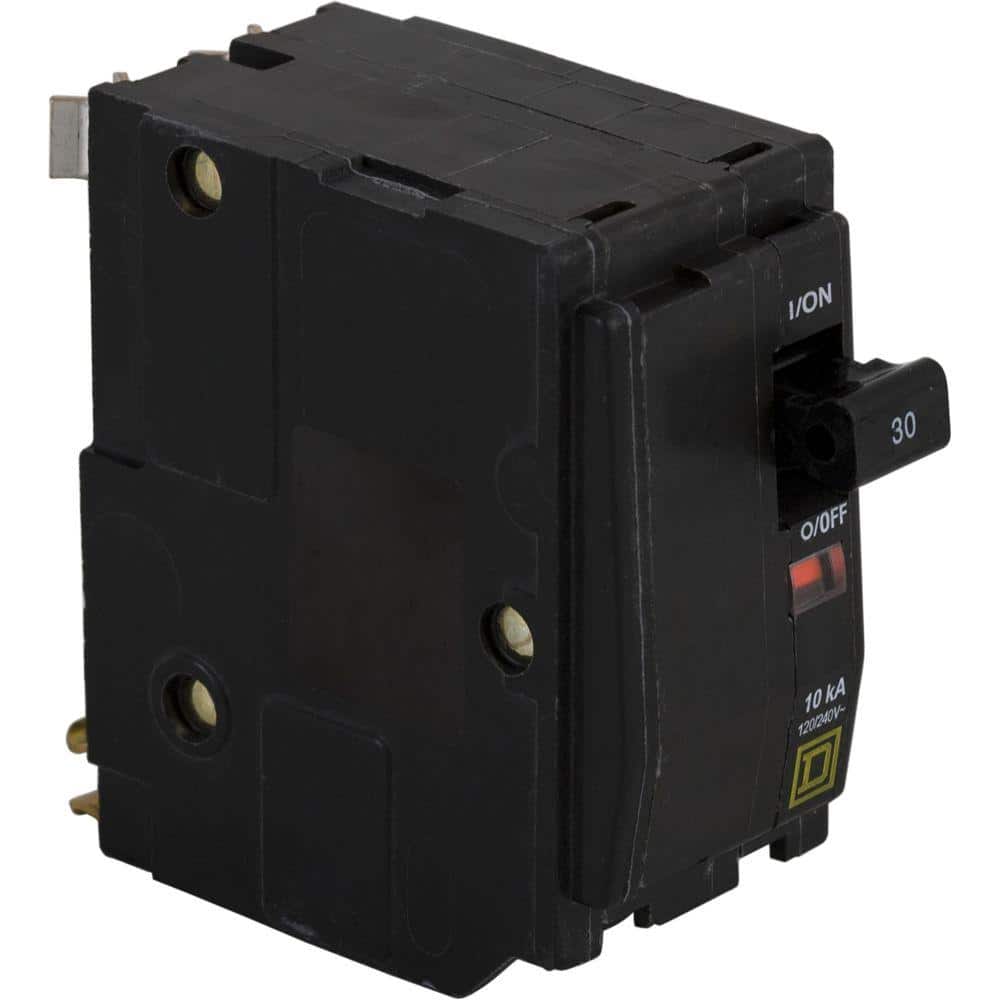

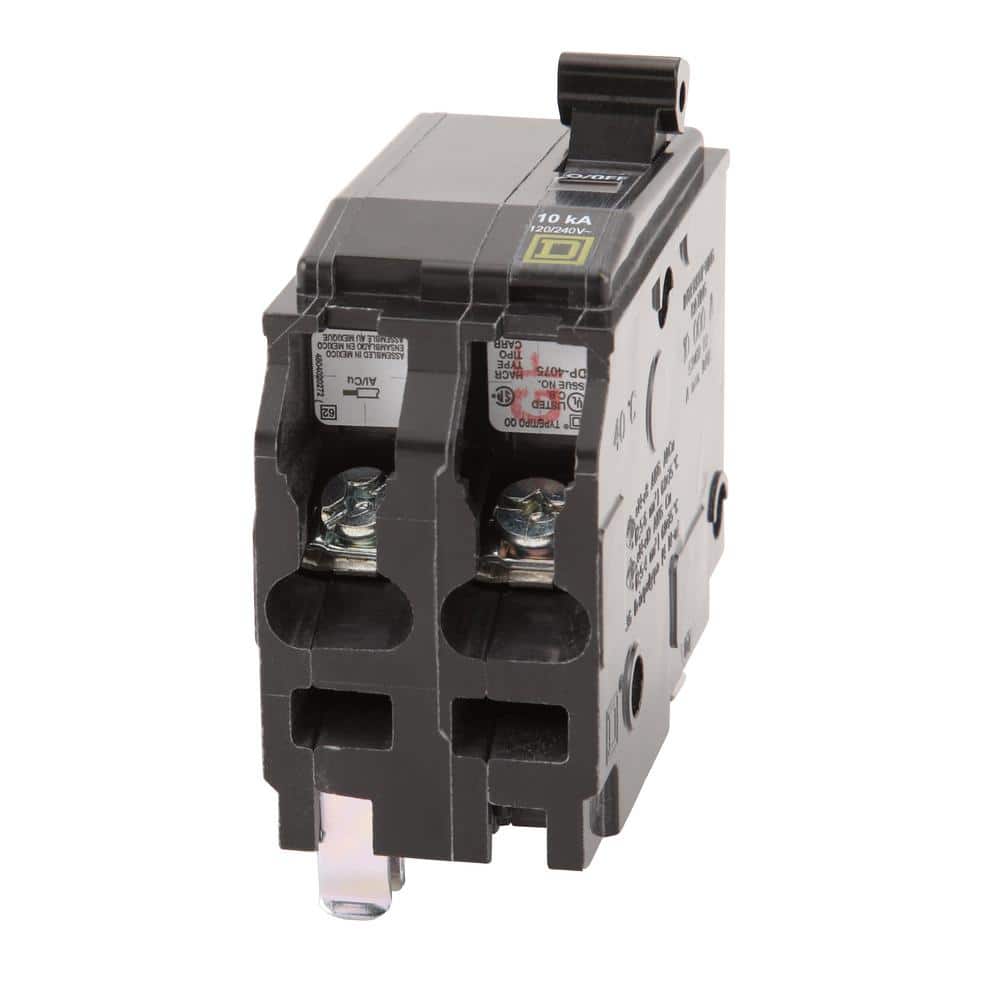

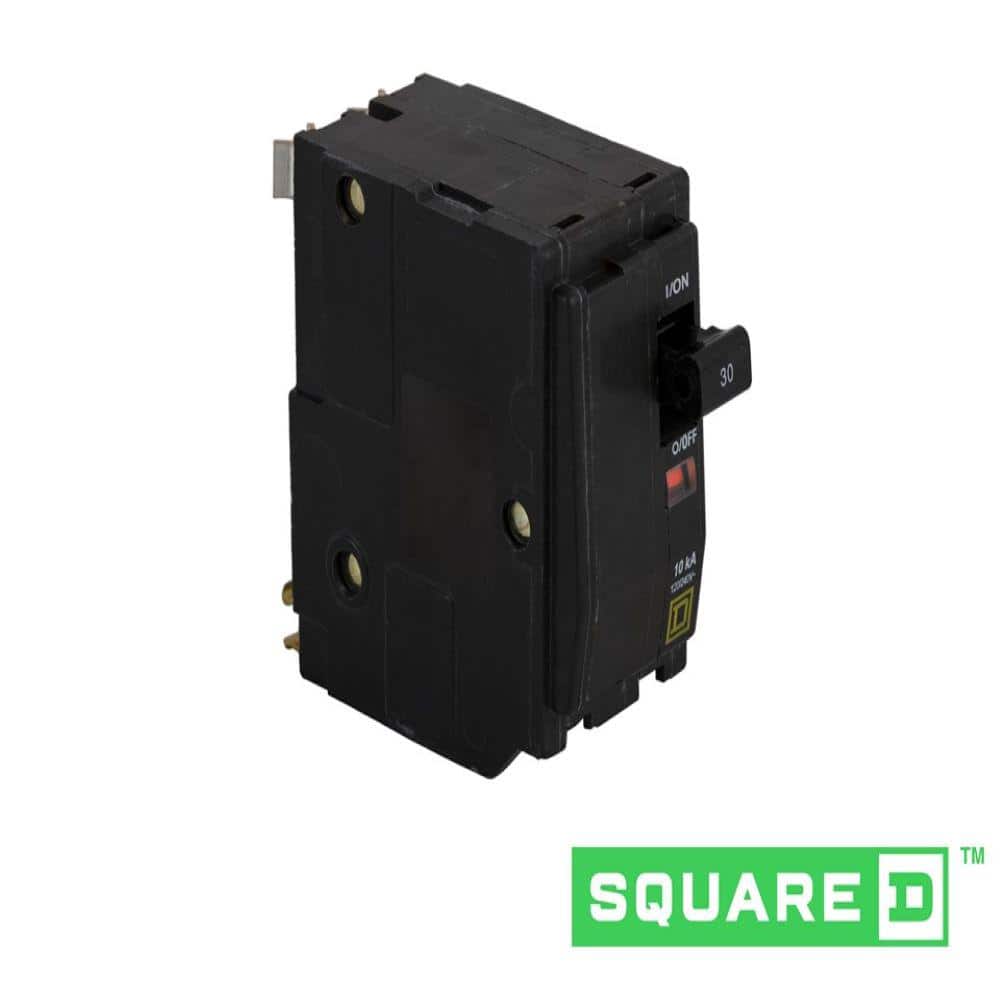

Square D QO 30A Double-Pole Circuit Breaker

A thermal-magnetic, plug-on breaker for Square D QO panels, delivering reliable overload and short-circuit protection. Rated 30A, 120/240 VAC with 10kA interrupting capacity and a Visi-Trip indicator for quick identification of tripped circuits.

---

Key Features:

• Reliable Protection: Thermal-magnetic trip safeguards against overloads and short-circuits
• Easy Panel Compatibility: Plug-on design fits Square D QO load centers and CSEDs requiring 2 spaces

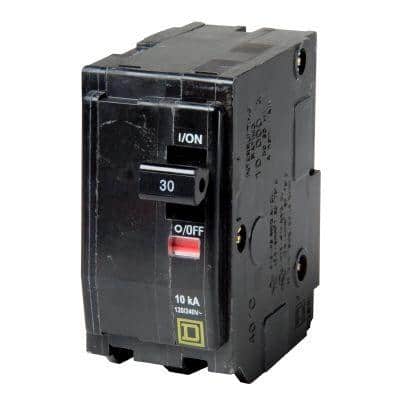

• Quick Troubleshooting: Visi-Trip red indicator clearly shows a tripped breaker
• Durable Performance: 10,000 AIR rating and UL Listed/ANSI certified

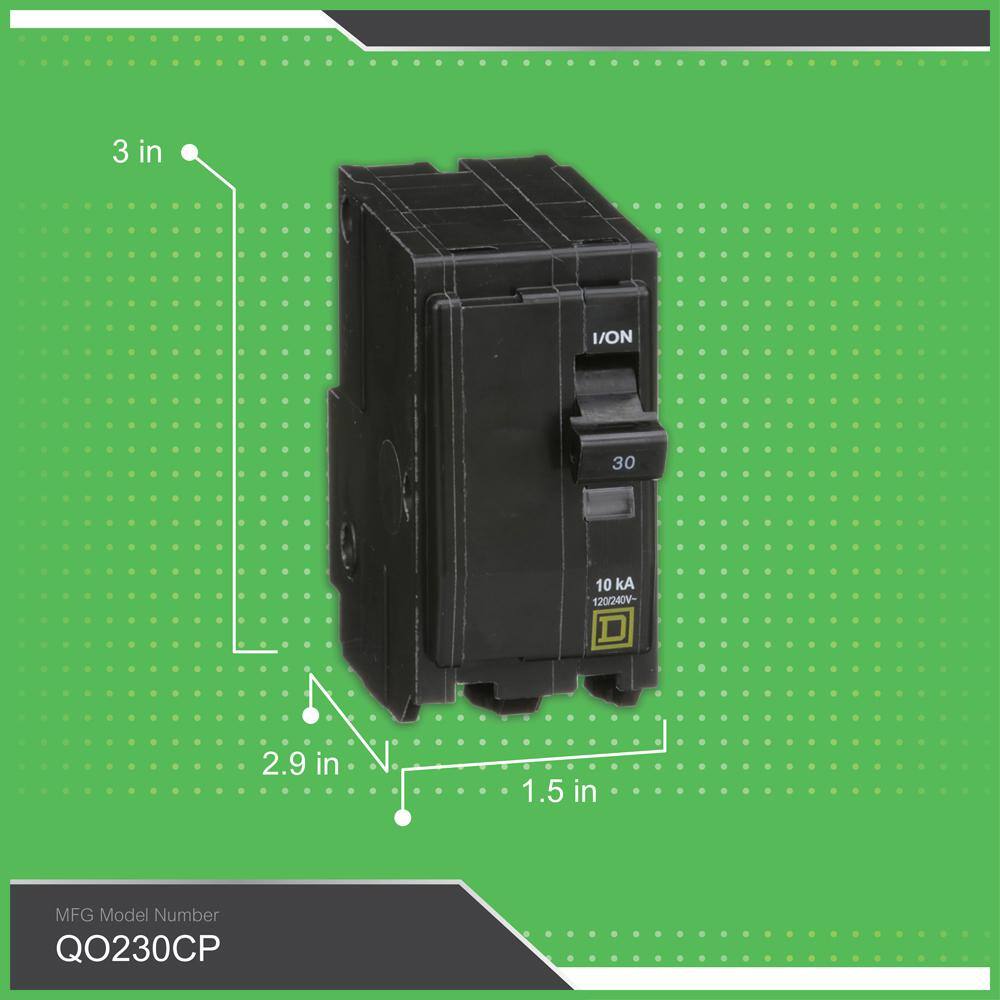

• Compact Dimensions: 3 in H x 2.9 in D x 1.5 in W for straightforward installation

---

Specifications Table:

Specification	Details
Series	QO
Breaker Type	Standard
Trip Unit	Thermal Magnetic
Number of Poles	2 (Double-Pole)
Maximum Amperage	30A
Voltage	120/240 VAC
AIC Rating	10,000 AIR (10kA)
Mounting Type	Plug-On
Connection Type	Non-Neutral
Pack Size	1
Certifications	UL Listed; ANSI certified
Product Height	3 in
Product Depth	2.9 in
Product Width	1.5 in

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my panel?
A: It is designed for Square D QO series panels and CSEDs; confirm your panel is QO and has 2 available spaces.

---

Q: What is the voltage and interrupt rating?
A: 120/240 VAC with a 10kA (10,000 AIR) interrupting capacity.

---

Q: What type of trip mechanism does it use?
A: A thermal-magnetic trip unit for reliable overcurrent protection.

---

Q: Is there a visual indicator when it trips?
A: Yes, the Visi-Trip feature shows a red indicator and the handle moves to a mid position.

---

Q: Does it have a warranty?
A: Square D offers a limited lifetime warranty tied to the QO load center in which it is installed.

---

Streamlined Power Protection with Iconic Square D Precision

This compact breaker brings order and assurance to the hidden heart of a home—your electrical panel. Its clean, black profile and signature Square D mark feel purposeful and polished. I love the intuitive Visi-Trip window; it’s a small detail that makes maintenance chic and effortless. Pair it with a neatly labeled QO panel for a system that looks as refined as it performs—because true luxury is reliability you can trust.

---

Upgrade your panel with dependable protection—add the Square D QO 30A 2‑Pole breaker to your cart today.
