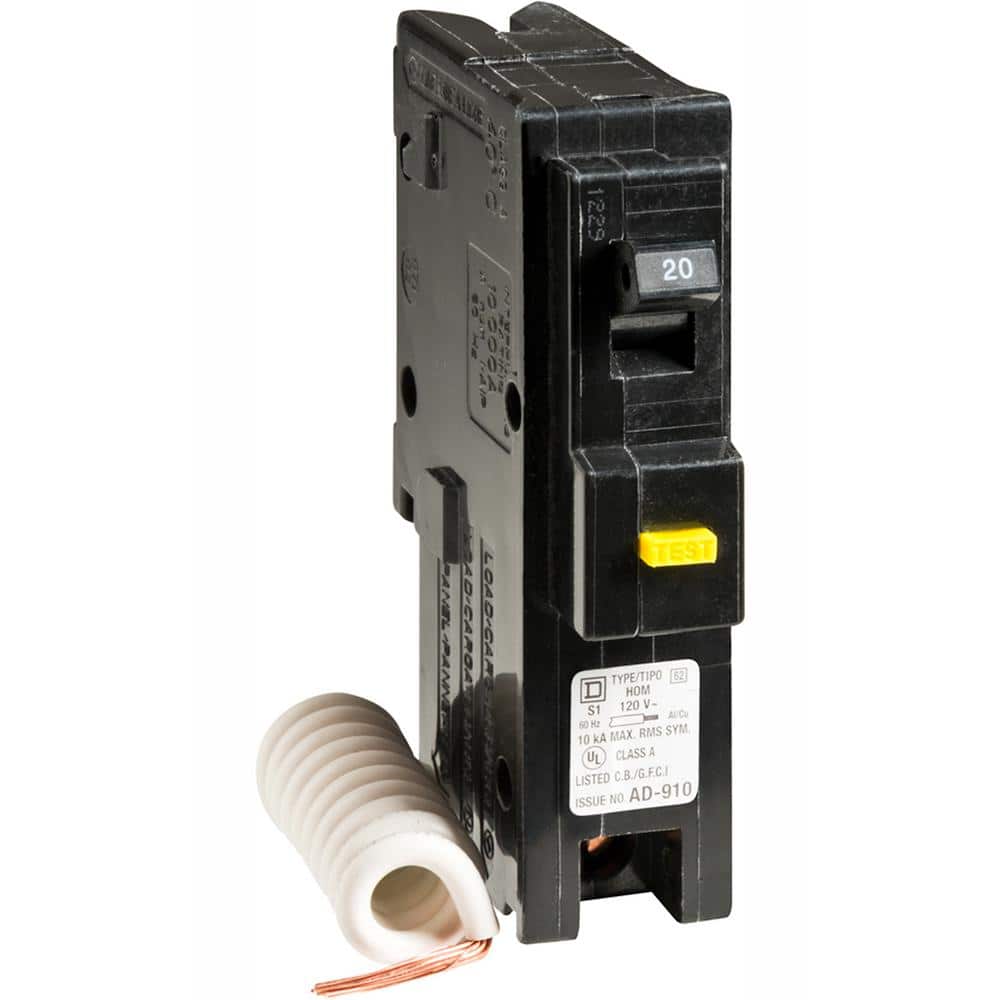

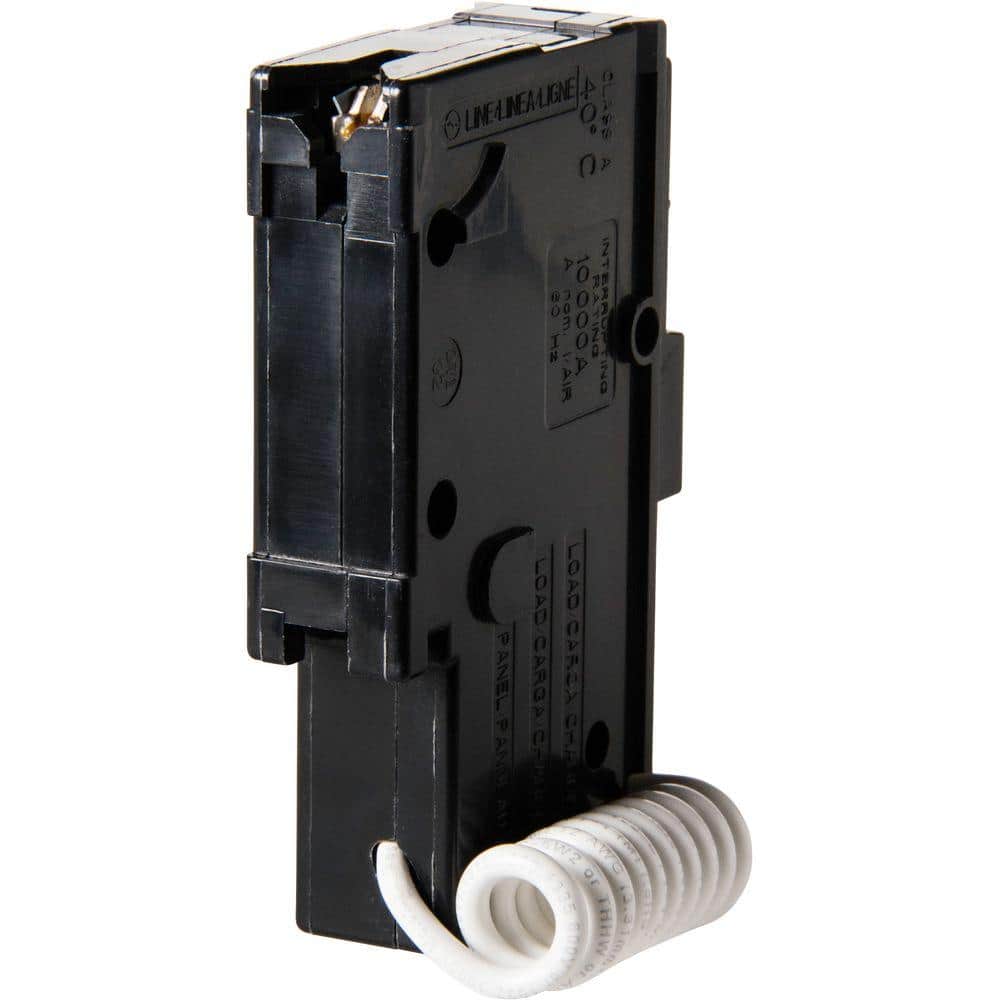

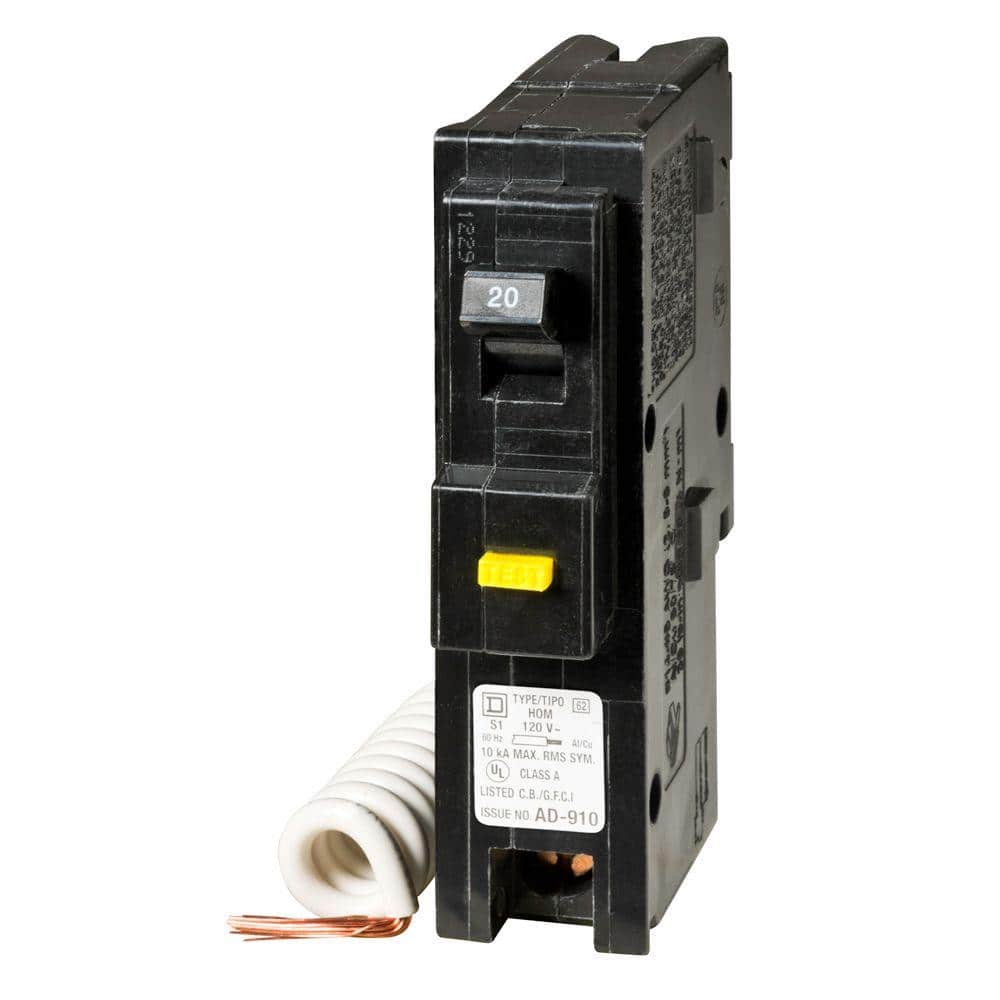

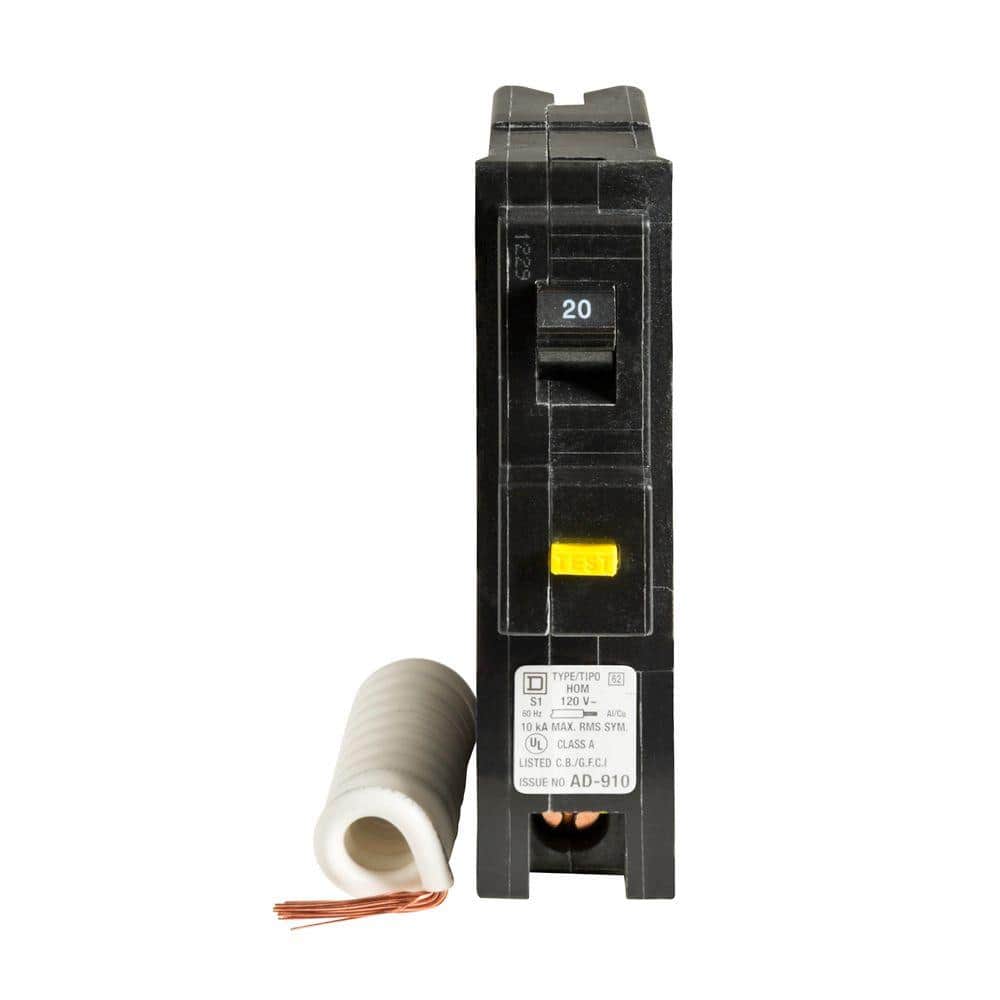

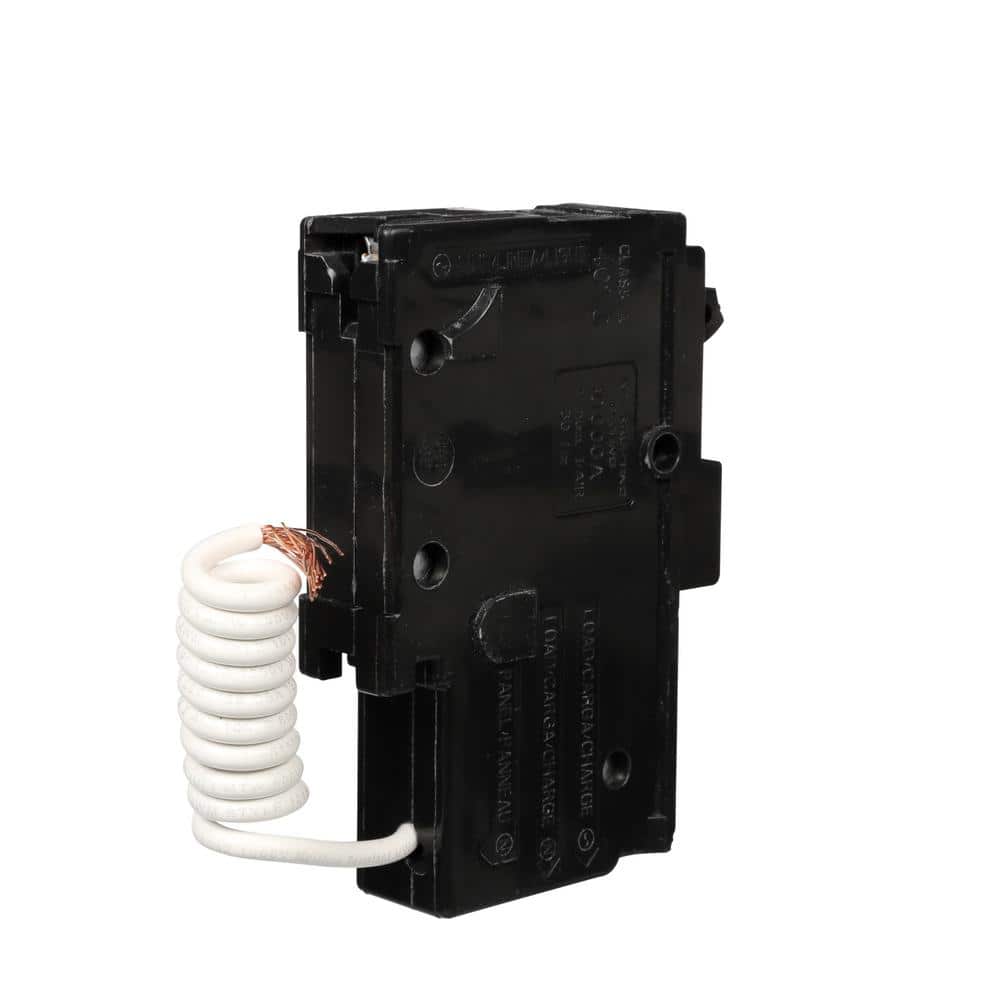

Homeline 20A Single-Pole GFCI Breaker

Square D Homeline 20A GFCI circuit breaker combines overload/short-circuit protection with Class A ground fault protection for safer branch circuits. Designed for plug-on installation in Homeline load centers and CSED devices, it’s UL Listed and rated 10kA interrupting capacity.

---

Key Features:

• Class A GFCI Protection: Trips at 6 mA ground fault for enhanced safety in wet locations
• Homeline Compatibility: Fits Square D Homeline panels and CSEDs, uses 1 space
• Easy Plug-On Install: Pigtail neutral connection simplifies wiring
• Reliable Performance: 10,000 AIC with electronic trip unit, UL Listed
• Residential Ready: 20A single-pole breaker rated 120/240V

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Series	Homeline
Breaker Type	Standard
Interruption Type	GFCI, Class A
Maximum Amperage	20 A
Number of Poles	Single
Mounting Type	Plug-On
Connection Type	Pigtail neutral
Number of Spaces	1
Voltage	120/240 V
AIC Rating	10,000 AIC
Trip Unit	Electronic
Certifications	UL Listed; ANSI certified
Product Weight	0.65 lb
Dimensions (H x W x D)	3.13 in x 1 in x 2.98 in
Pack Size	1
Power Distribution Features	Ground Fault Protection
Manufacturer Warranty	Limited lifetime for the life of the Homeline load center installed

---

Frequently Asked Questions (FAQ):

Q: Will this work in a QO panel?
A: No. It is designed for Square D Homeline load centers and CSED devices only.

---

Q: What voltage circuits can it protect?
A: It is rated for 120/240V applications; commonly used on 120V branch circuits requiring GFCI.

---

Q: How much panel space does it require?
A: It occupies 1 space in a Homeline breaker box.

---

Q: Is there a neutral pigtail?
A: Yes, it includes a pigtail connection for the neutral.

---

Q: What is the interrupting rating?
A: 10,000 AIC (10kA).

---

Essential Safety, Effortless Integration

This sleek, compact breaker brings a refined layer of safety to everyday living, quietly protecting kitchens, baths, and garages with dependable GFCI technology. The signature Homeline profile and bold test button offer a clean, functional detail. Pair it with a streamlined panel layout and crisp labeling for an organized, designer-approved electrical hub. It’s a discreet yet indispensable upgrade for luxurious, worry-free homes.

---

Upgrade your panel with Homeline GFCI protection for safer, code-compliant circuits—add this breaker to your cart today.
