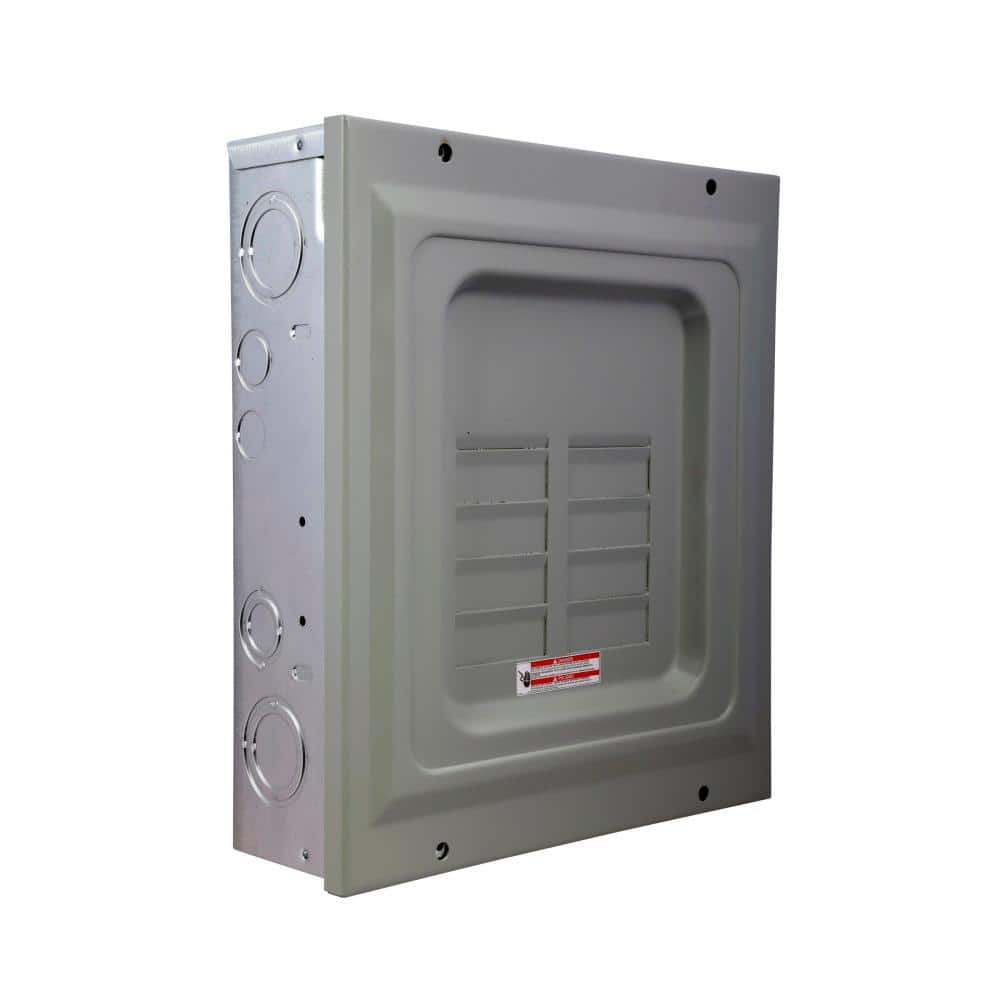

Eaton BR 125 Amp 8-Space 16-Circuit Indoor Main Lug Surface
Regular price $78.12Eaton BR 125 Amp 8-Space 16-Circuit Indoor Main Lug Panel
The Eaton BR 125 Amp 8-Space 16-Circuit Indoor Main Lug Panel is an essential component for expanding your electrical distribution system. Designed for efficiency and ease of installation, this subpanel is perfect for garages, workshops, or home additions. Trusted for over a century, Eaton delivers reliability and safety in every product.
Key Features:
- Easy Installation: Designed for quick setup in a variety of indoor locations.

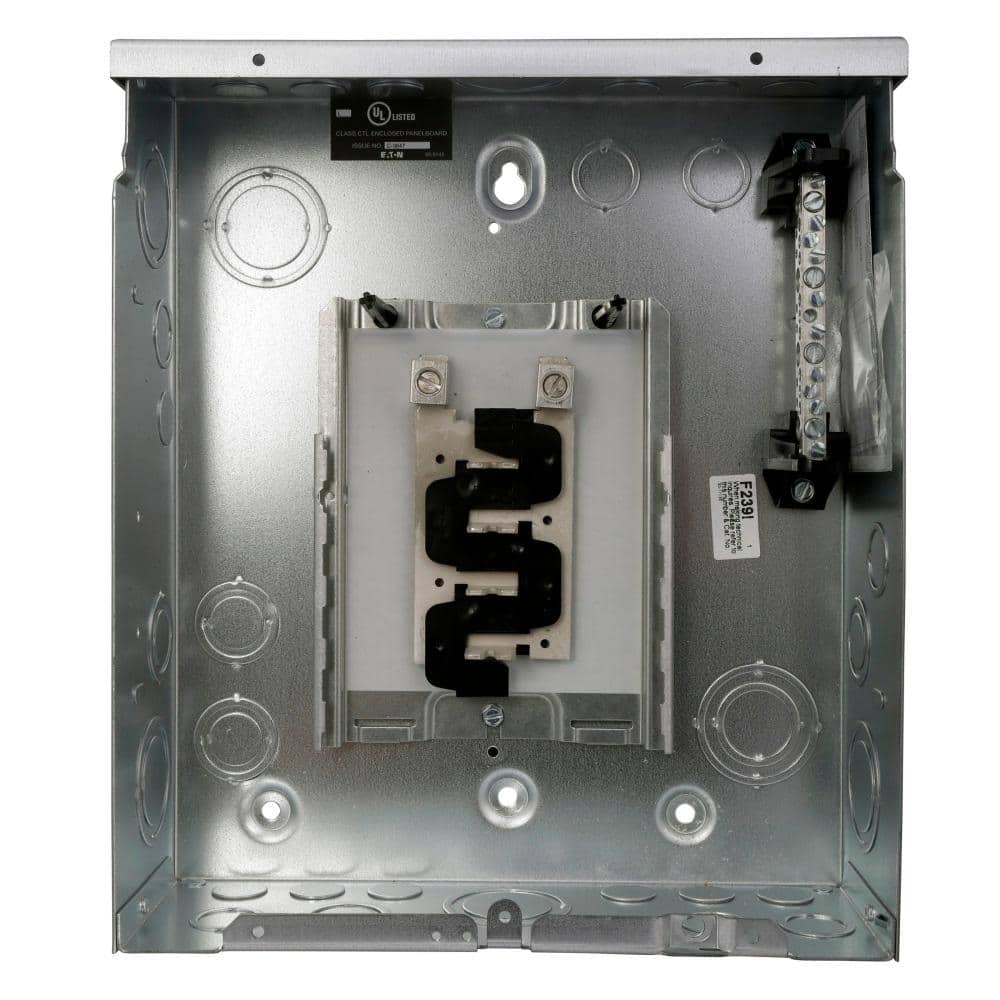

- Durable Construction: Features a steel backpan and tin-plated aluminum bus for long-lasting performance.
- Flexible Use: Supports up to 16 circuits with 8 spaces; ideal for adding circuits to your existing panel.
- Convenient Mounting: Single keyhole design ensures easier mounting and leveling on walls.
- Reliable Performance: Compatible with Type BR 1-inch breakers and suitable for use as service equipment under specific conditions.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 125 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 16 |
| Number of Spaces | 8 |
| Product Weight (lb.) | 9.3 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | 10 Year Limited |
| Product Depth (in.) | 14 in |
| Product Height (in.) | 4.6 in |
| Product Width (in.) | 11.6 in |
Frequently Asked Questions (FAQ):
Q: Can this panel be used outdoors?
A: No, this Eaton BR panel is designed specifically for indoor use.
Q: What type of wiring is compatible with this panel?
A: It supports #14-1 AWG copper or aluminum wiring.
Q: Does the panel come with a ground bar?
A: The panel requires a GBK10 ground bar, which is sold separately.
Q: Is it suitable for flush mounting?
A: Yes, it includes drywall marking for proper mounting depth for flush installations.
Q: Can this be used as the main panel in a home?
A: It is suitable for use as service equipment only under specific conditions; consult an electrician for details.
Powerfully Chic and Efficient
Elevate your home's functionality with the Eaton BR Main Lug Panel – a perfect blend of form and substance for the modern space. Its rugged steel composition ensures not just reliability but a seamless integration into your utility area, providing a sleek and organized look. Style it in your garage or workshop to not only enhance the electrical infrastructure but to also add a touch of industrial chic with its minimalist design. Truly, it is an indispensable component for a well-appointed and efficient home.
Enhance your electrical system's capacity with the Eaton BR 125 Amp Panel today and ensure reliable power distribution for all your projects.
